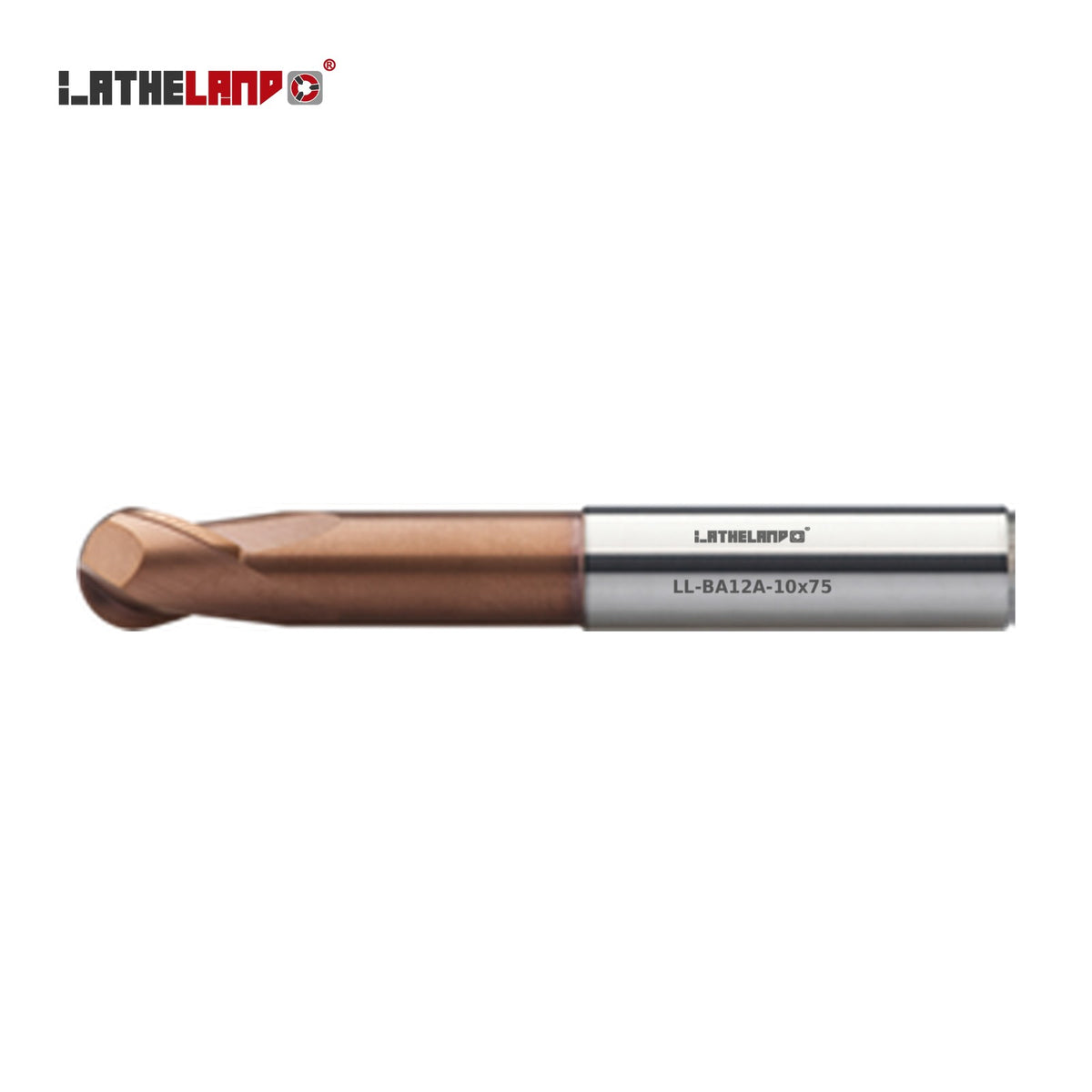

Ball nose cutters: Ball nose cutters from Ø0.1 mm, in standard, long, extra-long, long-neck and taper-neck versions.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | BA12 |
| Material | Solid carbide |
| Coating | AlTiN / TiSiN multilayer |
| Flutes | 2 |
| Helix angle | 30° |
| Workpiece hardness | 36–50 HRC |
| Best for | steel, stainless steel, cast iron, titanium & superalloys, hardened steel |
| Range | Ø1–20 mm |
| Sizes available | 92 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| BA12A | AlTiN | 23 |
| BA12AR | AlTiN, neck recess | 23 |
| BA12S | TiSiN multilayer | 23 |
| BA12SR | TiSiN multilayer, neck recess | 23 |

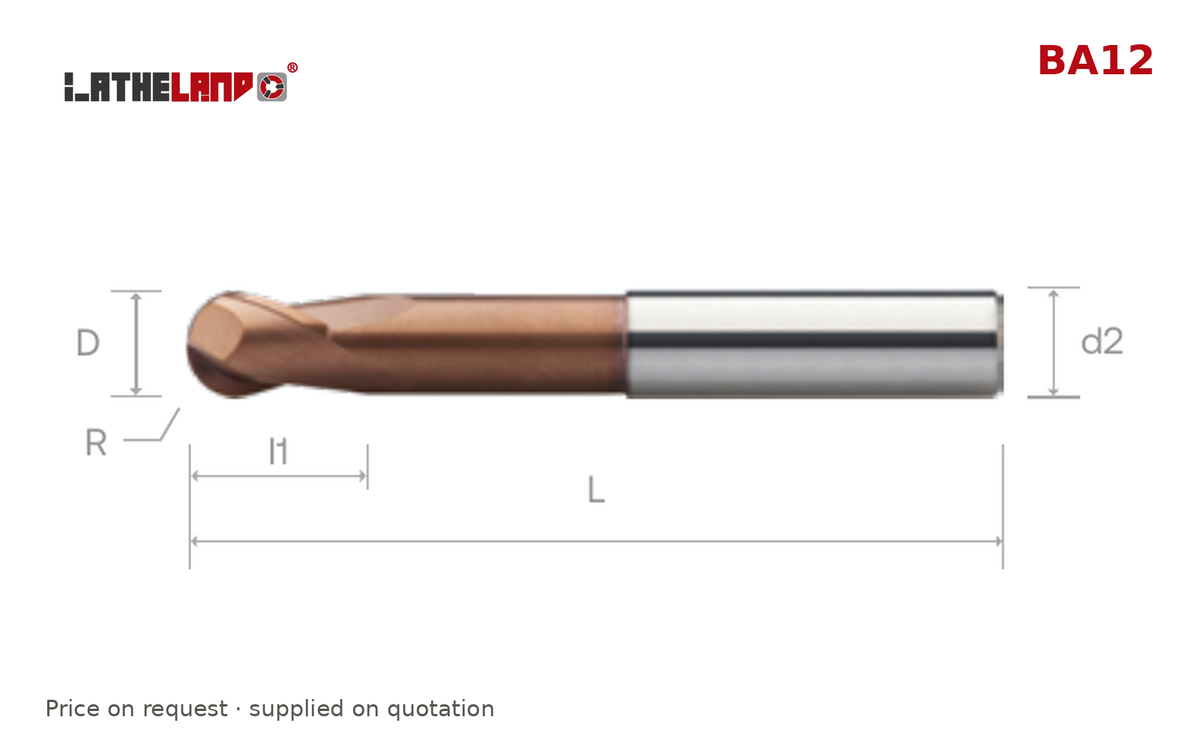

| SKU | Ø D | R | l1 | l2 | L | d2 |
|---|---|---|---|---|---|---|
| LL-BA12A-1x60 | 1 | 0.5 | 3 | 60 | 3 | |
| LL-BA12A-1x75 | 1 | 0.5 | 3 | 75 | 4 | |
| LL-BA12A-1.5x60 | 1.5 | 0.75 | 3 | 60 | 3 | |
| LL-BA12A-1.5x75 | 1.5 | 0.75 | 3 | 75 | 4 | |
| LL-BA12A-2x60 | 2 | 1 | 4 | 60 | 3 | |
| LL-BA12A-2x75 | 2 | 1 | 4 | 75 | 4 | |
| LL-BA12A-2.5x60 | 2.5 | 1.25 | 4 | 60 | 3 | |
| LL-BA12A-2.5x75 | 2.5 | 1.25 | 4 | 75 | 4 | |
| LL-BA12A-3 | 3 | 1.5 | 5 | 60 | 3 | |
| LL-BA12A-3x75 | 3 | 1.5 | 5 | 75 | 6 | |
| LL-BA12A-4 | 4 | 2 | 8 | 60 | 4 | |
| LL-BA12A-4x75 | 4 | 2 | 8 | 75 | 6 | |
| LL-BA12A-5 | 5 | 2.5 | 9 | 60 | 5 | |
| LL-BA12A-5x75 | 5 | 2.5 | 9 | 75 | 6 | |
| LL-BA12A-6 | 6 | 3 | 10 | 75 | 6 | |
| LL-BA12A-8 | 8 | 4 | 12 | 75 | 8 | |
| LL-BA12A-10x75 | 10 | 5 | 14 | 75 | 10 | |
| LL-BA12A-10x100 | 10 | 5 | 14 | 100 | 10 | |
| LL-BA12A-12 | 12 | 6 | 16 | 100 | 12 | |
| LL-BA12A-14 | 14 | 7 | 32 | 125 | 14 | |
| LL-BA12A-16 | 16 | 8 | 32 | 125 | 16 | |
| LL-BA12A-18 | 18 | 9 | 38 | 125 | 18 | |
| LL-BA12A-20 | 20 | 10 | 38 | 125 | 20 | |
| LL-BA12AR-1x60 | 1 | 0.5 | 3 | 7 | 60 | 3 |
| LL-BA12AR-1x75 | 1 | 0.5 | 3 | 7 | 75 | 4 |
| LL-BA12AR-1.5x60 | 1.5 | 0.75 | 3 | 10 | 60 | 3 |
| LL-BA12AR-1.5x75 | 1.5 | 0.75 | 3 | 10 | 75 | 4 |
| LL-BA12AR-2x60 | 2 | 1 | 4 | 14 | 60 | 3 |
| LL-BA12AR-2x75 | 2 | 1 | 4 | 14 | 75 | 4 |
| LL-BA12AR-2.5x60 | 2.5 | 1.25 | 4 | 18 | 60 | 3 |
| LL-BA12AR-2.5x75 | 2.5 | 1.25 | 5 | 18 | 75 | 4 |
| LL-BA12AR-3 | 3 | 1.5 | 5 | 21 | 60 | 3 |
| LL-BA12AR-3x75 | 3 | 1.5 | 5 | 21 | 75 | 6 |
| LL-BA12AR-4 | 4 | 2 | 8 | 28 | 60 | 4 |
| LL-BA12AR-4x75 | 4 | 2 | 8 | 28 | 75 | 6 |
| LL-BA12AR-5 | 5 | 2.5 | 9 | 32 | 60 | 5 |
| LL-BA12AR-5x75 | 5 | 2.5 | 9 | 32 | 75 | 6 |
| LL-BA12AR-6 | 6 | 3 | 10 | 40 | 75 | 6 |
| LL-BA12AR-8 | 8 | 4 | 12 | 40 | 75 | 8 |
| LL-BA12AR-10x75 | 10 | 5 | 14 | 40 | 75 | 10 |
| LL-BA12AR-10x100 | 10 | 5 | 14 | 60 | 100 | 10 |
| LL-BA12AR-12 | 12 | 6 | 16 | 60 | 100 | 12 |
| LL-BA12AR-14 | 14 | 7 | 32 | 80 | 125 | 14 |
| LL-BA12AR-16 | 16 | 8 | 32 | 80 | 125 | 16 |
| LL-BA12AR-18 | 18 | 9 | 38 | 80 | 125 | 18 |
| LL-BA12AR-20 | 20 | 10 | 38 | 80 | 125 | 20 |
| LL-BA12S-1x60 | 1 | 0.5 | 3 | 60 | 3 | |
| LL-BA12S-1x75 | 1 | 0.5 | 3 | 75 | 4 | |
| LL-BA12S-1.5x60 | 1.5 | 0.75 | 60 | 3 | ||
| LL-BA12S-1.5x75 | 1.5 | 0.75 | 3 | 75 | 4 | |
| LL-BA12S-2x60 | 2 | 1 | 4 | 60 | 3 | |
| LL-BA12S-2x75 | 2 | 1 | 4 | 75 | 4 | |
| LL-BA12S-2.5x60 | 2.5 | 1.25 | 4 | 60 | 3 | |
| LL-BA12S-2.5x75 | 2.5 | 1.25 | 4 | 75 | 4 | |
| LL-BA12S-3 | 3 | 1.5 | 5 | 60 | 3 | |
| LL-BA12S-3x75 | 3 | 1.5 | 5 | 75 | 6 | |
| LL-BA12S-4 | 4 | 2 | 8 | 60 | 4 | |
| LL-BA12S-4x75 | 4 | 2 | 8 | 75 | 6 | |
| LL-BA12S-5 | 5 | 2.5 | 9 | 60 | 5 | |
| LL-BA12S-5x75 | 5 | 2.5 | 9 | 75 | 6 | |
| LL-BA12S-6 | 6 | 3 | 10 | 75 | 6 | |
| LL-BA12S-8 | 8 | 4 | 12 | 75 | 8 | |
| LL-BA12S-10x75 | 10 | 5 | 14 | 75 | 10 | |
| LL-BA12S-10x100 | 10 | 5 | 14 | 100 | 10 | |
| LL-BA12S-12 | 12 | 6 | 16 | 100 | 12 | |
| LL-BA12S-14 | 14 | 7 | 32 | 125 | 14 | |
| LL-BA12S-16 | 16 | 8 | 32 | 125 | 16 | |
| LL-BA12S-18 | 18 | 9 | 38 | 125 | 18 | |
| LL-BA12S-20 | 20 | 10 | 38 | 125 | 20 | |
| LL-BA12SR-1x60 | 1 | 0.5 | 3 | 7 | 60 | 3 |
| LL-BA12SR-1x75 | 1 | 0.5 | 3 | 7 | 75 | 4 |
| LL-BA12SR-1.5x60 | 1.5 | 0.75 | 3 | 10 | 60 | 3 |
| LL-BA12SR-1.5x75 | 1.5 | 0.75 | 3 | 10 | 75 | 4 |
| LL-BA12SR-2x60 | 2 | 1 | 4 | 14 | 60 | 3 |
| LL-BA12SR-2x75 | 2 | 1 | 4 | 14 | 75 | 4 |
| LL-BA12SR-2.5x60 | 2.5 | 1.25 | 4 | 18 | 60 | 3 |
| LL-BA12SR-2.5x75 | 2.5 | 1.25 | 5 | 18 | 75 | 4 |
| LL-BA12SR-3 | 3 | 1.5 | 5 | 21 | 60 | 3 |
| LL-BA12SR-3x75 | 3 | 1.5 | 5 | 21 | 75 | 6 |
| LL-BA12SR-4 | 4 | 2 | 8 | 28 | 60 | 4 |
| LL-BA12SR-4x75 | 4 | 2 | 8 | 28 | 75 | 6 |
| LL-BA12SR-5 | 5 | 2.5 | 9 | 32 | 60 | 5 |
| LL-BA12SR-5x75 | 5 | 2.5 | 9 | 32 | 75 | 6 |
| LL-BA12SR-6 | 6 | 3 | 10 | 40 | 75 | 6 |
| LL-BA12SR-8 | 8 | 4 | 12 | 40 | 75 | 8 |
| LL-BA12SR-10x75 | 10 | 5 | 14 | 40 | 75 | 10 |
| LL-BA12SR-10x100 | 10 | 5 | 14 | 60 | 100 | 10 |
| LL-BA12SR-12 | 12 | 6 | 16 | 60 | 100 | 12 |
| LL-BA12SR-14 | 14 | 7 | 32 | 80 | 125 | 14 |
| LL-BA12SR-16 | 16 | 8 | 32 | 80 | 125 | 16 |
| LL-BA12SR-18 | 18 | 9 | 38 | 80 | 125 | 18 |
| LL-BA12SR-20 | 20 | 10 | 38 | 80 | 125 | 20 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
