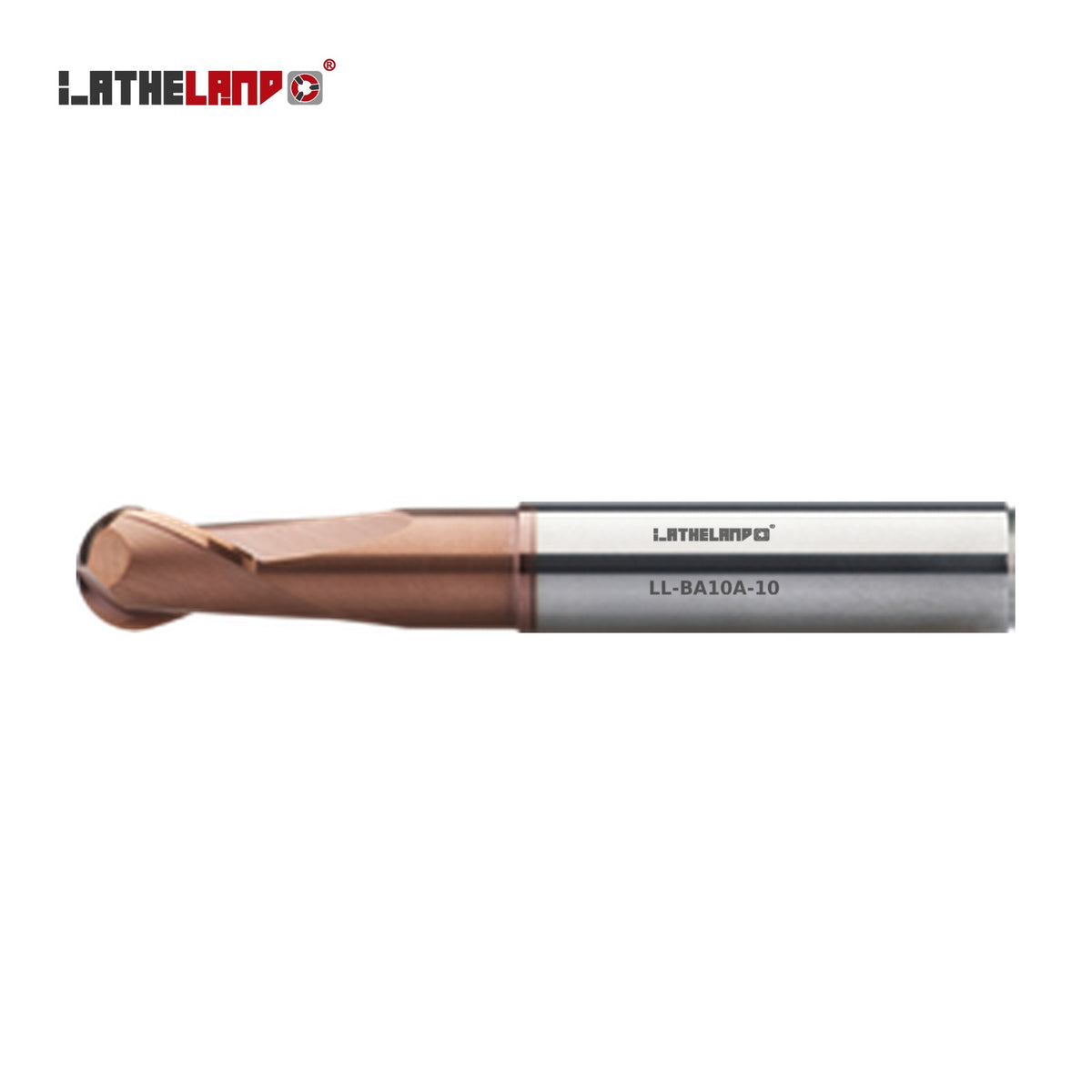

Ball nose cutters: Ball nose cutters from Ø0.1 mm, in standard, long, extra-long, long-neck and taper-neck versions.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | BA10 |
| Material | Solid carbide |
| Coating | AlTiN / TiSiN multilayer |
| Flutes | 2 |
| Helix angle | 30° |
| Workpiece hardness | 36–50 HRC |
| Best for | steel, stainless steel, cast iron, titanium & superalloys, hardened steel |
| Range | Ø1–25 mm |
| Sizes available | 104 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| BA10A | AlTiN | 26 |
| BA10AR | AlTiN, neck recess | 26 |
| BA10S | TiSiN multilayer | 26 |
| BA10SR | TiSiN multilayer, neck recess | 26 |

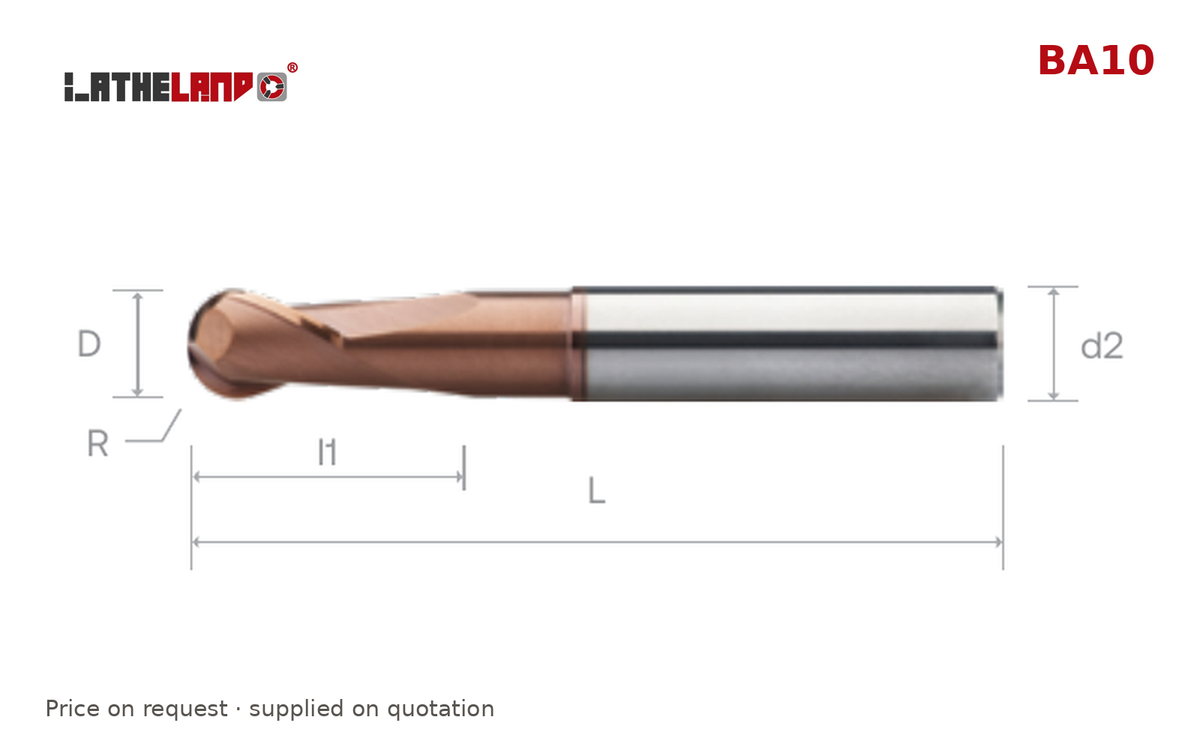

| SKU | Ø D | R | l1 | l2 | L | d2 |
|---|---|---|---|---|---|---|
| LL-BA10A-1x40-S3 | 1 | 0.5 | 3 | 40 | 3 | |
| LL-BA10A-1x50-S4 | 1 | 0.5 | 3 | 50 | 4 | |
| LL-BA10A-1.5x40-S3 | 1.5 | 0.75 | 3 | 40 | 3 | |
| LL-BA10A-1.5x50-S4 | 1.5 | 0.75 | 3 | 50 | 4 | |
| LL-BA10A-2x40-S3 | 2 | 1 | 4 | 40 | 3 | |
| LL-BA10A-2x50-S4 | 2 | 1 | 4 | 50 | 4 | |
| LL-BA10A-2.5x40-S3 | 2.5 | 1.25 | 4 | 40 | 3 | |
| LL-BA10A-2.5x50-S4 | 2.5 | 1.25 | 4 | 50 | 4 | |
| LL-BA10A-3 | 3 | 1.5 | 5 | 40 | 3 | |
| LL-BA10A-3x50-S4 | 3 | 1.5 | 5 | 50 | 4 | |
| LL-BA10A-3x50-S6 | 3 | 1.5 | 5 | 50 | 6 | |
| LL-BA10A-4 | 4 | 2 | 8 | 50 | 4 | |
| LL-BA10A-4x50-S6 | 4 | 2 | 8 | 50 | 6 | |
| LL-BA10A-5 | 5 | 2.5 | 9 | 50 | 5 | |
| LL-BA10A-5x50-S6 | 5 | 2.5 | 9 | 50 | 6 | |
| LL-BA10A-6x50 | 6 | 3 | 10 | 50 | 6 | |
| LL-BA10A-6x60 | 6 | 3 | 10 | 60 | 6 | |
| LL-BA10A-8 | 8 | 4 | 12 | 64 | 8 | |
| LL-BA10A-10 | 10 | 5 | 14 | 70 | 10 | |
| LL-BA10A-12 | 12 | 6 | 16 | 75 | 12 | |
| LL-BA10A-14 | 14 | 7 | 32 | 90 | 14 | |
| LL-BA10A-16 | 16 | 8 | 32 | 90 | 16 | |
| LL-BA10A-18 | 18 | 9 | 38 | 100 | 18 | |
| LL-BA10A-20 | 20 | 10 | 38 | 100 | 20 | |
| LL-BA10A-22 | 22 | 11 | 40 | 100 | 22 | |
| LL-BA10A-25 | 25 | 12.5 | 40 | 100 | 25 | |
| LL-BA10AR-1x40-S3 | 1 | 0.5 | 40 | 3 | ||
| LL-BA10AR-1x50-S4 | 1 | 0.5 | 3 | 4 | 50 | 4 |
| LL-BA10AR-1.5x40-S3 | 1.5 | 0.75 | 3 | 6 | 40 | 3 |
| LL-BA10AR-1.5x50-S4 | 1.5 | 0.75 | 3 | 6 | 50 | 4 |
| LL-BA10AR-2x40-S3 | 2 | 1 | 4 | 8 | 40 | 3 |
| LL-BA10AR-2x50-S4 | 2 | 1 | 4 | 8 | 50 | 4 |
| LL-BA10AR-2.5x40-S3 | 2.5 | 1.25 | 4 | 10 | 40 | 3 |
| LL-BA10AR-2.5x50-S4 | 2.5 | 1.25 | 4 | 10 | 50 | 4 |
| LL-BA10AR-3 | 3 | 1.5 | 5 | 14 | 40 | 3 |
| LL-BA10AR-3x50-S4 | 3 | 1.5 | 5 | 14 | 50 | 4 |
| LL-BA10AR-3x50-S6 | 3 | 1.5 | 5 | 14 | 50 | 6 |
| LL-BA10AR-4 | 4 | 2 | 8 | 20 | 50 | 4 |
| LL-BA10AR-4x50-S6 | 4 | 2 | 8 | 20 | 50 | 6 |
| LL-BA10AR-5 | 5 | 2.5 | 9 | 20 | 50 | 5 |
| LL-BA10AR-5x50-S6 | 5 | 2.5 | 9 | 20 | 50 | 6 |
| LL-BA10AR-6x50 | 6 | 3 | 10 | 20 | 50 | 6 |
| LL-BA10AR-6x60 | 6 | 3 | 10 | 30 | 60 | 6 |
| LL-BA10AR-8 | 8 | 4 | 12 | 30 | 64 | 8 |
| LL-BA10AR-10 | 10 | 5 | 14 | 32 | 70 | 10 |
| LL-BA10AR-12 | 12 | 6 | 16 | 38 | 75 | 12 |
| LL-BA10AR-14 | 14 | 7 | 32 | 44 | 90 | 14 |
| LL-BA10AR-16 | 16 | 8 | 32 | 46 | 90 | 16 |
| LL-BA10AR-18 | 18 | 9 | 38 | 53 | 100 | 18 |
| LL-BA10AR-20 | 20 | 10 | 38 | 58 | 100 | 20 |
| LL-BA10AR-22 | 22 | 11 | 40 | 58 | 100 | 22 |
| LL-BA10AR-25 | 25 | 12.5 | 40 | 58 | 100 | 25 |
| LL-BA10S-1x40-S3 | 1 | 0.5 | 3 | 40 | 3 | |
| LL-BA10S-1x50-S4 | 1 | 0.5 | 3 | 50 | 4 | |
| LL-BA10S-1.5x40-S3 | 1.5 | 0.75 | 40 | 3 | ||
| LL-BA10S-1.5x50-S4 | 1.5 | 0.75 | 3 | 50 | 4 | |
| LL-BA10S-2x40-S3 | 2 | 1 | 4 | 40 | 3 | |
| LL-BA10S-2x50-S4 | 2 | 1 | 4 | 50 | 4 | |
| LL-BA10S-2.5x40-S3 | 2.5 | 1.25 | 4 | 40 | 3 | |
| LL-BA10S-2.5x50-S4 | 2.5 | 1.25 | 4 | 50 | 4 | |
| LL-BA10S-3 | 3 | 1.5 | 5 | 40 | 3 | |
| LL-BA10S-3x50-S4 | 3 | 1.5 | 5 | 50 | 4 | |
| LL-BA10S-3x50-S6 | 3 | 1.5 | 5 | 50 | 6 | |
| LL-BA10S-4 | 4 | 2 | 8 | 50 | 4 | |
| LL-BA10S-4x50-S6 | 4 | 2 | 8 | 50 | 6 | |
| LL-BA10S-5 | 5 | 2.5 | 9 | 50 | 5 | |
| LL-BA10S-5x50-S6 | 5 | 2.5 | 9 | 50 | 6 | |
| LL-BA10S-6x50 | 6 | 3 | 10 | 50 | 6 | |
| LL-BA10S-6x60 | 6 | 3 | 10 | 60 | 6 | |
| LL-BA10S-8 | 8 | 4 | 12 | 64 | 8 | |
| LL-BA10S-10 | 10 | 5 | 14 | 70 | 10 | |
| LL-BA10S-12 | 12 | 6 | 16 | 75 | 12 | |
| LL-BA10S-14 | 14 | 7 | 32 | 90 | 14 | |
| LL-BA10S-16 | 16 | 8 | 32 | 90 | 16 | |
| LL-BA10S-18 | 18 | 9 | 38 | 100 | 18 | |
| LL-BA10S-20 | 20 | 10 | 38 | 100 | 20 | |
| LL-BA10S-22 | 22 | 11 | 40 | 100 | 22 | |
| LL-BA10S-25 | 25 | 12.5 | 40 | 100 | 25 | |
| LL-BA10SR-1x40-S3 | 1 | 0.5 | 40 | 3 | ||
| LL-BA10SR-1x50-S4 | 1 | 0.5 | 3 | 4 | 50 | 4 |
| LL-BA10SR-1.5x40-S3 | 1.5 | 0.75 | 3 | 6 | 40 | 3 |
| LL-BA10SR-1.5x50-S4 | 1.5 | 0.75 | 3 | 6 | 50 | 4 |
| LL-BA10SR-2x40-S3 | 2 | 1 | 4 | 8 | 40 | 3 |
| LL-BA10SR-2x50-S4 | 2 | 1 | 4 | 8 | 50 | 4 |
| LL-BA10SR-2.5x40-S3 | 2.5 | 1.25 | 4 | 10 | 40 | 3 |
| LL-BA10SR-2.5x50-S4 | 2.5 | 1.25 | 4 | 10 | 50 | 4 |
| LL-BA10SR-3 | 3 | 1.5 | 5 | 14 | 40 | 3 |
| LL-BA10SR-3x50-S4 | 3 | 1.5 | 5 | 14 | 50 | 4 |
| LL-BA10SR-3x50-S6 | 3 | 1.5 | 5 | 14 | 50 | 6 |
| LL-BA10SR-4 | 4 | 2 | 8 | 20 | 50 | 4 |
| LL-BA10SR-4x50-S6 | 4 | 2 | 8 | 20 | 50 | 6 |
| LL-BA10SR-5 | 5 | 2.5 | 9 | 20 | 50 | 5 |
| LL-BA10SR-5x50-S6 | 5 | 2.5 | 9 | 20 | 50 | 6 |
| LL-BA10SR-6x50 | 6 | 3 | 10 | 20 | 50 | 6 |
| LL-BA10SR-6x60 | 6 | 3 | 10 | 30 | 60 | 6 |
| LL-BA10SR-8 | 8 | 4 | 12 | 30 | 64 | 8 |
| LL-BA10SR-10 | 10 | 5 | 14 | 32 | 70 | 10 |
| LL-BA10SR-12 | 12 | 6 | 16 | 38 | 75 | 12 |
| LL-BA10SR-14 | 14 | 7 | 32 | 44 | 90 | 14 |
| LL-BA10SR-16 | 16 | 8 | 32 | 46 | 90 | 16 |
| LL-BA10SR-18 | 18 | 9 | 38 | 53 | 100 | 18 |
| LL-BA10SR-20 | 20 | 10 | 38 | 58 | 100 | 20 |
| LL-BA10SR-22 | 22 | 11 | 40 | 58 | 100 | 22 |
| LL-BA10SR-25 | 25 | 12.5 | 40 | 58 | 100 | 25 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
