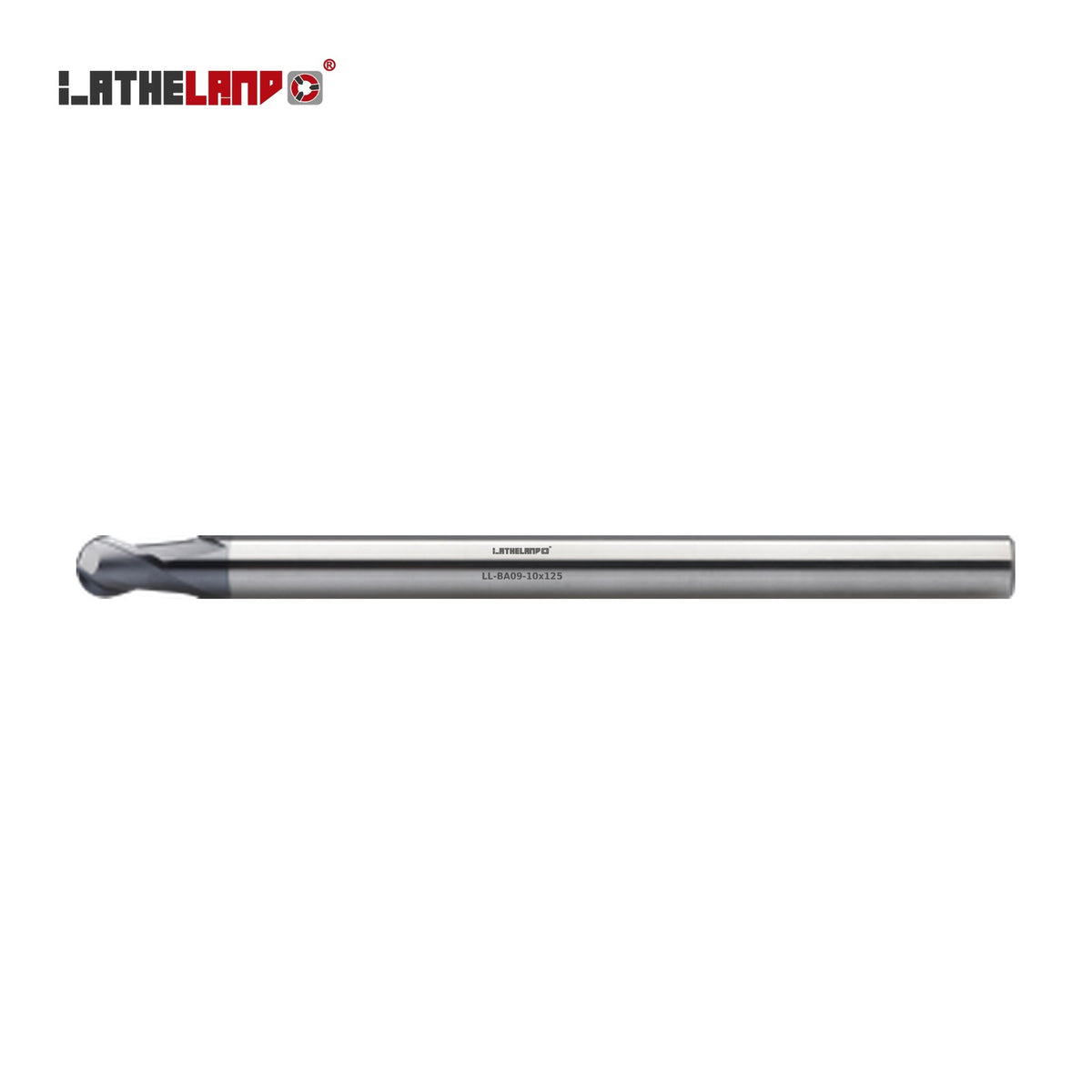

Ball nose cutters: Ball nose cutters from Ø0.1 mm, in standard, long, extra-long, long-neck and taper-neck versions.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | BA09 |
| Material | Solid carbide |
| Coating | AlTiN |
| Flutes | 2 |
| Helix angle | 30° |
| Workpiece hardness | 36–50 HRC |
| Best for | steel, stainless steel, cast iron, titanium & superalloys, hardened steel |
| Range | Ø1–20 mm |
| Sizes available | 31 |
| Price | On request – supplied on quotation |

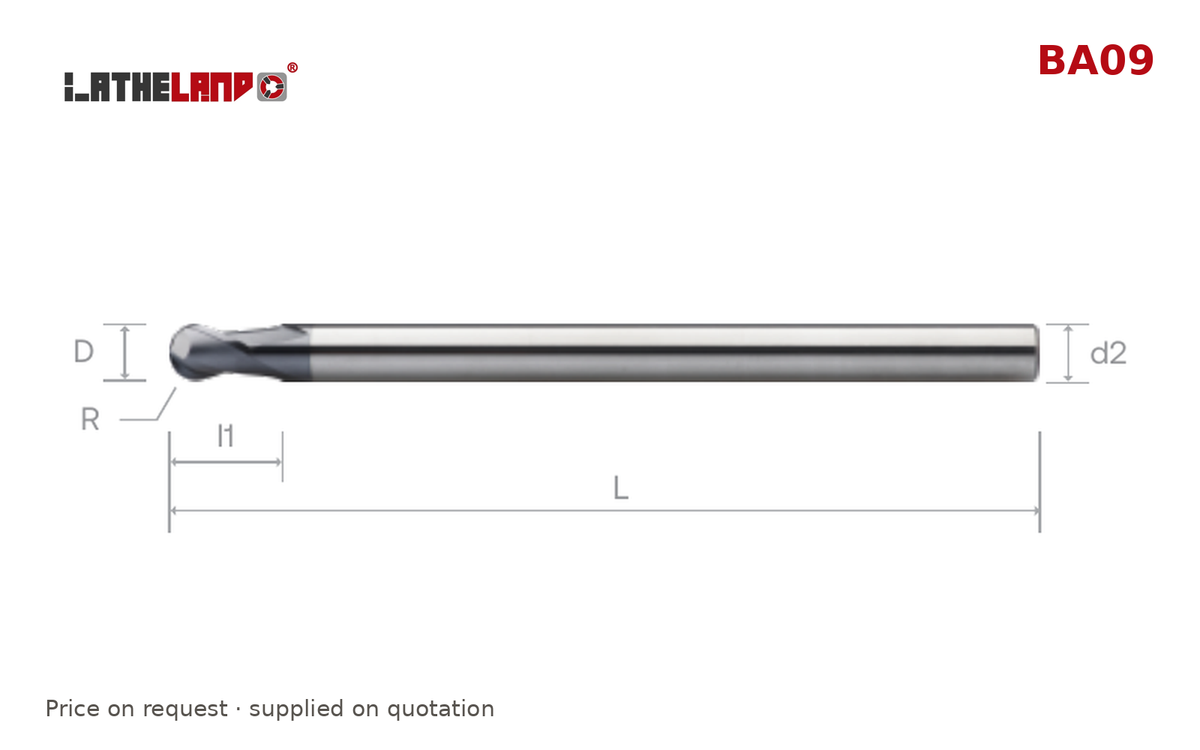

| SKU | Ø D | R | L | d2 |
|---|---|---|---|---|
| LL-BA09-1x100-S3 | 1 | 0.5 | 100 | 3 |
| LL-BA09-1x100-S4 | 1 | 0.5 | 100 | 4 |
| LL-BA09-1.5x100-S3 | 1.5 | 0.75 | 100 | 3 |
| LL-BA09-1.5x100-S4 | 1.5 | 0.75 | 100 | 4 |
| LL-BA09-2x100-S3 | 2 | 1 | 100 | 3 |
| LL-BA09-2x100-S4 | 2 | 1 | 100 | 4 |
| LL-BA09-2.5x100-S3 | 2.5 | 1.25 | 100 | 3 |
| LL-BA09-2.5x100-S4 | 2.5 | 1.25 | 100 | 4 |
| LL-BA09-3 | 3 | 1.5 | ||
| LL-BA09-3x100-S4 | 3 | 1.5 | 100 | 4 |
| LL-BA09-3x100-S6 | 3 | 1.5 | 100 | 6 |
| LL-BA09-4 | 4 | 2 | ||
| LL-BA09-4x100-S6 | 4 | 2 | 100 | 6 |
| LL-BA09-5 | 5 | 2.5 | ||
| LL-BA09-5x100-S6 | 5 | 2.5 | 100 | 6 |
| LL-BA09-6x100 | 6 | 3 | 100 | |
| LL-BA09-6x150 | 6 | 3 | 150 | |
| LL-BA09-8x100 | 8 | 4 | 100 | |
| LL-BA09-8x150 | 8 | 4 | 150 | |
| LL-BA09-10x125 | 10 | 5 | 125 | |
| LL-BA09-10x150 | 10 | 5 | 150 | |
| LL-BA09-12x125 | 12 | 6 | 125 | |
| LL-BA09-12x150 | 12 | 6 | 150 | |
| LL-BA09-14x150 | 14 | 7 | 150 | |
| LL-BA09-14x200 | 14 | 7 | 200 | |
| LL-BA09-16x150 | 16 | 8 | 150 | |
| LL-BA09-16x200 | 16 | 8 | 200 | |
| LL-BA09-18x150 | 18 | 9 | 150 | |
| LL-BA09-18x200 | 18 | 9 | 200 | |
| LL-BA09-20x150 | 20 | 10 | 150 | |
| LL-BA09-20x200 | 20 | 10 | 200 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
