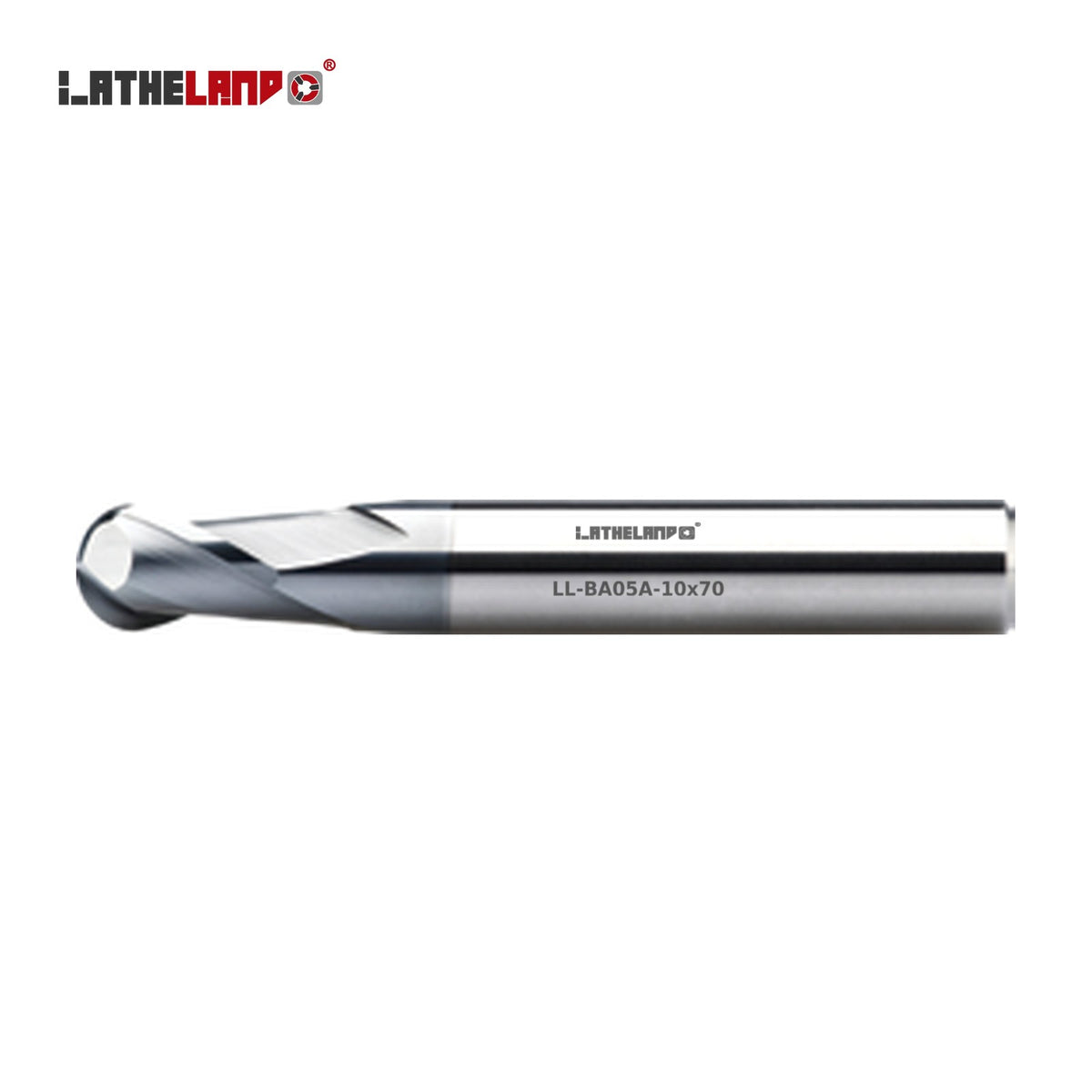

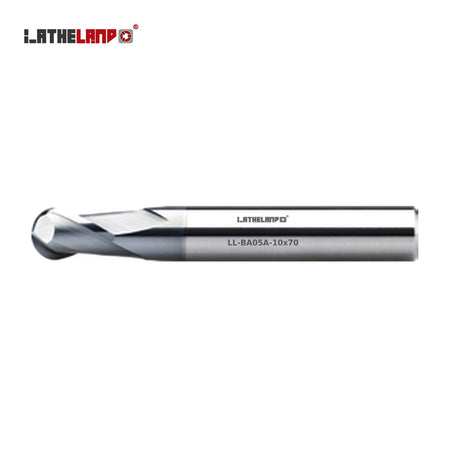

Ball nose cutters: Ball nose cutters from Ø0.1 mm, in standard, long, extra-long, long-neck and taper-neck versions.
Price on request. This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size and send the quote form, or email info@latheland.com with the SKU and quantity. We reply with price and delivery time, usually within one working day.
| Series | BA05 |
| Material | Solid carbide |
| Coating | AlTiN / AlCrN |
| Flutes | 2 |
| Helix angle | 30° |
| Workpiece hardness | 36–50 HRC |
| Best for | steel, stainless steel, cast iron, titanium & superalloys, hardened steel |
| Range | Ø1–25 mm |
| Sizes available | 66 |
| Price | On request – supplied on quotation |
| Version | Specification | Sizes |
|---|---|---|
| BA05A | AlTiN | 33 |
| BA05C | AlCrN | 33 |

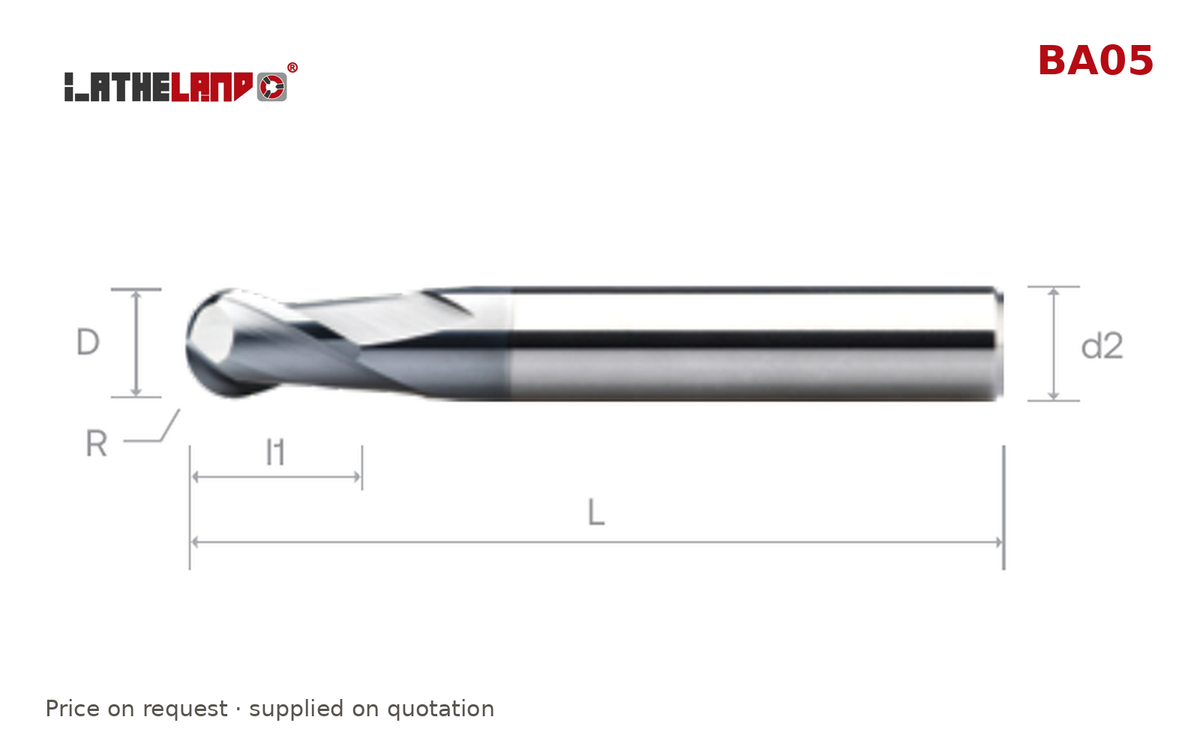

| SKU | Ø D | R | l1 | L | d2 |
|---|---|---|---|---|---|
| LL-BA05A-1x40-S3 | 1 | 0.5 | 3 | 40 | 3 |
| LL-BA05A-1x50-S4 | 1 | 0.5 | 3 | 50 | 4 |
| LL-BA05A-1.5x40-S3 | 1.5 | 0.75 | 3 | 40 | 3 |
| LL-BA05A-1.5x50-S4 | 1.5 | 0.75 | 3 | 50 | 4 |
| LL-BA05A-2x40-S3 | 2 | 1 | 4 | 40 | 3 |
| LL-BA05A-2x50-S4 | 2 | 1 | 4 | 50 | 4 |
| LL-BA05A-2.5x40-S3 | 2.5 | 1.25 | 4 | 40 | 3 |
| LL-BA05A-2.5x50-S4 | 2.5 | 1.25 | 4 | 50 | 4 |
| LL-BA05A-3 | 3 | 1.5 | 5 | 40 | 3 |
| LL-BA05A-3x50-S4 | 3 | 1.5 | 5 | 50 | 4 |
| LL-BA05A-3x50-S6 | 3 | 1.5 | 5 | 50 | 6 |
| LL-BA05A-3.5x50-S4 | 3.5 | 1.75 | 8 | 50 | 4 |
| LL-BA05A-4 | 4 | 2 | 8 | 50 | 4 |
| LL-BA05A-4x50-S6 | 4 | 2 | 8 | 50 | 6 |
| LL-BA05A-4.5x50-S5 | 4.5 | 2.25 | 9 | 50 | 5 |
| LL-BA05A-5 | 5 | 2.5 | 9 | 50 | 5 |
| LL-BA05A-5x50-S6 | 5 | 2.5 | 9 | 50 | 6 |
| LL-BA05A-5.5x50-S6 | 5.5 | 2.75 | 10 | 50 | 6 |
| LL-BA05A-6x50 | 6 | 3 | 10 | 50 | 6 |
| LL-BA05A-6x60 | 6 | 3 | 10 | 60 | 6 |
| LL-BA05A-7x64-S8 | 7 | 3.5 | 12 | 64 | 8 |
| LL-BA05A-8 | 8 | 4 | 12 | 64 | 8 |
| LL-BA05A-9x70-S10 | 9 | 4.5 | 14 | 70 | 10 |
| LL-BA05A-10x70 | 10 | 5 | 14 | 70 | 10 |
| LL-BA05A-10x75 | 10 | 5 | 14 | 75 | 10 |
| LL-BA05A-11x75-S12 | 11 | 5.5 | 16 | 75 | 12 |
| LL-BA05A-12 | 12 | 6 | 16 | 75 | 12 |
| LL-BA05A-14 | 14 | 7 | 32 | 90 | 14 |
| LL-BA05A-16 | 16 | 8 | 32 | 90 | 16 |
| LL-BA05A-18 | 18 | 9 | 38 | 100 | 18 |
| LL-BA05A-20 | 20 | 10 | 38 | 100 | 20 |
| LL-BA05A-22 | 22 | 11 | 40 | 100 | 22 |
| LL-BA05A-25 | 25 | 12.5 | 40 | 100 | 25 |
| LL-BA05C-1x40-S3 | 1 | 0.5 | 3 | 40 | 3 |
| LL-BA05C-1x50-S4 | 1 | 0.5 | 3 | 50 | 4 |
| LL-BA05C-1.5x40-S3 | 1.5 | 0.75 | 3 | 40 | 3 |
| LL-BA05C-1.5x50-S4 | 1.5 | 0.75 | 3 | 50 | 4 |
| LL-BA05C-2x40-S3 | 2 | 1 | 4 | 40 | 3 |
| LL-BA05C-2x50-S4 | 2 | 1 | 4 | 50 | 4 |
| LL-BA05C-2.5x40-S3 | 2.5 | 1.25 | 4 | 40 | 3 |
| LL-BA05C-2.5x50-S4 | 2.5 | 1.25 | 4 | 50 | 4 |
| LL-BA05C-3 | 3 | 1.5 | 5 | 40 | 3 |
| LL-BA05C-3x50-S4 | 3 | 1.5 | 5 | 50 | 4 |
| LL-BA05C-3x50-S6 | 3 | 1.5 | 5 | 50 | 6 |
| LL-BA05C-3.5x50-S4 | 3.5 | 1.75 | 8 | 50 | 4 |
| LL-BA05C-4 | 4 | 2 | 8 | 50 | 4 |
| LL-BA05C-4x50-S6 | 4 | 2 | 8 | 50 | 6 |
| LL-BA05C-4.5x50-S5 | 4.5 | 2.25 | 9 | 50 | 5 |
| LL-BA05C-5 | 5 | 2.5 | 9 | 50 | 5 |
| LL-BA05C-5x50-S6 | 5 | 2.5 | 9 | 50 | 6 |
| LL-BA05C-5.5x50-S6 | 5.5 | 2.75 | 10 | 50 | 6 |
| LL-BA05C-6x50 | 6 | 3 | 10 | 50 | 6 |
| LL-BA05C-6x60 | 6 | 3 | 10 | 60 | 6 |
| LL-BA05C-7x64-S8 | 7 | 3.5 | 12 | 64 | 8 |
| LL-BA05C-8 | 8 | 4 | 12 | 64 | 8 |
| LL-BA05C-9x70-S10 | 9 | 4.5 | 14 | 70 | 10 |
| LL-BA05C-10x70 | 10 | 5 | 14 | 70 | 10 |
| LL-BA05C-10x75 | 10 | 5 | 14 | 75 | 10 |
| LL-BA05C-11x75-S12 | 11 | 5.5 | 16 | 75 | 12 |
| LL-BA05C-12 | 12 | 6 | 16 | 75 | 12 |
| LL-BA05C-14 | 14 | 7 | 32 | 90 | 14 |
| LL-BA05C-16 | 16 | 8 | 32 | 90 | 16 |
| LL-BA05C-18 | 18 | 9 | 38 | 100 | 18 |
| LL-BA05C-20 | 20 | 10 | 38 | 100 | 20 |
| LL-BA05C-22 | 22 | 11 | 40 | 100 | 22 |
| LL-BA05C-25 | 25 | 12.5 | 40 | 100 | 25 |
Dimensions are confirmed on each quotation.
Speak to us. We design and supply special diameters, lengths, corner radii, profiles and step tools. Send a drawing or a sketch to info@latheland.com or call +44 7727 992812.
