BOEHM JLB260PACCUS Hollow Punch Set Ø1/8" to 2 3/8" + Ø16 1/2" Gasket Cutter (Imperial)

BOEHM, French manufacturer of hollow punches and gasket cutting tools since 1920.

34 twinnable imperial punches up to Ø2 3/8", plus a circular cutter up to Ø16 1/2"

Cut gaskets, discs and washers up to Ø2 3/8" (60.3 mm) with the punches, and larger diameters from 2" to 16 1/2" (420 mm) with the circular cutter. Punches lock onto the chuck in seconds with Boehm's spur system, and two punches can be twinned to cut a washer or gasket ring in one strike.

The set doubles as a gasket cutter: the circular cutter works like a compass to cut large diameters, and its ergonomic handle leaves one hand free to hold the material. The stainless steel blade is designed for clean, precise cuts.

The retractable centring pin positions each cut accurately and centres the circular cutter. Supplied in a lacquered metal case.

Cuts paper, card, plastic, rubber and elastomers, felt, foam, cork, leather and fabrics.

Options: buy the set on its own, or add the PLAR4 cutting board (320 x 245 x 10 mm) for punching and circular cutting.

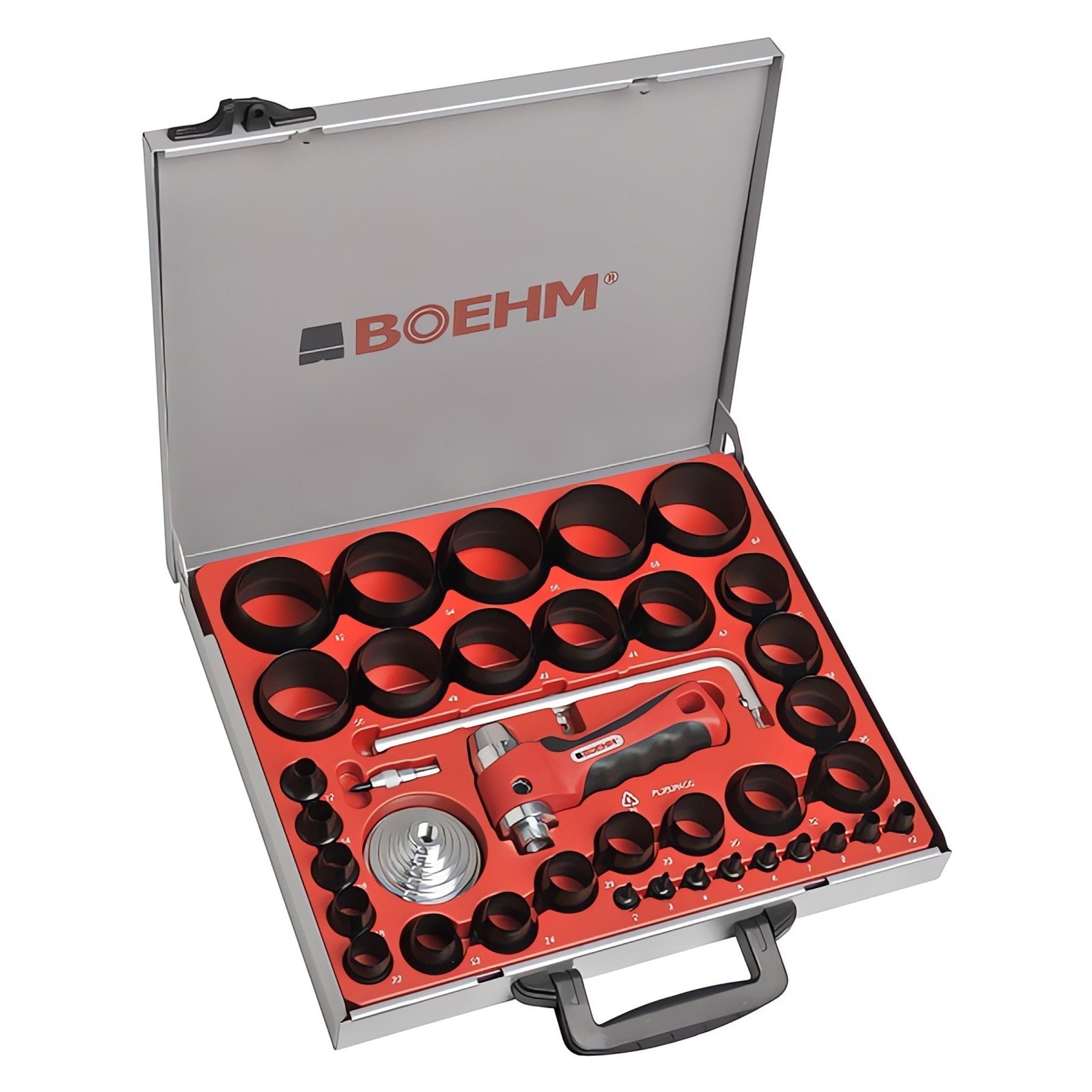

What's in the box

• 34 hollow punches: Ø1/8"-5/32"-3/16"-7/32"-1/4"-9/32"-5/16"-11/32"-3/8"-7/16"-1/2"-9/16"-5/8"-3/4"-7/8"-1"-1 1/16"-1 1/8"-1 3/16"-1 1/4"-1 5/16"-1 3/8"-1 7/16"-1 1/2"-1 5/8"-1 11/16"-1 3/4"-1 7/8"-2"-2 1/8"-2 3/16"-2 1/4"-2 5/16"-2 3/8"
• 1 handle JLBM53PA
• 1 chuck JLBM60PA for Ø2 to 60 mm and 1/8" to 2 3/8" punches
• 1 retractable centring pin JLBP42R
• 1 circular cutter rod Ø16 1/2" (420 mm) with blade
• 1 spare blade (LAM1)
• Allen key and user guide

Features

• Striking tool with patented ergonomic anti-vibration handle and registered design
• Lacquered metal case
• Measuring rule printed on the case to set the cutting diameter
• Chuck secured by a set screw so it stays tight in use

Specifications

• Brand: BOEHM
• Part number: JLB260PACCUS
• Case dimensions: 38 x 33 x 5.5 cm
• Shipping weight: 5.6 kg
• Made in France
