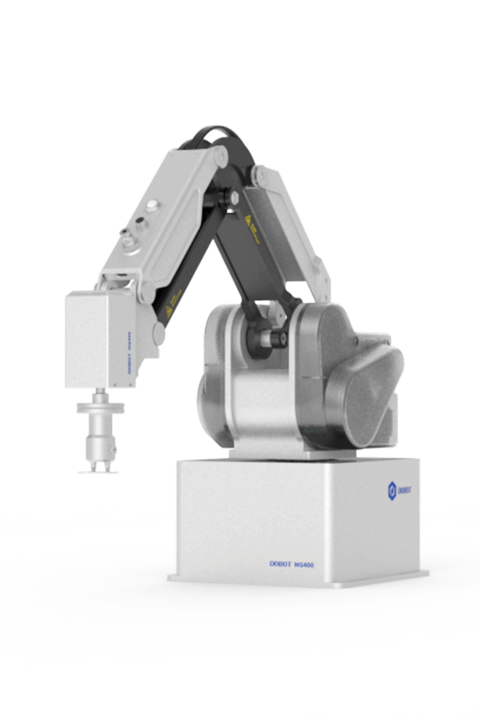

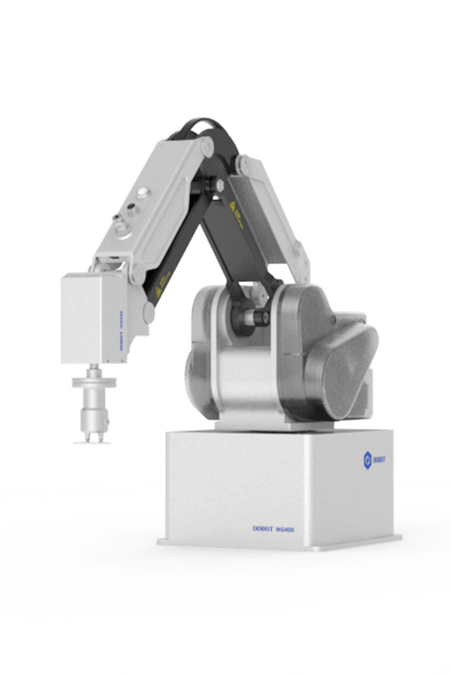

The DOBOT MG400 is an ultra-compact, desktop-grade collaborative robot with a footprint smaller than an A4 sheet (190 x 190 mm). It is safe to work beside, quick to deploy and ideal for automating small-batch, flexible production such as loading, assembly, gluing and inspection.
Key features
- All-in-one design with built-in controller – fits a 190 x 190 mm space
- Servo motors with high-precision encoders for ±0.05 mm repeatability
- Vibration suppression for faster, more stable motion
- Drag-to-teach, collision detection, and Blockly or Lua programming in DobotStudio Pro
Specifications
| Axes |
4 |
| Payload |
500 g (max 750 g) |
| Reach |
440 mm |
| Repeatability |
±0.05 mm |
| Max joint speed |
300°/s |
| Power |
100–240 V AC, 50/60 Hz; 48 V nominal |
| Nominal power |
240 W |
| Communication |
TCP/IP, Modbus TCP |
| Weight |
8 kg |
| Base size |
190 x 190 mm |
| Operating temperature |
0–40 °C |
| Software |
DobotStudio Pro |
Supplied by LATHELAND, DOBOT's UK partner. Contact us for application advice, integration support, lead times and education or multi-unit pricing.
