DOBOT M1 Pro SCARA robot
DOBOT M1 Pro SCARA robot
Dobot

Dobot M1 Pro SCARA Robot

In stock
SKU: 1200000016
£4,299.00 GBP

Questions about this product, a larger quantity or a shipping quote? Contact us.

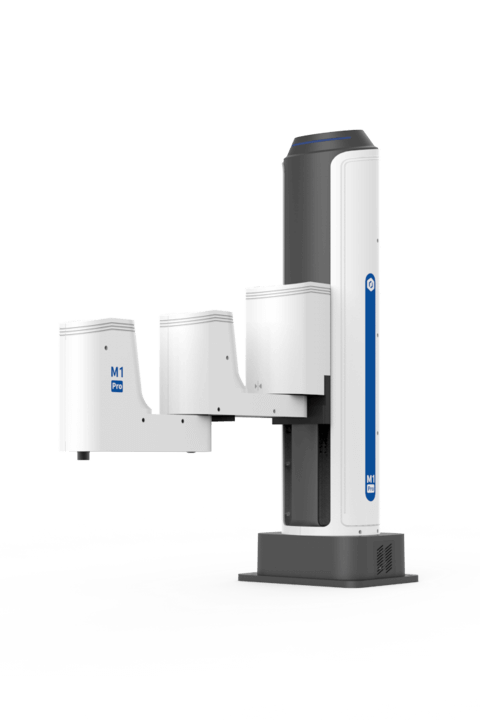

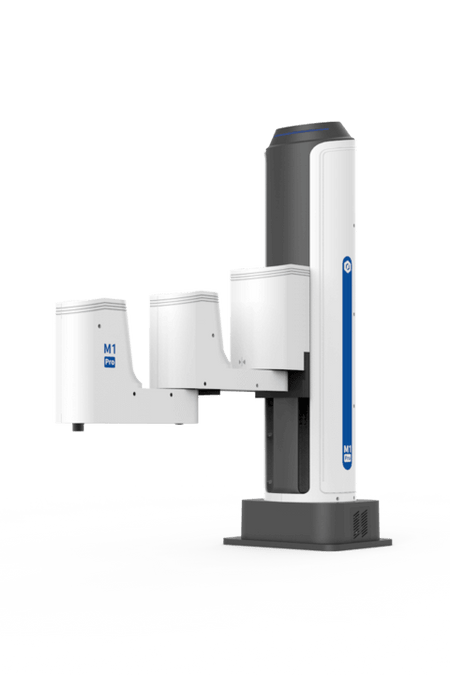

The DOBOT M1 Pro is a desktop SCARA collaborative robot with a 1.5 kg rated load, 400 mm reach and ±0.02 mm repeatability. It is designed for fast, precise pick-and-place, assembly, dispensing and testing in electronics and light industry.

Key features

  • High precision: ±0.02 mm repeatability
  • Compact desktop installation (230 x 175 mm base)
  • Programmed with DobotStudio Pro; TCP/IP and Modbus TCP communication

Specifications

Axes 4
Rated load 1.5 kg
Reach 400 mm
Repeatability ±0.02 mm
Power 100–240 V AC, 50/60 Hz; 48 V DC rated
Rated power 192 W
Communication TCP/IP, Modbus TCP
Weight 15.7 kg
Base size 230 x 175 mm
Operating temperature 0–40 °C
Software DobotStudio Pro

Supplied by LATHELAND, DOBOT's UK partner. Contact us for application advice, integration support, lead times and education or multi-unit pricing.
