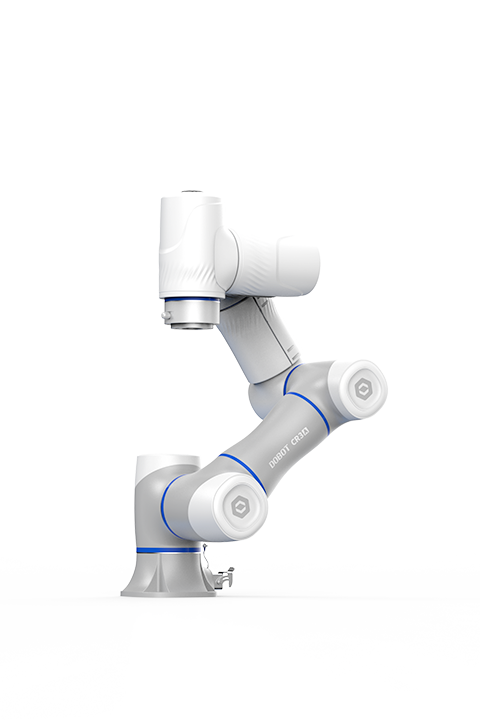

DOBOT CR3AS collaborative robot with SafeSkin

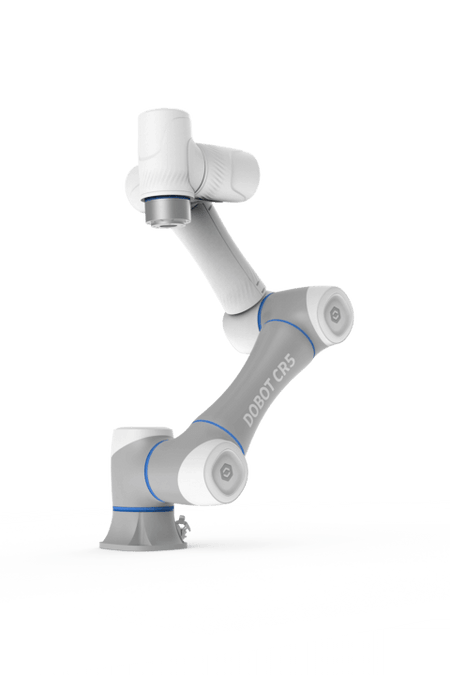

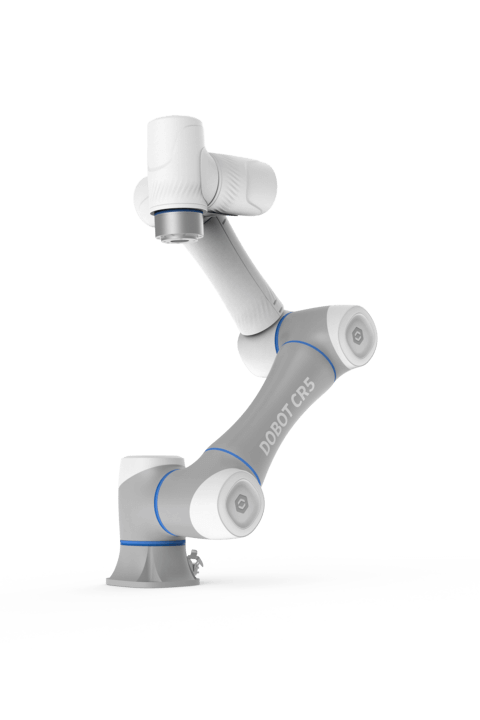

DOBOT CR5AS collaborative robot with SafeSkin

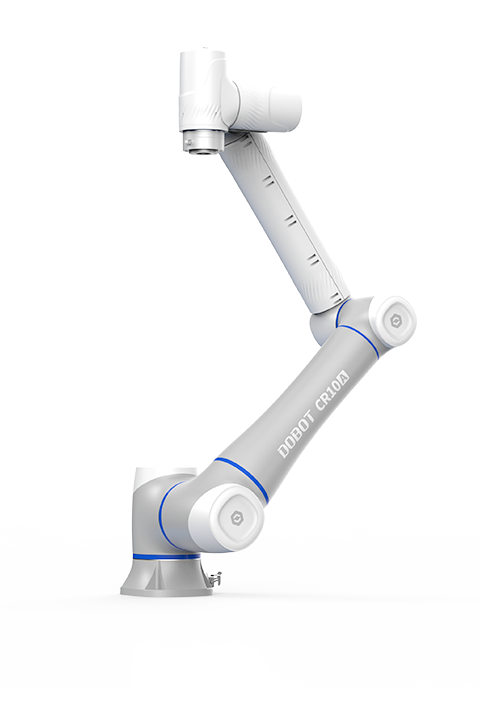

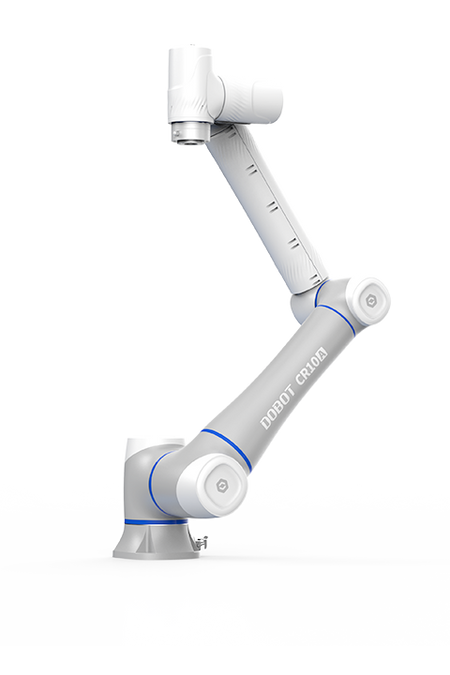

DOBOT CR10AS collaborative robot with SafeSkin
DOBOT CR3AS collaborative robot with SafeSkin
DOBOT CR5AS collaborative robot with SafeSkin
DOBOT CR10AS collaborative robot with SafeSkin
Dobot

Dobot CR Collaborative Robot

In stock
SKU: 1200000186
£12,167.00 GBP

Questions about this product, a larger quantity or a shipping quote? Contact us.

DOBOT CRA collaborative robot family

The DOBOT CRA series is DOBOT's new generation of six-axis collaborative robots, covering 3 kg to 20 kg payloads and 620 mm to 1700 mm reach. Every model shares the same controller, software and safety system, so it is easy to pick the right size for machine tending, welding, palletising, assembly or pick-and-place. With a proper risk assessment, CRA cobots can work safely alongside people without fencing. The CR3A, CR5A and CR10A are also available with DOBOT SafeSkin (CR3AS, CR5AS, CR10AS).

Key features

  • High-performance integrated joints with EtherCAT servo bus for fast cycle times
  • Laser-calibrated for high accuracy; electromagnetic brakes hold position within 1 mm on power loss
  • Stand-alone PLd Cat.3 safety controller with 20+ safety functions (ISO 13849-1, ISO 10218-1, ISO/TS 15066)
  • 24 DI / 24 DO (PNP and NPN), Modbus TCP/RTU, EtherNet/IP and PROFINET as standard
  • DobotStudio Pro: drag-to-teach, Blockly and Lua scripting, virtual controller and process packages for welding, palletising and CNC tending

SafeSkin versions (CR3AS, CR5AS, CR10AS)

  • SafeSkin electronic skin senses people up to 15 cm before contact
  • 0.01 s monitoring and 0.1 s response for safe, fast human-robot interaction up to 1 m/s

Choose your model

Model Payload Reach Repeatability Arm weight Power consumption

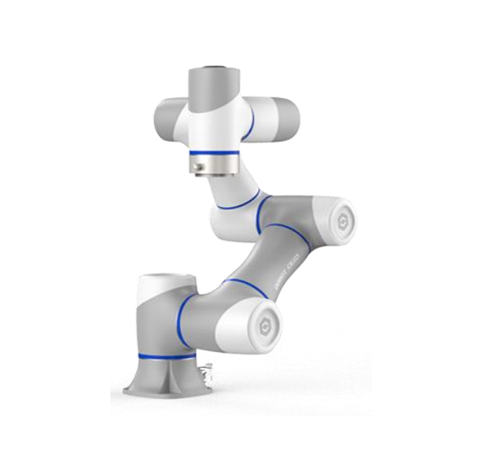

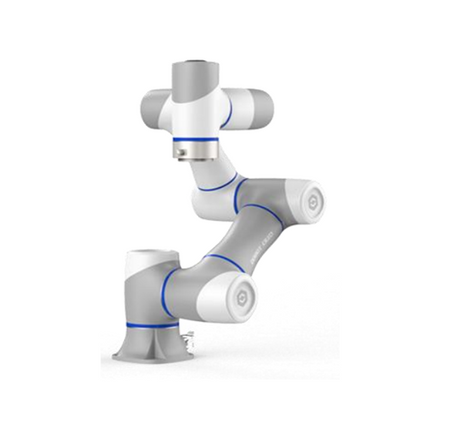

CR3A 3 kg 620 mm ±0.02 mm 16.5 kg 120 W

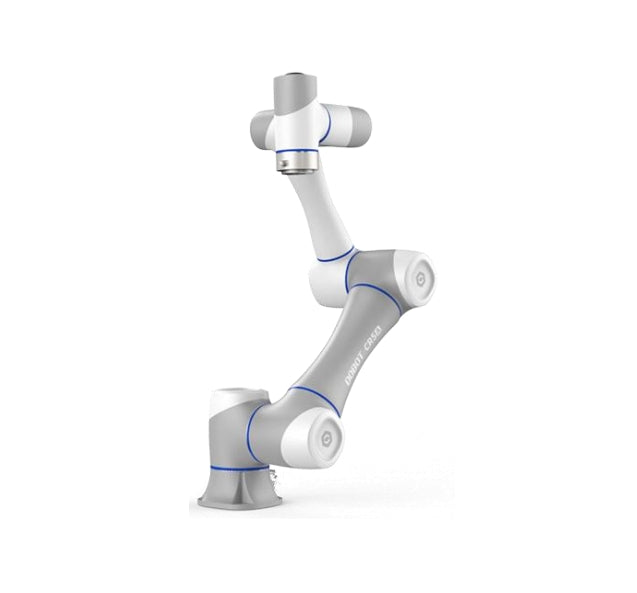

CR5A 5 kg 900 mm ±0.02 mm 25 kg 150 W

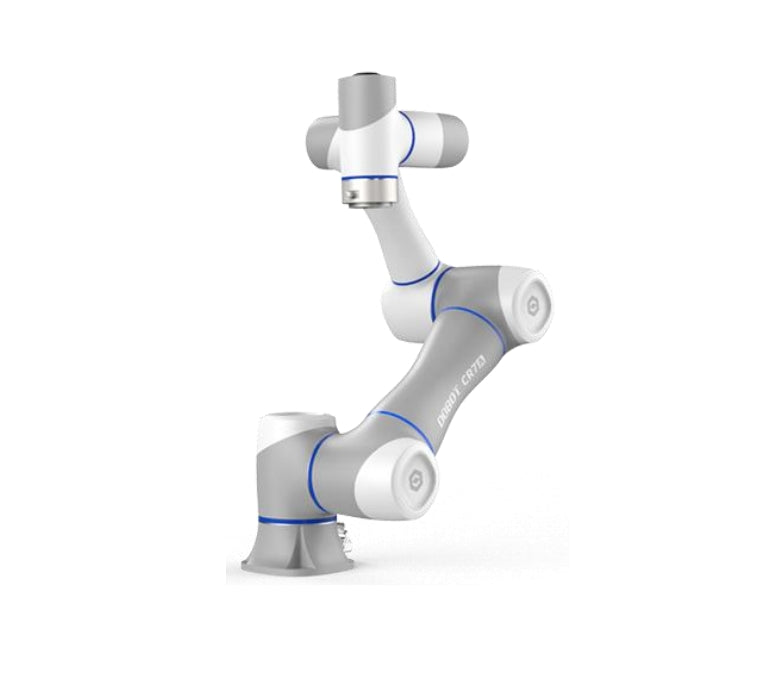

CR7A 7 kg 800 mm ±0.02 mm 24.5 kg 150 W
CR10A 10 kg 1300 mm ±0.03 mm 40 kg 350 W

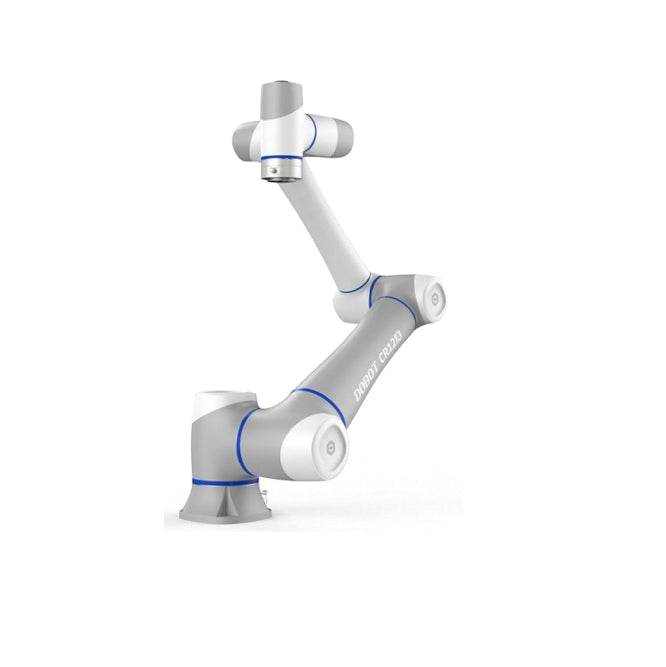

CR12A 12 kg 1200 mm ±0.03 mm 39.5 kg 350 W

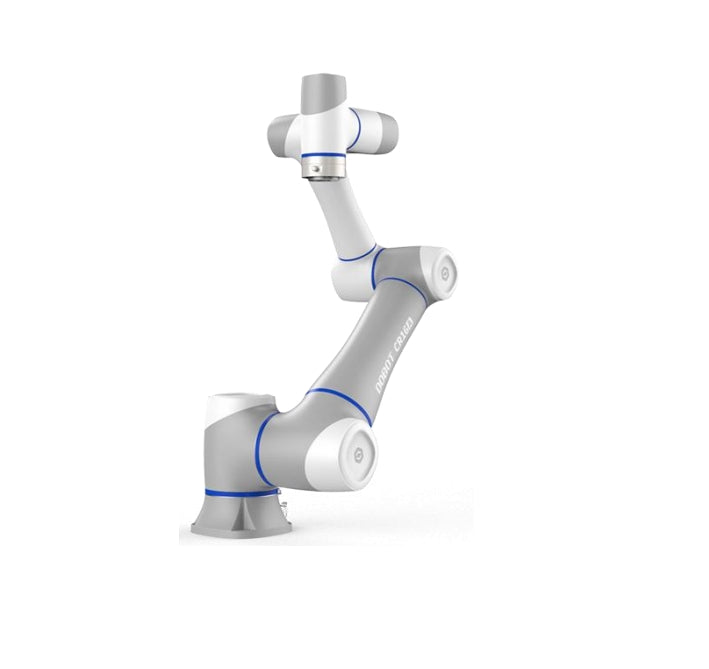

CR16A 16 kg 1000 mm ±0.03 mm 40 kg 350 W

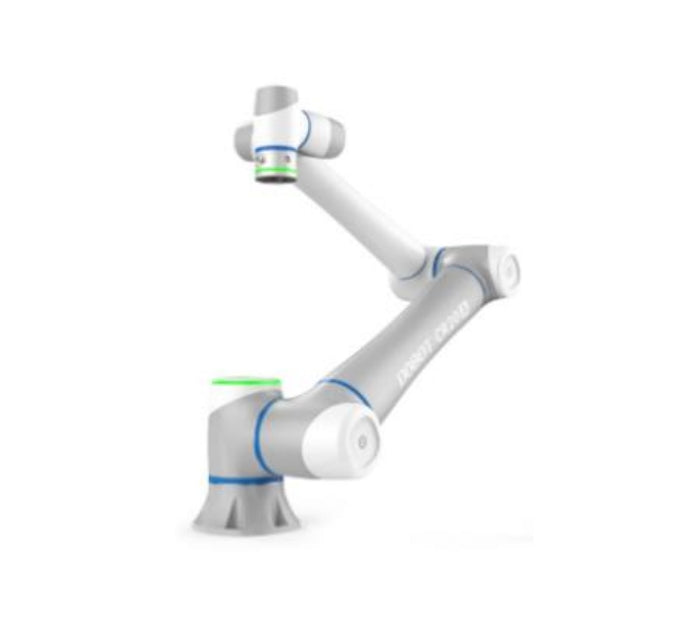

CR20A 20 kg 1700 mm ±0.05 mm 73 kg 500 W

Common specifications

Axes 6
IP rating IP54
Input power 100–240 V AC, 47–63 Hz
Communication 2 x Ethernet (TCP/IP, Modbus TCP, EtherNet/IP, PROFINET); 1 x RS485 (Modbus RTU); Wi-Fi
Operating temperature 0–45 °C (CR3A: 0–50 °C)
Mounting Any angle
Materials Aluminium alloy, ABS
Software DobotStudio Pro (drag-to-teach, Blockly, Lua)

Free delivery.

Supplied by LATHELAND, DOBOT's UK partner. Contact us for application advice, integration support, lead times and education or multi-unit pricing.
