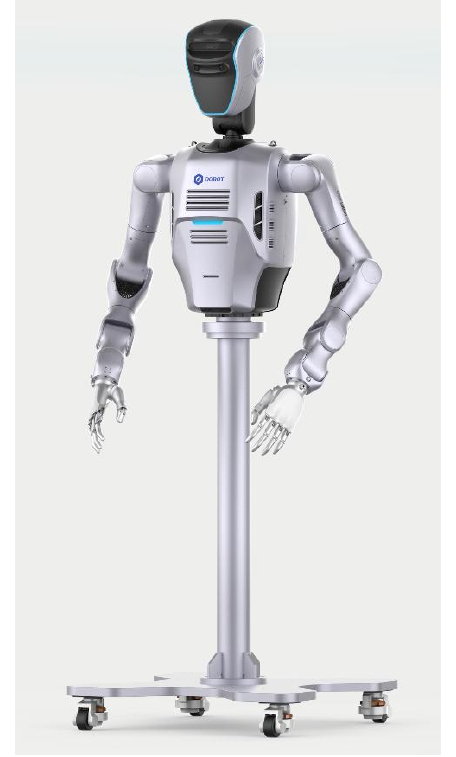

Dobot Atom Humanoid Robot – Data Collection Version
DOBOT Atom humanoid robot

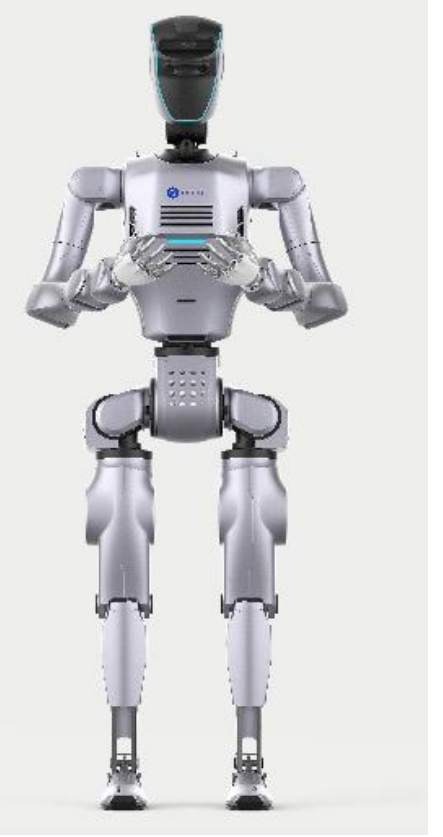

Dobot Atom Humanoid Robot – Trainer Version

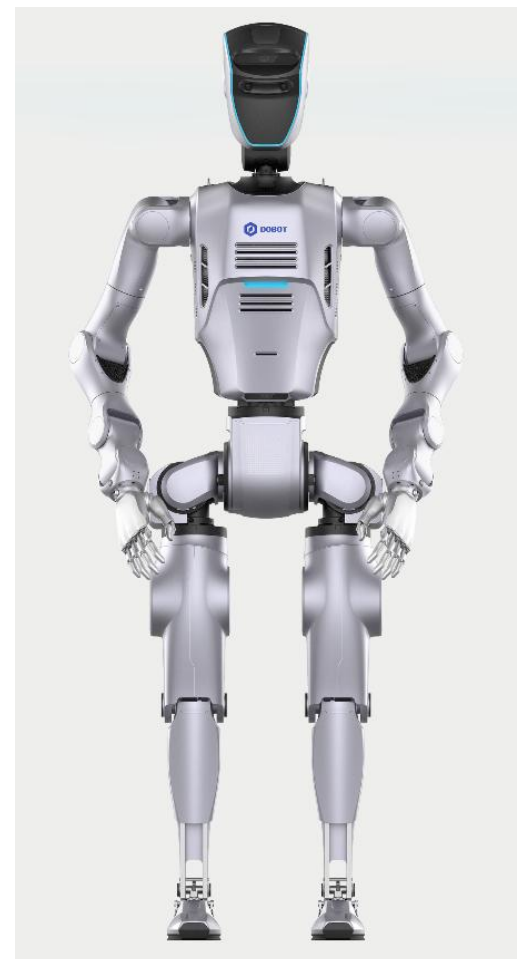

Dobot Atom Humanoid Robot – Max Version
Dobot Atom Humanoid Robot – Data Collection Version
DOBOT Atom humanoid robot
Dobot Atom Humanoid Robot – Trainer Version
Dobot Atom Humanoid Robot – Max Version
Dobot

Dobot Atom Humanoid Robot

In stock
SKU: 1200000350
£37,200.00 GBP

Questions about this product, a larger quantity or a shipping quote? Contact us.

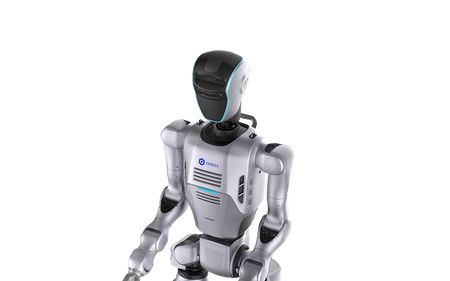

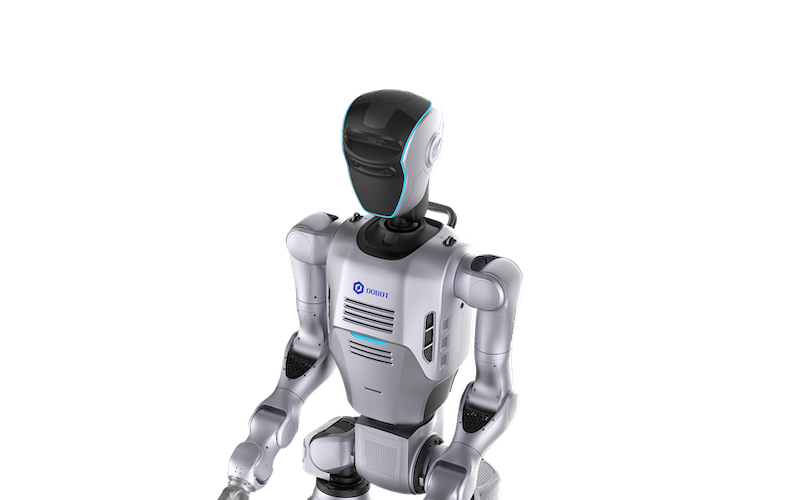

DOBOT Atom is DOBOT's first full-size embodied-AI humanoid robot, built for research, education and AI development. Choose the upper-body Data Collection version for teleoperation and AI dataset work, the full-body Trainer version with high-performance AI computing, or the Max version with six-degree-of-freedom dexterous hands.

Key features

  • 7-DoF arms with ±0.05 mm repeatability and 3.5 kg load per arm
  • RGB-D and binocular vision; 3D LiDAR on Trainer and Max
  • 1500 TOPS AI computing on Trainer and Max versions

Specifications

Height 1650 mm (Data Collection version: 650 mm upper body)
Weight (without dexterous hands) 62 kg (Data Collection version: 20 kg)
Degrees of freedom 29 full body (Data Collection version: 16)
Arm 7 DoF per arm, 600 mm span, 3.5 kg load, ±0.05 mm repeatability, 1.5 m/s max end speed
Head 2 DoF; RGB-D camera + Full HD binocular camera
Computing Intel i5 base module; Trainer and Max add a 1500 TOPS AI module (Intel i9, 16 GB GDDR6 GPU)
Trainer & Max extras Waist 1 DoF, 6 DoF per leg, 3D LiDAR, 1-hour battery charge
Max version extras 2 x 6-DoF dexterous hands

Supplied by LATHELAND, DOBOT's UK partner. Contact us for application advice, integration support, lead times and education or multi-unit pricing.
