BISON 9416 / 9417 Self-Centring Milling Device, 3 or 4 Jaws
BISON 9416 / 9417 Self-Centring Milling Device, 3 or 4 Jaws
BISON

BISON 9416 / 9417 Self-Centring Milling Device, 3 or 4 Jaws

In stock
SKU: 9416-160
£1,777.00 GBP

Questions about this product, a larger quantity or a shipping quote? Contact us.

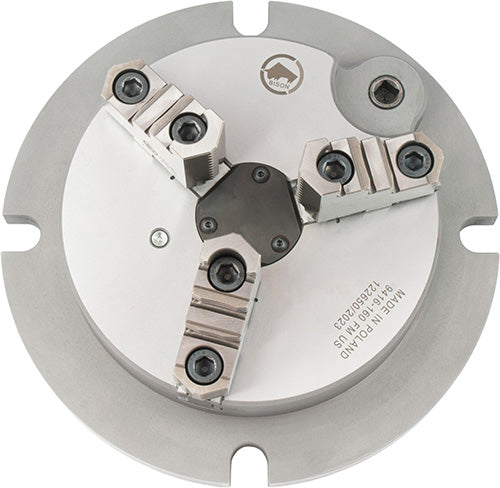

A self-centring scroll chuck with split jaws built into a low base, for milling machine tables, T-towers, drill tables and surface grinders.

  • Very low profile, ideal for machines with short Z travel
  • Sealed against chips
  • Operated from the front with a standard or ratchet wrench
  • Takes standard 3200 soft jaws

Sizes and specifications

Code Jaws Ø A (mm) Height B (mm) Weight (kg)
9416-160 3 jaws (9416) 237 52 12.3
9416-200 3 jaws (9416) 290 65 23.5
9416-250 3 jaws (9416) 350 73 37.8
9416-315 3 jaws (9416) 405 80 58.4
9417-160 4 jaws (9417) 237 52 12.7
9417-200 4 jaws (9417) 290 65 24.1
9417-250 4 jaws (9417) 350 73 38.6
9417-315 4 jaws (9417) 405 80 59.6

BISON original. BISON has made workholding in Poland since 1948 and describes its range as 100% made in Europe.

We ship worldwide with DHL Express. Delivery is calculated at checkout. For the largest sizes we will confirm a freight quote before dispatch.
