Vacuum Clamping System for Smooth Plates

Vacuum plate system for magnetic drilling on smooth, non-magnetic surfaces with maximum stability and holding force.

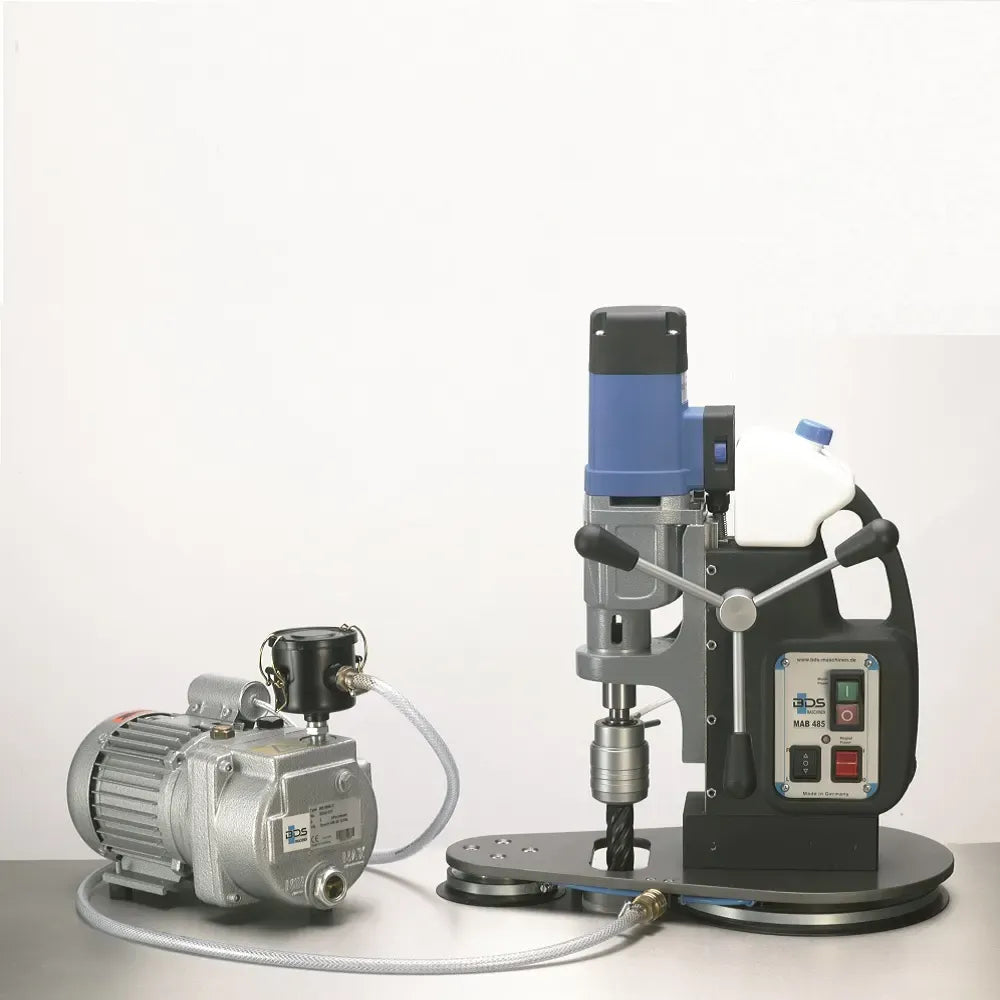

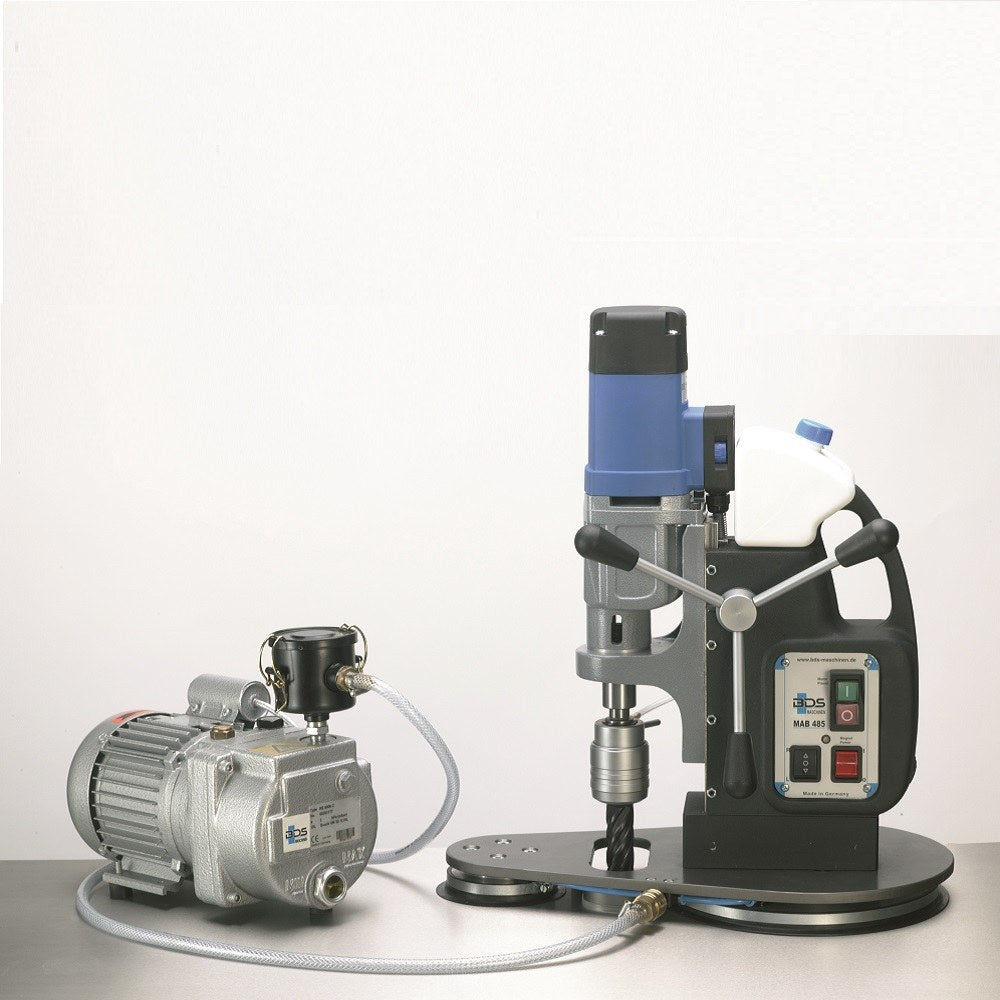

The ZAV 400 vacuum clamping system is designed specifically for magnetic drilling applications on smooth, non-magnetic surfaces such as stainless steel, aluminium, and flat plates. It provides a powerful and reliable vacuum-based holding solution where traditional magnetic adhesion is not possible.

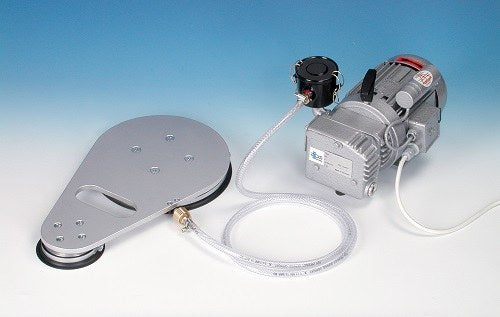

Equipped with a high-performance vacuum pump featuring oil circulation lubrication, the system ensures continuous and stable vacuum generation for maximum holding force. The specially designed clamping plate with dual suction surfaces and an internal bore allows precise positioning and secure fixation of the magnetic drilling machine.

With dimensions of 440 x 260 mm and an integrated slot (50 x 120 mm), the system offers flexibility for various applications while maintaining excellent stability during drilling operations. It is ideal for workshops, steel construction, and industrial environments where precision and safety are critical.

The ZAV 400 significantly expands the usability of magnetic drilling machines by enabling safe operation on smooth surfaces. A reliable solution for demanding professional applications.
