Vacuum Clamping System for Smooth & Checker Plates

High-performance vacuum plate system for magnetic drilling on smooth, ribbed and checker plates.

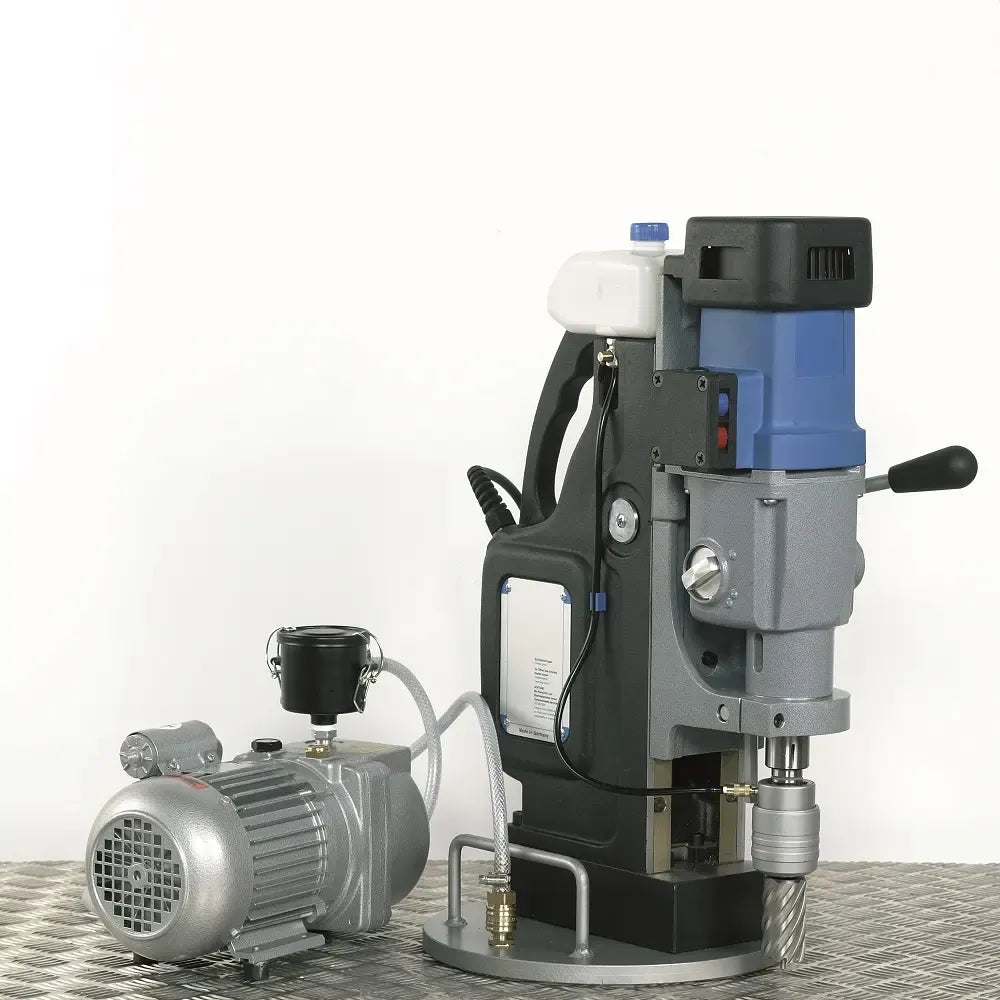

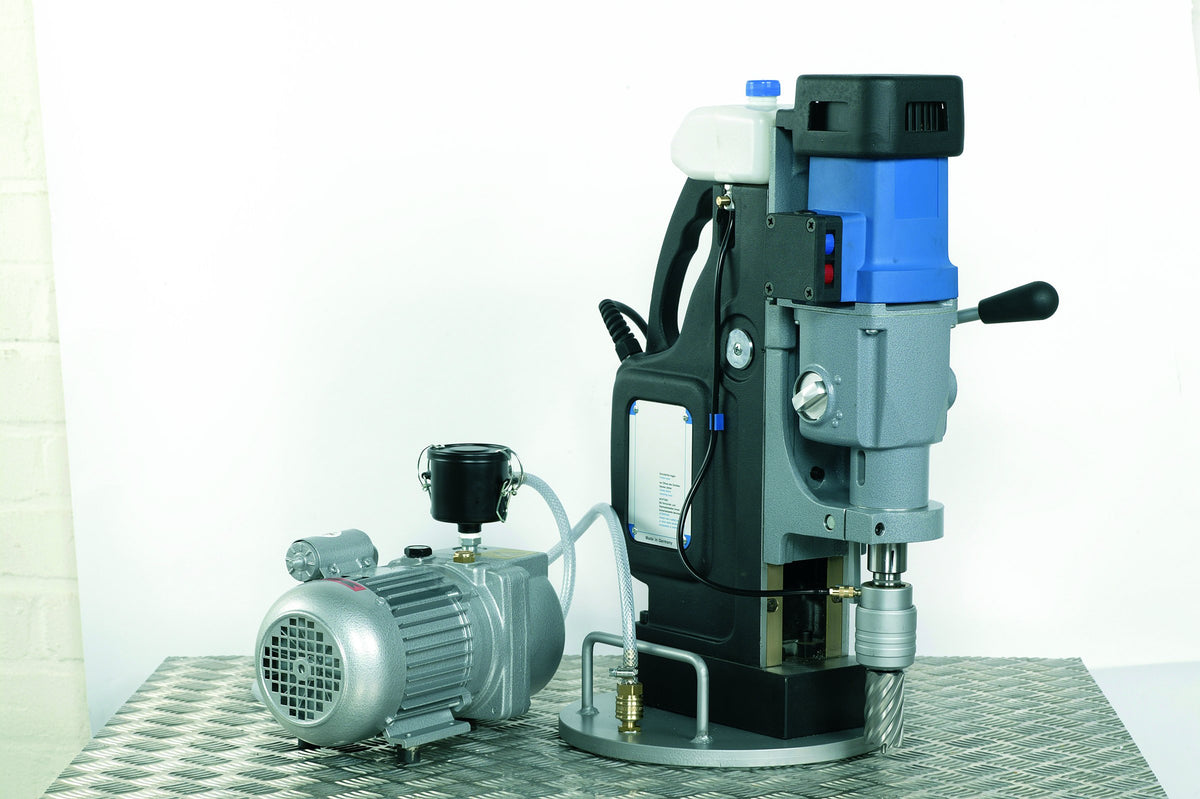

The ZAV 300 vacuum plate system is designed for professional use of magnetic drilling machines on non-magnetic and uneven surfaces such as smooth plates, ribbed plates, and checker plates. It provides a powerful vacuum-based holding solution where traditional magnetic adhesion is not possible.

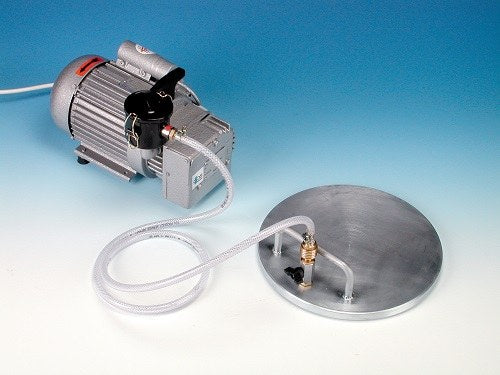

Equipped with a high-performance vacuum pump with oil circulation lubrication, the system ensures continuous and reliable vacuum generation for maximum holding force. The large clamping plate with a diameter of 300 mm provides a stable base, ensuring safe and precise drilling operations even in demanding industrial environments.

The system is ideal for steel construction, fabrication, and on-site applications where flexibility and safety are critical. It allows users to expand the capabilities of magnetic drilling machines significantly, enabling drilling on a wide variety of materials and surfaces.

The ZAV 300 is a robust and reliable solution for professionals who require maximum performance, stability, and versatility in their drilling applications.
