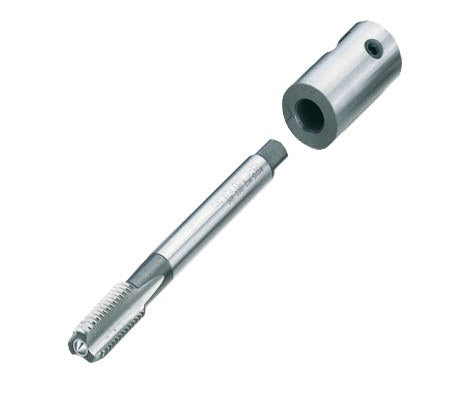

BDS tap adapter ZGA with machine tap

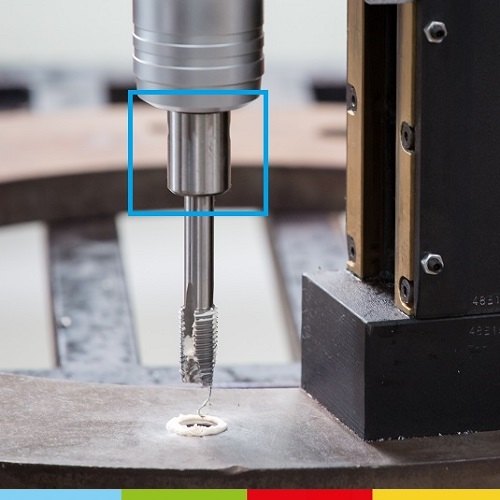

BDS tap adapter tapping on a magnetic drill

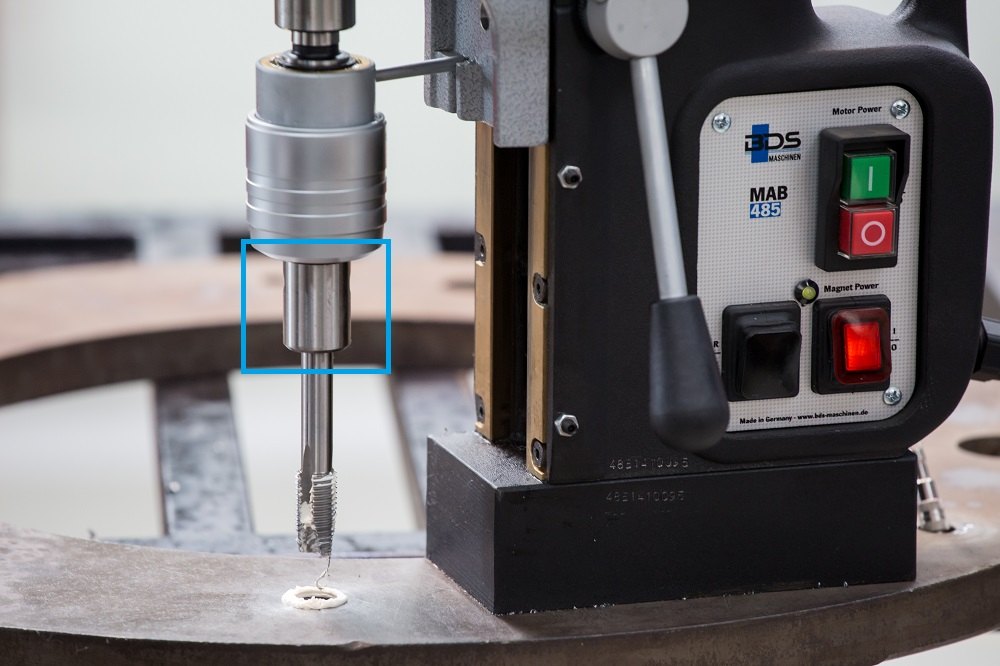

BDS ZGA tap adapter on a magnetic drill
BDS tap adapter ZGA with machine tap
BDS tap adapter tapping on a magnetic drill
BDS ZGA tap adapter on a magnetic drill
BDS

BDS Tap Adapters with Weldon Shank (ZGA), M10–M30

In stock
SKU: ZGA 010
£29.55 GBP
Sale £39.40 GBP £29.55 GBP
BDS UK offer: 25% off the BDS RRP, already applied

Questions about this product, a larger quantity or a shipping quote? Contact us.

The simplest way to tap with a magnetic drill: the ZGA adapter fits straight into the 19 mm Weldon arbor and holds a DIN 376 machine tap. It is an economical entry into tapping for through holes on any BDS machine with a reversible motor.

ZGA 010 M10 – tap shank Ø 7 mm, square 5.5 mm
ZGA 012 M12 – tap shank Ø 9 mm, square 7 mm
ZGA 014 M14 – tap shank Ø 11 mm, square 9 mm
ZGA 016 M16 – tap shank Ø 12 mm, square 9 mm
ZGA 018 M18 – tap shank Ø 14 mm, square 11 mm
ZGA 020 M20 – tap shank Ø 16 mm, square 12 mm
ZGA 022 M22/M24 – tap shank Ø 18 mm, square 14.5 mm
ZGA 027 M27 – tap shank Ø 20 mm, square 16 mm
ZGA 030 M30 – tap shank Ø 22 mm, square 18 mm

For blind holes and frequent tapping we recommend the GSW quick-change chuck with GSS inserts (safety clutch).

Genuine BDS product from BDS Maschinen GmbH. Supplied and supported in the UK by LATHELAND.
