BDS SKF 025 Weld Preparation Bevelling Machine
BDS SKF 025 Weld Preparation Bevelling Machine
BDS

BDS SKF 025 Weld Preparation Bevelling Machine, 15–60°

In stock
SKU: SKF 025 230V
£2,609.25 GBP
Sale £3,479.00 GBP £2,609.25 GBP
BDS UK offer: 25% off the BDS RRP, already applied
German Brand Award 2023 winner German Design Award winner 2022 German Design Award winner 2023

Award-winning BDS: German Brand Award 2023 for the BDS brand, and German Design Awards 2022 and 2023 for BDS machines.

Questions about this product, a larger quantity or a shipping quote? Contact us.

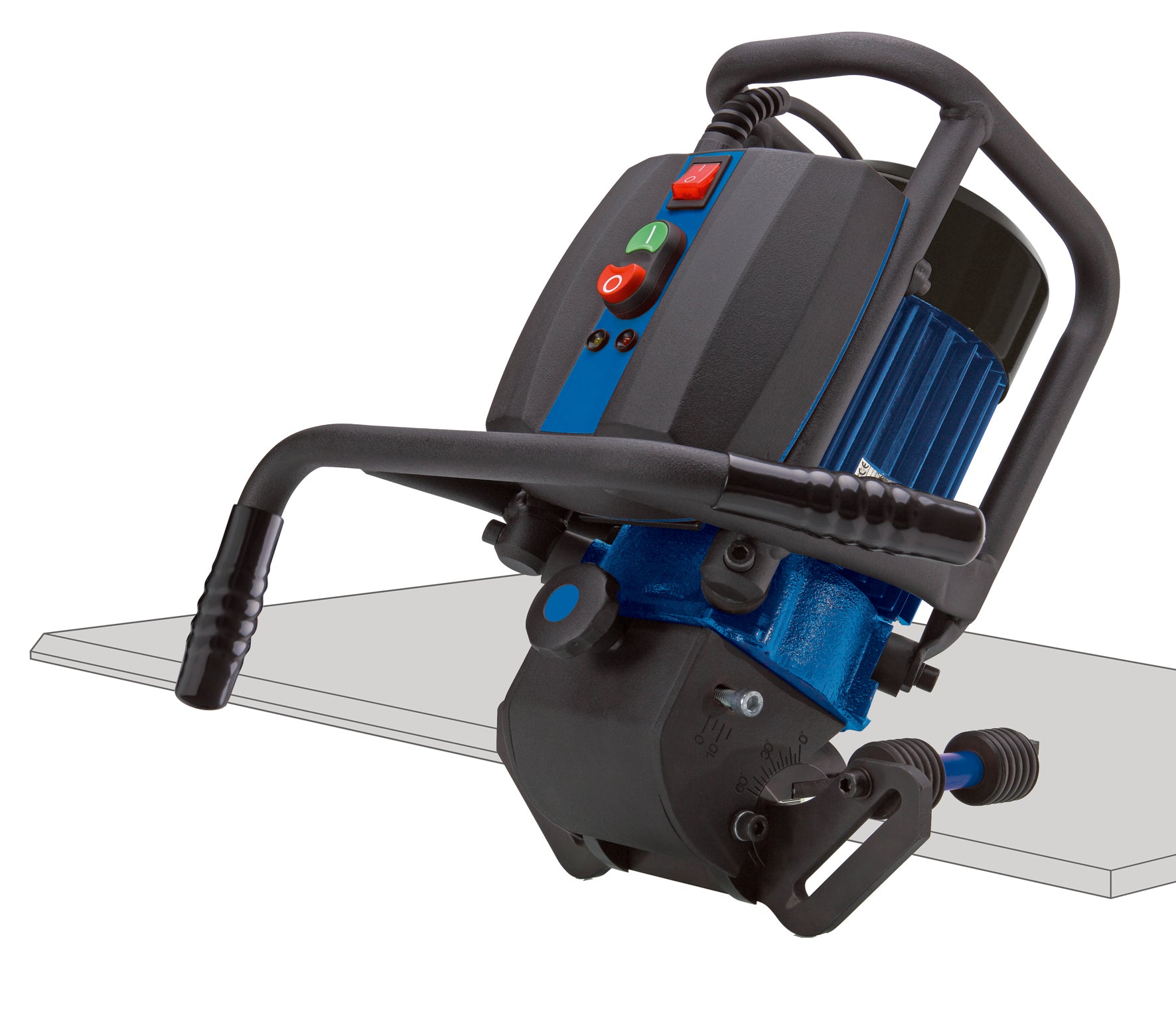

The SKF 025 heavy-duty beveling machine is designed in Germany for efficient weld seam preparation and professional metalworking applications. Featuring a stepless adjustable bevel angle from 15° to 60° and a bevel width up to 15 mm, it offers precise results, robust construction, and reliable performance for workshop and on-site use.

Powered by a dependable 1100 W motor, the SKF 025 provides smooth, controlled milling with manual feed and low vibration. Indexable carbide inserts with ten cutting edges ensure long tool life. Ideal for steel and aluminium, it supports pipe edge machining, vertical processing, and easy handling through ergonomic design and roller guidance.

Available from LATHELAND in 230 V and in 110 V for UK construction sites.

Key features

  • Portable beveling machine
  • Weld seam preparation
  • Stepless angle adjustment
  • 15°–60° bevel angles
  • Bevel width 15 mm
  • Compact universal design
  • Ergonomic handle layout
  • Manual feed control
  • Indexable carbide inserts
  • Ten cutting inserts
  • Smooth roller guidance

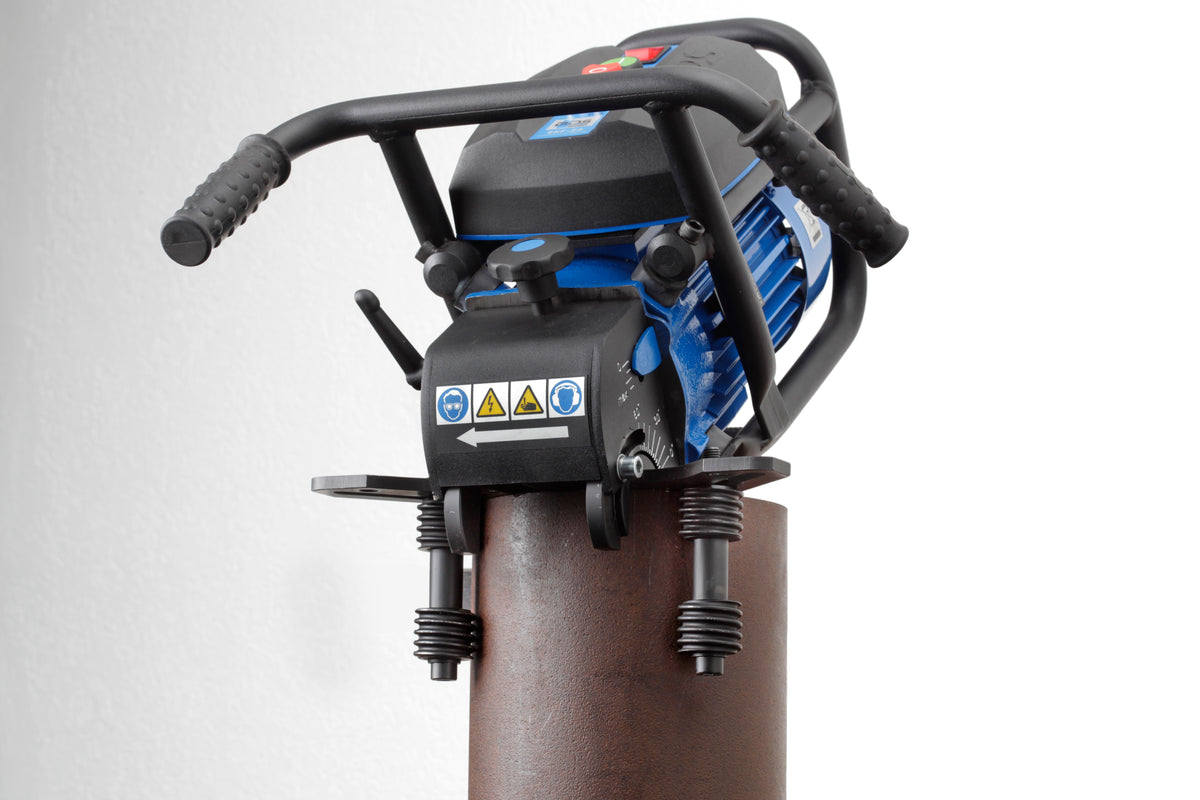

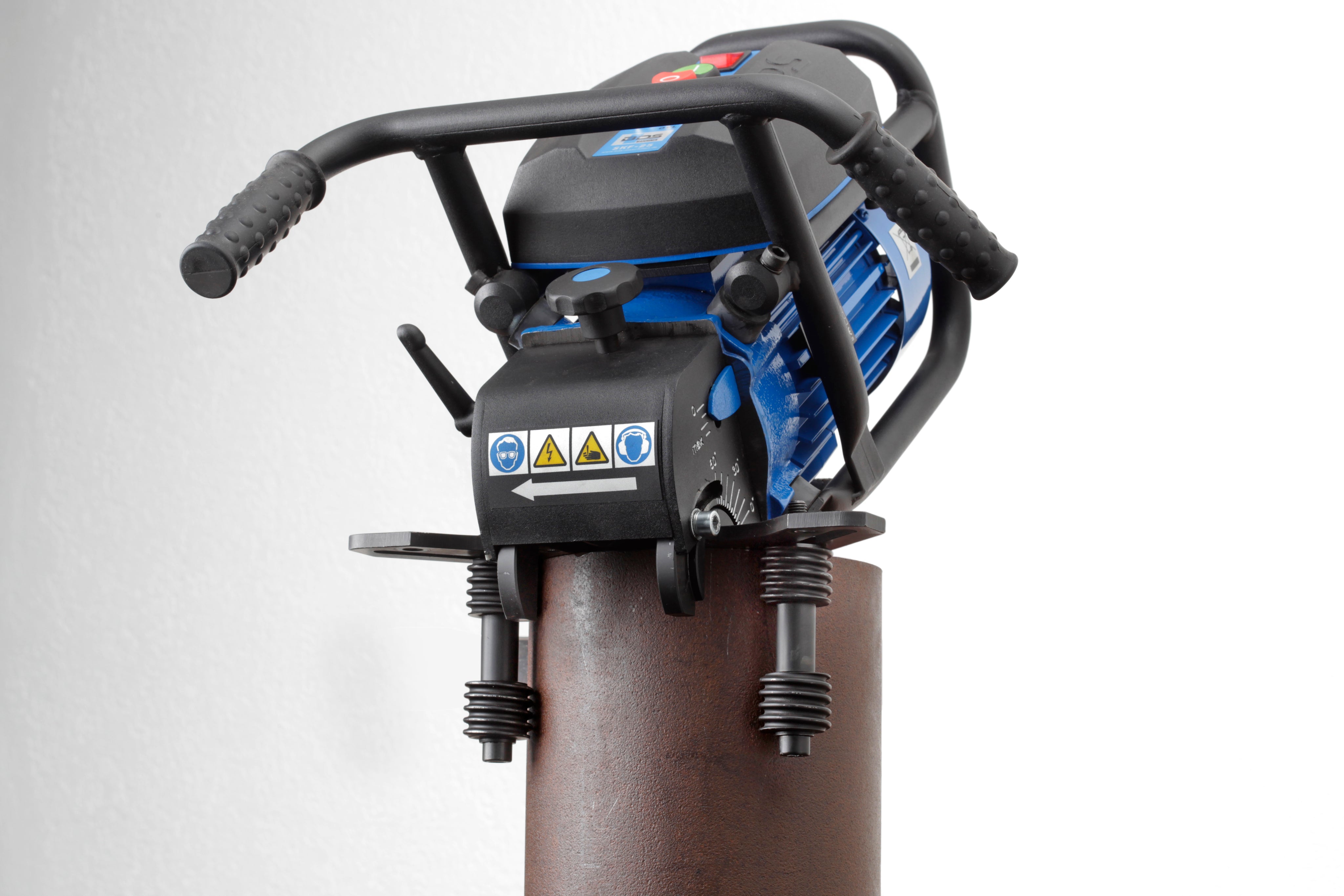

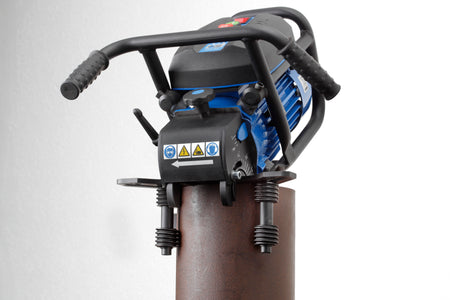

  • Pipe edge machining
  • Vertical pipe processing
  • Steel aluminium machining
  • Robust industrial design
  • Easy machine handling

Technical specifications

Bevel angle 15° to 60° stepless
Bevel width up to 15 mm
Inserts SHM 800 (10 pcs.)
Milling head ZFR 250
Motor output 1100 Watts (10 Amp)
Voltage 230 Volts or 110/125 Volts AC
Speed (min⁻¹) 2850
Weight 22 Kg. (48.5 Lbs.)

What's in the box

  • Carry case (PP container)
  • Carbide inserts – SHM 800 (10 pcs.)
  • Milling head – ZFR 250
  • Allen key
  • Spanner 12 mm
  • Torx screwdriver ZTX 15
  • Operating instructions

Genuine spare parts & service

Original BDS parts for this machine: SKF 025 spare parts. Not sure which part you need? Send us your machine's serial number and we will check it for you.

Designed in Germany by BDS Maschinen GmbH and made in Poland. Supplied and supported in the UK by LATHELAND.
