BDS Quick-Change Tapping Chuck (GSW), MT 2 / MT 3 / MT 4

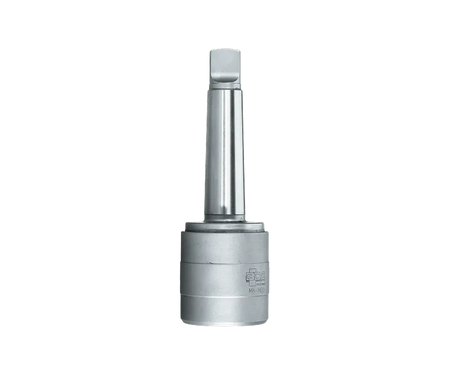

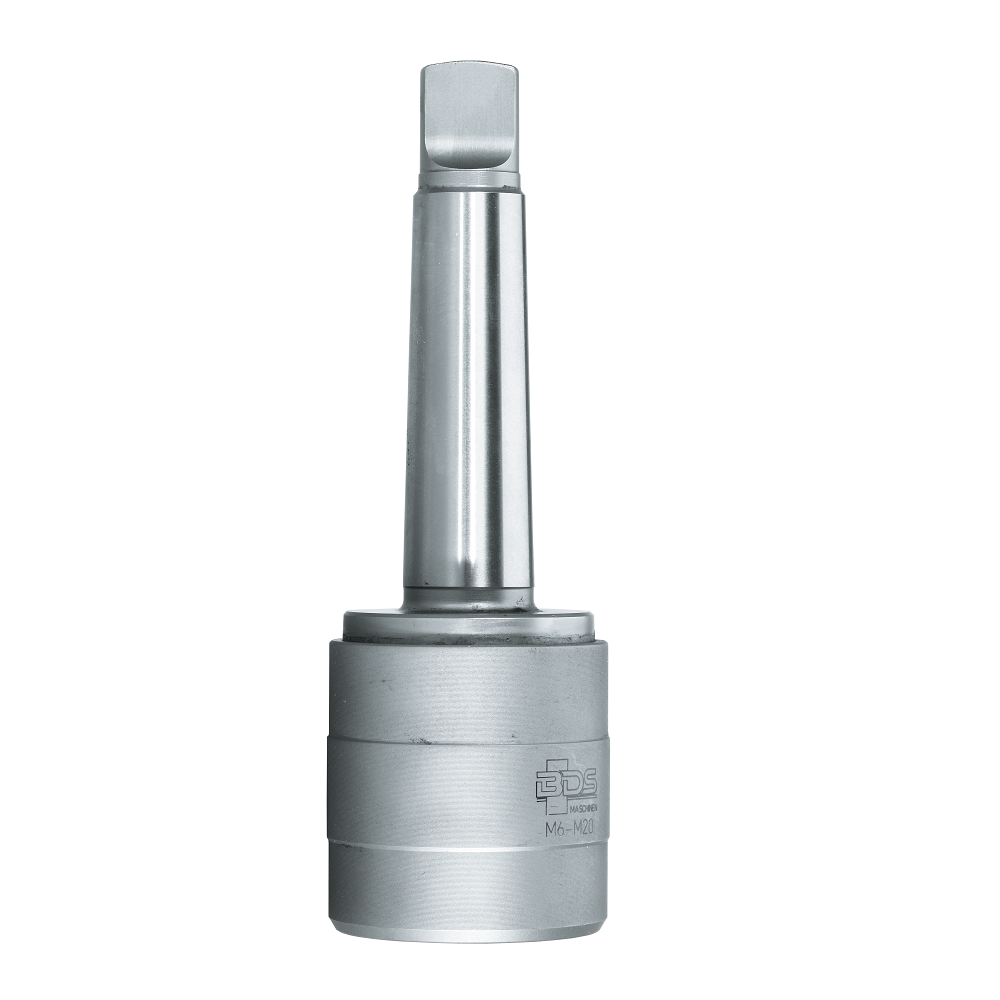

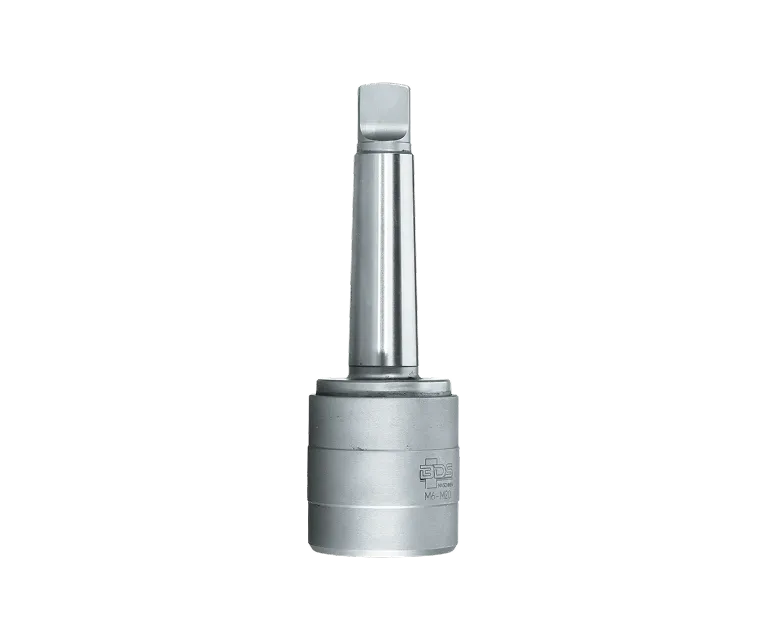

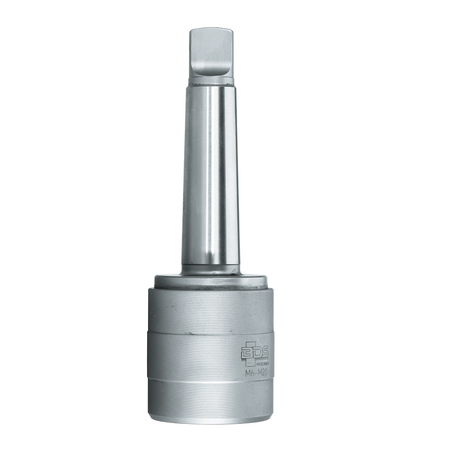

BDS GSW quick-change tapping chuck

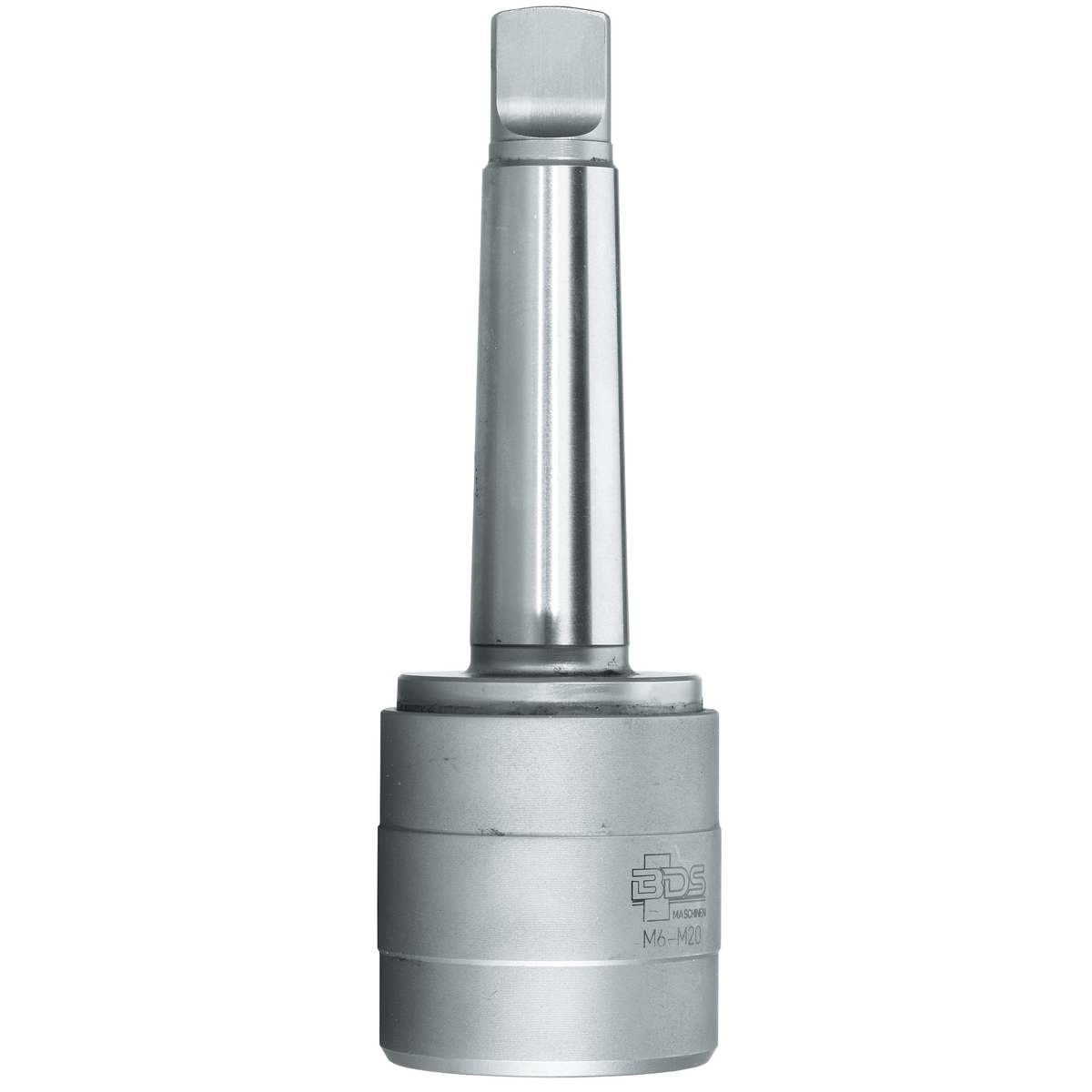

BDS GSW tapping chuck with Morse taper

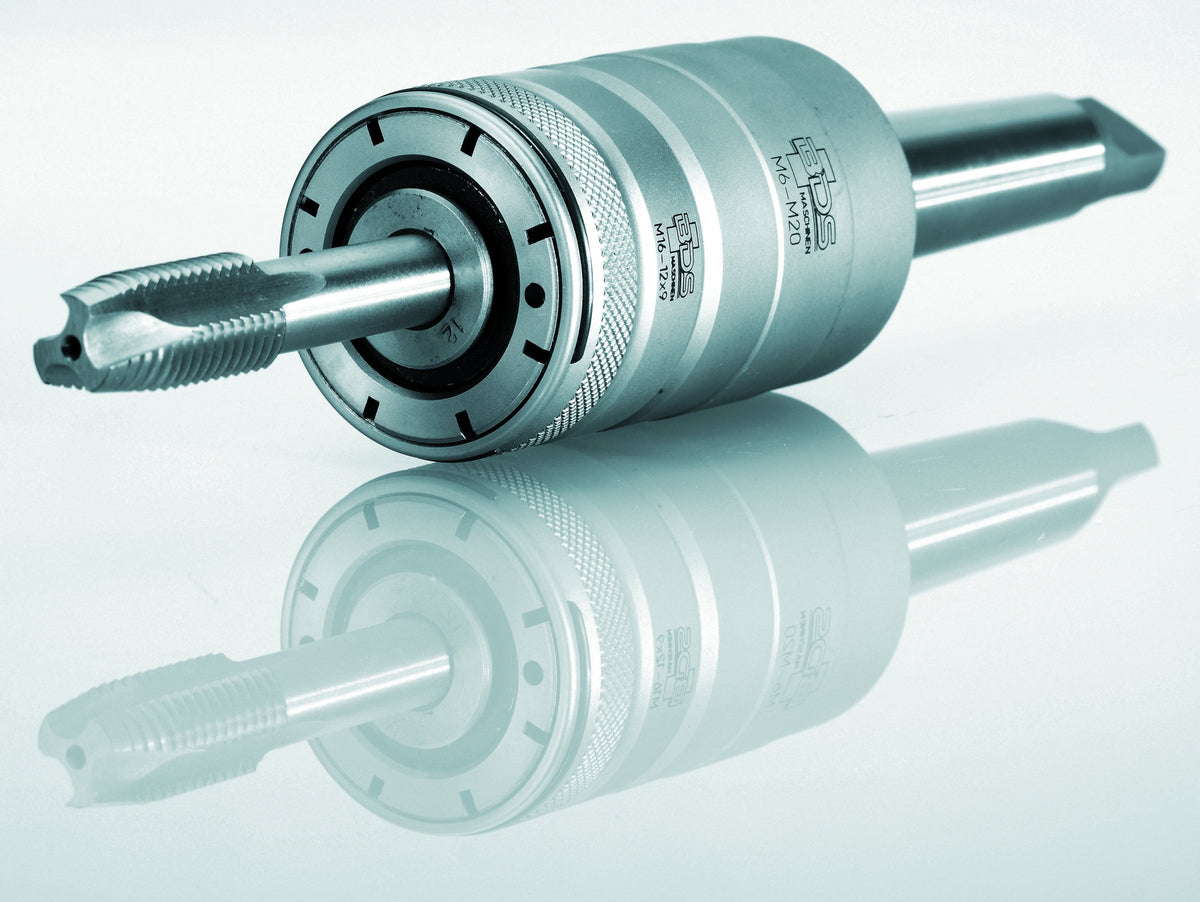

BDS GSW quick-change tapping chuck with machine tap

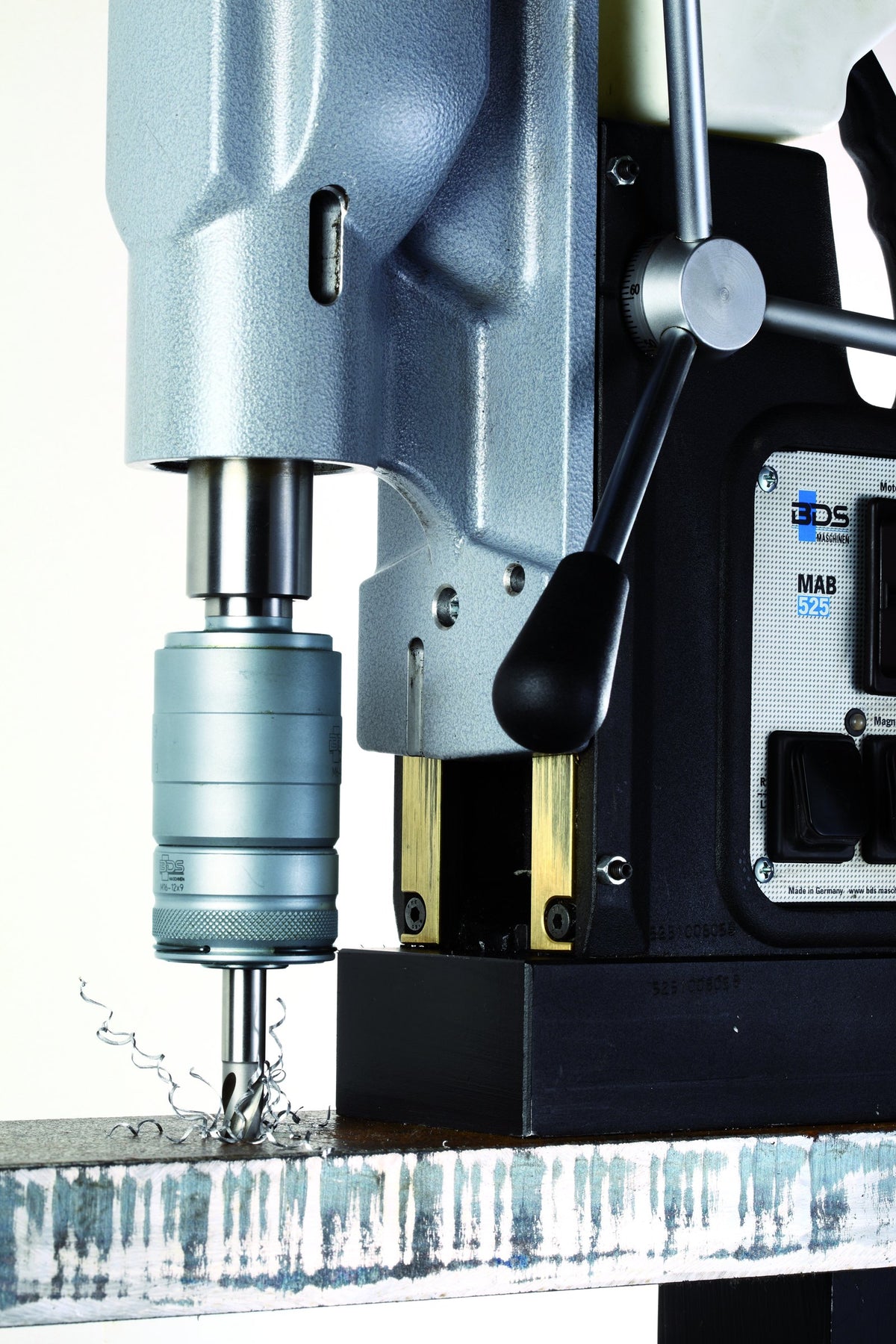

BDS tapping chuck tapping a thread with a magnetic drill

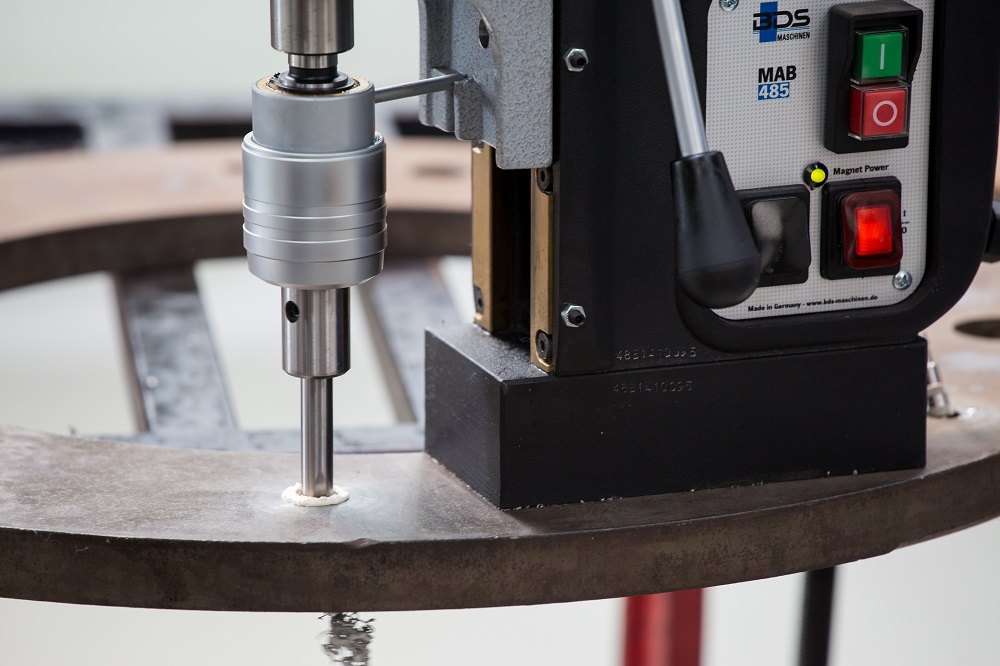

BDS tapping chuck on a magnetic drill
BDS Quick-Change Tapping Chuck (GSW), MT 2 / MT 3 / MT 4
BDS GSW quick-change tapping chuck
BDS GSW tapping chuck with Morse taper
BDS GSW quick-change tapping chuck with machine tap
BDS tapping chuck tapping a thread with a magnetic drill
BDS tapping chuck on a magnetic drill
BDS

BDS Quick-Change Tapping Chuck (GSW), MT 2 / MT 3 / MT 4

In stock
SKU: GSW 222
£171.45 GBP
Sale £228.60 GBP £171.45 GBP
BDS UK offer: 25% off the BDS RRP, already applied

Questions about this product, a larger quantity or a shipping quote? Contact us.

The GSW quick-change chuck turns a BDS magnetic drill with reversible motor into a tapping machine. It fits the machine's Morse taper spindle and takes GSE standard inserts (through holes) or GSS inserts with safety clutch (blind holes), which click in and out without tools.

GSW 222 Size 2 inserts, MT 2 taper
GSW 331 Size 1 inserts, MT 3 taper
GSW 332 Size 2 inserts, MT 3 taper
GSW 333 Size 3 inserts, MT 3 taper
GSW 442 Size 2 inserts, MT 4 taper
GSW 443 Size 3 inserts, MT 4 taper
GSW 444 Size 4 inserts, MT 4 taper

Match the chuck to your machine spindle (MT 2: e.g. MAB 485, AutoMAB 450; MT 3: e.g. MAB 525, 825, 845; MT 4: MAB 1300) and to the insert size for your thread range.

Genuine BDS product from BDS Maschinen GmbH. Supplied and supported in the UK by LATHELAND.
