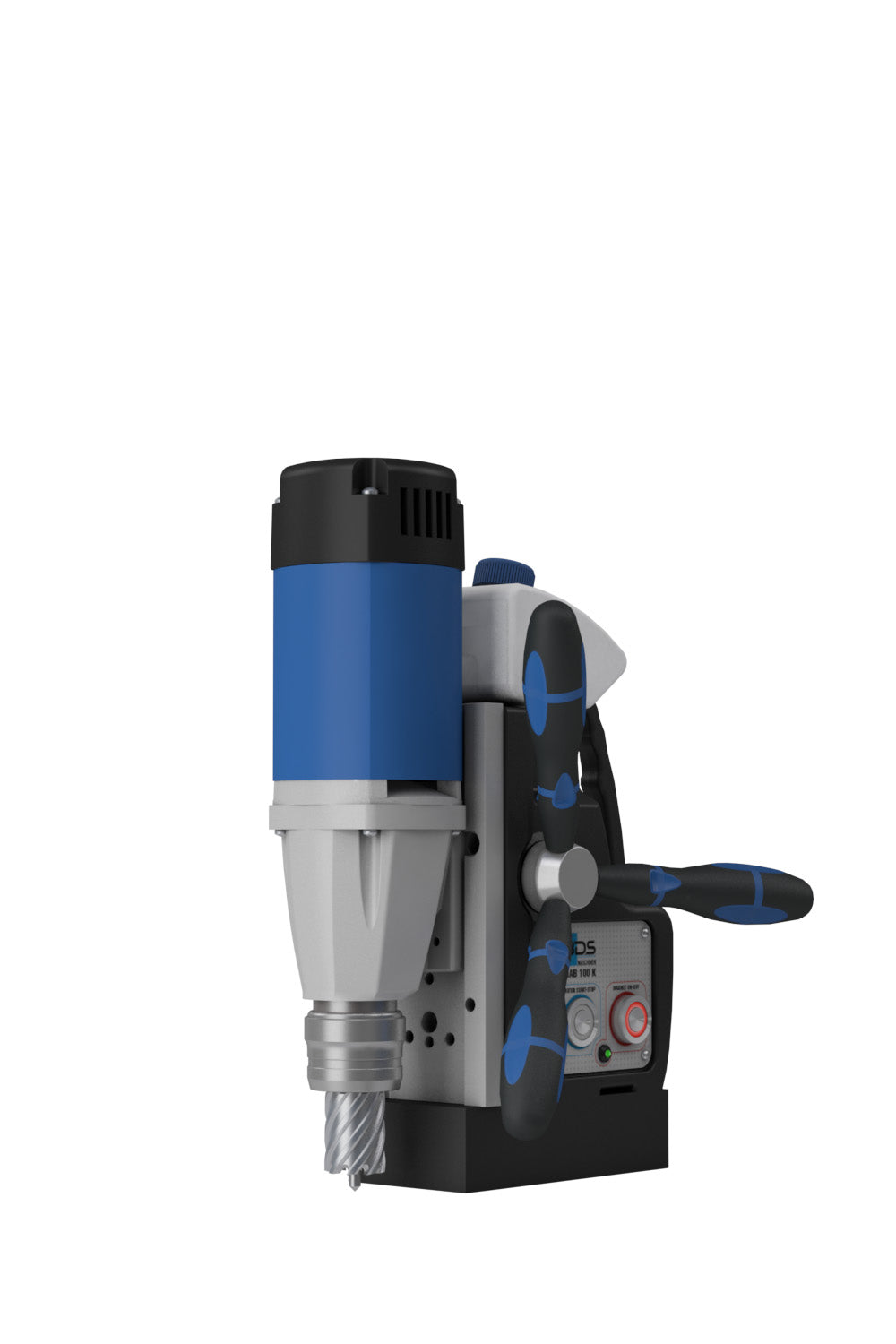

MAB 100 K

THE LIGHTWEIGHT HEAVY PERFORMER

Compact, handy, powerful. The right magnetic core drilling machine, when low weight is the priority.

At just 9.9 kg, the MAB 100 K magnetic drilling machine is the lightweight of the BDS range. Easy to handle and with a low overall height. The internal wiring ensures a high degree of safety during work. Equipped with KEYLESS quick-change drilling system.

• Core Drilling 32 mm
• Cutting Depth 55 mm
• KEYLESS quick-change drill chuck
• Magnet indicator
• Permanent internal lubrication
• Internal cabling
• Just 9.9 Kg. (21.82 lbs.)
• Powerful 1050 Watt motor
• Robust electromagnet
• Heavy duty magnetic drill

Technical Specifications

Motor output	Watt	1050
Voltage, V AC	Volt	230 - 110/125
Core drill cutting depth max.	mm	55
Core drill max. Ø HSS/TCT	mm	32
Twist drill		---
Reaming		---
Countersinking		---
Thread cutting		---
Stroke	mm	70
Magnet dimensions	mm	80 x 160 x 41.5
Weight	kg	9.9
Spindle taper		---
Arbor		---
KEYLESS 19 mm Weldon 3/4“		Yes
Speed gears		1
Gear 1 range	min-1	460
Permanent internal lubrication		Yes
Safety clutch		---
Torque control		---
Full-wave control electronics		---
Magnetic Indicator		Yes
Overheating protection		---
Carbon brush wear control		---



Scope of delivery

1 Ejector pin ZAK 075 +100

1 Hard-top case

1 Safety lashing strap

1 Operating Instructions
