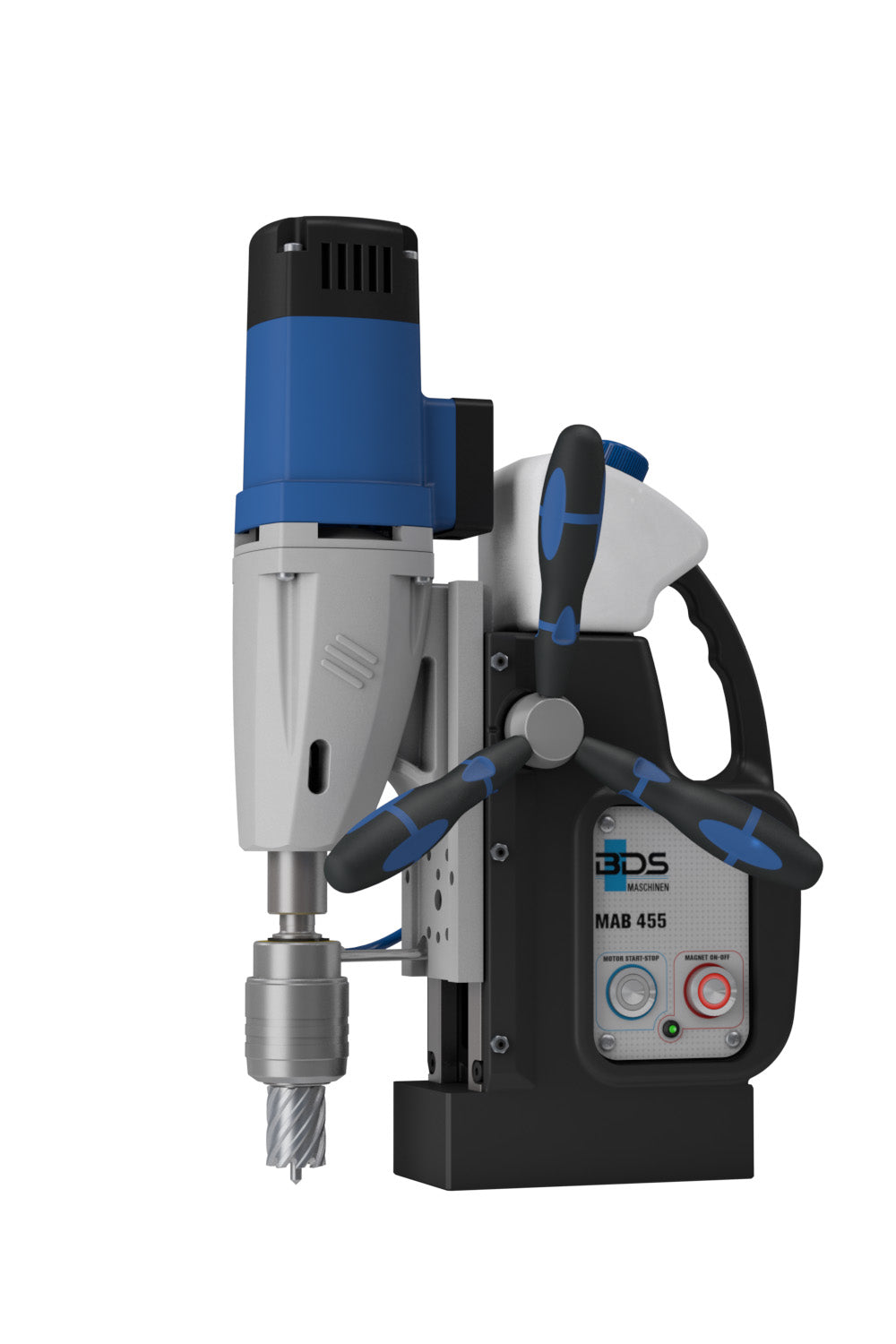

MAB 455

PERFECT FOR THE WORKSHOP AND ON THE ASSEMBLY LINE

Whether its for a workshop or in the field – the first choice for metalworking!

The heavy duty MAB 455 magnetic drilling machine is all you need while drilling in a workshop or on the field. The MAB 455 magnetic drill is equipped with Morse Taper 2 which makes it also very convenient to drill with twist drill bit up to 18 mm diameter and taper shank. The MAB 455 magnetic drill is also available with optional Swivel Base system as model name MAB 455SB.

• Core Drilling 40/50 mm
• Cutting Depth 55 mm
• Magnet indicator
• KEYLESS quick-change drill chuck

• Permanent internal lubrication
• Internal cabling
• Oil-bath gearbox motor
• Morse Taper 2
• Two speed gearbox
• Swivel base option available as model MAB 455SB

Technical Specifications

Motor output	Watt	1150
Voltage, V AC	Volt	230 - 110/125
Core drill cutting depth max.	mm	55
Core drill max. Ø HSS/TCT	mm	40/50
Twist drill	≤ Ø mm	18
Reaming		---
Countersinking		---
Thread cutting		---
Stroke	mm	160
Magnet dimensions	mm	---
Weight	kg	13
Spindle taper		MT 2
Arbor		---
KEYLESS 19 mm Weldon 3/4“		Yes
Speed gears		2
Gear 1 range	min-1	250
Gear 2 range	min-1	450
Permanent internal lubrication		Yes
Safety clutch		---
Torque control		---
Full-wave control electronics		---
Magnetic Indicator		Yes
Overheating protection		---
Carbon brush wear control		---

Scope of delivery

1 KEYLESS quick-change drilling system 19 mm Weldon (3/4”)

1 Ejector-pin ZAK 075, 100

1 Hard-top case

1 Safety lashing strap
