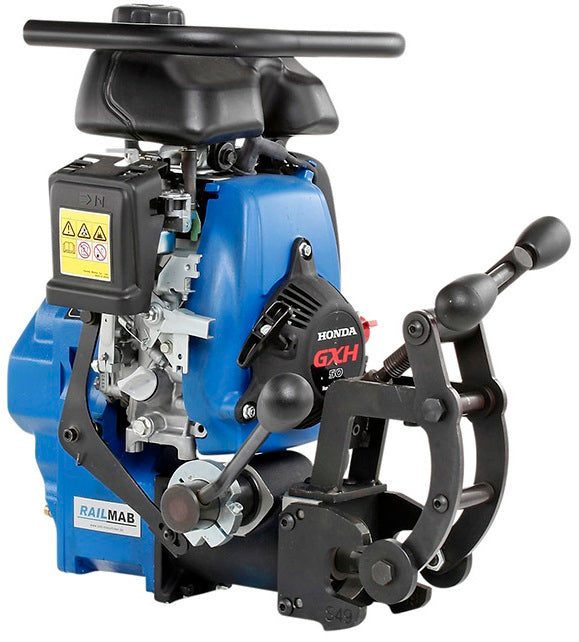

RailMAB 965

LIGHTWEIGHT RAIL DRILL MACHINE

RDSO Approved Lightweight Rail Drill Machine. Just 21.5 Kg in weight and can be handled & operated by a single operator.

The lightweight rail drilling machine can be easily attached to the rails using a quick-release system. To ensure the necessary drilling stability, this exerts a pressure of 1.2 tons on the rail foot. This easy to use quick-change clamping system is very fast and can clamp & de-clamp within few seconds.

• Core Drilling 36 mm
• Cutting Depth 30 mm
• 49.4 ccm cubic capacity
• 3.04 Nm torque
• Compact design
• Powerful quick-change clamping system
• Lightweight, just 21.5 Kg.
• Independent of electric power supply
• Powerful 1.5 kW (2HP) petrol engine
• Integrated petrol tank

Technical specifications

Motor output	Watt	1500
Voltage, V AC	Volt	Petrol (Benzin) driven
Core drill cutting depth max.	mm	30
Core drill max. Ø HSS/TCT	mm	36
Twist drill	≤ Ø mm	20
Reaming		------
Countersinking		------
Thread cutting		------
Stroke	mm	40
Magnet dimensions	mm	------
Weight	kg	21.5
Spindle taper		------
Arbor		Direct arbor 19 mm Weldon 3/4”
KEYLESS 19 mm Weldon 3/4“		------
Speed gears		1
Gear 1 range	min-1	110 – 280
Permanent internal lubrication		✔
Safety clutch		------
Torque control		------
Full-wave control electronics		------
Magnetic Indicator		------
Overheating protection		------
Carbon brush wear control		------

Scope of delivery

1 Ejector Pin ZAK 075

1 High-pressure tank, 5 litres

1 Rail adapter of your choice (no special version)

1 Offset Screwdriver SW 4 + 5+6

1 Carry Case

1 Operating Instructions
