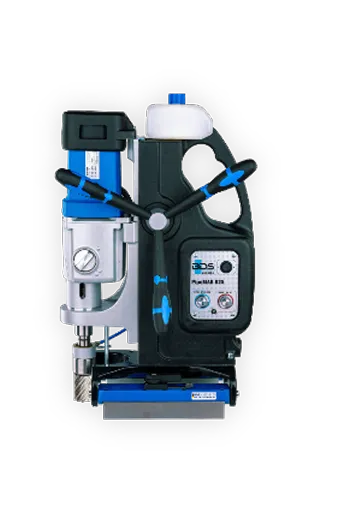

BDS PipeMAB 825 Magnetic Pipe Drilling & Tapping Machine – ProfiSPEZIAL

The PipeMAB 825 takes the proven MAB 825 platform and adapts it for pipes and tubes. It core drills up to Ø 100 mm and taps up to M30, and its patented permanent magnet grips pipes from Ø 85 mm upwards as well as flat surfaces, holding securely even on 3 mm material.

With a 1800 W motor, four-speed oil bath gearbox, variable speed and torque control, reversible motor and Morse Taper 3 spindle, it is a versatile choice for pipeline construction, plant engineering and structural tube work.

Available from LATHELAND in 230 V.

Key features

• Drilling, Tapping, Countersink & Reaming
• Morse Taper 3
• Patented Permanent Magnet
• Strong Magnetic Grip On Pipes
• Works On Curved And Flat Surfaces
• Suitable For Pipes From 85 mm Diameter
• Holds On Material As Thin As 3 mm
• Elongated Tool Holder For Full Stroke Use
• Reversible Motor
• Variable Speed & Torque Control
• Full Wave Control Electronics
• Overheat Protection
• Safety Friction Clutch
• Carbon Brush Wear Indicator
• Oil Bath Gearbox
• Permanent Internal Lubrication
• Heavy Duty Carry Case with Wheels

Technical specifications

What's in the box

• Carry case – ZHK 1500
• Ejector pins – ZAK 075, ZAK 090, ZAK 100, ZAK 120
• Arbor – ZIA 319-KN
• Drift key – ZAS 003
• Safety strap
• Allen key – 6 mm, 8 mm
• Operating instructions

Genuine spare parts & service

Not sure which part you need? Send us your machine's serial number and we will check it for you.

Made in Germany by BDS Maschinen GmbH. Supplied and supported in the UK by LATHELAND.
