MAB 825 V / MAB 845 V

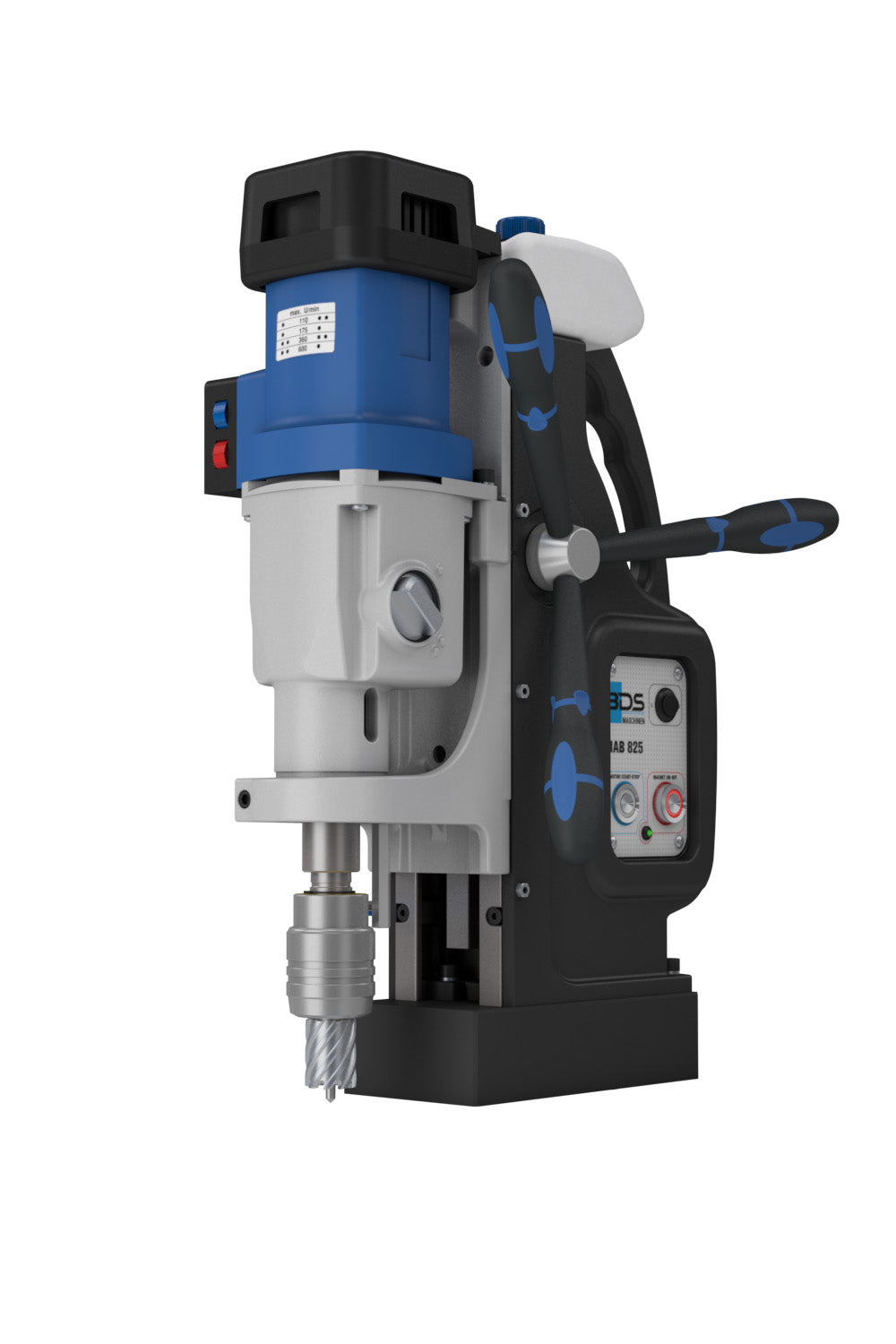

THE HEAVY-DUTY AUTOMATIC MAGNETIC DRILL

Full performance and flexibility for steel, plant and machine construction. With adjustable automatic feed. An ideal machine for drilling with Twist Drills with Morse Taper 3 shanks. The premium made in Germany automatic magnetic drilling machine. Thanks to reversible motor MAB 825V can also perform tapping (thread cutting).

The automatic feed is at the turnstile coupled in and out and can be switched on in any position. The infinitely variable feed speed ensures for optimal use of the respective tool. When the upper or lower end position is reached. The feed is automatically deactivated. Further processing is by manual switchover anytime possible. Safety control switch-off: If the magnet loses its grip, the drill and feed motor switch off automatically. The automatic magnetic drilling machine can also be used with manual feed.

• Core Drilling 100 mm
• Thread Cutting M 30
•  Variable automatic feed and automatic reverse
•  Manual drilling option
•  Variable speed & torque controls
•  Available with Swivel Base options model number MAB 845V
•  4 Speed gear and Morse taper 3
•  Reversible motor
•  Carbon brush wear indicator & magnet indicator
•  Delivered in heavy duty carry case on rolls

Technical specification

Motor output	Watt	1800
Voltage, V AC	Volt	230 - 110/125
Core drill cutting depth max.	mm	110
Core drill max. Ø HSS/TCT	mm	100
Twist drill	≤ Ø mm	31.75
Reaming	≤ Ø mm	31.75
Countersinking	≤ Ø mm	50
Thread cutting	≤ Ø mm	30
Stroke	mm	255
Magnet dimensions	mm	110 x 220 x 54
Weight	kg	34
Spindle taper		MT 3
Arbor		Industrial arbor 19 mm + 32 mm
KEYLESS 19 mm Weldon 3/4“		---
Speed gears		4
Gear 1 range	min-1	40 - 100
Gear 2 range	min-1	65 - 175
Gear 3 range	min-1	140 – 360
Gear 4 range	min-1	220 – 600
Permanent internal lubrication		✔
Safety clutch		✔
Torque control		✔
Full-wave control electronics		✔
Magnetic Indicator		✔
Overheating protection		✔
Carbon brush wear control		✔

Scope of delivery

1 Ejector Drift MT 3

1 Industrial Arbor ZIA 319-KN, 19 mm Weldon (3/4”)

1 Industrial Arbor ZIA 332-KN, 32 mm Weldon (1 1/4”)

1 Ejector Pin Each ZAK 075 + 90 + 100 + 120

1 Allen Key Sizes 6 + Size 8

1 Carry case on wheels

1 Safety Lashing Strap

1 Operating Instructions
