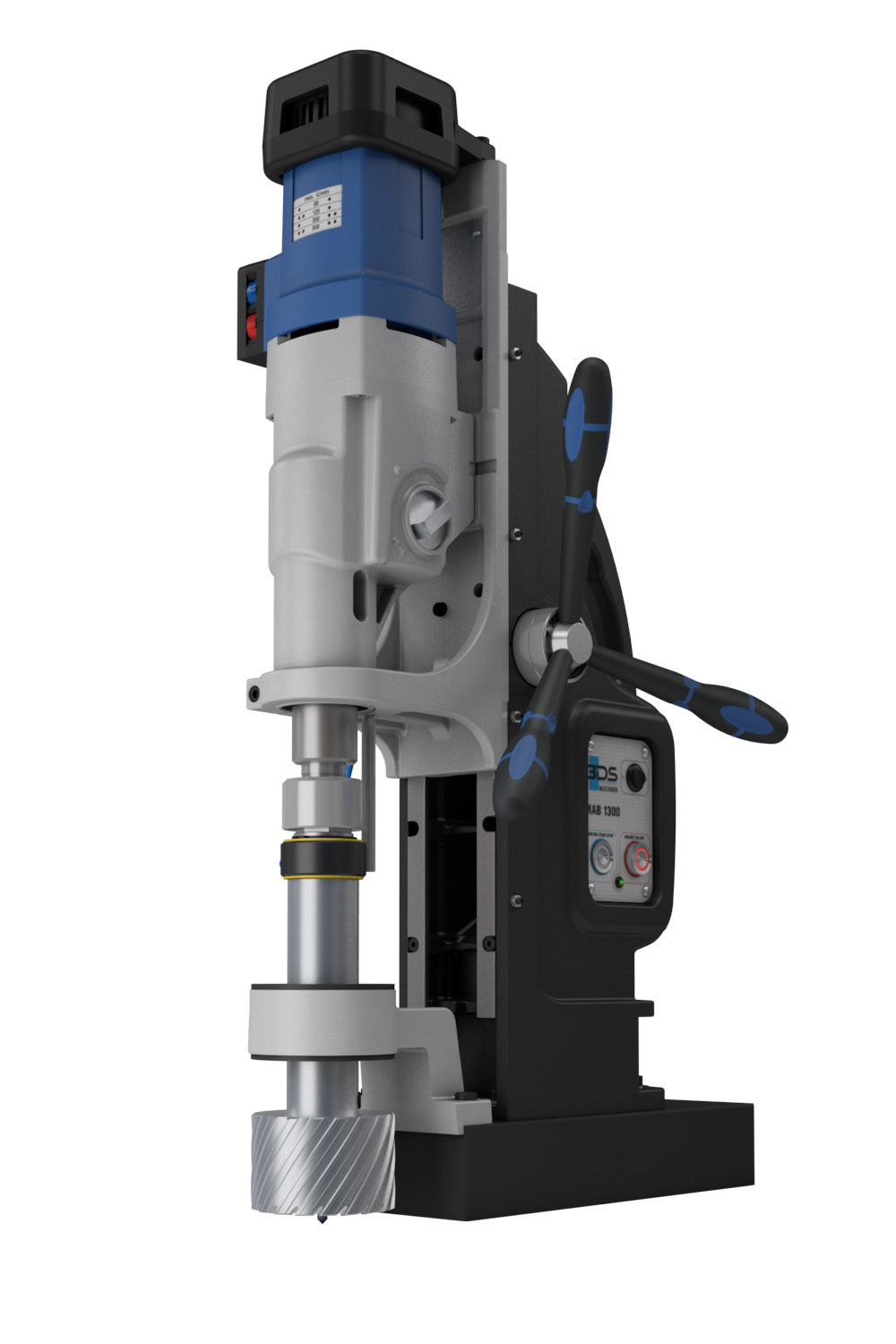

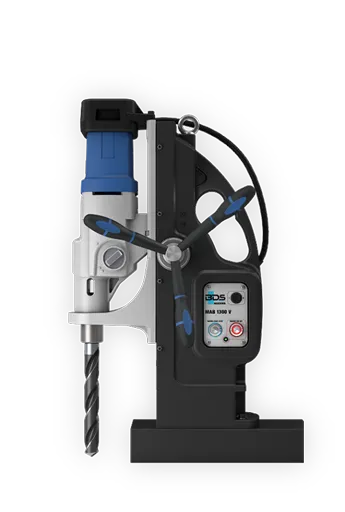

MAB 1300 V

THE STRONGEST OF THE STRONG

Superior performance thanks to the sophisticated display of power. The MAB 1300 V is currently the most powerful magnetic core drilling machine with controllable automatic feed. The worlds' strongest automatic magnetic drilling machine, made in Germany. Ideal for drilling, tapping, reaming and countersink.

The automatic feed is at the turnstile coupled in and out and can be switched on in any position. The infinitely variable feed speed ensures for optimal use of the respective tool. When the upper or lower end position is reached. The feed is automatically deactivated. Further processing is by manual switchover anytime possible. Safety control switch-off: If the magnet loses its grip, the drill and feed motor switch off automatically. The automatic magnetic drilling machine can also be used with manual feed.

• Core Drilling 130 mm
• Thread Cutting M 42
• Variable automatic feed and automatic reverse
• Manual drilling option
• Variable speed & torque controls
• Carbon brush wear indicator & magnet indicator
• Morse Taper 4
• 4 Speed gear
• Reversible motor
• Delivered in heavy duty carry case on rolls

Technical specifications

Motor output	Watt	2300
Voltage, V AC	Volt	230 - 110/125
Core drill cutting depth max.	mm	110
Core drill max. Ø HSS/TCT	mm	130
Twist drill	≤ Ø mm	45
Reaming	≤ Ø mm	50
Countersinking	≤ Ø mm	80
Thread cutting	≤ Ø mm	42
Stroke	mm	310
Magnet dimensions	mm	120 x 360 x 67
Weight	kg	51
Spindle taper		MT 4
Arbor		Industrial arbor 19 mm + 32 mm
KEYLESS 19 mm Weldon 3/4“		---
Speed gears		4
Gear 1 range	min-1	30 – 80
Gear 2 range	min-1	50 – 120
Gear 3 range	min-1	130 – 350
Gear 4 range	min-1	210 – 550
Permanent internal lubrication		✔
Safety clutch		✔
Torque control		✔
Full-wave control electronics		✔
Magnetic Indicator		✔
Overheating protection		✔
Carbon brush wear control		✔

Scope of delivery

1 Ejector drift MT 4

1 Industrial arbor ZIA 419-KN, 19 mm Weldon (3/4”)

1 Industrial arbor ZIA 432-KN, 32 mm Weldon (1 1/4”)

1 Ejector pin ZAK 075 + 090 + 100 + 120

1 Allen key size 6 + size 8

1 Carry case on wheels

1 Safety lashing strap

1 Operating instructions
