Award-winning BDS: German Brand Award 2023 for the BDS brand, and German Design Awards 2022 and 2023 for BDS machines.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.

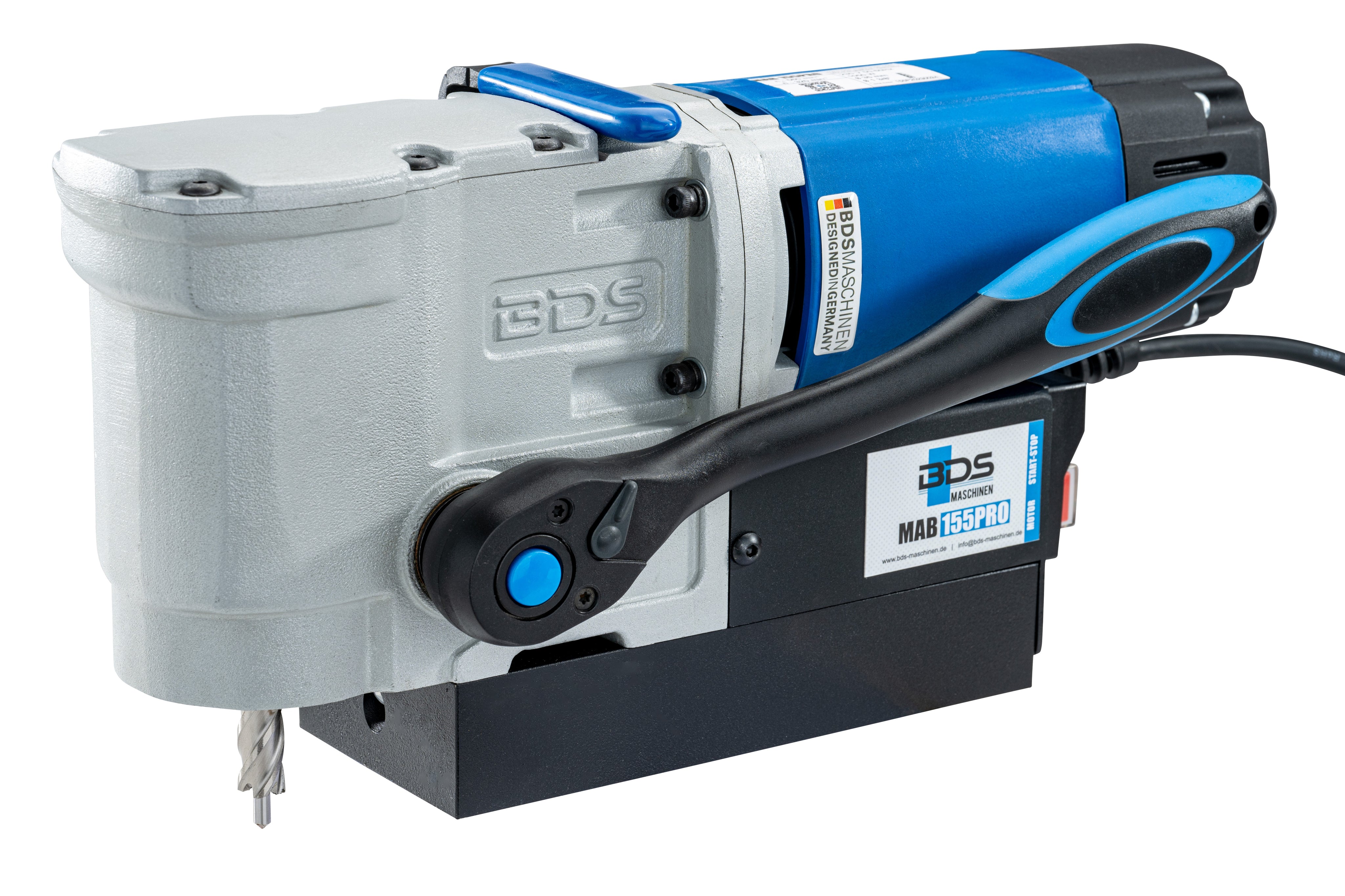

Discover the award-winning drilling power of the BDS Machines MAB 155PRO. Engineered in Germany, this ultra-compact horizontal magnetic drilling machine delivers 1050 W of high-performance in only 11 kg weight and 180 mm height—ideal for confined spaces. With its integrated LED spotlight, ratchet feed and angular gearbox it ensures precision and efficiency on steel construction and metal fabrication jobs. Trusted by professionals for its exceptional machining capabilities and reliability, the MAB 155PRO stands out as the best compact solution for heavy-duty industrial drilling tasks.
Available from LATHELAND in 230 V and in 110 V for UK construction sites.

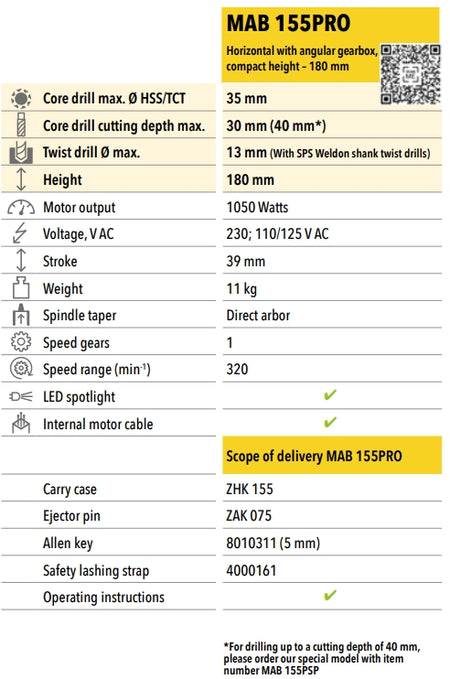

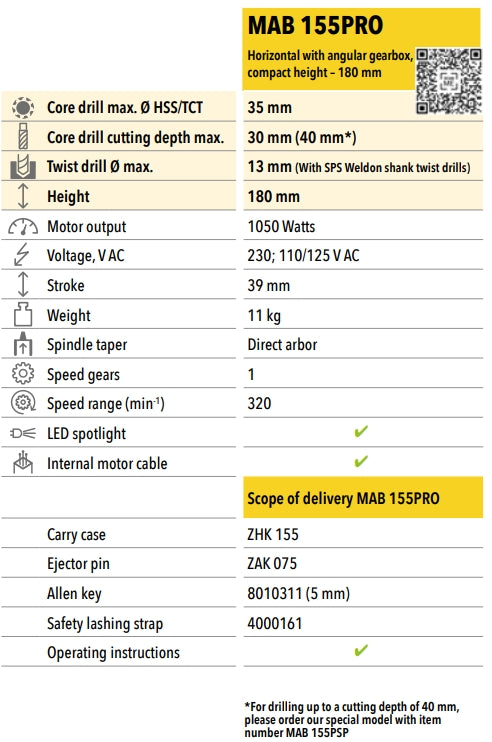

| Core drill max. Ø HSS / TCT | 35 mm (1-3/8″) |
| Cutting depth max. | 30 mm (1-3/16'') /40 mm* |
| Twist drill Ø max. | 13 mm (1/2'') With SPS Weldon Shank Twist Drills |
| Motor output | 1050 Watt (8.2 Amp) |
| Voltage | 230 Volts or 110/125 Volts AC |
| Stroke | 39 mm (1-1/2″) |
| Weight | 11 Kg. (24 lbs.) |
| Arbor | Direct arbor 19 mm Weldon ¾“ |
| Gears | 1 |
| Speed range (min⁻¹) | 320 |
Original BDS parts for this machine: MAB 155PRO spare parts. Not sure which part you need? Send us your machine's serial number and we will check it for you.
Engineered in Germany by BDS Maschinen GmbH and made in India. Supplied and supported in the UK by LATHELAND.
