Email us for a quote.
Supplied on quotation. Send the form and we reply with the price, delivery to your door (UK or worldwide) and lead time, usually within one working day.
Award-winning BDS: German Brand Award 2023 for the BDS brand, and German Design Awards 2022 and 2023 for BDS machines.
Dangerous goods – may take longer. Contains a lithium battery, which is classed as dangerous goods for transport. Delivery may take a few extra working days.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.

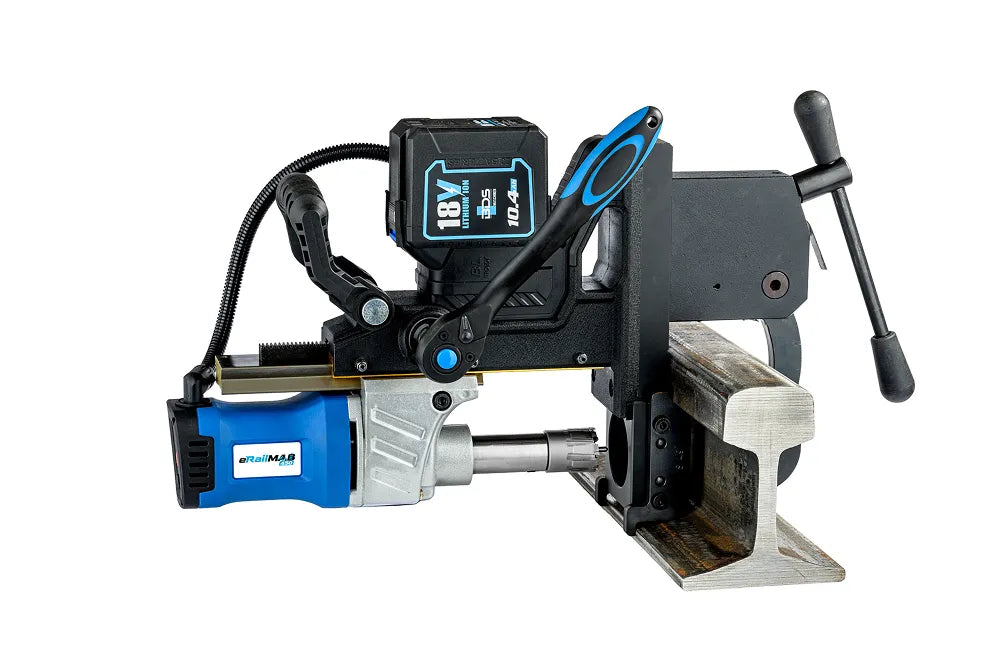

The eRailMAB 450 is BDS's battery-powered rail drilling machine for track construction and maintenance. It needs no generator or mains supply, so railway teams can drill rail webs right where the work is. A brushless 1100 W motor gives efficient, low-maintenance running, and the quick clamping system fits it to different rail profiles with rail adapters. Variable speed, a reversible motor and ergonomic handles make it safe and easy to use every day. It runs on an 18 V / 10.4 Ah Li-ion battery and comes in a heavy-duty carry case with wheels.
| Core drill max. Ø HSS / TCT | 36 mm (2-1/16") |
| Cutting depth max. | 55 mm (2-3/8") |
| Thread cutting max. | M16 (5/8") |
| Twist drill Ø max. | 18 mm (11/16") |
| Reaming Ø max. | 18 mm (11/16") |
| Countersinking Ø max. | 40 mm (1-9/16") |
| Motor output | 1100 W, brushless |
| Voltage | 18 V Li-ion battery (10.4 Ah, 187 Wh) |
| Stroke | 135 mm (5-5/16") |
| Weight | 13 kg (28.7 lbs) without battery |
| Spindle taper | Direct arbor, 19 mm (¾") Weldon |
| Gears | 1 |
| Speed range (min⁻¹) | 134 / 189 / 246 / 298 / 355, variable |
Rail adapters listed by BDS for the eRailMAB 450: ZAS 049S (S 49), ZAS 054S (S 54), ZAS 050U (UIC 50) and ZAS 054U (UIC 54). Tell us your rail profile when you order. Extra adapters: BDS rail adaptors.
Spare parts and exploded-view diagrams are on the BDS Spare Parts Portal. Send us your machine's serial number and we will supply the right part.
Genuine BDS machine from BDS Maschinen GmbH. Supplied and supported in the UK by LATHELAND.
