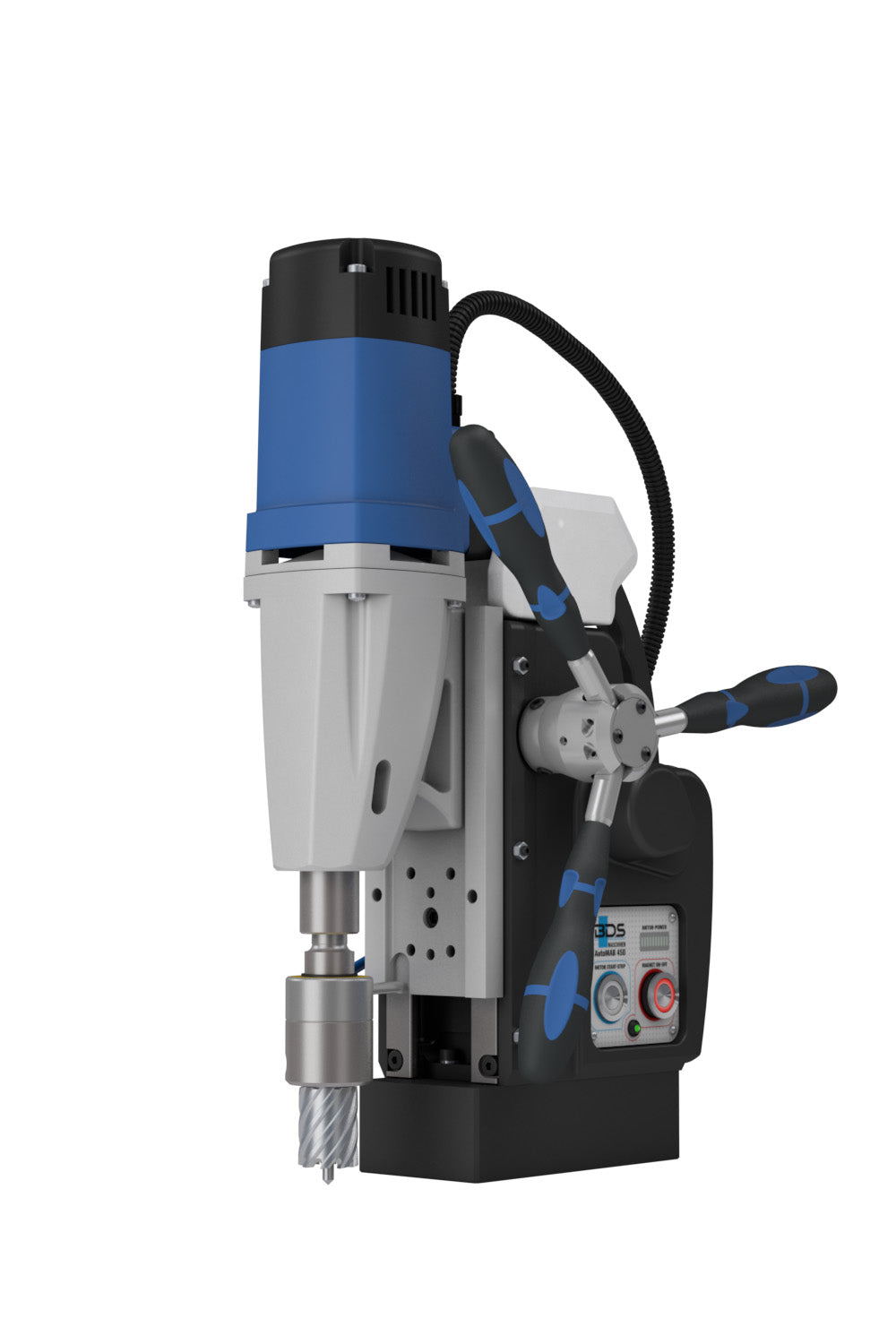

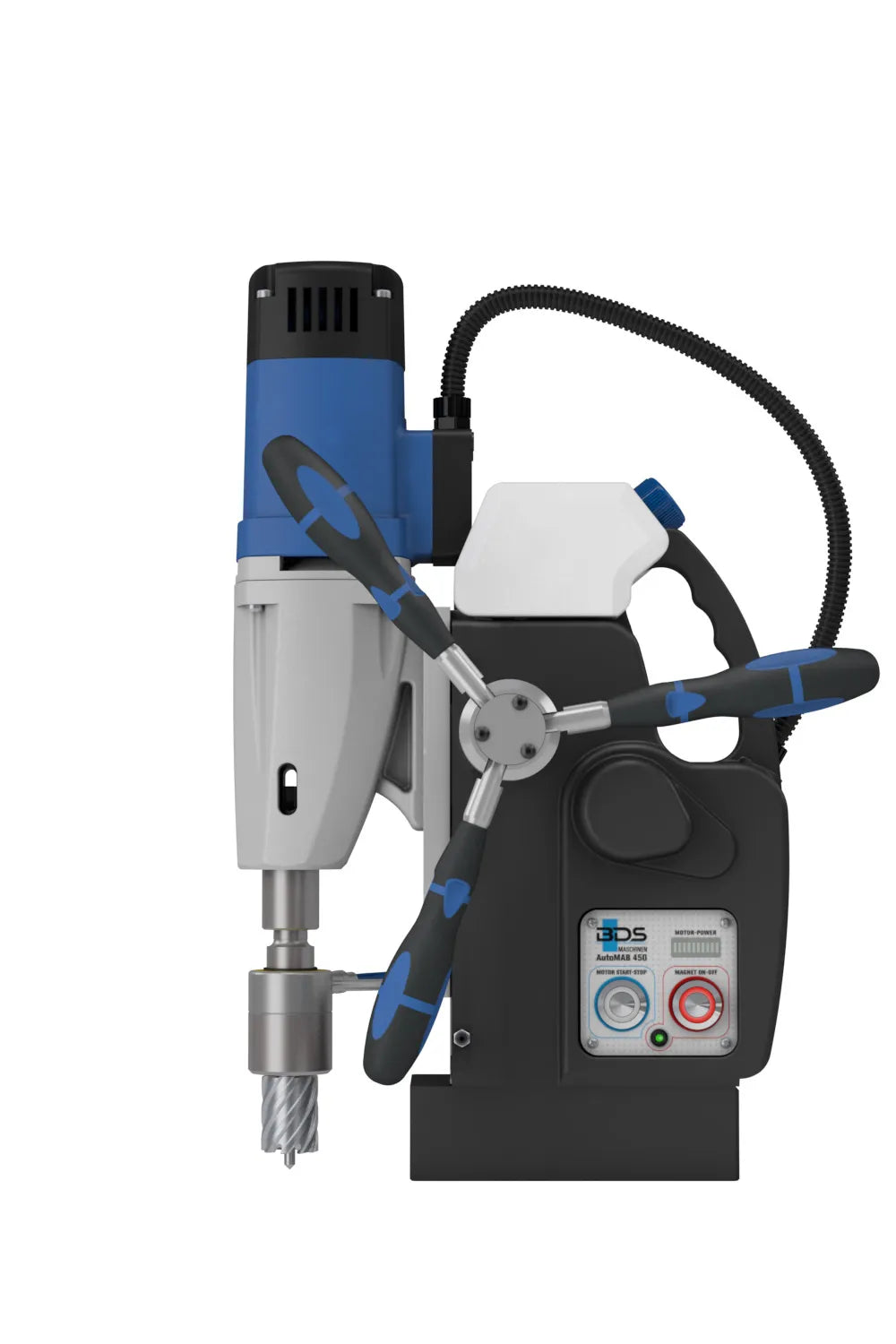

AutoMAB 450

AFFORDABLE FULLY AUTOMATIC DRILLING SOLUTION WITH MT2

The fully automatic magnetic drilling machine with automatic feed, automatic reverse and automatic shut-off. The AutoMAB 450 is equipped with Morse Taper 2 spindle taper. The AutoMAB 450 automatic magnetic drill machine can drill 45 mm diameter holes in 55 mm cutting depth.

The AutoMAB 450 automatic magnetic drill machine is easy to use and simple magnetic drill machine. It's also simple because there is no need for adjusting speed gears. The advantages of AutoMAB 450 automatic magnetic drill machine are that these machines are independent of the drilling skills of the operators, so even new operators can use the machines easily. Also, due to automatic feed one can get higher tools life i.e. higher performance of annular cutters. Made in Germany technology of automatic magnetic drilling machine.

• Core Drilling 45 mm
• Cutting Depth 55 mm
• The control reliably monitors the drilling process, while the power consumption is displayed through an LED.
• A safety cut-out protects the drilling motor from overload.
• The high degree of uniformity in the drilling process protects the tool and machine and significantly reduces the risk of the core drill breaking.
• Safety control cut-out: If the magnet loses its adhesion, the drilling and feed motors automatically cut out.
• The automatic feed is activated by pushing back one of the three handles.
• Ideal for drilling automatic as well as manually.
• Morse Taper 2 spindle.
• Made in Germany.

Technical specifications

Motor output	Watt	1150
Voltage, V AC	Volt	230 - 110/125
Core drill cutting depth max.	mm	55
Core drill max. Ø HSS/TCT	mm	45
Twist drill	≤ Ø mm	---
Reaming	≤ Ø mm	---
Countersinking	≤ Ø mm	---
Thread cutting	≤ Ø mm	---
Stroke	mm	150
Magnet dimensions	mm	84 x 168 x 48
Weight	kg	16
Spindle taper		MT 2
Arbor		Industrial arbor 19 mm Weldon 3/4”
KEYLESS 19 mm Weldon 3/4“		---
Speed gears		2
Gear 1 range	min-1	250
Gear 2 range	min-1	450
Permanent internal lubrication		✔
Safety clutch		---
Torque control		---
Full-wave control electronics		---
Magnetic Indicator		✔
Overheating protection		---
Carbon brush wear control		---

Scope of delivery

1 Ejector pin ZAK 075 + 100

1 Ejector drift MT 2

1 Industrial arbor ZIA 219-KN, 19 mm Weldon (3/4”)

1 Allen key size 5

1 Carry case

1 Safety lashing strap

1 Operating Instructions
