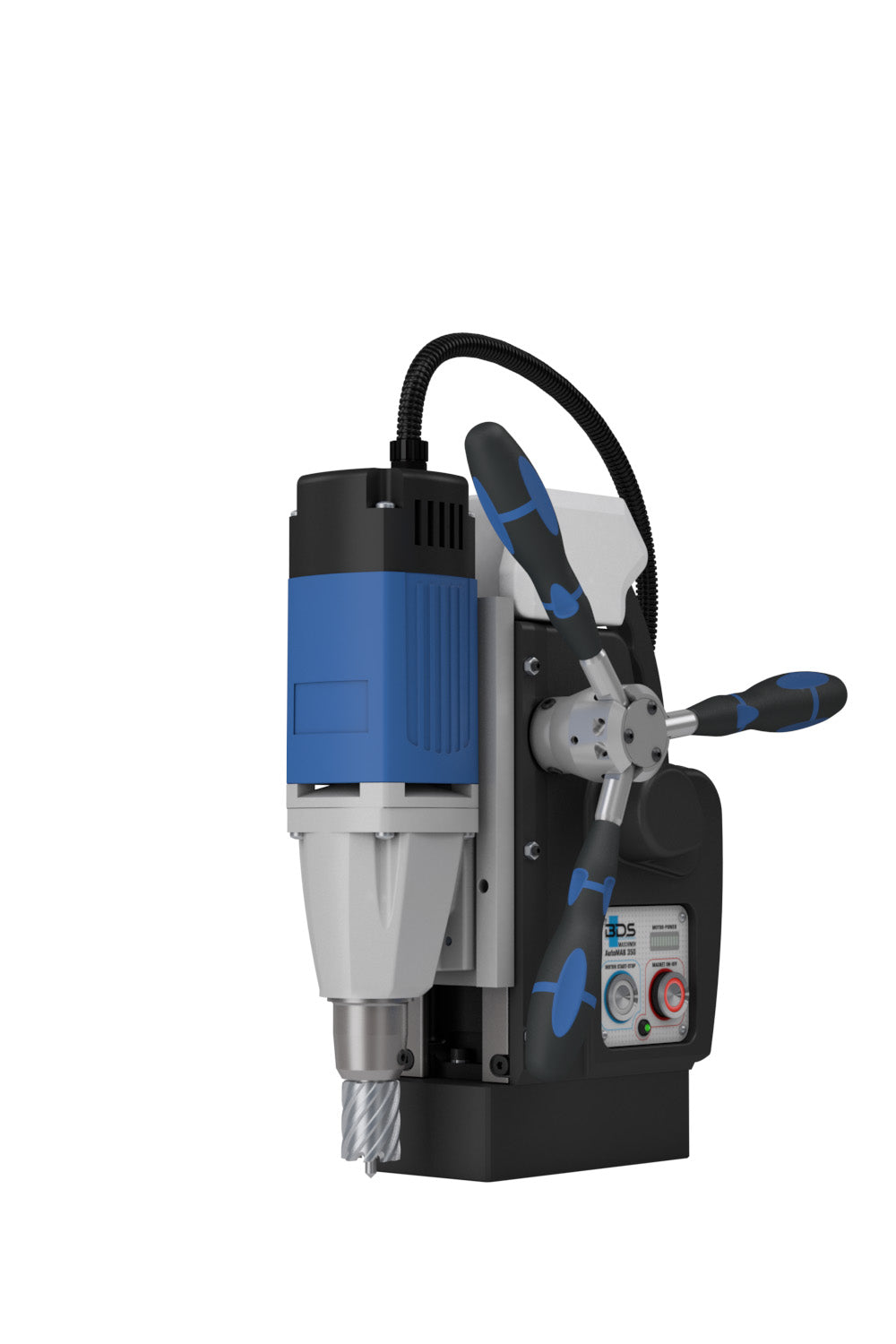

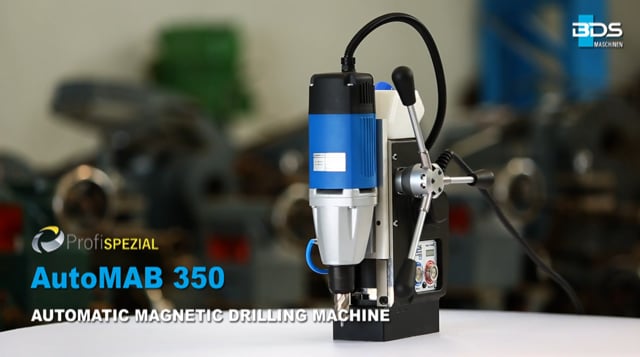

AutoMAB 350

ECONOMICAL FULLY AUTOMATIC DRILLING SOLUTION

The fully automatic magnetic drilling machine with automatic feed, automatic reverse and automatic shut-off. The AutoMAB 350 is equipped with 19 mm (3/4") Weldon direct arbour.

The AutoMAB 350 automatic magnetic drill can drill 35 mm diameter holes in 55 mm cutting depth. AutoMAB 350 is easy to operate. Automatic drilling, automatic reverse, and automatic shut-off. The AutoMAB 350 automatic magnetic drill can also be operated manually. No need for adjusting speed gears makes the machine more simple. The advantages of AutoMAB 350 automatic magnetic drill are saving tool cost, the longer service life of the tool, Single operator can simultaneously drill with multiple machines, etc. Made in Germany technology of automatic magnetic drilling machine.

• Core Drilling 35 mm
• Cutting Depth 55 mm
• The control reliably monitors the drilling process, while the power consumption is displayed by means of an LED.
• A safety cut-out protects the drilling motor from overload.
• The high degree of uniformity in the drilling process protects the tool and machine and significantly reduces the risk of the core drill breaking.
• Safety control cut-out: If the magnet loses its adhesion, the drilling and feed motors automatically cut out.
• The automatic feed is activated by pushing back one of the three handles.
• Ideal for drilling automatic as well as manually.
• 19 mm direct Weldon arbor.
• Made in Germany.

Technical specification

Motor output	Watt	1050
Voltage, V AC	Volt	230 - 110/125
Core drill cutting depth max.	mm	55
Core drill max. Ø HSS/TCT	mm	35
Twist drill	≤ Ø mm	---
Reaming	≤ Ø mm	---
Countersinking	≤ Ø mm	---
Thread cutting	≤ Ø mm	---
Stroke	mm	150
Magnet dimensions	mm	84 x 168 x 48
Weight	kg	15
Spindle taper		---
Arbor		---
KEYLESS 19 mm Weldon 3/4“		Direct arbor 19 mm Weldon
Speed gears		1
Gear 1 range	min-1	460
Permanent internal lubrication		✔
Safety clutch		---
Torque control		---
Full-wave control electronics		---
Magnetic Indicator		✔
Overheating protection		---
Carbon brush wear control		---

Scope of delivery

1 Allen key size 4

1 Hard-top case

1 Safety lashing strap

1 Operating Instructions
