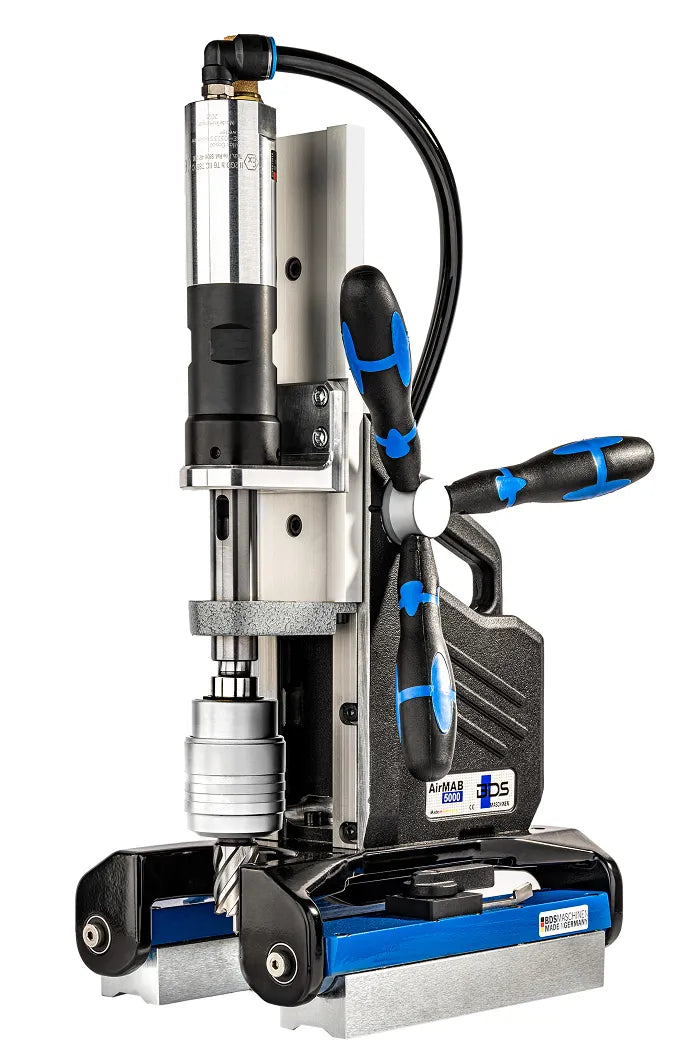

BDS AirMAB 5000PRO Pneumatic Magnetic Drilling Machine (ATEX) – ProfiSPEZIAL

The AirMAB 5000PRO is a pneumatic magnetic drilling machine equipped with an Atlas Copco vane motor and MT2 Morse Taper for industrial precision. Its innovative PipeCLAMP permanent magnet enables secure drilling on both flat surfaces and pipes. With no electricity required and EX class Ex II 2G T4 IIC certification, it is ideal for oil, gas, offshore and fire-risk environments. The machine offers 27 Nm torque, 1000 l/min air consumption, and variable speed from 290–575 rpm. Designed for safe, powerful, and reliable drilling with compressed air.

Key features

• Made in Germany
• Pneumatic Drilling With Compressed Air
• Atlas Copco High-Performance Vane Motor
• EX Class Ex II 2G T4 IIC Certified
• Air Consumption 1000 L/Min
• 27 Nm Rated Torque
• Morse Taper 2
• Patented Permanent Magnet
• Strong Magnetic Grip On Pipes
• Works On Curved And Flat Surfaces
• Suitable For Pipes From 85 mm Diameter
• Holds On Material As Thin As 3 mm
• Elongated Tool Holder For Full Stroke Use
• Keyless Tool Holder
• Permanent Internal Lubrication
• Heavy Duty Carry Case

Technical specifications

What's in the box

• Carry case – ZHK 800
• Ejector pins – ZAK 075, ZAK 100
• Arbor – ZSS 200
• Drift key – ZAS 002
• Safety strap
• Operating instructions

Genuine spare parts & service

Not sure which part you need? Send us your machine's serial number and we will check it for you.

Made in Germany by BDS Maschinen GmbH. Supplied and supported in the UK by LATHELAND.
