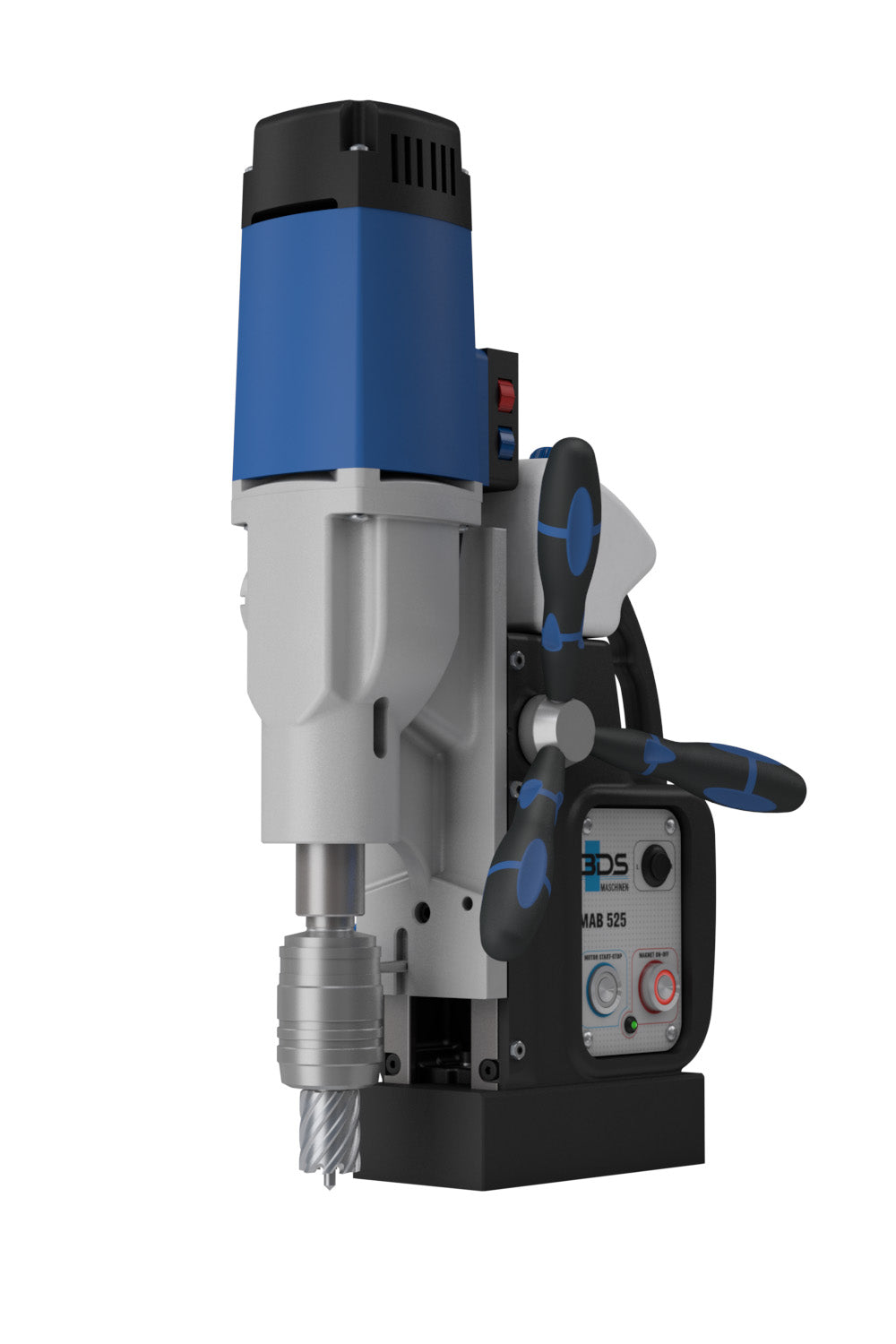

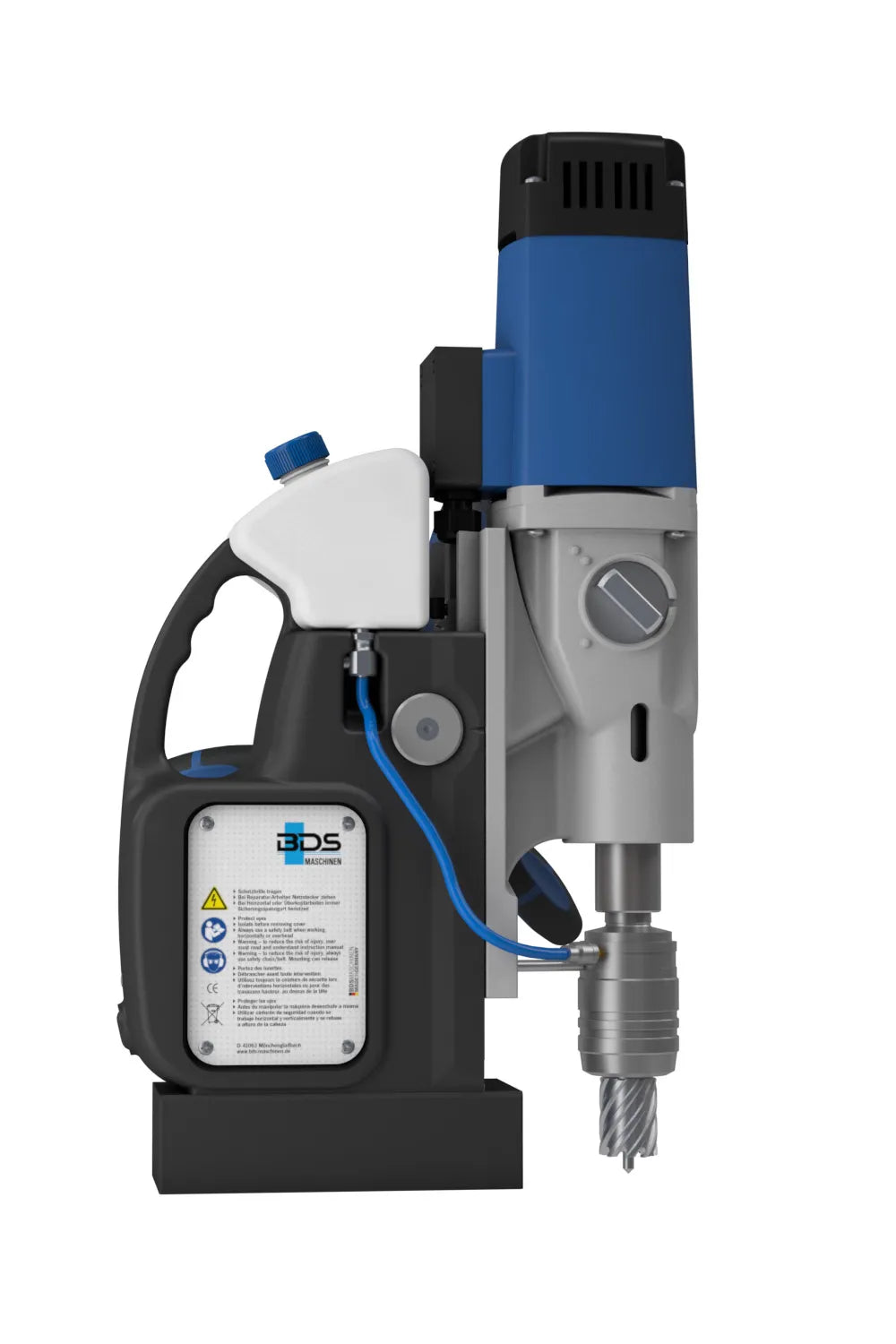

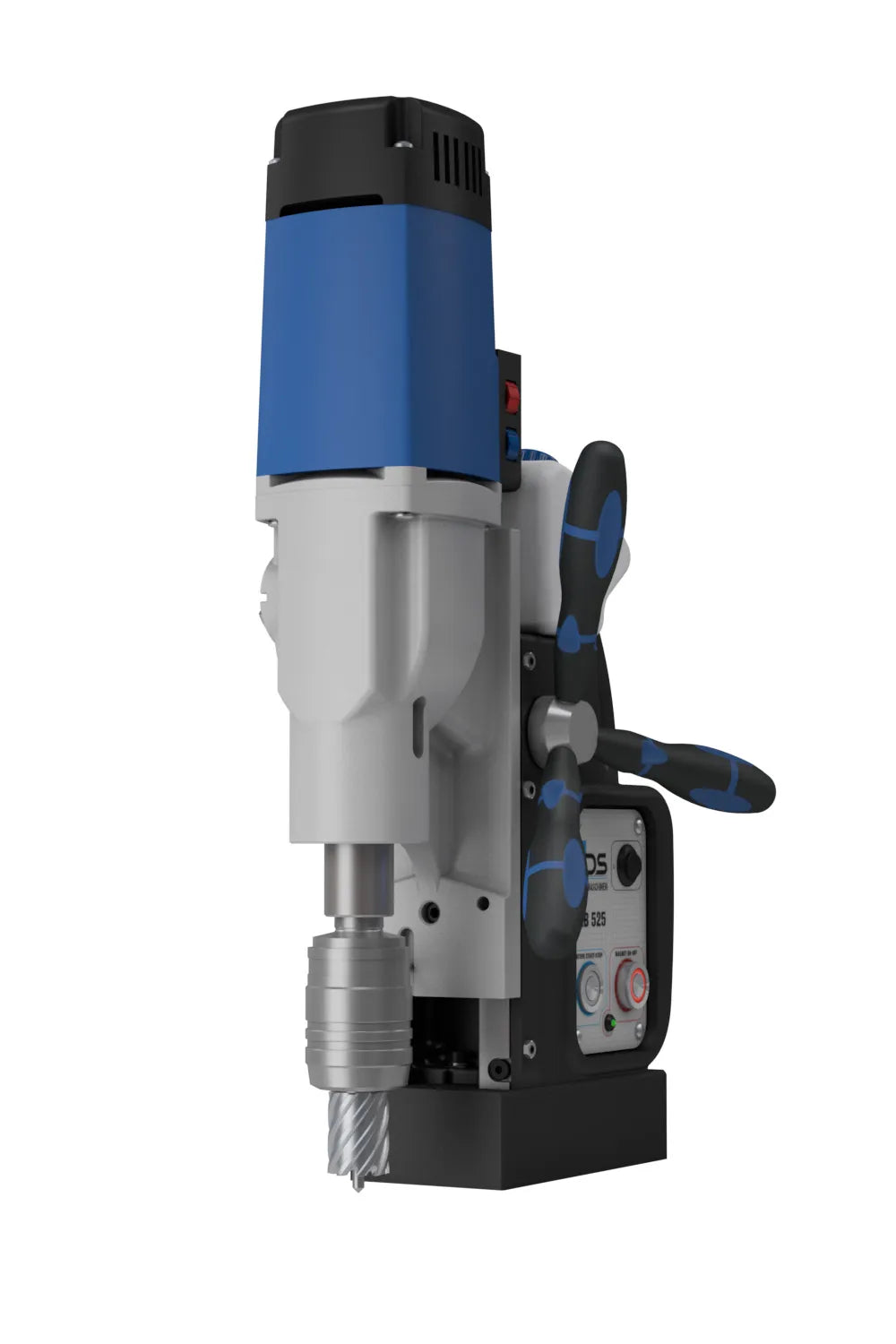

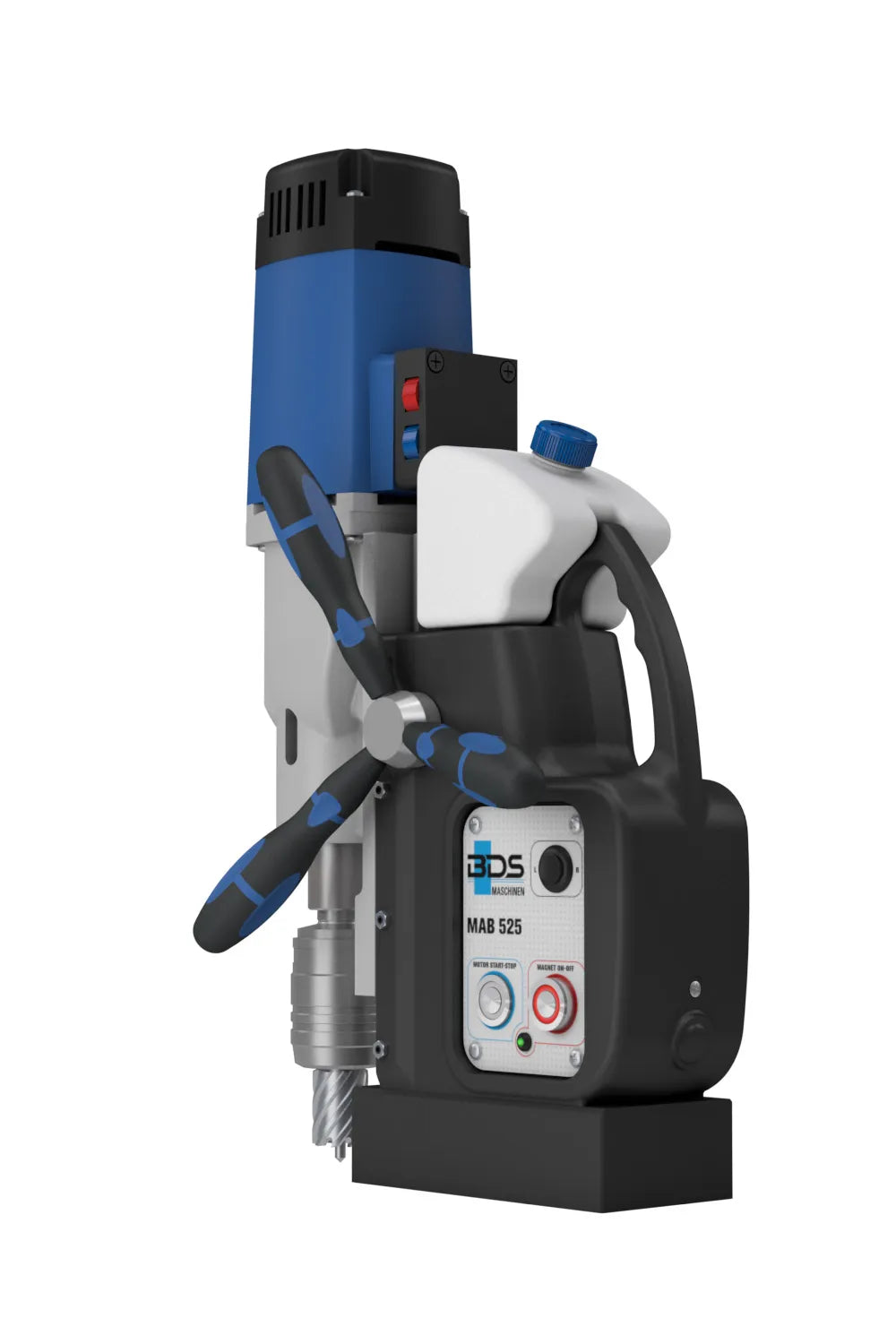

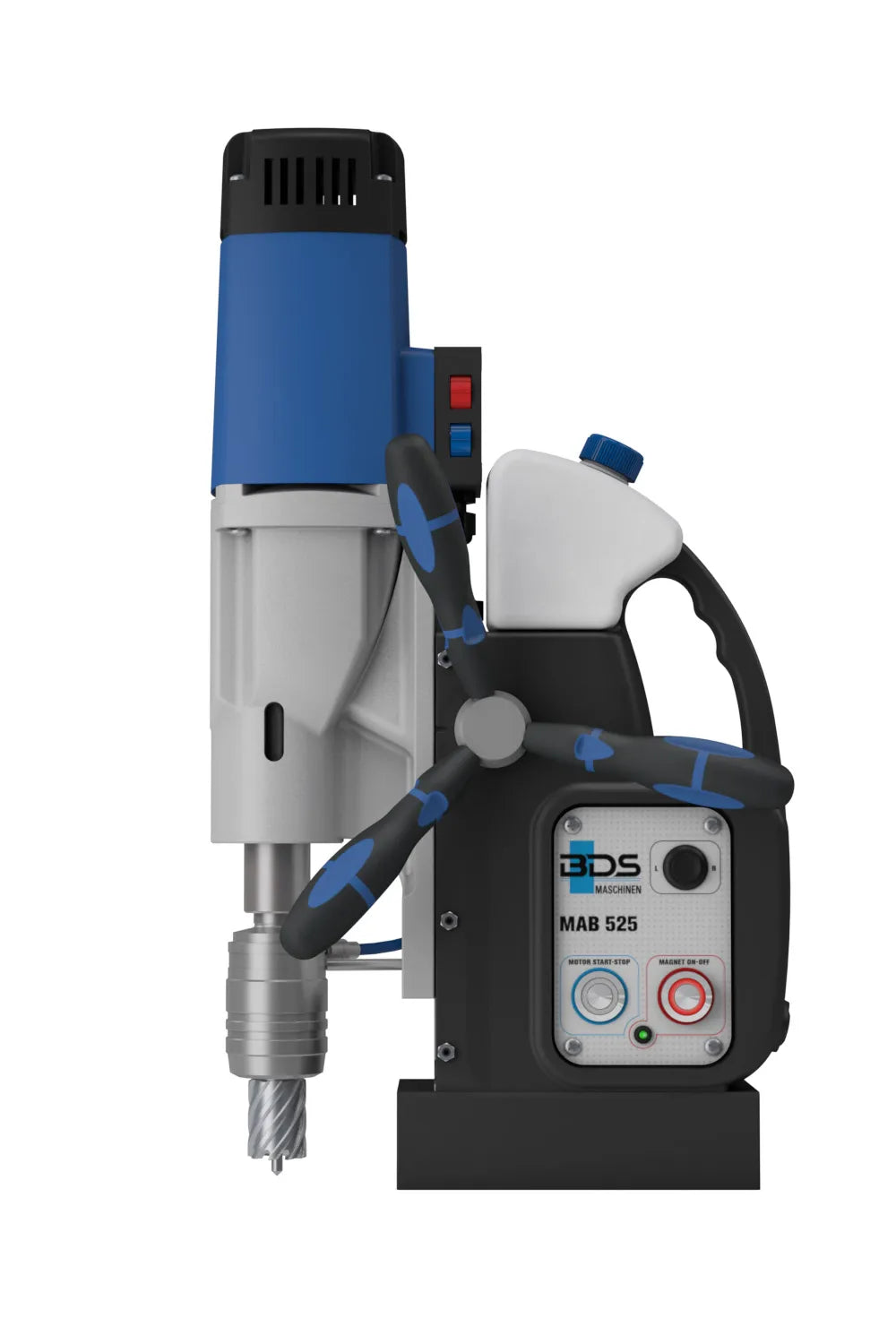

MAB 525

THE STRONG COMPACT MACHINE

Magnetic core drilling machine with two-speed oil bath gearbox. Ideal for the service and maintenance department thanks to just 16 kg. weight.

With MT 3 Morse taper system and drilling capacity up to Ø 50 mm. Torsion-resistant design through single-piece gearbox housing with slide.

• Core Drilling 50/60 mm
• Thread Cutting M 20
• Overheating protection
• Torque control
• Full wave control electronics
• Reversible
• Quick-change drilling system
• Permanent internal lubrication
• Magnet indicator
• Internal cabling

Technical speceification

Motor output	Watt	1600
Voltage, V AC	Volt	230 - 110/125
Core drill cutting depth max.	mm	75
Core drill max. Ø HSS/TCT	mm	50/60
Twist drill	≤ Ø mm	20
Reaming	≤ Ø mm	20
Countersinking	≤ Ø mm	50
Thread cutting	≤ Ø mm	20
Stroke	mm	160
Magnet dimensions	mm	84 x 168 x 48
Weight	kg	16
Spindle taper		MT 3
Arbor		---
KEYLESS 19 mm Weldon 3/4“		Yes
Speed gears		2
Gear 1 range	min-1	70 – 280
Gear 2 range	min-1	180-580
Permanent internal lubrication		Yes
Safety clutch		---
Torque control		Yes
Full-wave control electronics		Yes
Magnetic Indicator		Yes
Overheating protection		Yes
Clockwise/anticlockwise rotation		Yes
Carbon brush wear control		Yes

Scope of delivery

KEYLESS Quick-Change Drilling System 19 mm Weldon (3/4”)

1 Tapping adapter ZGA 010, ZGA 012, ZGA 016

1 Ejector pin ZAK 075, ZAK 100

1 Hard-top case

1 Safety lashing strap

1 Taper drift MT 3/B16

1 Gear Rim Drill Chuck Diameter 1-13 mm

1 Ejector drift MT 3

1 Operating instructions
