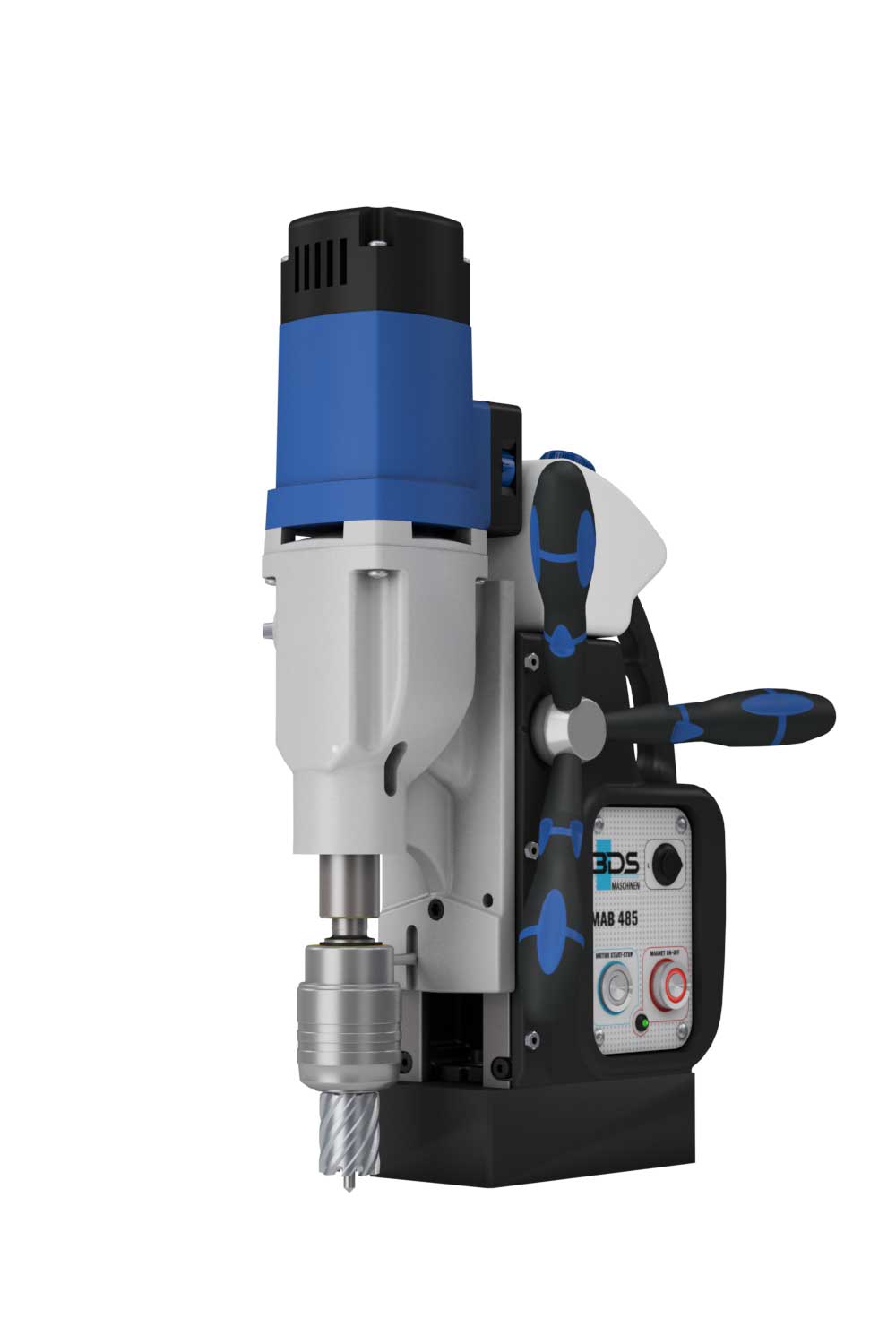

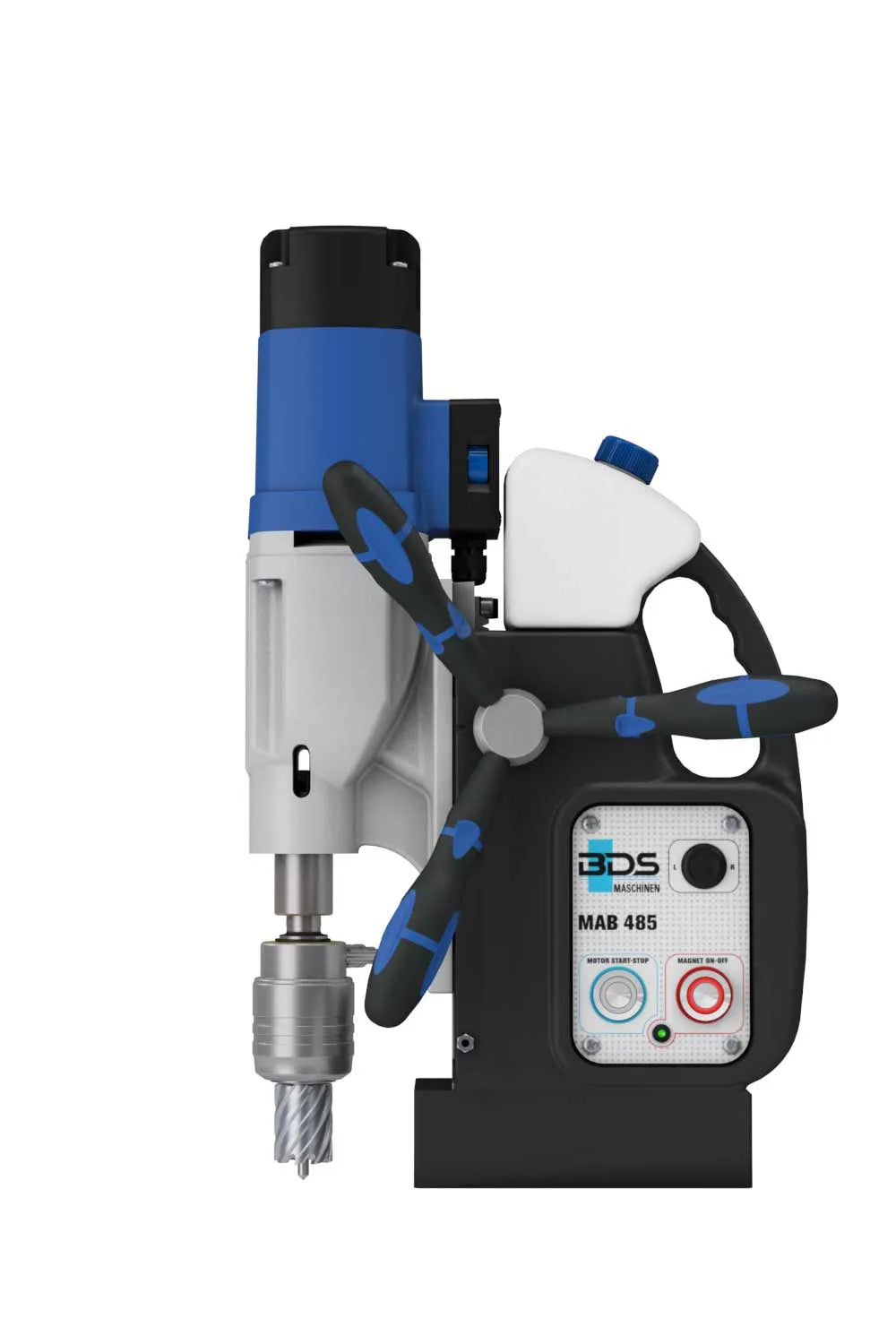

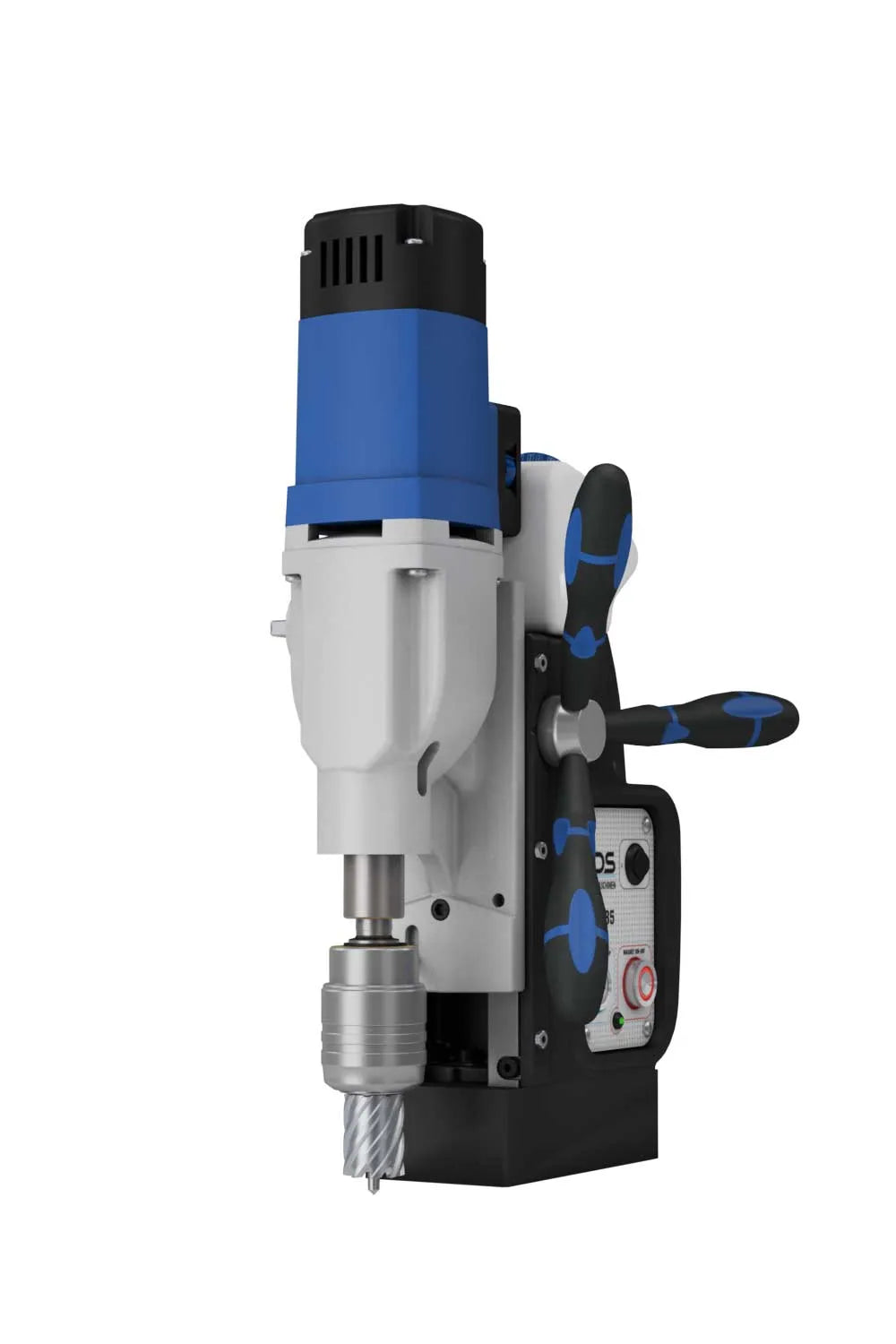

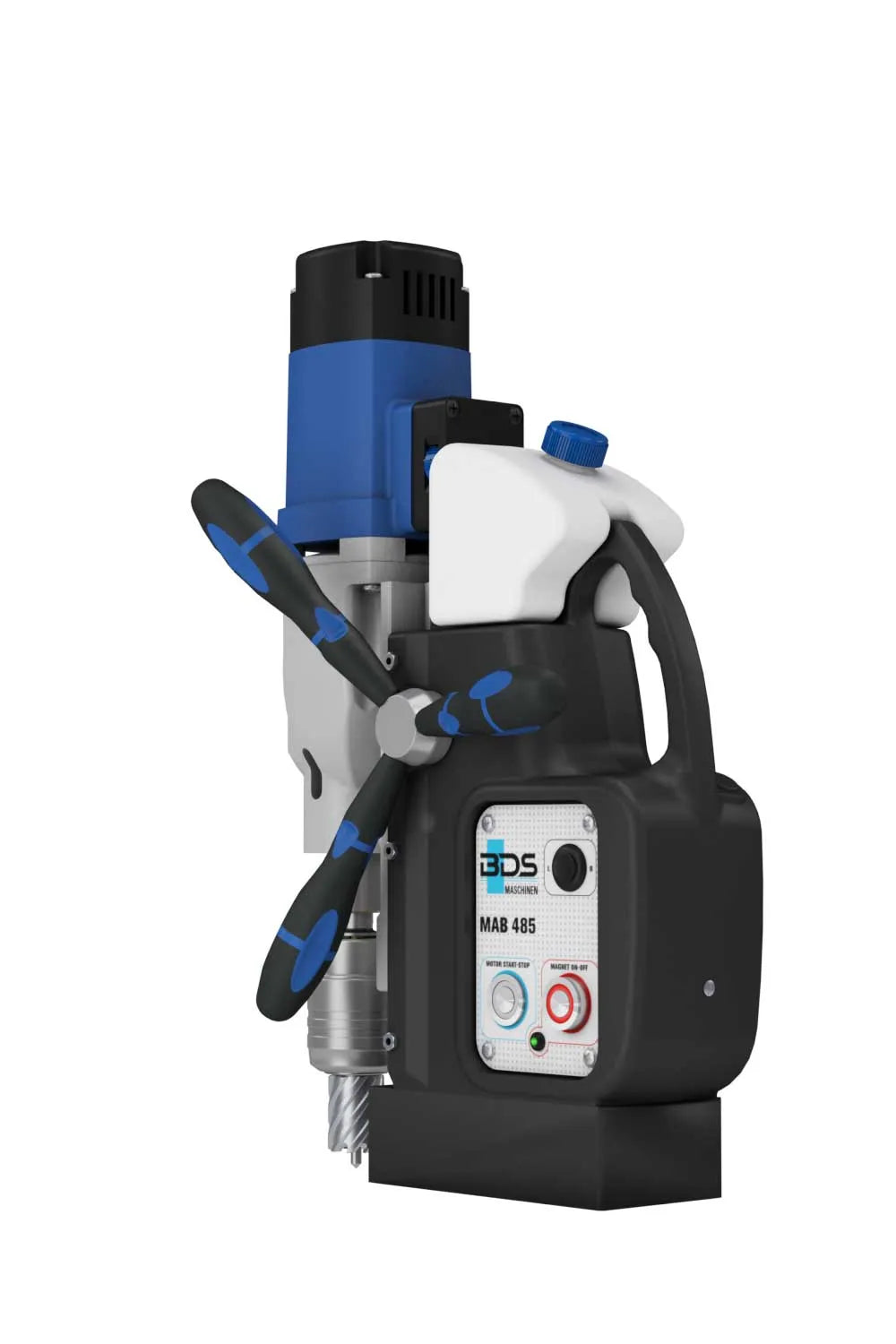

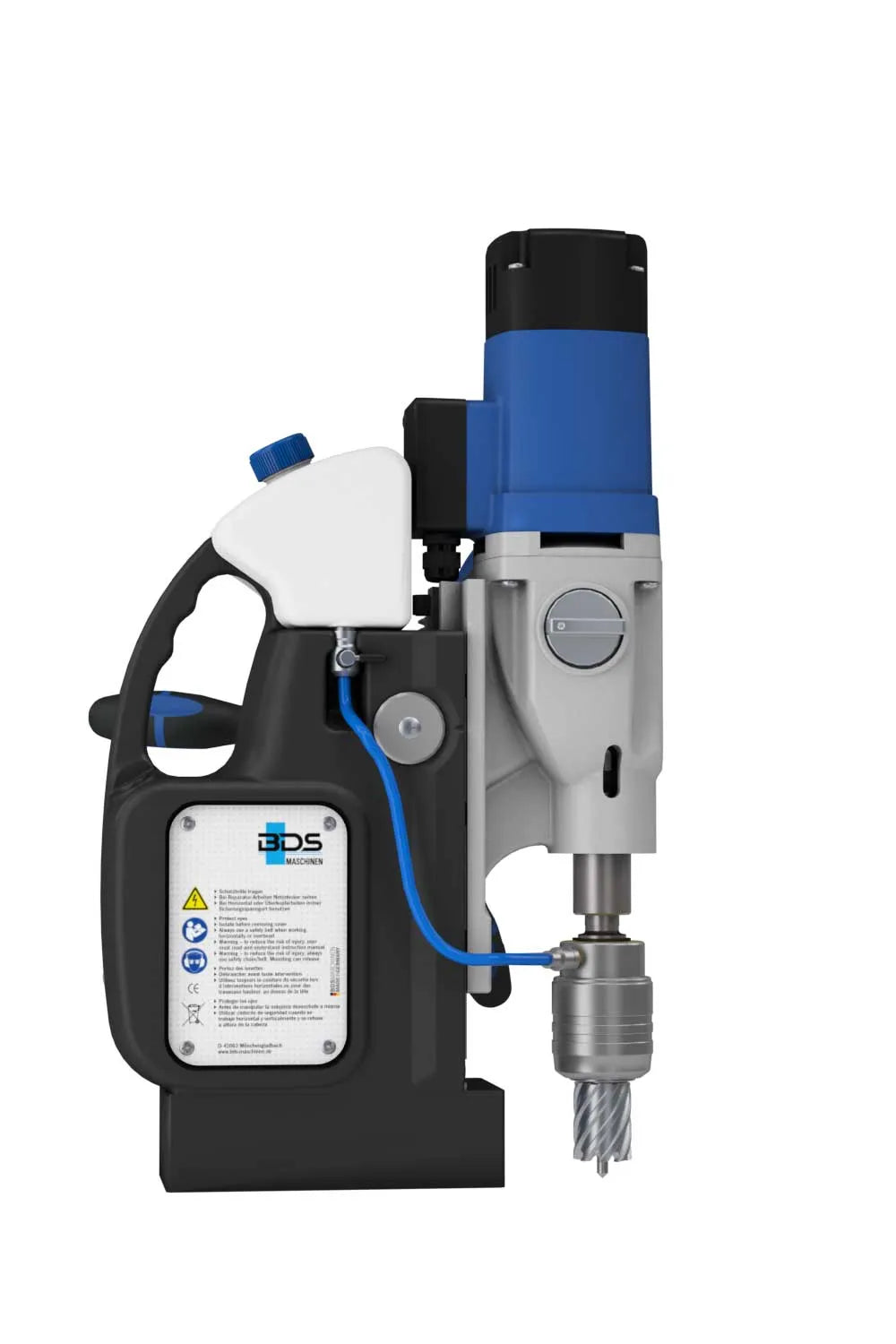

MAB 485

THE BESTSELLER AMONG PROFESSIONALS

The compact all-rounder. A wide range of possible applications and excellent performance make the MAB 485 one of the most popular machines among metal-working professionals.

For greater comfort and precision, there is the MAB 485 SB with a Swivel Base adjustment fixture. This makes the centering of the hole to be drilled easier and quicker.

• Core Drilling 40/50 mm
• Thread Cutting M 16
• Overheating protection
• Magnet indicator
• Permanent internal lubrication
• Swivel base option on model MAB 485 SB
• Carbon brush wear indicator
• Full wave control electronics
• Internal cable feed
• Reversible motor

Technical specifications

Motor output	Watt	1150
Voltage, V AC	Volt	230 - 110/125
Core drill cutting depth max.	mm	55
Core drill max. Ø HSS/TCT	mm	40/50
Twist drill	≤ Ø mm	18
Reaming	≤ Ø mm	18
Countersinking	≤ Ø mm	40
Thread cutting	≤ Ø mm	16
Stroke	mm	160
Magnet dimensions	mm	84 x 168 x 48
Weight	kg	13
Spindle taper		MT 2
Arbor		---
KEYLESS 19 mm Weldon 3/4“		Yes
Speed gears		2
Gear 1 range	min-1	50 – 250
Gear 2 range	min-1	100 – 450
Permanent internal lubrication		Yes
Safety clutch		---
Torque control		---
Full-wave control electronics		Yes
Magnetic Indicator		Yes
Overheating protection		Yes
Clockwise/anticlockwise rotation		Yes
Carbon brush wear control		Yes

Scope of delivery

1 KEYLESS quick-change drilling system 19 mm Weldon (3/4”)

1 Tapping adapter ZGA 010, ZGA 012, ZGA 016

1 Ejector pin ZAK 075 + 100

1 Hard-top case

1 Safety lashing strap

1 Ejector drift MT2

1 Gear Rim Drill Chuck Diameter 1-13 mm.

1 Taper drift MT 2/B16

1 Operating Instructions
