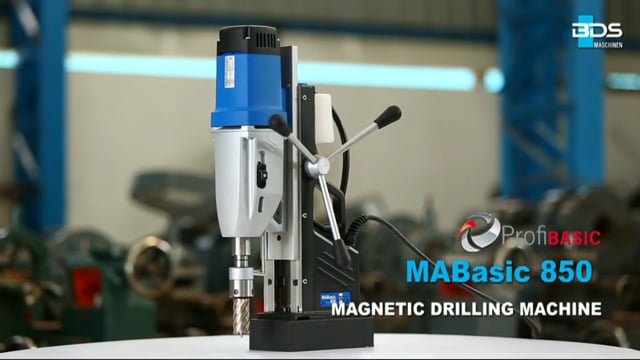

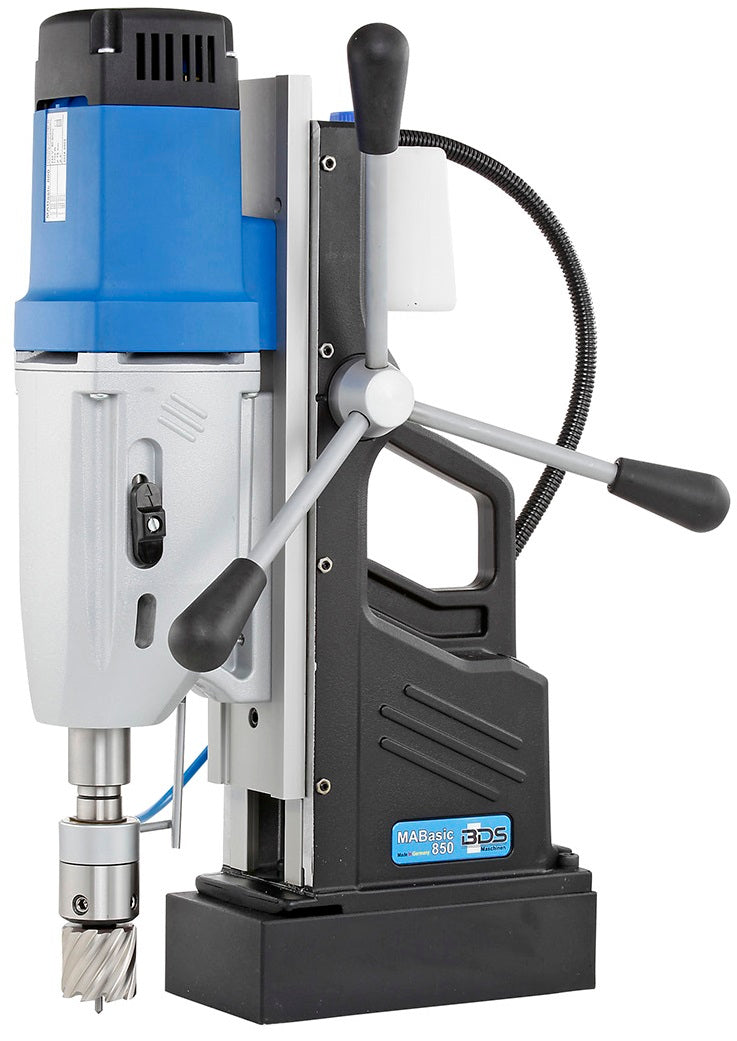

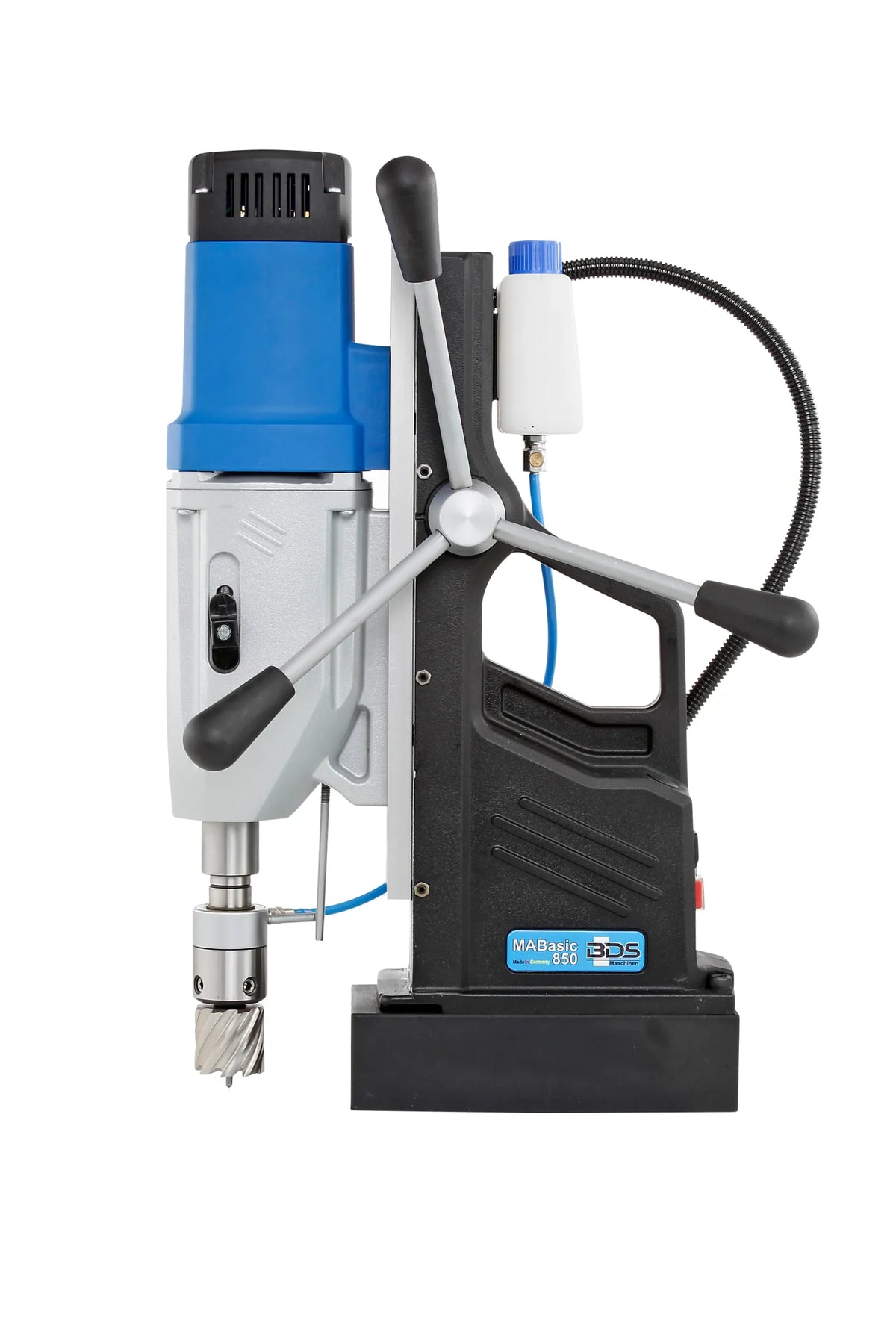

MABasic 850

WITH 1800 W SUITABLE FOR EXTREME TASKS

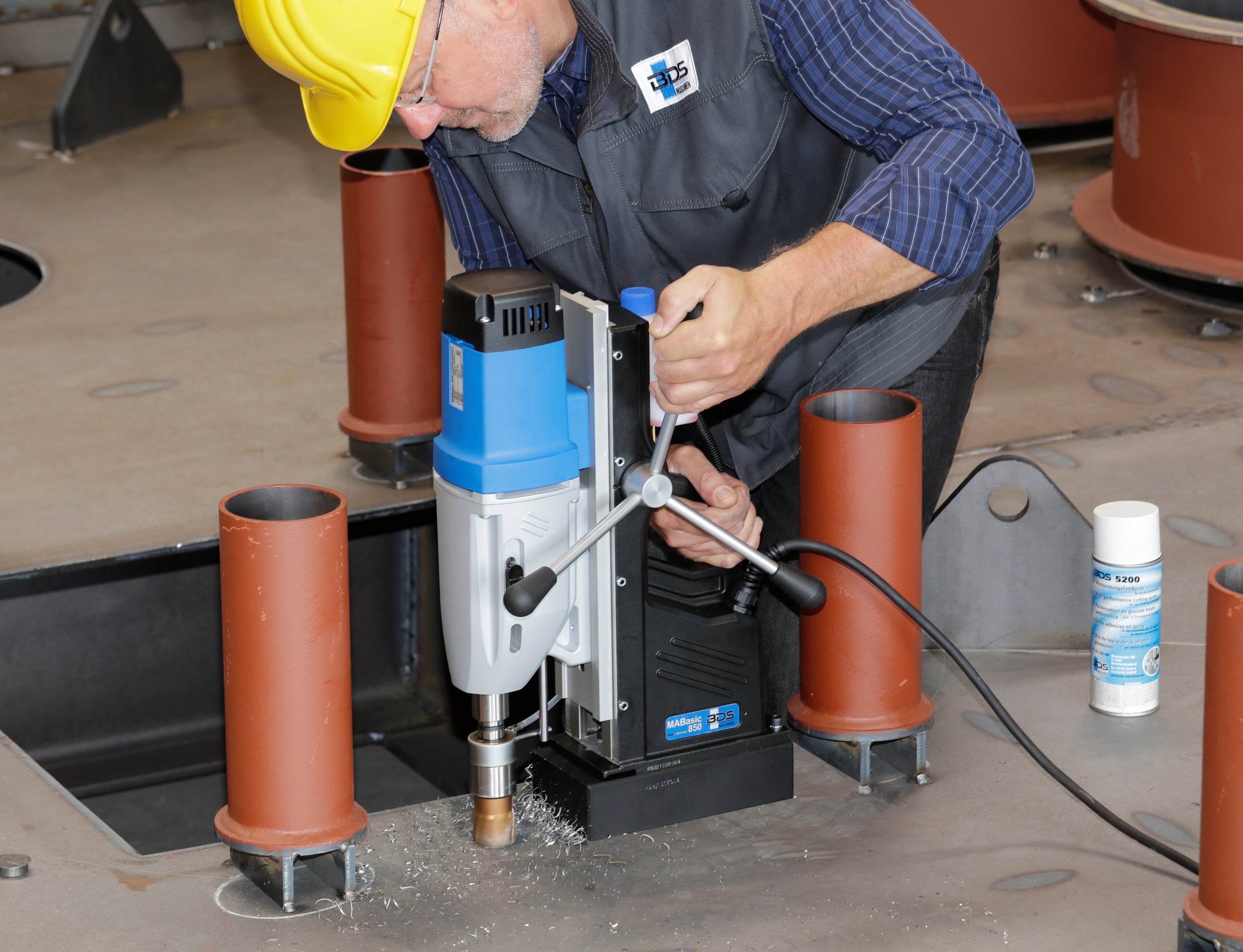

Full power magnetic drilling machine for demanding tasks. This machine will offer you an extremely powerful and reliable drilling solution with the BDS quality.

Ample performance with a 1,800 Watt motor. Thanks to the 255 mm stroke, larger parts can also be machined with this magnetic core drilling machine. The MABasic 850 magnetic CORE drilling machine is designed for core drills with a diameter of up to 75 mm and length up to 110 mm. This is an ideal machine drilling twist drill bits up to 31.75 mm diameter with MT3 Shank.

• Core Drilling 75 mm
• Cutting Depth 110 mm
•  4 speed gearbox
• MT 3 spindle taper
• Powerful 1800 Watt motor
• 255 mm stroke
• 19 mm & 32 mm industrial arbor provided
• Coolant tank mounted on the side
• Delivered in quality carry case
• Made in Germany

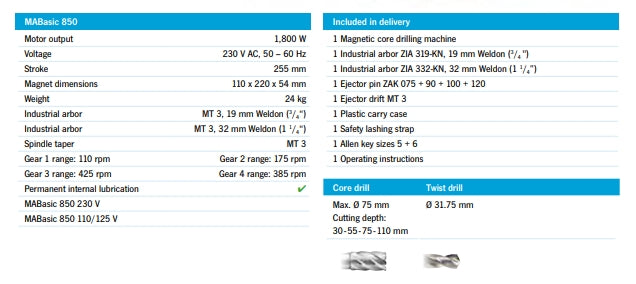

Technical specifications

Motor output	Watt	1800
Voltage, V AC	Volt	230 - 110/125
Core drill cutting depth max.	mm	110
Core drill max. Ø HSS/TCT	mm	75
Twist drill	≤ Ø mm	31.75
Reaming	≤ Ø mm	---
Countersinking	≤ Ø mm	---
Thread cutting	≤ Ø mm	---
Stroke	mm	255
Magnet dimensions		---
Weight	kg	24
Spindle taper		MT 3
Arbor		Industrial arbor 19 mm + 32 mm
KEYLESS 19 mm Weldon 3/4“		---
Speed gears		4
Gear 1 range	min-1	110
Gear 2 range	min-1	175
Gear 3 range	min-1	425
Gear 4 range	min-1	385
Permanent internal lubrication		Yes
Safety clutch		---
Torque control		---
Full-wave control electronics		---
Magnetic Indicator		---
Overheating protection		---
Carbon brush wear control		---

Scope of delivery

1 Industrial arbor ZIA 319-KN, 19 mm Weldon (3/4”)

1 Industrial arbor ZIA 332-KN, 32 mm Weldon (1 1/4”)

1 Ejector pin each ZAK 075 + 90 + 100 + 120

1 Ejector drift MT 3

1 Plastic carry case

safety lashing strap

1 Allen key sizes 5 + 6

1 Operating Instructions
