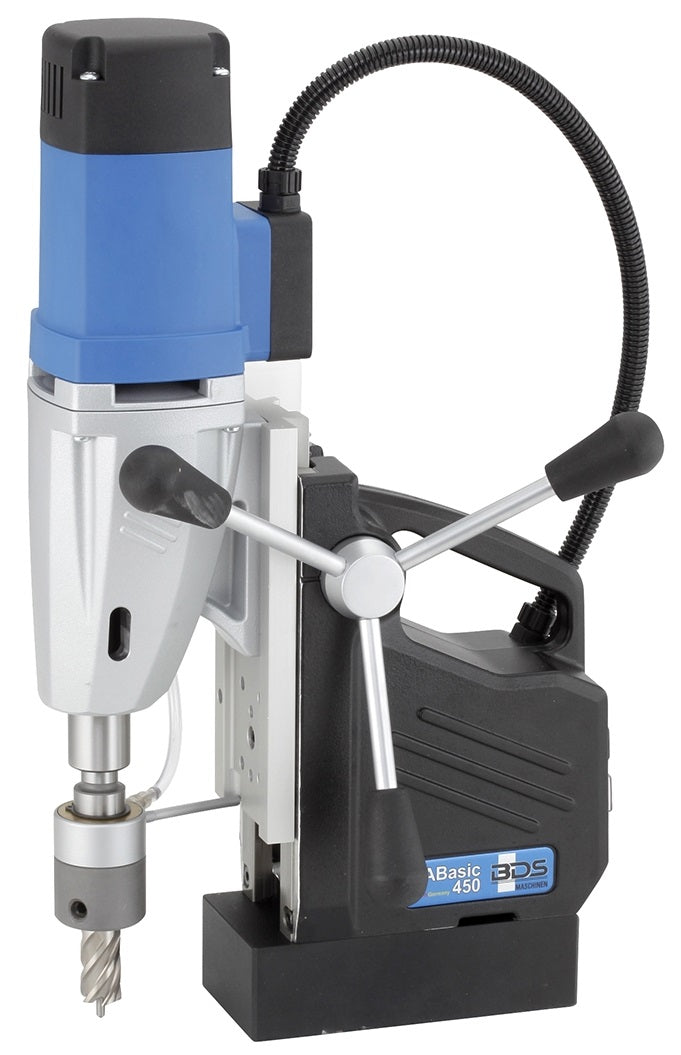

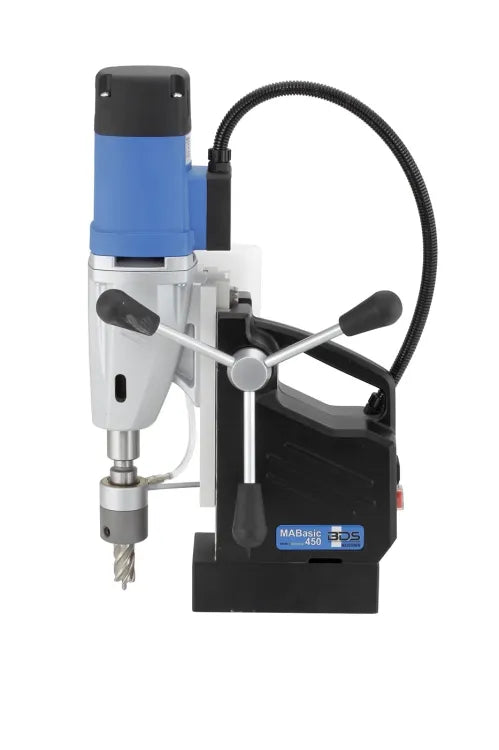

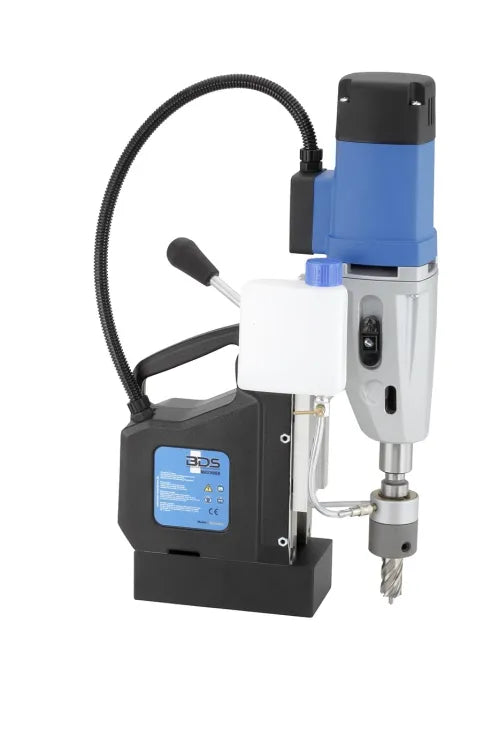

MABasic 450

WITH MT2 CHANGING SYSTEM

Flexible handling thanks to MT 2 tool changing system. Two speed gearbox ''Made in Germany'' magnetic core drilling machine.

With an ample motor power of 1,150 W with a weight of just 13 kg, this is a portable and reliable workhorse in the workshop and on the assembly line. Drilling of diameters up to 40 mm / 50 mm with a cutting depth of 55 mm is possible with MABasic 450 magnetic core drilling machine.

• Core Drilling 40 mm
• Cutting Depth 55 mm
•  Powerful 1150 Watt motor
• MT 2 Spindle taper
• MT 2 Industrial arbo
• Two speed gearbox
• 160 mm stroke

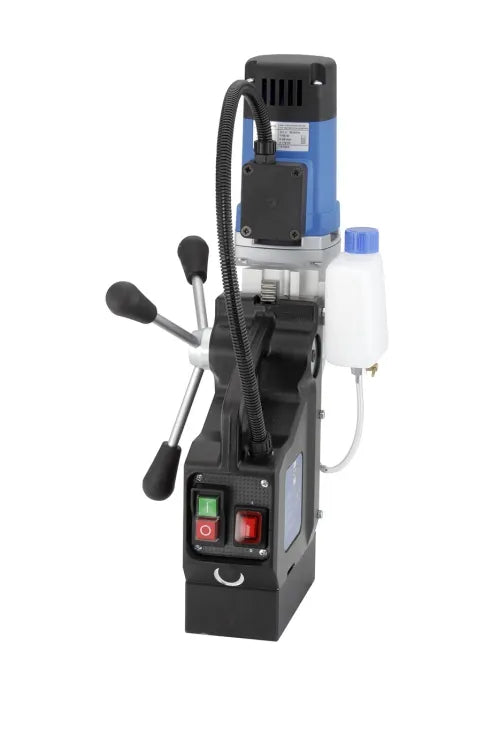

• Switches are arranged on the back

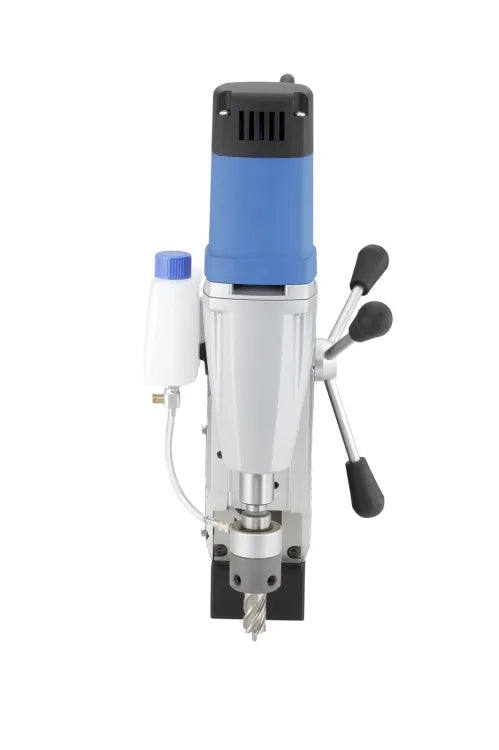

• Coolant tank mounted on the side
• Made in Germany

Technical specifications

Motor output	Watt	1150
Voltage, V AC	Volt	230 - 110/125
Core drill cutting depth max.	mm	55
Core drill max. Ø HSS/TCT	mm	40/50
Twist drill	≤ Ø mm	18
Reaming	≤ Ø mm	---
Countersinking	≤ Ø mm	---
Thread cutting	≤ Ø mm	---
Stroke	mm	160
Magnet dimensions		---
Weight	kg	13
Spindle taper		MT 2
Arbor		Industrial arbor 19 mm Weldon 3/4”
KEYLESS 19 mm Weldon 3/4“		---
Speed gears		2
Gear 1 range	min-1	250
Gear 2 range	min-1	450
Permanent internal lubrication		✔
Safety clutch		---
Torque control		---
Full-wave control electronics		---
Magnetic Indicator		---
Overheating protection		---
Carbon brush wear control		---

Scope of delivery

1 Industrial arbor ZIA 219-KN, 19 mm Weldon (3/4”)

1 Ejector-pin ZAK 075

1 Ejector drift MT 2

1 Plastic carry case

1 Safety lashing strap

1 Allen key size 5

1 Operating Instructions
