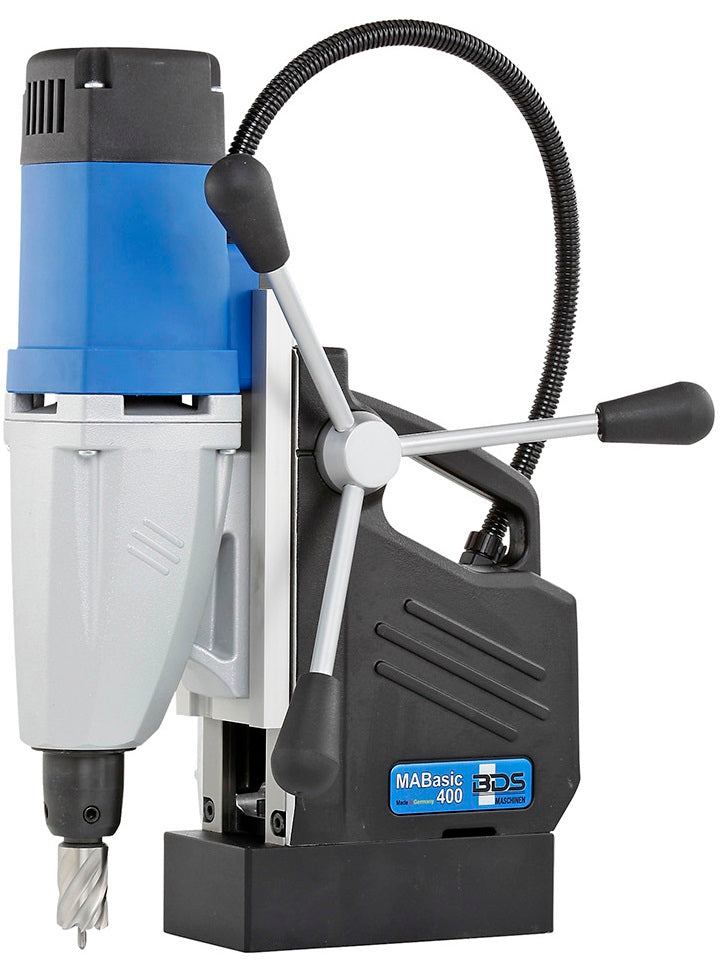

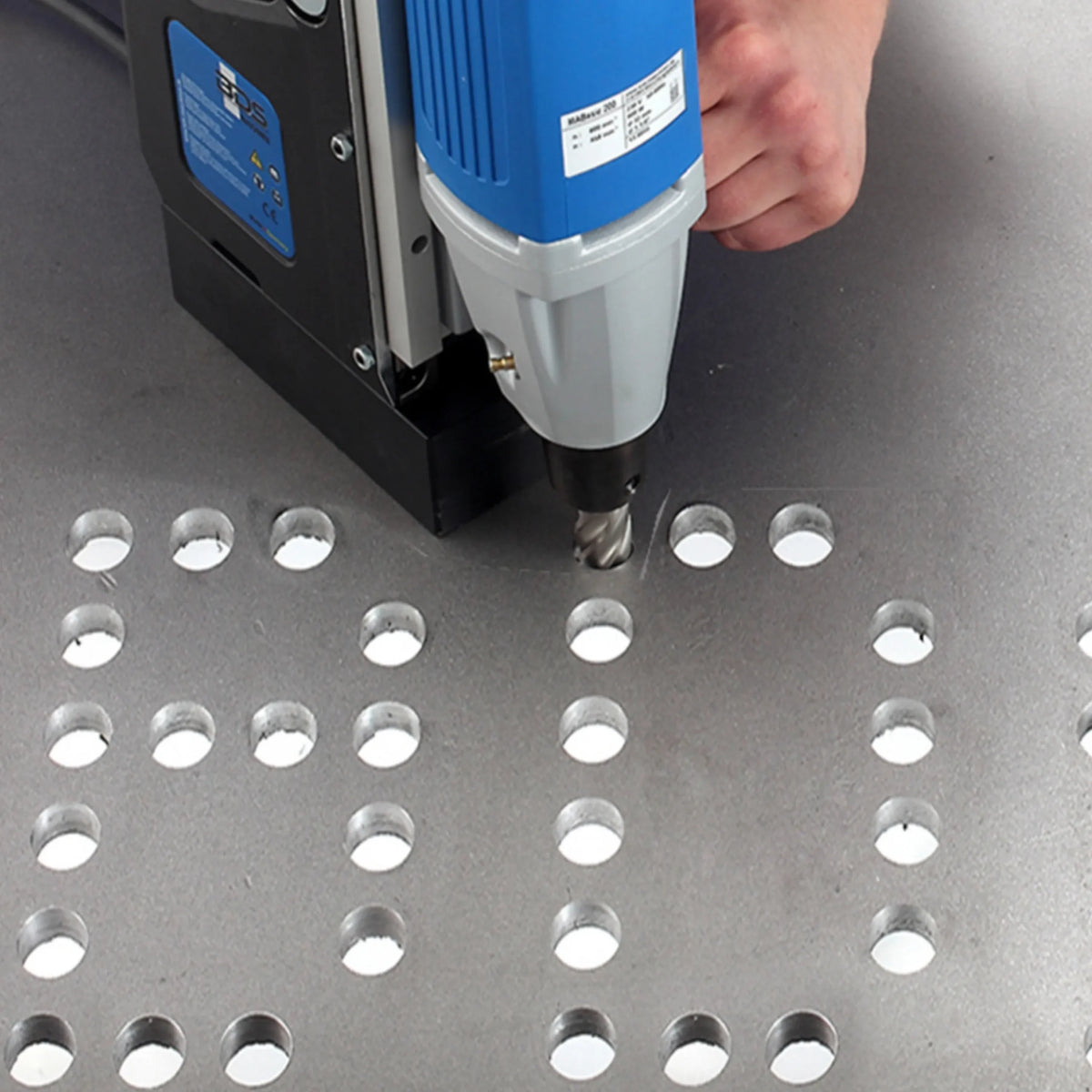

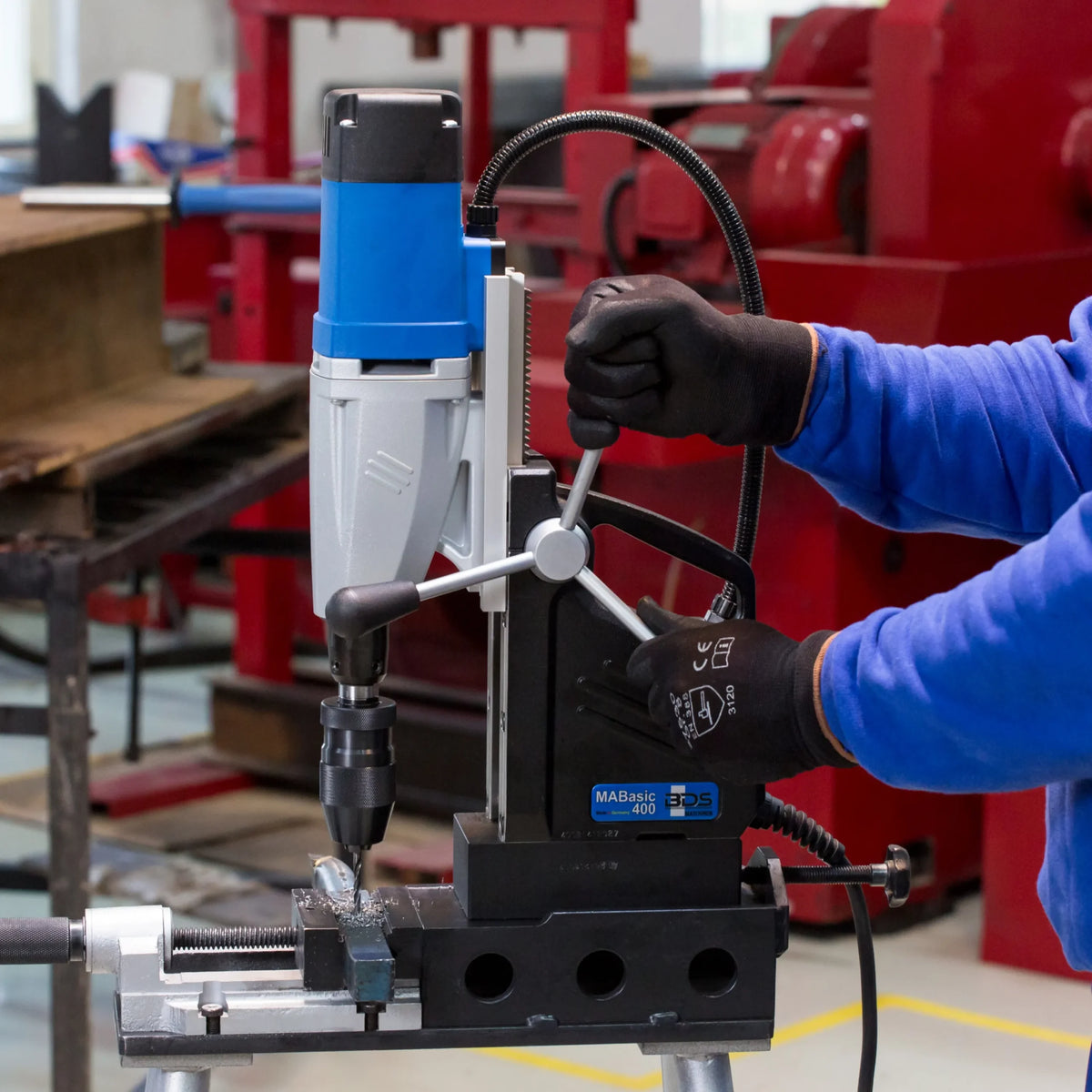

The MABasic 400 magnetic drilling machine is engineered for professional twist drilling where speed, precision, and reliability matter. Made in Germany, it delivers core drilling up to Ø 40 mm and excels at twist drilling up to Ø 16 mm thanks to its powerful 1100 W motor and two-speed gearbox with up to 760 rpm. Compact and stable, it is perfectly suited for workshop and on-site metalworking applications.
Featuring a direct 19 mm Weldon arbor, robust grease gearbox, 160 mm stroke, and permanent internal lubrication, the MABasic 400 ensures long service life and consistent performance. Rear-mounted safety switches, a side coolant tank, and strong magnetic adhesion provide safe and controlled operation. Reliable, efficient, and precise—the MABasic 400 delivers German engineering for everyday professional drilling tasks.
Available from LATHELAND in 230 V and in 110 V for UK construction sites.
| Core drill max. Ø HSS / TCT | 35/40 mm (1-5/8") |
| Cutting depth max. | 55 mm (2-3/8") |
| Twist drill Ø max. | 16 mm (5/8″) |
| Arbor | Direct arbor 19 mm Weldon |
| Motor output | 1100 Watts (9.5 Amp) |
| Voltage | 230 Volts or 110/125 Volts AC |
| Stroke | 160 mm (6-1/3") |
| Weight | 12 Kg. (27 lbs.) |
| Gears | 2 |
| Speed range (min⁻¹) | 430 & 760 |
Original BDS parts for this machine: MABasic 400 spare parts. Not sure which part you need? Send us your machine's serial number and we will check it for you.
Made in Germany by BDS Maschinen GmbH. Supplied and supported in the UK by LATHELAND.
