BDS MAB 825 / MAB 845 Magnetic Drilling Machine
BDS MAB 825 / MAB 845 Magnetic Drilling Machine
BDS MAB 825 / MAB 845 Magnetic Drilling Machine
BDS MAB 825 / MAB 845 Magnetic Drilling Machine
BDS MAB 825 / MAB 845 Magnetic Drilling Machine
BDS MAB 825 / MAB 845 Magnetic Drilling Machine
BDS

BDS MAB 825 / MAB 845 Magnetic Drilling Machine – ProfiPLUS

In stock
SKU: MAB 825 230V
£2,809.50 GBP
Sale £3,746.00 GBP £2,809.50 GBP
BDS UK offer: 25% off the BDS RRP, already applied
Made in Germany
German Brand Award 2023 winner German Design Award winner 2022 German Design Award winner 2023

Award-winning BDS: German Brand Award 2023 for the BDS brand, and German Design Awards 2022 and 2023 for BDS machines.

Questions about this product, a larger quantity or a shipping quote? Contact us.

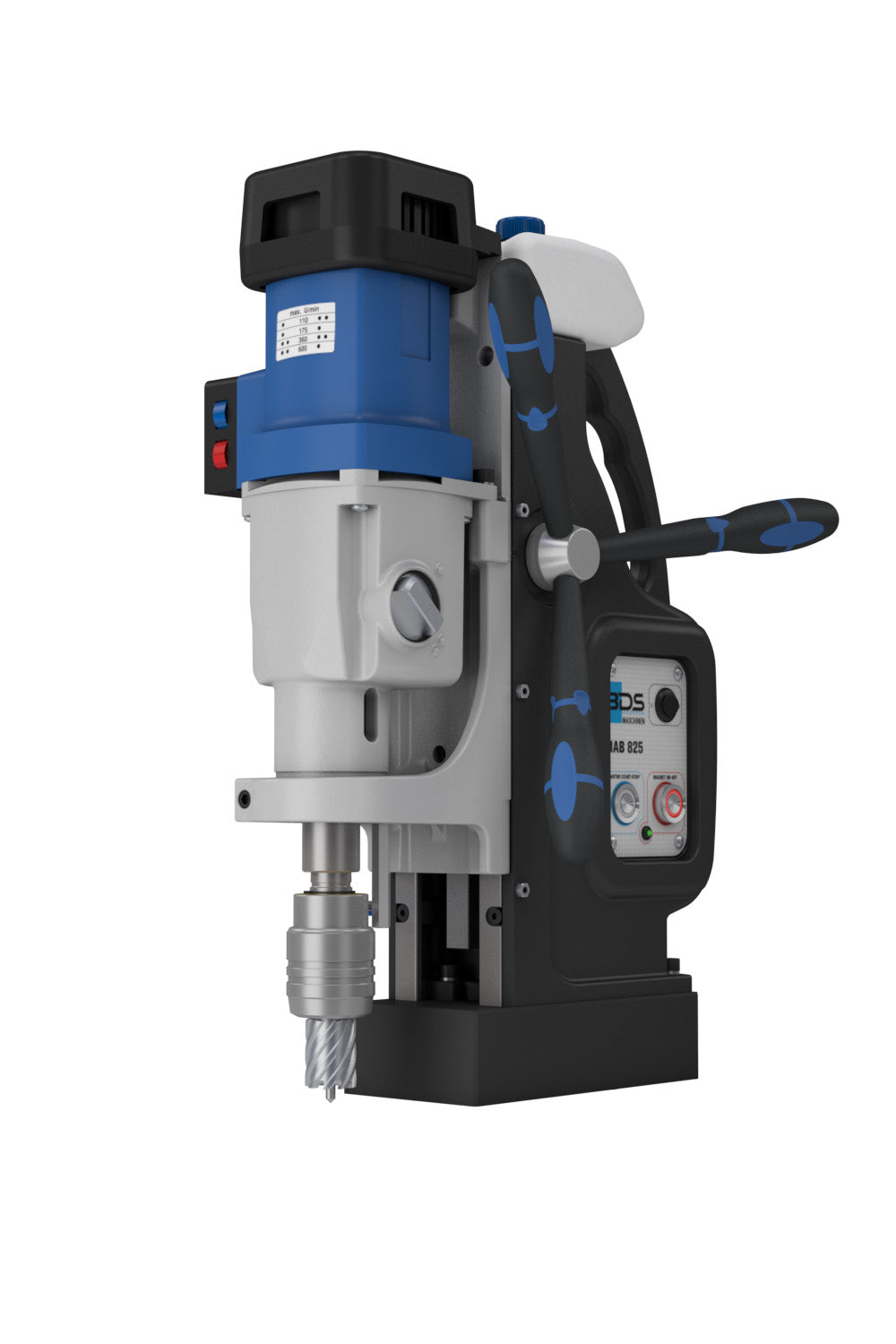

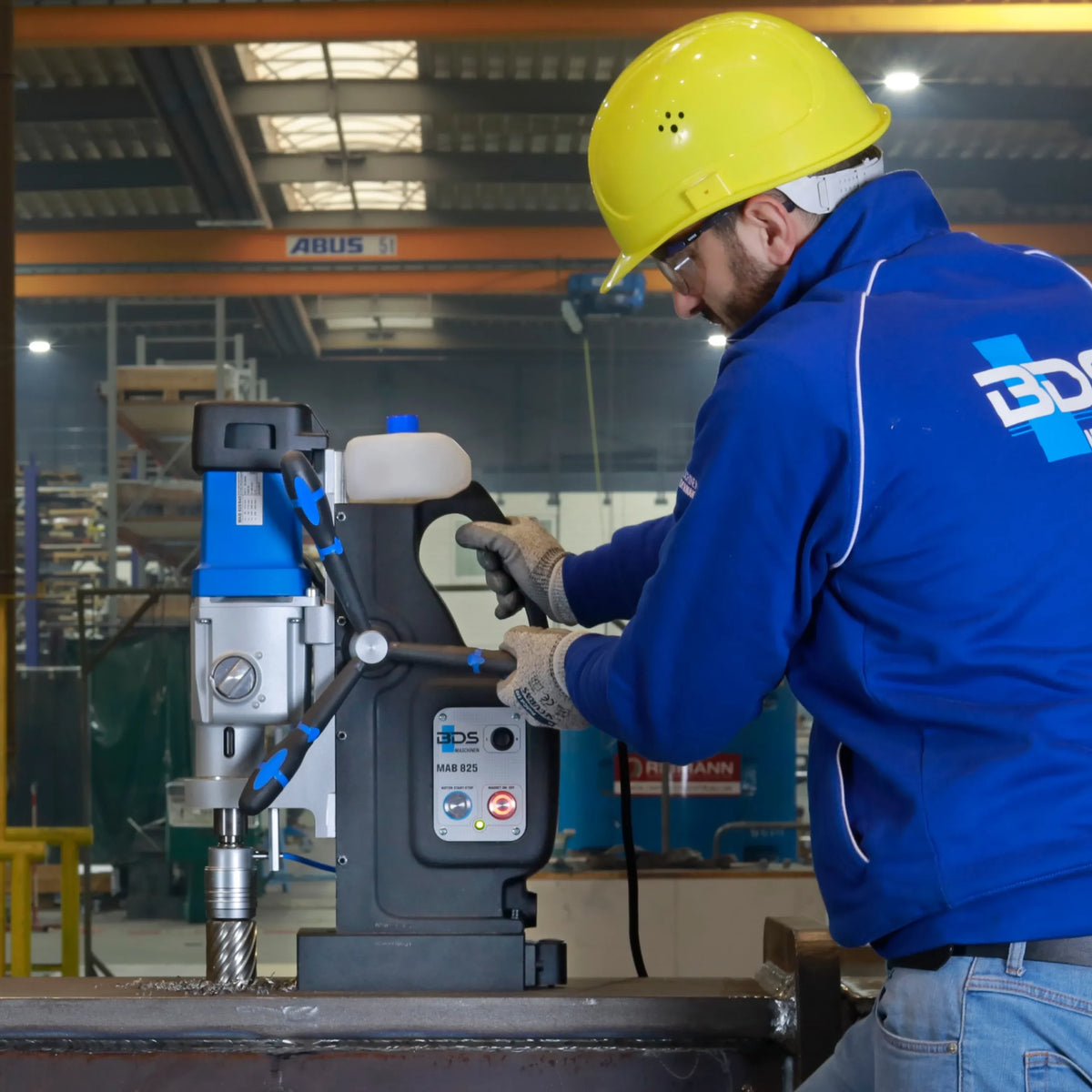

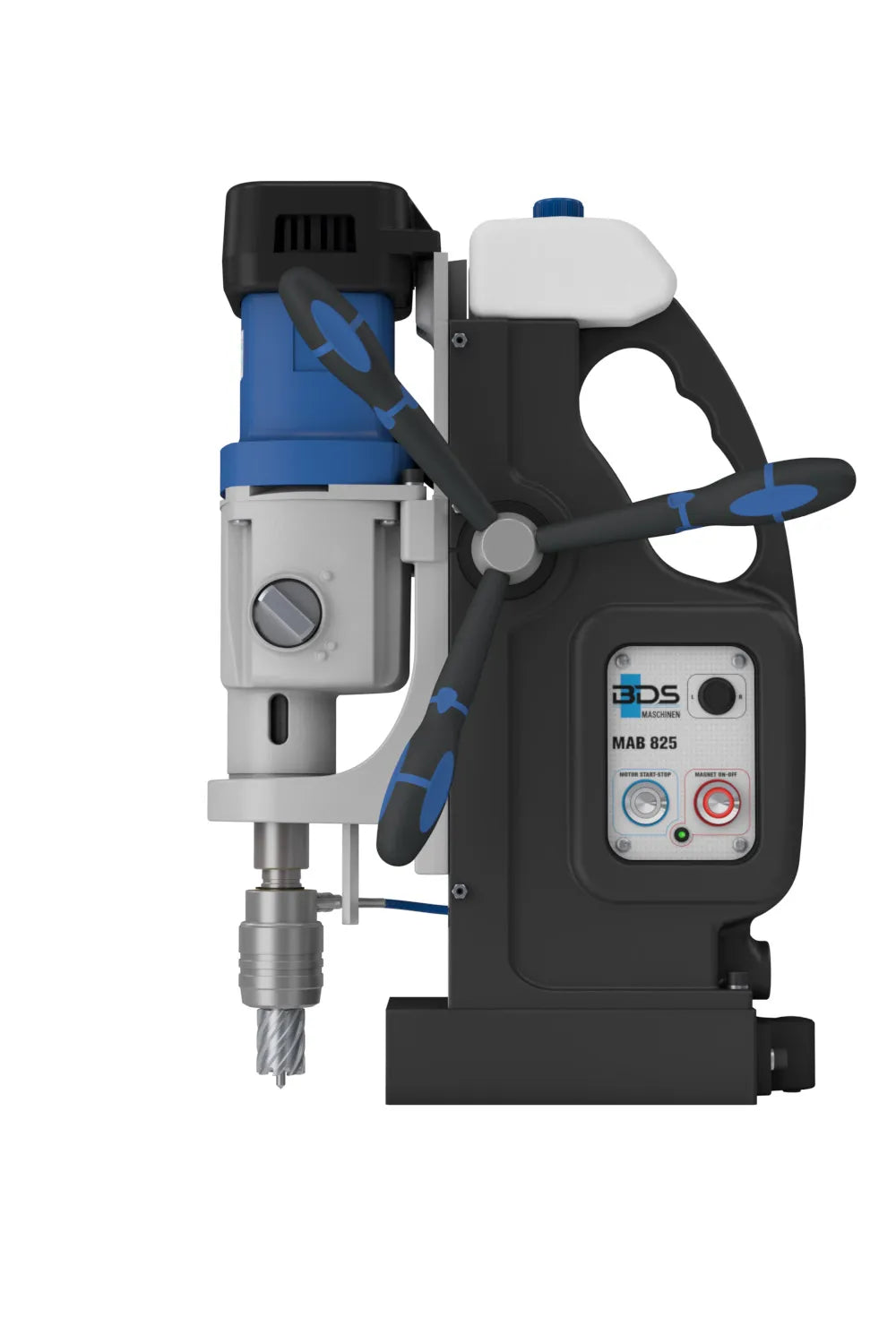

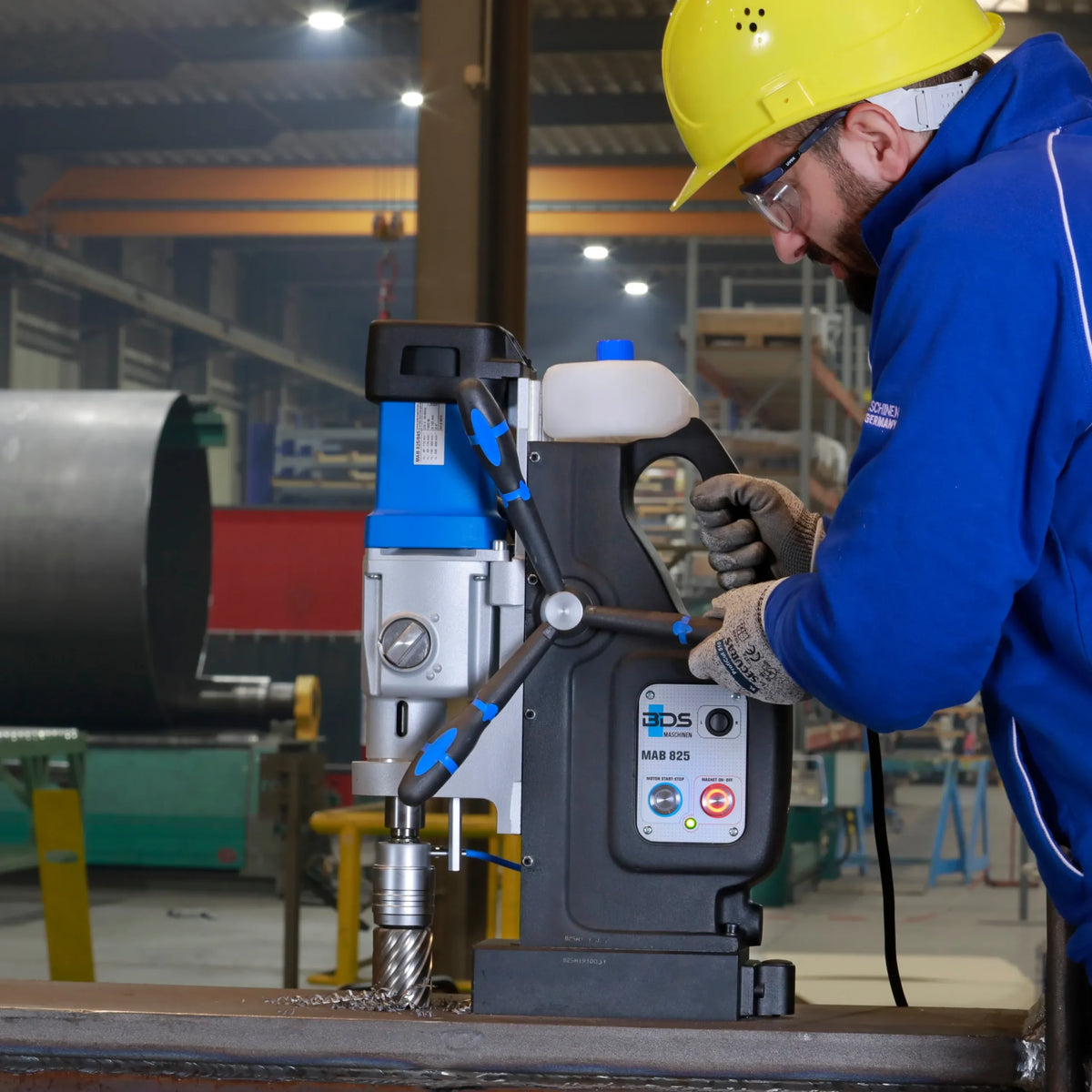

The BDS ProfiPLUS MAB 825 magnetic drilling machine is a heavy-duty powerhouse engineered for precision metalworking. Made in Germany, it core drills up to 100 mm and taps up to M30 with a Morse Taper 3 spindle and reversible motor. The KEYLESS tool holder enables fast tool changes while maintaining maximum stability and accuracy during demanding workshop and onsite steel fabrication applications.

Four-speed gearbox, variable speed and torque control, and full-wave control electronics ensure optimal cutting performance. The double-coil magnet with adhesion indicator provides safe holding power, supported by overload protection and safety clutch. Integrated coolant tank, oil-bath gearbox lubrication, and internal cabling increase durability. Ideal for drilling, tapping, countersinking and reaming in heavy steel structures.

The MAB 845 is the same machine with the BDS Swivel Base (30° left/right, 20 mm forward/back) for fast, precise positioning.

Available from LATHELAND in 230 V and in 110 V for UK construction sites.

Key features

  • Made in Germany
  • Drilling, Tapping, Countersink & Reaming
  • Morse Taper 3
  • Reversible Motor
  • KEYLESS Tool Holder
  • Variable Speed Control
  • Variable Torque Control
  • Full Wave Control Electronics
  • Magnet Adhesion Indicator
  • Overheat Protection
  • Safety Friction Clutch
  • Carbon Brush Wear Indicator
  • Oil Bath Gearbox
  • Integrated Coolant Tank
  • Internal Motor Cabling
  • Permanent Internal Lubrication
  • Double Coil Magnet
  • Heavy Duty Carry Case with Wheels

Technical specifications

Core drill max. Ø HSS / TCT 100 mm (4") | 60 mm (2-3/8")
Cutting depth max. 55 mm (2-3/8") | 100 mm (4")
Thread cutting max. M30 (1-1/8")
Twist drill Ø max. 31.75 mm (1-1/4")
Reaming Ø max. 31.75 mm (1-1/4")
Countersinking Ø max. 50 mm (2-1/2")
Motor output 1800 Watts (16 Amp)
Voltage 230 Volts or 110/125 Volts AC
Stroke 255 mm (10")
Weight 25 Kg. (55 lbs.)
Spindle taper Morse Taper MT3
Gears 4
Speed range (min⁻¹) 40-110; 65-175; 140-360; 220-600
Swivel base No (optional: MAB 845)

What's in the box

Genuine spare parts & service

Original BDS parts for this machine: MAB 825 spare parts, MAB 845 spare parts. Not sure which part you need? Send us your machine's serial number and we will check it for you.

Made in Germany by BDS Maschinen GmbH. Supplied and supported in the UK by LATHELAND.
