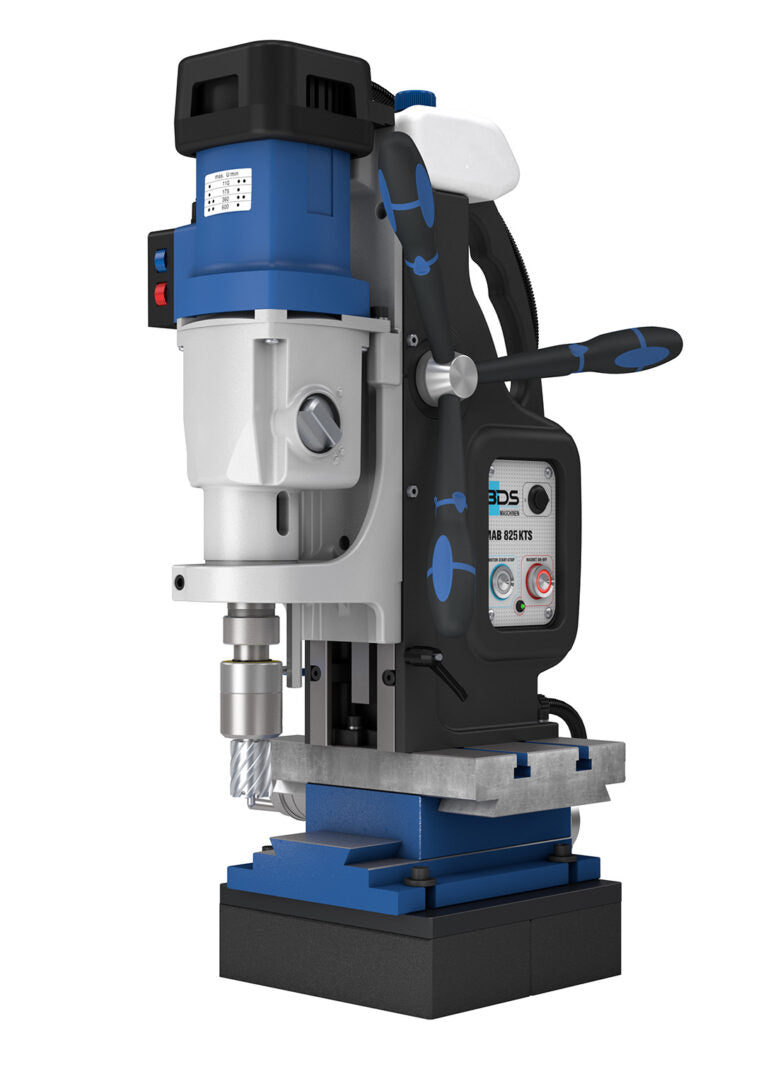

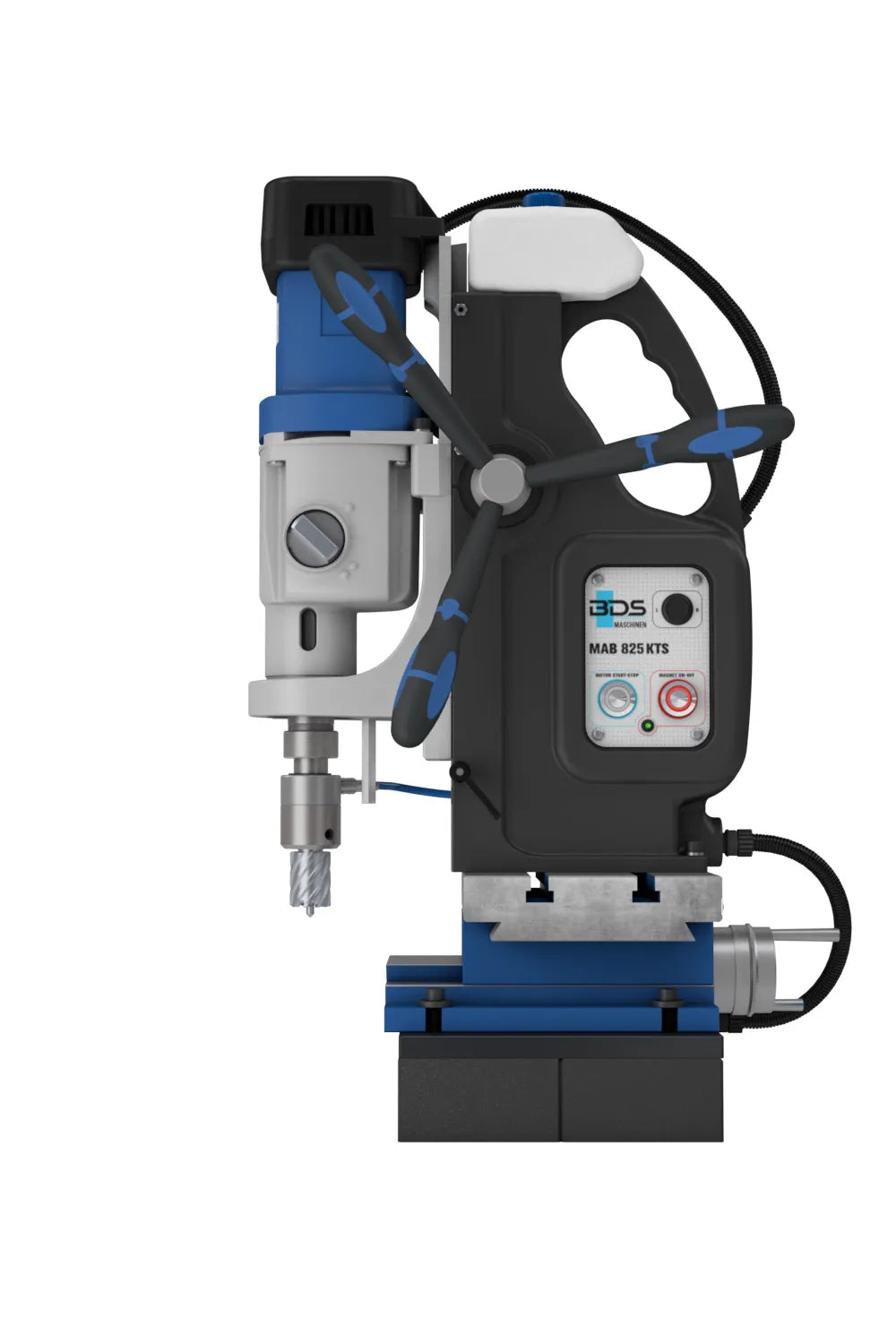

BDS MAB 825KTS Magnetic Drilling & Milling Machine with Cross Table
BDS MAB 825KTS Magnetic Drilling & Milling Machine with Cross Table
BDS

BDS MAB 825KTS Magnetic Drilling & Milling Machine with Cross Table – ProfiSPEZIAL

In stock
SKU: MAB 825KTS 230V
£5,235.00 GBP
Sale £6,980.00 GBP £5,235.00 GBP
BDS UK offer: 25% off the BDS RRP, already applied
Made in GermanyRed Dot winner 2021, innovative product

This machine won the Red Dot Award 2021 for innovative products.

German Brand Award 2023 winner German Design Award winner 2022 German Design Award winner 2023

Award-winning BDS: German Brand Award 2023 for the BDS brand, and German Design Awards 2022 and 2023 for BDS machines.
Heavy item: about 75.2 kg packed. It ships by pallet or freight. UK delivery is shown at checkout. Outside the UK, checkout cannot price freight over 70 kg, so please request a shipping quote before ordering and we will reply with the best freight price.

Questions about this product, a larger quantity or a shipping quote? Contact us.

Experience award-winning innovation Made in Germany with the BDS MAB 825 KTS. Winner of the Red Dot Award: Product Design 2021, this portable magnetic drilling and milling machine sets new standards in precision and versatility. Equipped with a cross-table base (110 mm X / 120 mm Y), 1,800 W high-performance motor and full-wave electronics, it enables accurate drilling, milling, tapping and countersinking. Robust construction, patented technology and German engineering excellence make the MAB 825 KTS the ideal solution for professionals in steel fabrication, plant construction and industrial manufacturing.

Available from LATHELAND in 230 V and in 110 V for UK construction sites.

Key features

  • Red Dot Innovative Product Award Winner
  • Made in Germany
  • Drilling and light milling in one machine

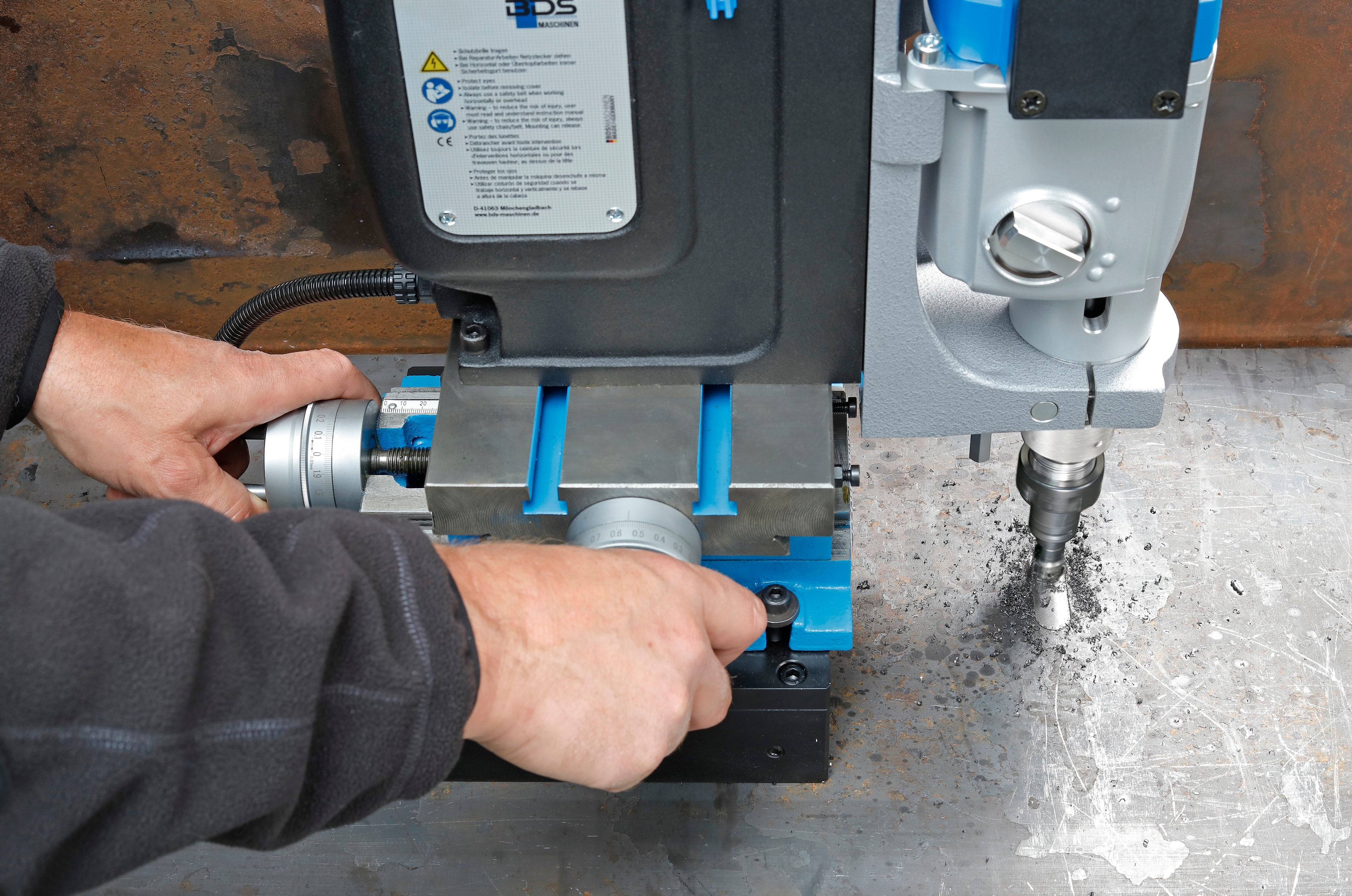

  • Cross table: 110 mm (X) / 120 mm (Y)
  • Morse Taper 3
  • Reversible Motor
  • Variable Speed Control
  • Variable Torque Control
  • Full Wave Control Electronics
  • Magnet Adhesion Indicator
  • Overheat Protection
  • Safety Friction Clutch
  • Carbon Brush Wear Indicator
  • Oil Bath Gearbox
  • Integrated Coolant Tank
  • Permanent Internal Lubrication
  • Four Coil Magnet
  • Heavy Duty Carry Case with Wheels

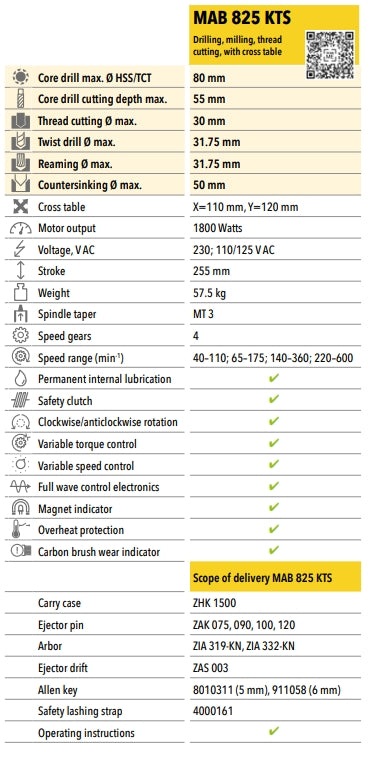

Technical specifications

Core drill max. Ø HSS / TCT 80 mm (3")
Cutting depth max. 55 mm (2-3/8")
Thread cutting max. M30 (1-1/8")
Twist drill Ø max. 31.75 mm (1-1/4")
Reaming Ø max. 31.75 mm (1-1/4")
Countersinking Ø max. 50 mm (2-1/2")
Motor output 1800 Watts (16 Amp)
Voltage 230 Volts or 110/125 Volts AC
Stroke 255 mm (10")
Weight 57.5 Kg. (127 lbs.)
Spindle taper Morse Taper MT3
Arbor Industrial Arbor MT3
Gears 4
Speed range (min⁻¹) 40-110; 65-175; 140-360; 220-600

What's in the box

For milling work, add the ZSF 316 MT 3 collet chuck set.

Genuine spare parts & service

Not sure which part you need? Send us your machine's serial number and we will check it for you.

Made in Germany by BDS Maschinen GmbH. Supplied and supported in the UK by LATHELAND.
