BDS MAB 1300 Magnetic Drilling Machine, up to Ø 130 mm – ProfiPLUS

In stock
SKU: MAB 1300 230V
£4,902.75 GBP
Sale £6,537.00 GBP £4,902.75 GBP
BDS UK offer: 25% off the BDS RRP, already applied
Made in Germany
German Brand Award 2023 winner German Design Award winner 2022 German Design Award winner 2023

Award-winning BDS: German Brand Award 2023 for the BDS brand, and German Design Awards 2022 and 2023 for BDS machines.
Heavy item: about 70.5 kg packed. It ships by pallet or freight. UK delivery is shown at checkout. Outside the UK, checkout cannot price freight over 70 kg, so please request a shipping quote before ordering and we will reply with the best freight price.

Questions about this product, a larger quantity or a shipping quote? Contact us.

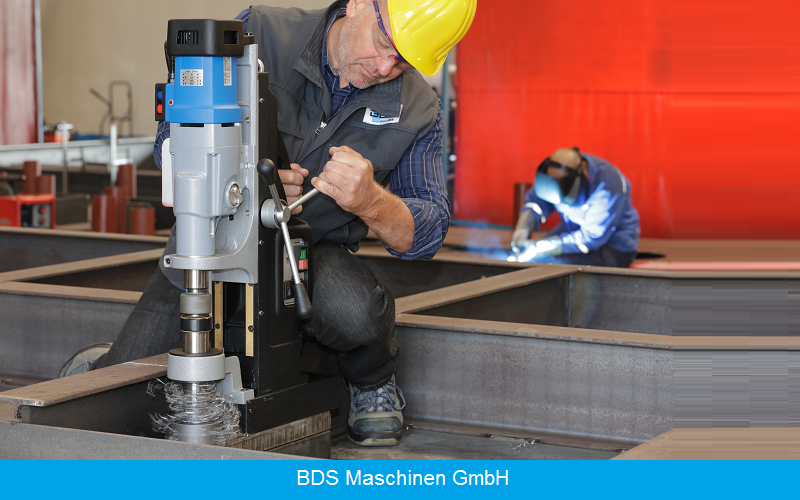

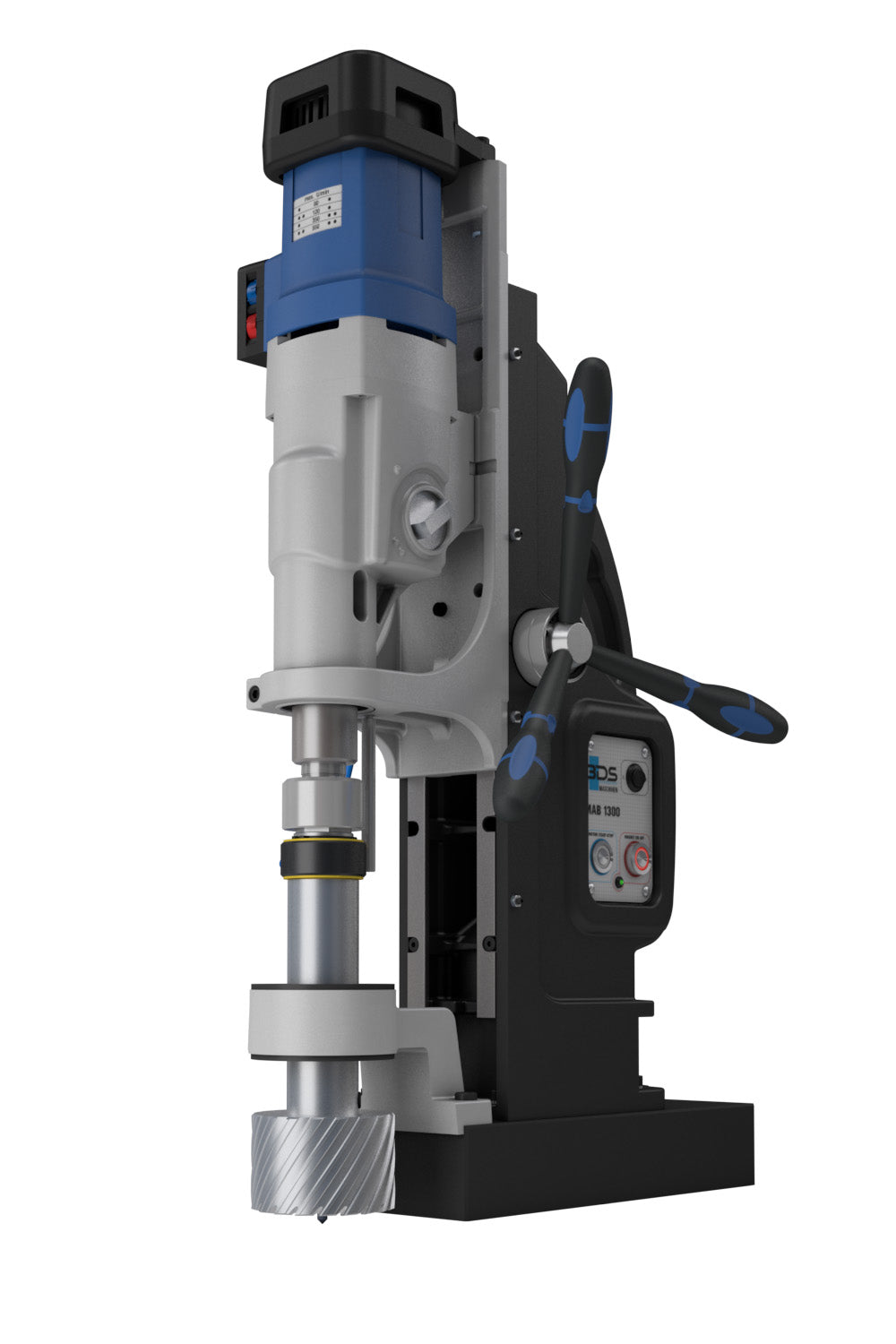

The MAB 1300 magnetic core drilling machine sets new benchmarks in heavy-duty industrial drilling. Powered by a 2,300 W motor with Servo Assist Power Feed, it delivers effortless operation, maximum torque, and outstanding efficiency. Designed for core drilling up to Ø 130 mm, tapping up to M42, and countersinking up to 80 mm, it represents BDS engineering excellence.

With four mechanical speed settings and an MT4 Morse taper, the MAB 1300 ensures precise control and smooth performance. Advanced safety features, triple coil magnet, and robust construction make it the ultimate solution for the toughest industrial applications.

The MAB 1300D200 version is set up for core drilling up to Ø 200 mm (230 V).

Available from LATHELAND in 230 V and in 110 V for UK construction sites.

Key features

  • Made in Germany
  • Power Assist Feed Servo Motor
  • Morse Taper 4
  • Drilling, Tapping, Countersink & Reaming
  • Reversible Motor
  • Variable Speed Control
  • Variable Torque Control
  • Full Wave Control Electronics
  • Magnet Adhesion Indicator
  • Overheat Protection
  • Safety Friction Clutch
  • Carbon Brush Wear Indicator
  • Oil Bath Gearbox
  • Integrated Coolant Tank
  • Permanent Internal Lubrication
  • Triple Coil Magnet
  • Heavy Duty Carry Case with Wheels

Technical specifications

Core drill max. Ø HSS / TCT 130 mm (6") upto 30 mm (1'') depth
Cutting depth max. 110 mm (3'')
Thread cutting max. M42 (1-5/8")
Twist drill Ø max. 45 mm (1-3/4")
Reaming Ø max. 50 mm (2-1/2")
Countersinking Ø max. 80 mm (3 ⅛″)
Motor output 2300 Watts (20 Amp)
Voltage 230 Volts or 110/125 Volts AC
Stroke 85/310 mm (3.35" / 12" without retainer)
Weight 51 Kg. (112 lbs.)
Spindle taper Morse Taper MT4
Gears 4
Speed range (min⁻¹) 30-180; 50-120; 130-350; 210-550

What's in the box

Genuine spare parts & service

Original BDS parts for this machine: MAB 1300 spare parts. Not sure which part you need? Send us your machine's serial number and we will check it for you.

Made in Germany by BDS Maschinen GmbH. Supplied and supported in the UK by LATHELAND.
