BDS HSS Machine Taps - Weldon Shank
Regular price
£33.60 GBP
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.

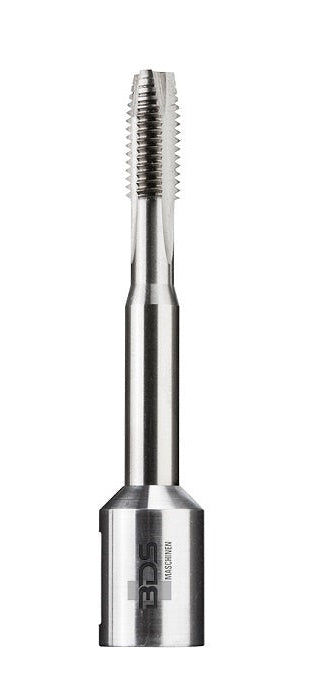

BDS HSS Machine taps with Weldon Shank
- DIN 371 Form B for size M8
- DIN 367 Form B up to GWB 020 with 19 mm (3/4") Weldon Shank
- From GWB 022 with 32mm (1 1/2") Weldon Shank (1 1/2")
| Ø | Length | Order No. |
| M8 | 90 mm | GWB 008 |
| M10 | 100 mm | GWB 010 |
| M12 | 110 mm | GWB 012 |
| M16 | 110 mm | GWB 016 |
| M18 | 125 mm | GWB 018 |
| M20 | 140 mm | GWB 020 |
| M22 | 140 mm | GWB 022 |
| M24 | 150 mm | GWB 024 |
| M27 | 160 mm | GWB 027 |
| M30 | 175 mm | GWB 030 |
| M33 | 180 mm | GWB 033 |
| M36 | 190 mm | GWB 036 |
| M42 | 200 mm | GWB 042 |
Note : No adapters required when using Weldon shank tools
