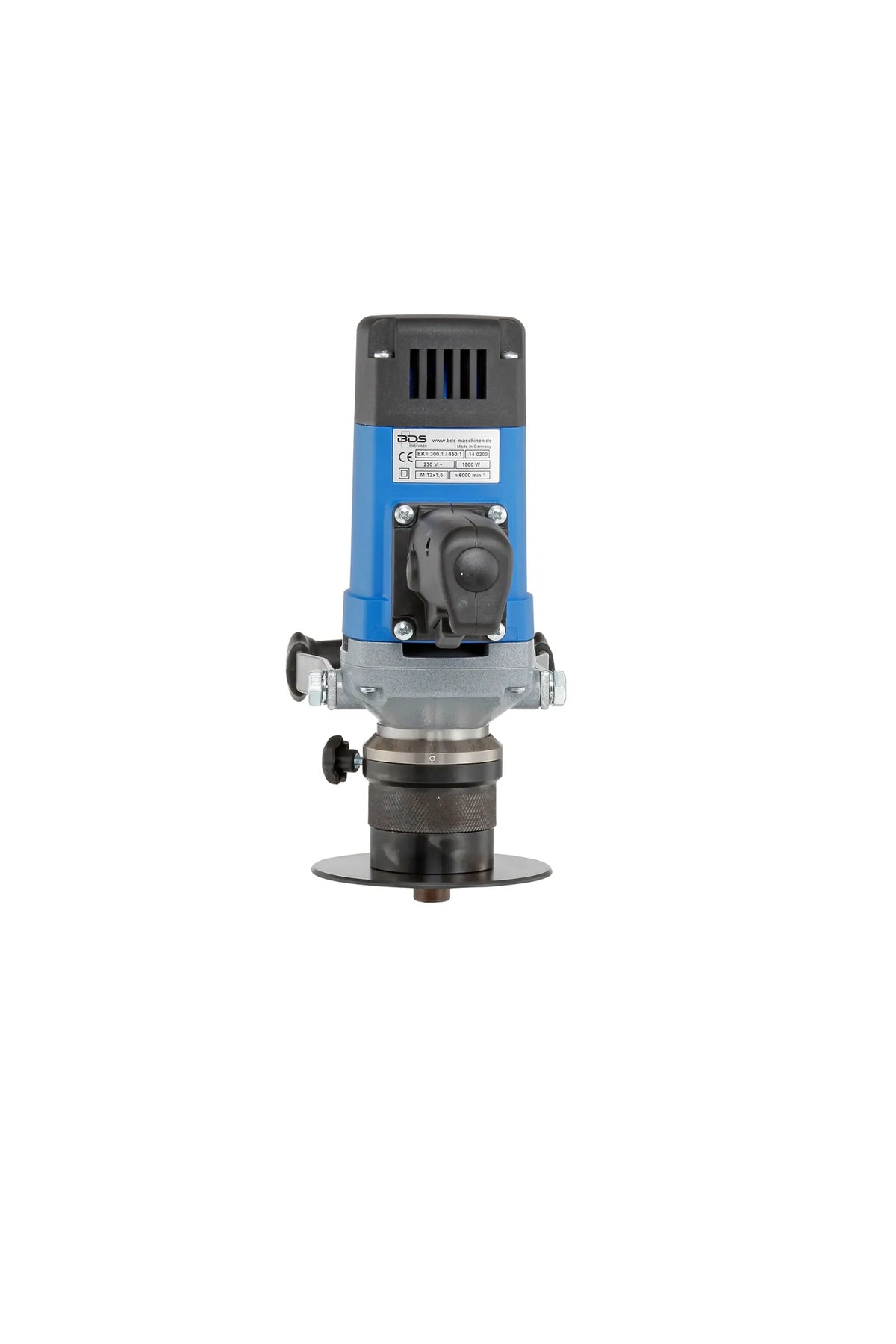

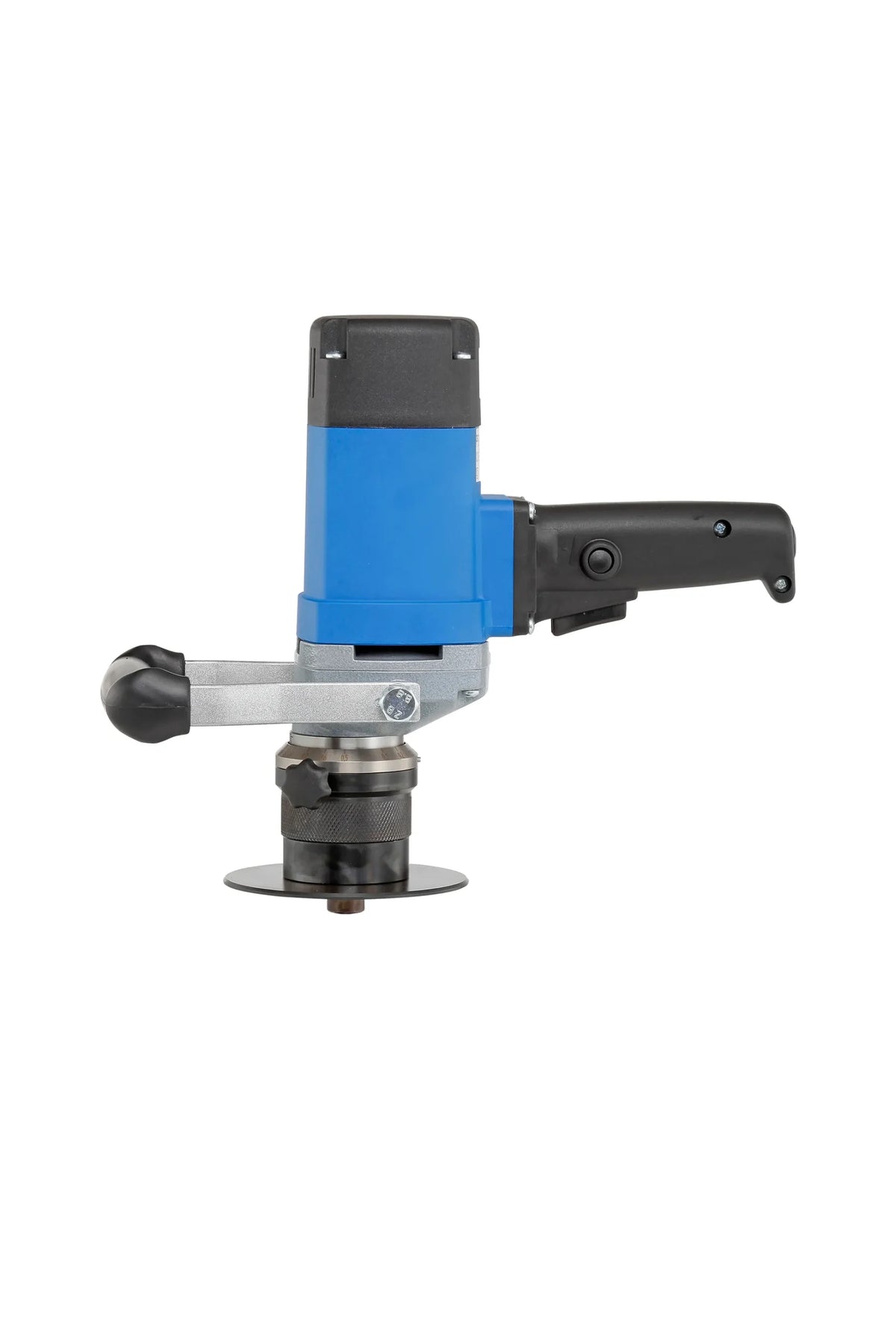

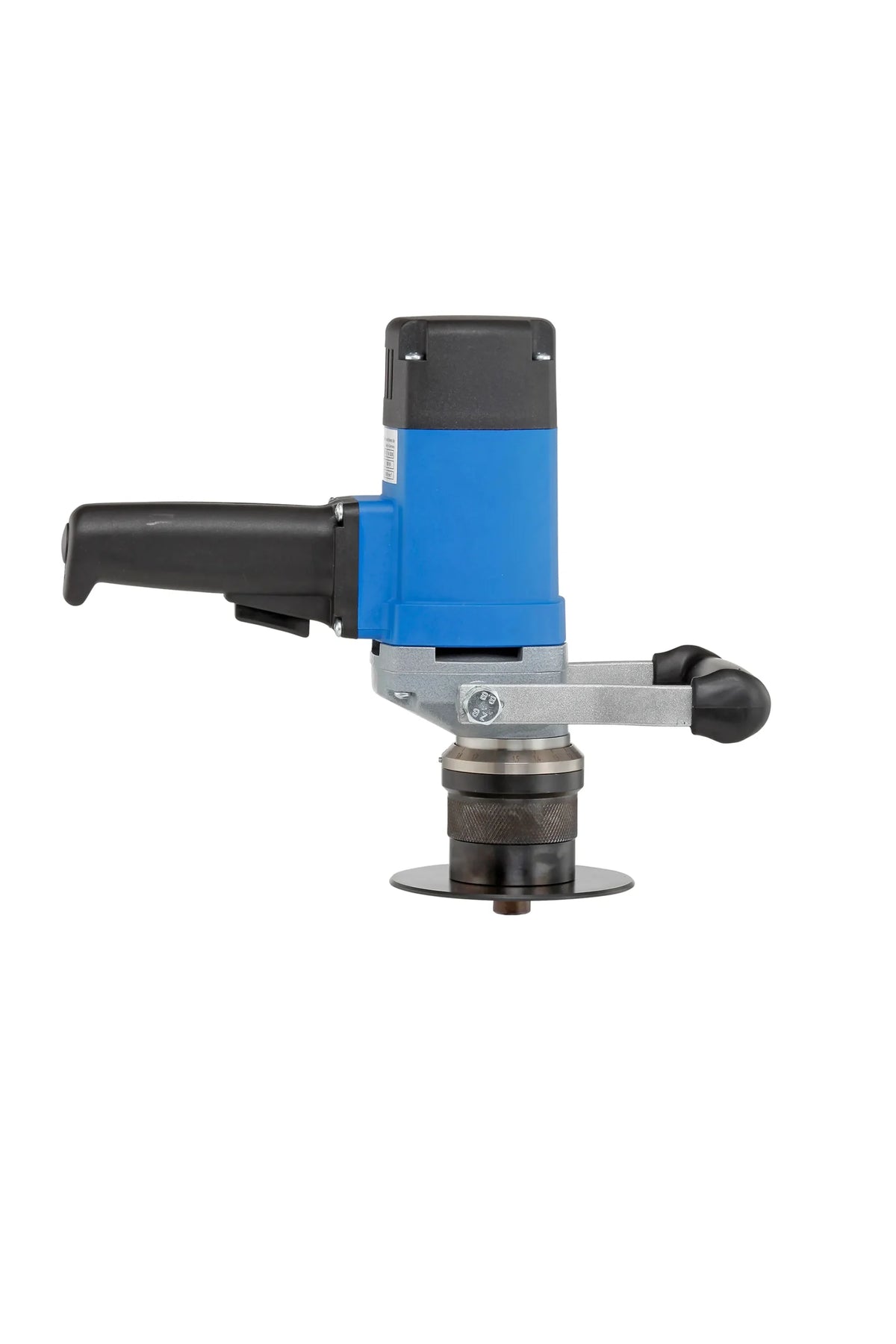

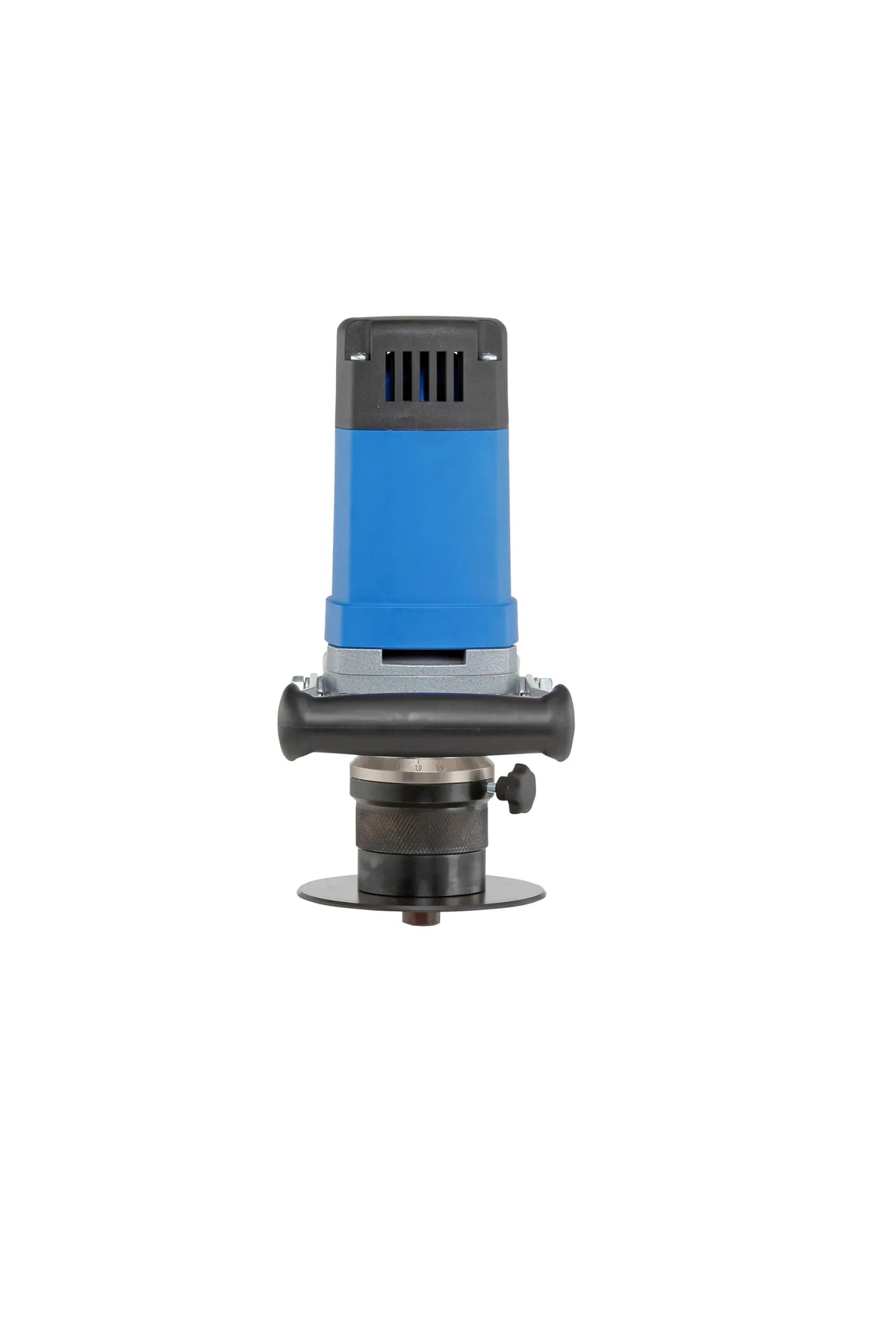

BDS EKF 450.3 Chamfering & Bevelling Machine, 45°

The EKF 450.3 is a compact, hand-held edge milling machine for clean 45° chamfers up to 6 mm wide. At 4.6 kg it is light enough to guide along plate edges, profiles and holes, and it handles weld preparation, deburring and chamfering on steel, stainless steel, non-ferrous metals and plastics.

Its 1500 W motor drives a milling head fitted with three indexable carbide inserts (SHM 200). The tangential insert layout keeps vibration low, and the inserts can be turned to a fresh edge instead of regrinding the tool. It works on straight edges as well as internal and external contours.

Key features

• 45° chamfer angle, chamfer width 1.5–6 mm
• 1500 W motor, 6000 min⁻¹
• Milling head ZFR 450.3 with 3 × SHM 200 indexable carbide inserts
• Internal and external contour machining
• For weld seam preparation, deburring and chamfering
• Only 4.6 kg, compact ergonomic design
• Carry case included

Technical specifications

What's in the box

• Carry case ZPK 001
• Milling head ZFR 450.3
• 3 × carbide inserts SHM 200
• Hook wrench ZAC 001
• Torx screwdriver T09
• Spanner 22 mm
• Operating instructions

Genuine spare parts

Keep your machine running with original BDS parts: EKF 450.3 spares. Not sure which part you need? Send us your machine's serial number and we will check it for you.

Made in Germany by BDS Maschinen GmbH. Supplied and supported in the UK by LATHELAND.
