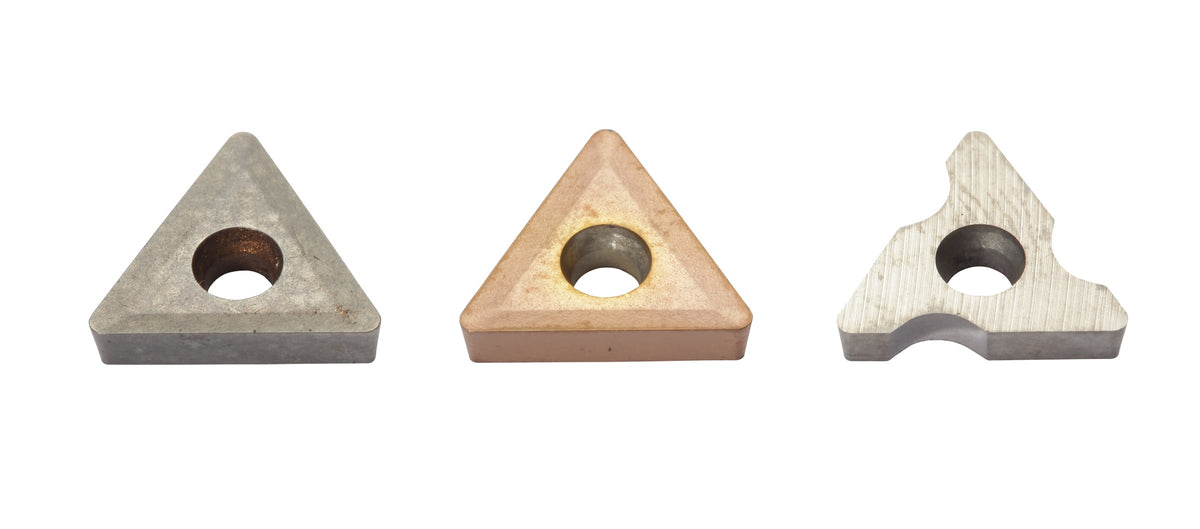

BDS carbide inserts for EKF bevelling machines
BDS carbide inserts SHM 200 and SHM 200-E
BDS carbide insert SHM 200-E for stainless steel
BDS carbide insert SHM 202 radius 2.5 mm
BDS carbide insert SHM 400
BDS carbide insert SHM 900 for EKF 630 / 645
BDS carbide inserts for EKF bevelling machines
BDS

BDS Carbide Inserts for EKF Bevelling Machines (SHM), per piece

In stock
SKU: SHM 200
£10.20 GBP
Sale £13.60 GBP £10.20 GBP
BDS UK offer: 25% off the BDS RRP, already applied

Questions about this product, a larger quantity or a shipping quote? Contact us.

Indexable carbide inserts for BDS edge milling and bevelling machines. Each insert has several cutting edges: when one is worn, turn it to a fresh edge. "-E" inserts are coated for stainless steel. Prices are per insert; EKF 300.3 / 450.3 / 452.3 use 3 inserts, EKF 630 / 645 use 10.

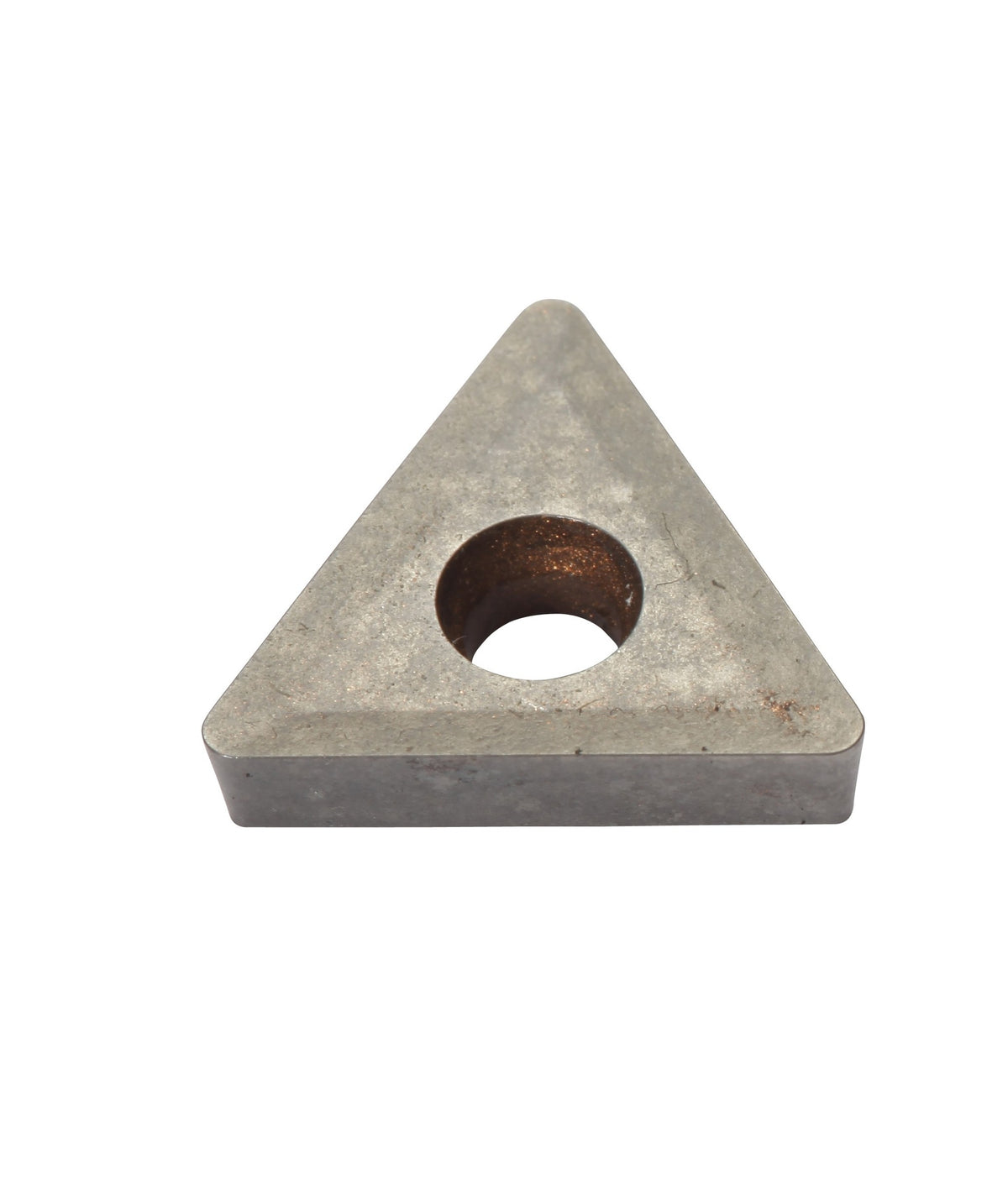

SHM 200 Carbide insert 30°/45° for EKF 300.3 / 450.3 / 452.3

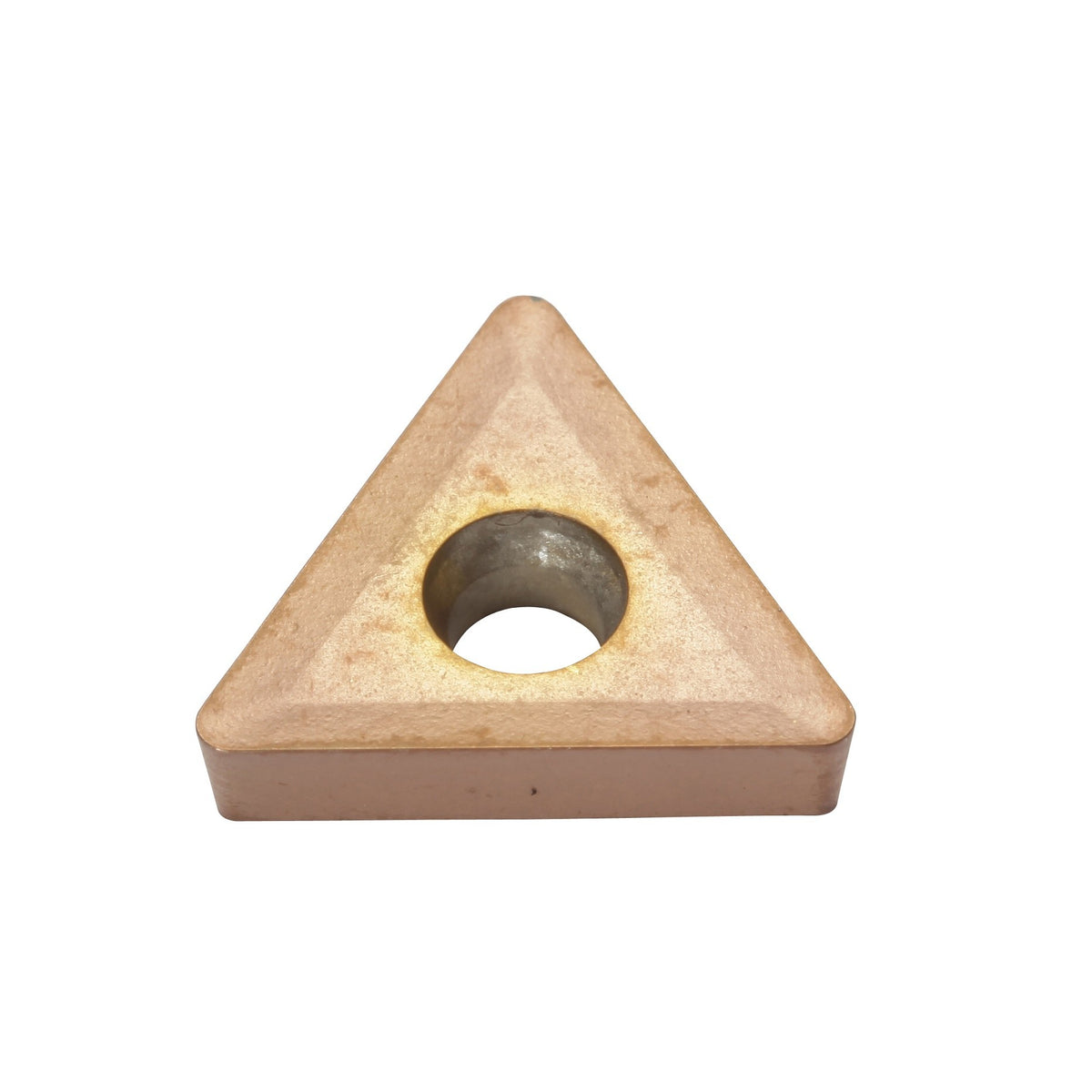

SHM 200-E Carbide insert 30°/45° for stainless steel (EKF 300.3 / 450.3)
SHM 201 Carbide insert R = 1.5 mm for EKF 452.3

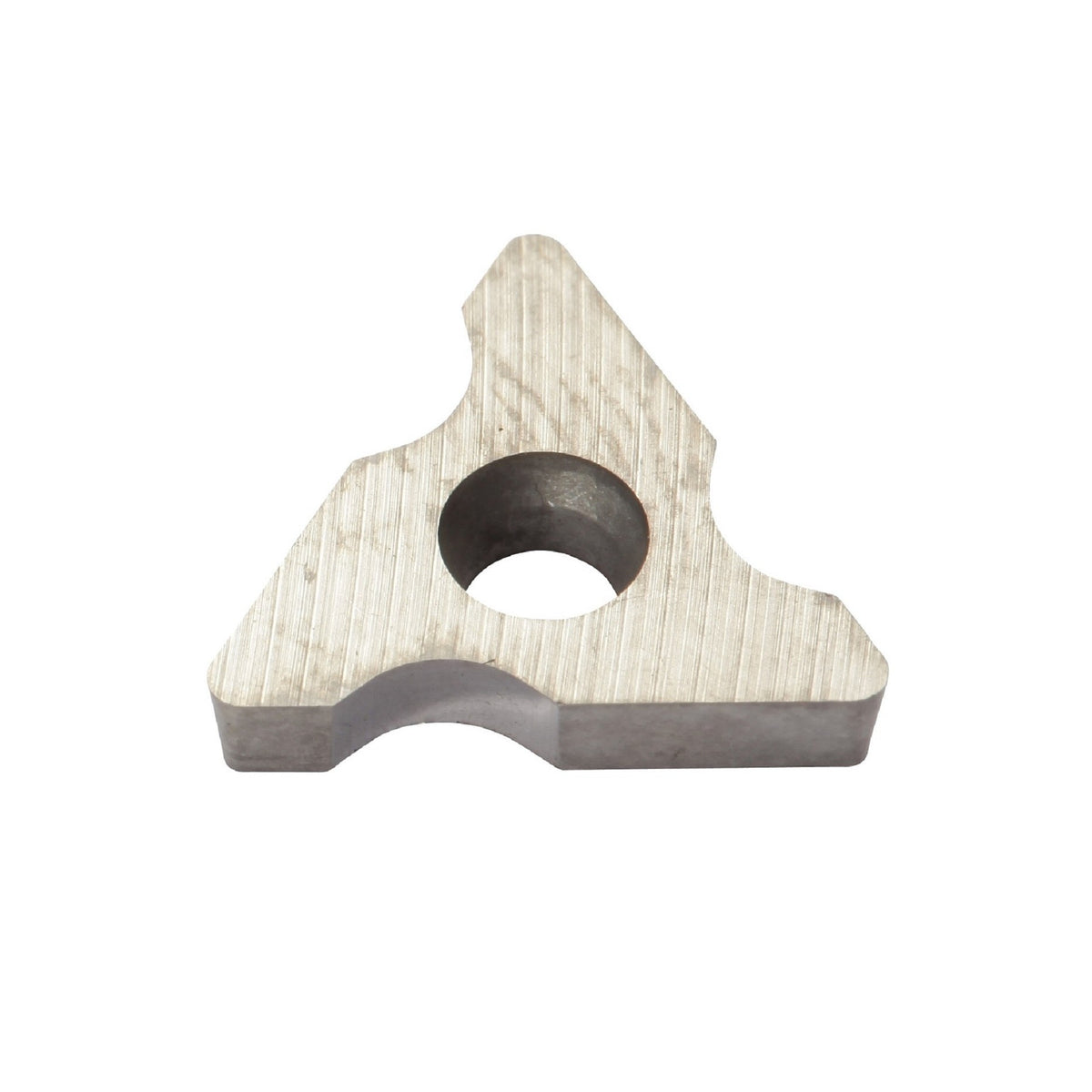

SHM 202 Carbide insert R = 2.5 mm for EKF 452.3

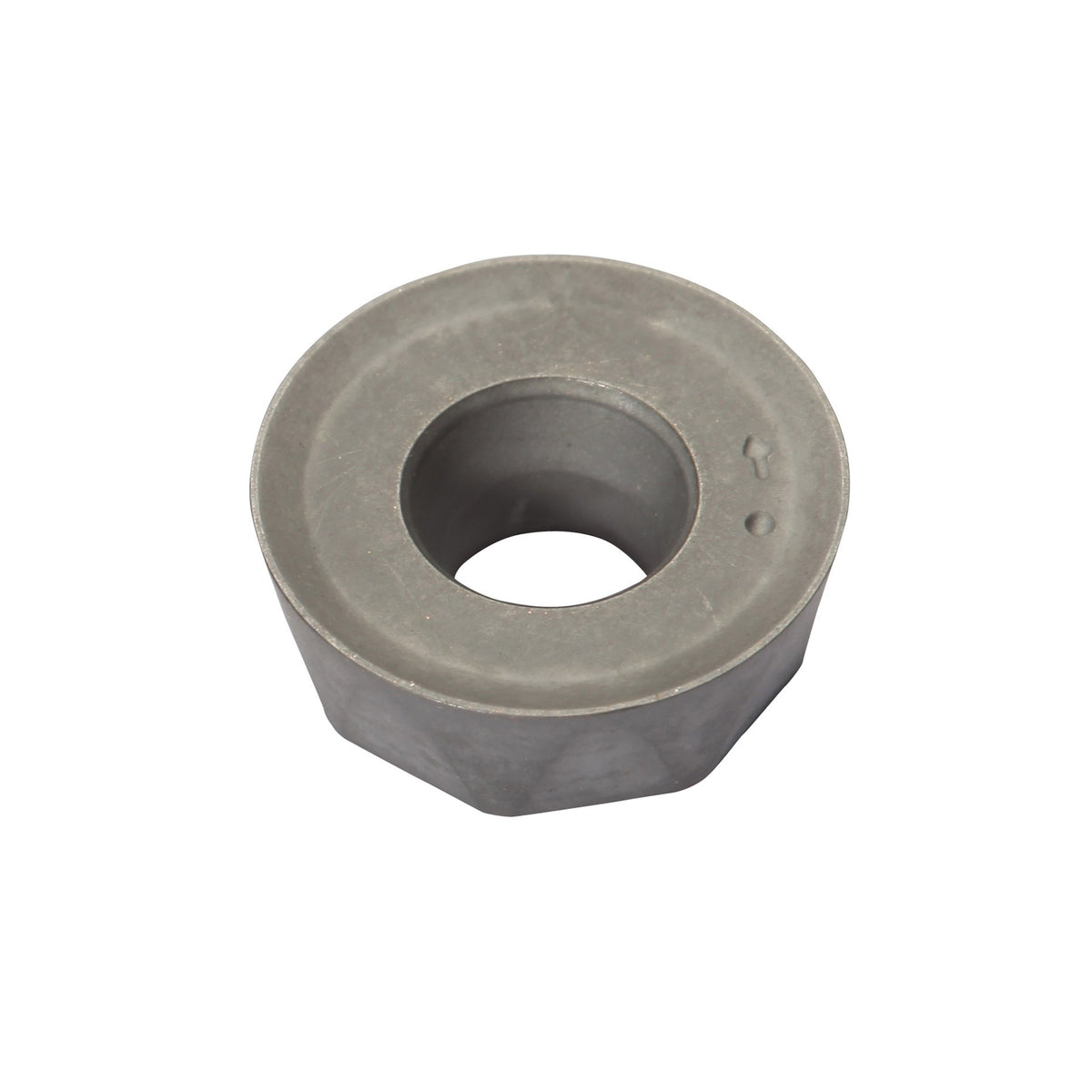

SHM 400 Carbide insert for AutoCUT 500
SHM 400-E Carbide insert for AutoCUT 500, stainless steel
SHM 500 Carbide insert for SKF 020

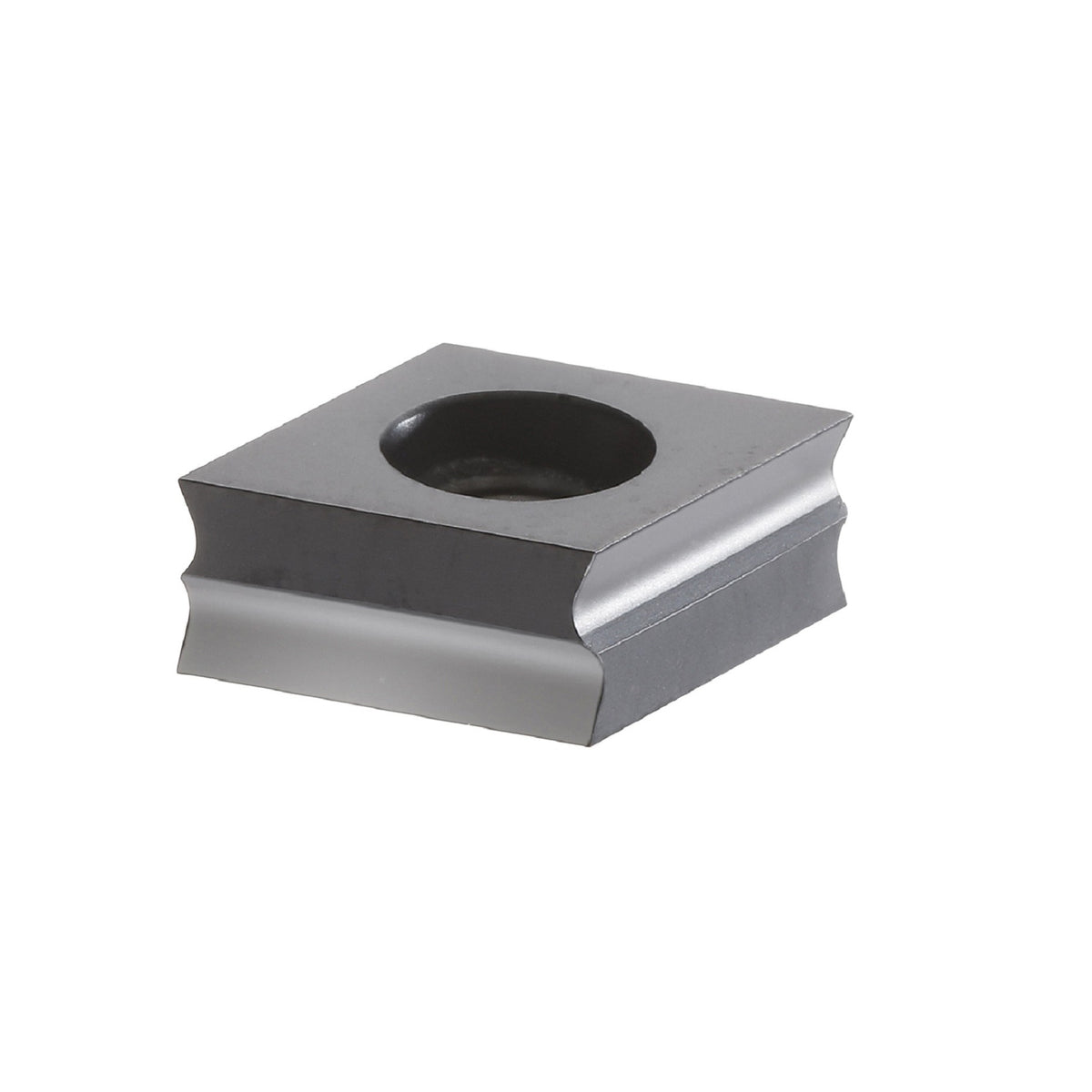

SHM 900 Carbide insert for EKF 630 / 645 (and EKF 500 / 600)
SHM 900-E Carbide insert for EKF 630 / 645, stainless steel

Inserts for the SKF 025 (SHM 800) are listed separately.

Genuine BDS product from BDS Maschinen GmbH. Supplied and supported in the UK by LATHELAND.
