AKKO

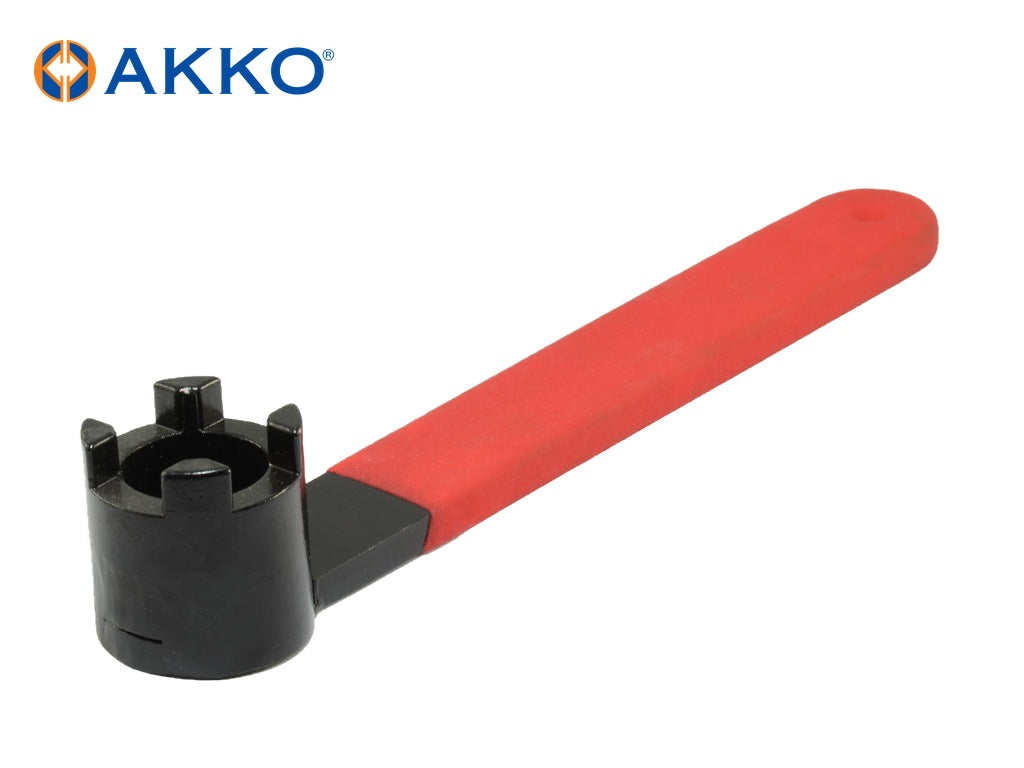

AKKO Wrench for Shell Arbor

Out of stock

SKU: AWFM-16

Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedAWFM-16 SKUAWFM-16

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO Wrench for Shell Arbor from the AKKO Wrench for Shell Arbor range. 6 sizes listed below.

Sizes and dimensions (mm)

AKKO code	FTDZ	DRVS	OAL	LH
AWFM-16	M8	16	180	20
AWFM-22	M10	22	200	25
AWFM-27	M12	27	225	32
AWFM-32	M16	32	250	36
AWFM-40	M20	40	280	40
AWFM-50	M24	50	315	50

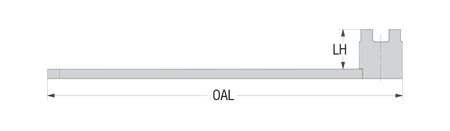

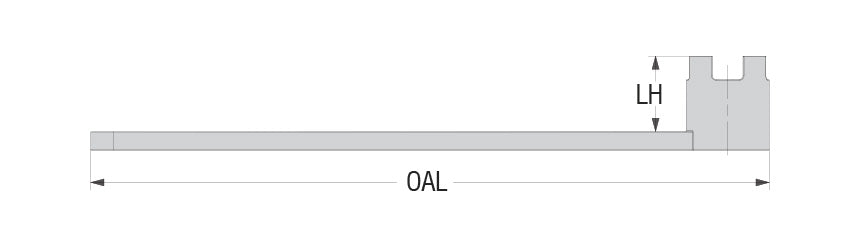

Dimension key (letters as on the drawing):

OAL: Overall length
LH: Head/neck length

Genuine AKKO spare part. Check the spare-parts table on your AKKO toolholder listing for the correct code, or ask us.

Ordering and delivery

Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
Worldwide delivery by DHL or UPS.
