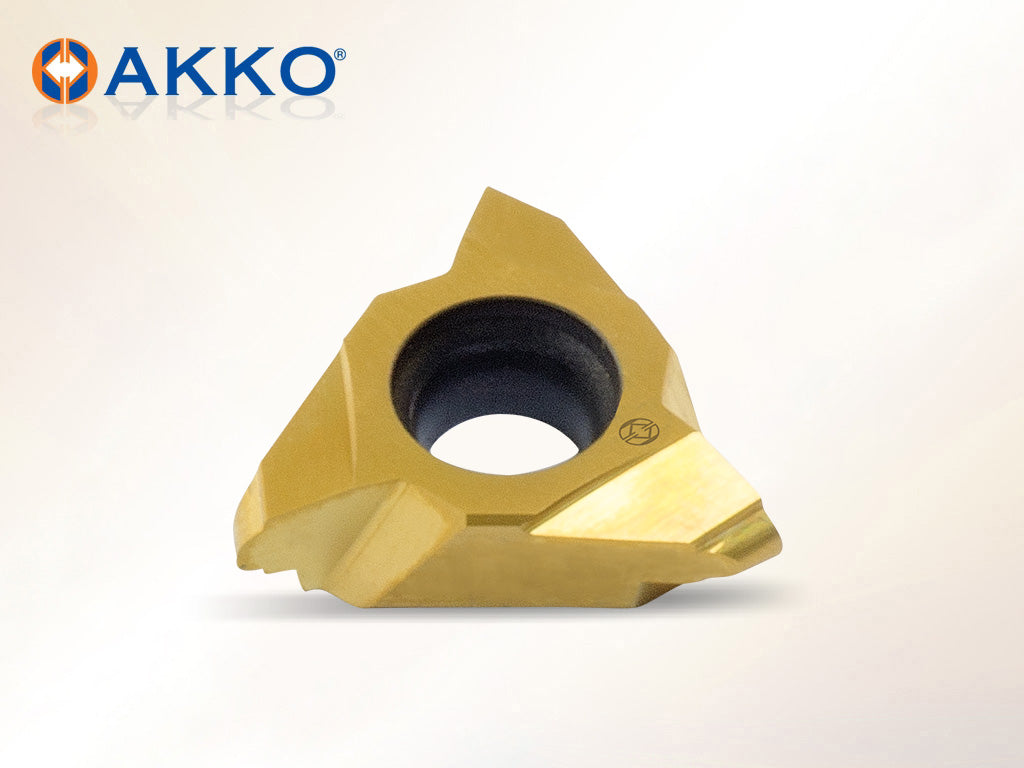

AKKO Whirling Insert ISO 5835 from the AKKO Whirling Inserts (ISO 5835) range. 9 sizes listed below.
| AKKO code | α | Standard | TP | DCN | e | DCF | RER | REL | β | APMX | DCX |
|---|---|---|---|---|---|---|---|---|---|---|---|
| T09.HA150.D12 | 35 | HA1.5 | 0.5 | 1.0 to 1.1 | 0.1 | 1.35 to 1.5 | 0.3 | 0.1 | 3 | 4 | 9 |
| T09.HA200.D12 | 35 | HA2.0 | 0.6 | 1.2 to 1.3 | 0.1 | 1.85 to 2.0 | 0.4 | 0.1 | 3 | 4 | 9 |
| T09.HA270.D12 | 35 | HA2.7 | 1 | 1.75 to 1.9 | 0.1 | 2.55 to 2.7 | 0.6 | 0.2 | 3 | 4 | 9.5 |
| T09.HA350.D12 | 35 | HA3.5 | 1.25 | 2.25 to 2.4 | 0.1 | 3.35 to 3.5 | 0.8 | 0.2 | 3 | 4 | 10 |
| T09.HA400.D12 | 35 | HA4.0 | 1.5 | 2.75 to 2.9 | 0.1 | 3.85 to 4.0 | 0.8 | 0.2 | 3 | 4 | 10.5 |
| T09.HA450.D12 | 35 | HA4.5 | 1.75 | 2.85 to 3.0 | 0.1 | 4.35 to 4.5 | 1 | 0.3 | 3 | 4 | 11 |
| T09.HA500.D12 | 35 | HA5.0 | 1.75 | 3.35 to 3.5 | 0.1 | 4.85 to 5.0 | 1 | 0.3 | 3 | 4 | 11 |
| T09.HB400.D12 | 25 | HB4.0 | 1.75 | 1.75 to 1.9 | 0.1 | 3.85 to 4.0 | 0.8 | 0.3 | 5 | 4 | 9.5 |
| T09.HB650.D12 | 25 | HB6.5 | 2.75 | 2.85 to 3.0 | 0.2 | 6.35 to 6.5 | 1.2 | 0.8 | 5 | 4 | 11 |

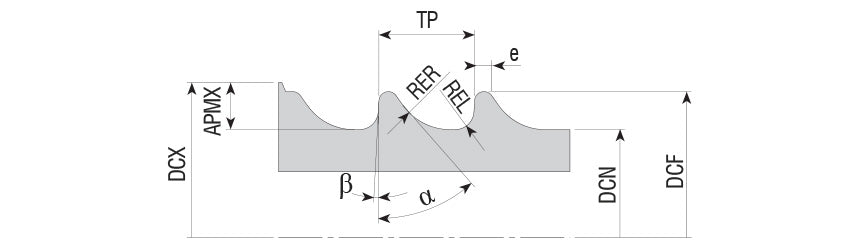

Dimension key (letters as on the drawing):
