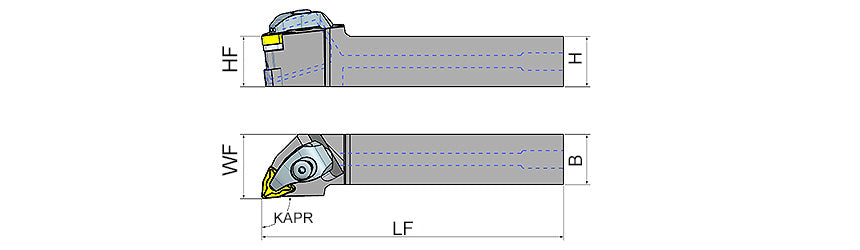

AKKO TWLNR/L-H T-System External Turning Toolholder - dimension drawing
AKKO TWLNR/L-H T-System External Turning Toolholder - dimension drawing
AKKO

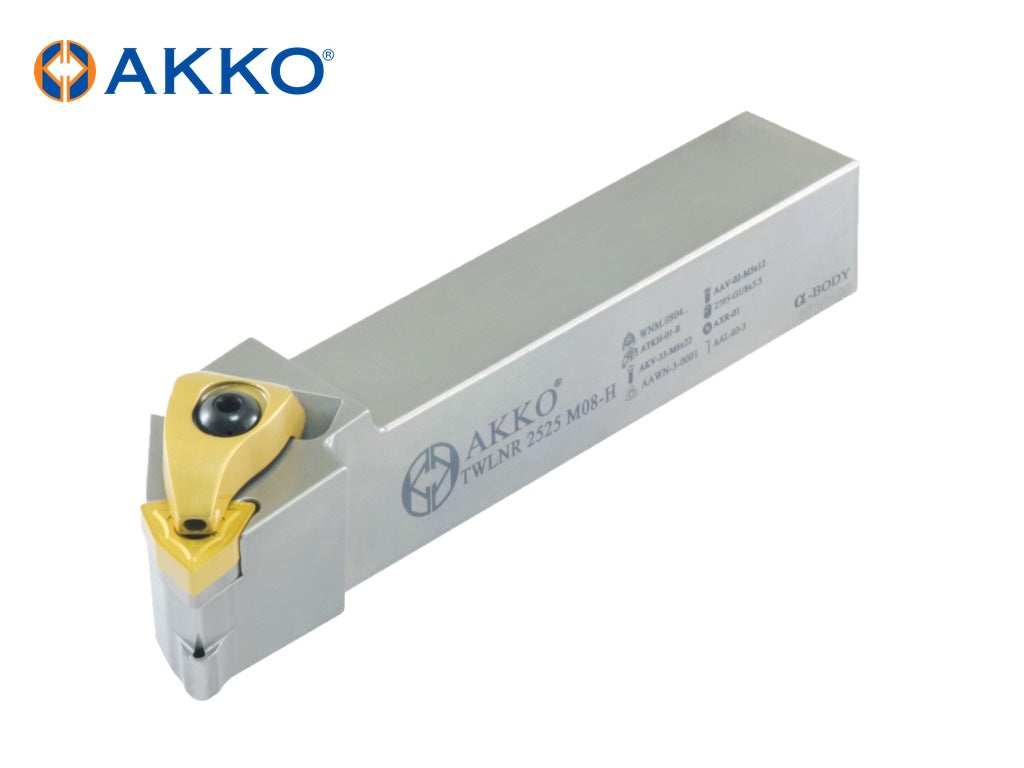

AKKO TWLNR/L-H T-System External Turning Toolholder

Out of stock
SKU: TWLNL 2020 K06-H
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTWLNL 2020 K06-H SKUTWLNL 2020 K06-H

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO TWLNR/L-H – T-System External Turning Toolholder from the AKKO T-System External Turning Toolholders range. Available in right-hand and left-hand versions. For inserts: WN.. 06.., WN.. 08.. 12 sizes listed below.

Specifications

  • Clamping Type: T-System
  • Coolant Through: Yes
  • Side Cutting Angle (KAPR): 95°

Sizes and dimensions

AKKO code Hand (R/L) Shank Height (H, mm) Shank Width (B, mm) Functional Length (LF, mm) Functional Width (WF, mm) Insert (ISO)
TWLNL 2020 K06-H L 20 20 125 25 WN.. 06..
TWLNL 2020 K08-H L 20 20 125 25 WN.. 08..
TWLNL 2525 M06-H L 25 25 150 32 WN.. 06..
TWLNL 2525 M08-H L 25 25 150 32 WN.. 08..
TWLNL 3232 P06-H L 32 32 170 40 WN.. 06..
TWLNL 3232 P08-H L 32 32 170 40 WN.. 08..
TWLNR 2020 K06-H R 20 20 125 25 WN.. 06..
TWLNR 2020 K08-H R 20 20 125 25 WN.. 08..
TWLNR 2525 M06-H R 25 25 150 32 WN.. 06..
TWLNR 2525 M08-H R 25 25 150 32 WN.. 08..
TWLNR 3232 P06-H R 32 32 170 40 WN.. 06..
TWLNR 3232 P08-H R 32 32 170 40 WN.. 08..

Spare parts (AKKO codes)

AKKO code Shim Shim Screw Allen Key Clamp Clamp Screw Clamp Spring O-Ring / X-Ring Set Screw
TWLNL 2020 K06-H AAWN-SW317 AAV-01-M3X10 AAL-02-2.5 ATKH-04 AKV-37-M5X18 AKY-03 AXR-02 2705-G1/8x5.5
TWLNL 2020 K08-H AAWN-2-0001 AAV-13-M5X8 AAL-03-3 ATKH-02 AKV-33-M6X22 AKY-01 AXR-01 2705-G1/8x5.5, 2703-M6X5
TWLNL 2525 M06-H AAWN-SW317 AAV-01-M3X10 AAL-02-2.5 ATKH-04 AKV-37-M5X18 AKY-03 AXR-02 2705-G1/8x5.5
TWLNL 2525 M08-H AAWN-3-0001 AAV-13-M5X8 AAL-03-3 ATKH-02 AKV-33-M6X22 AKY-01 AXR-01 2705-G1/8x5.5, 2703-M6X5
TWLNL 3232 P06-H AAWN-SW317 AAV-01-M3X10 AAL-02-2.5 ATKH-03 AKV-37-M5X18 AKY-03 AXR-02 2705-G1/8x5.5
TWLNL 3232 P08-H AAWN-3-0001 AAV-13-M5X8 AAL-03-3 ATKH-02 AKV-33-M6X22 AKY-01 AXR-01 2705-G1/8x5.5, 2703-M6X5
TWLNR 2020 K06-H AAWN-SW317 AAV-01-M3X10 AAL-02-2.5 ATKH-03 AKV-37-M5X18 AKY-03 AXR-02 2705-G1/8x5.5
TWLNR 2020 K08-H AAWN-3-0001 AAV-13-M5X8 AAL-03-3 ATKH-01 AKV-33-M6X22 AKY-01 AXR-01 2705-G1/8x5.5, 2703-M6X5
TWLNR 2525 M06-H AAWN-SW317 AAV-01-M3X10 AAL-02-2.5 ATKH-03 AKV-37-M5X18 AKY-03 AXR-02 2705-G1/8x5.5, 2703-M6X5
TWLNR 2525 M08-H AAWN-3-0001 AAV-13-M5X8 AAL-03-3 ATKH-01 AKV-33-M6X22 – AXR-01 2705-G1/8x5.5, 2703-M6X5
TWLNR 3232 P06-H AAWN-SW317 AAV-01-M3X10 AAL-02-2.5 ATKH-03 AKV-37-M5X18 AKY-03 AXR-02 2705-G1/8x5.5
TWLNR 3232 P08-H AAWN-3-0001 AAV-13-M5X8 AAL-03-3 ATKH-01 AKV-33-M6X22 AKY-01 AXR-01 2705-G1/8x5.5, 2703-M6X5

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
