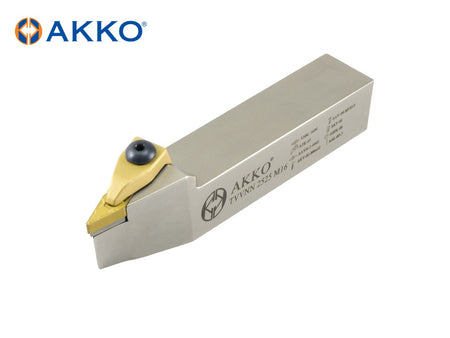

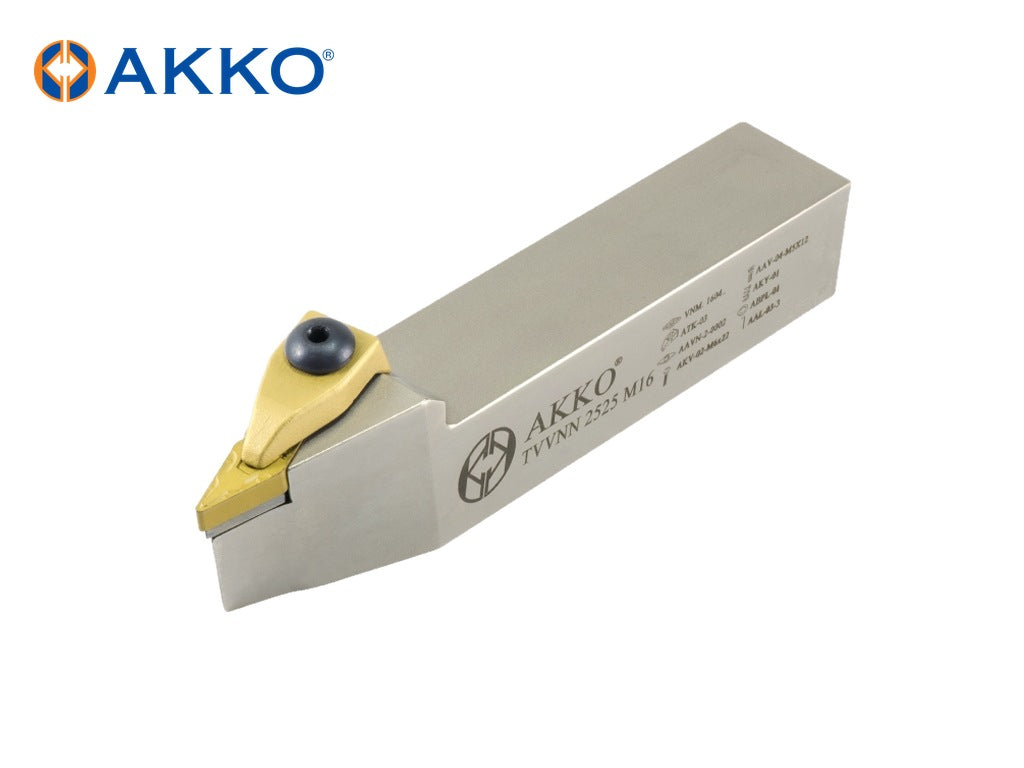

AKKO TVVNN – T-System External Turning Toolholder from the AKKO T-System External Turning Toolholders range. For inserts: VN.. 16.. 3 sizes listed below.
Specifications
-
Cutting Direction: Neutral
-
Clamping Type: T-System
-
Coolant Through: No
-
Side Cutting Angle (KAPR): 72.5°
-
Insert (ISO): VN.. 16..

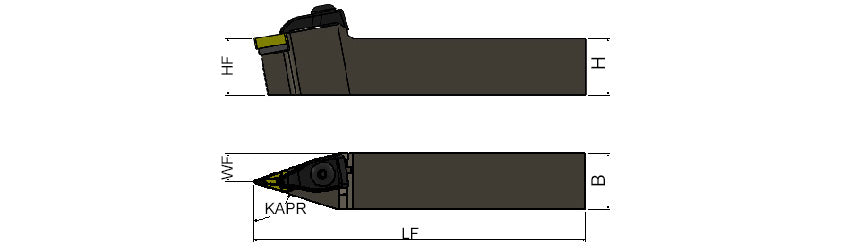

Sizes and dimensions
| AKKO code |
Shank Height (H, mm) |
Shank Width (B, mm) |
Functional Length (LF, mm) |
Functional Width (WF, mm) |
| TVVNN 2020 K16 |
20 |
20 |
125 |
10 |
| TVVNN 2525 M16 |
25 |
25 |
150 |
12.5 |
| TVVNN 3232 P16 |
32 |
32 |
170 |
16 |
Spare parts (AKKO codes)
-
Shim: AAVN-2-0002
-
Shim Screw: AAV-04-M5x12
-
Allen Key: AAL-03-3
-
Clamp: ATK-03
-
Clamp Screw: AKV-30-M6X22
-
Stamp: ABPL-01
-
Ring: AS-01
Spare parts and keys can be ordered separately: ask us with the AKKO code.
Ordering and delivery
- Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
- Inserts are sold separately unless stated.
- Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
- Worldwide delivery by DHL or UPS.
