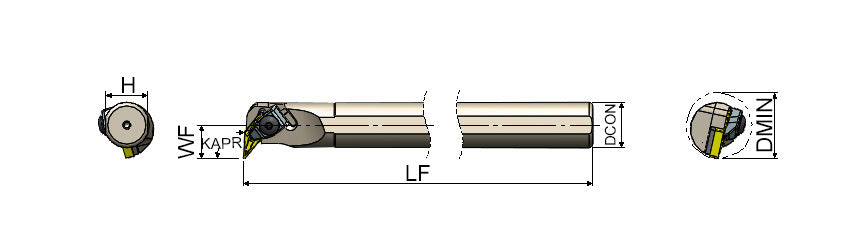

AKKO TVUNR/L T-System Boring Bar - dimension drawing
AKKO TVUNR/L T-System Boring Bar - dimension drawing
AKKO

AKKO TVUNR/L T-System Boring Bar

Out of stock
SKU: S25S TVUNL 16
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedS25S TVUNL 16 SKUS25S TVUNL 16

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

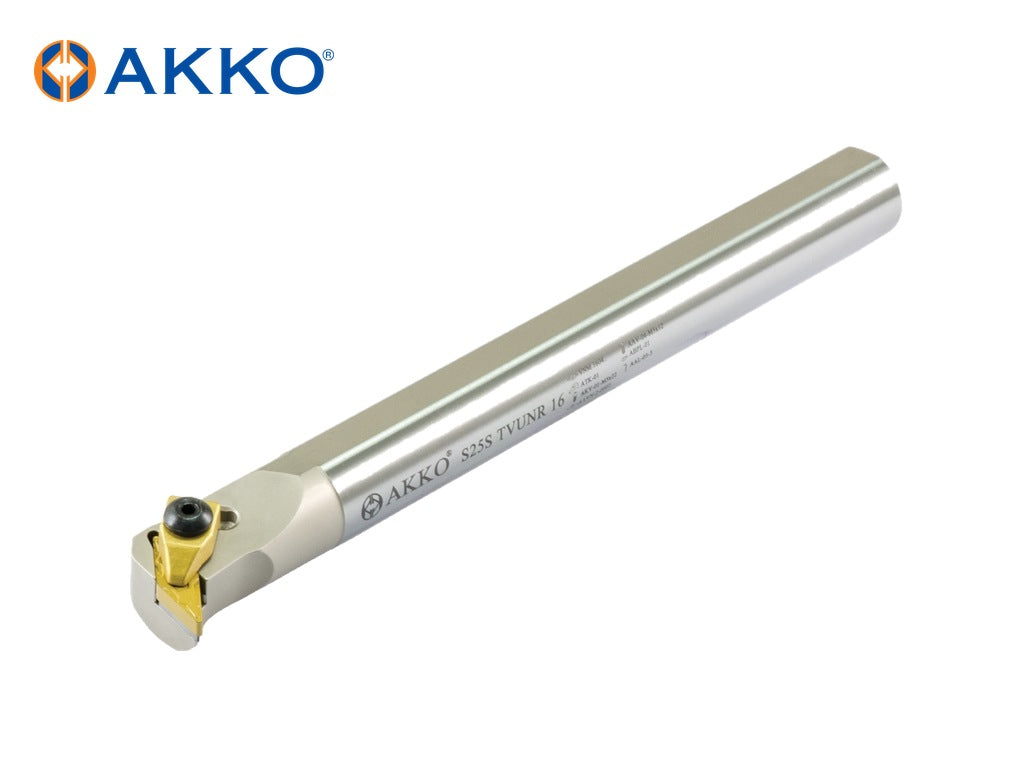

AKKO TVUNR/L – T-System Boring Bar from the AKKO T-System Boring Bars range. Available in right-hand and left-hand versions. For inserts: VN.. 1604.. 6 sizes listed below.

Specifications

  • Clamping Type: D-System
  • Coolant Through: No
  • Type Of Bar: Steel Body
  • Insert Size: 1604..
  • Insert Style: VN..
  • Side Cutting Angle (KAPR): 93°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin)
S25S TVUNL 16 L 25 250 17 ≥36 mm
S25S TVUNR 16 R 25 250 17 ≥36 mm
S32T TVUNL 16 L 32 300 22 ≥40 mm
S32T TVUNR 16 R 32 300 22 ≥40 mm
S40U TVUNL 16 L 40 350 27 ≥50 mm
S40U TVUNR 16 R 40 350 27 ≥50 mm

Spare parts (AKKO codes)

  • Shim: AAVN-2-0002
  • Shim Screw: AAV-04-M5x12
  • Allen Key: AAL-03-3
  • Clamp: ATK-01
  • Clamp Screw: AKV-01-M5X22
  • Stamp: ABPL-01

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
