info@latheland.com
Email us for a quote.
This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.
Couldn't load pickup availability
Questions about this product, a larger quantity or a shipping quote? Contact us.

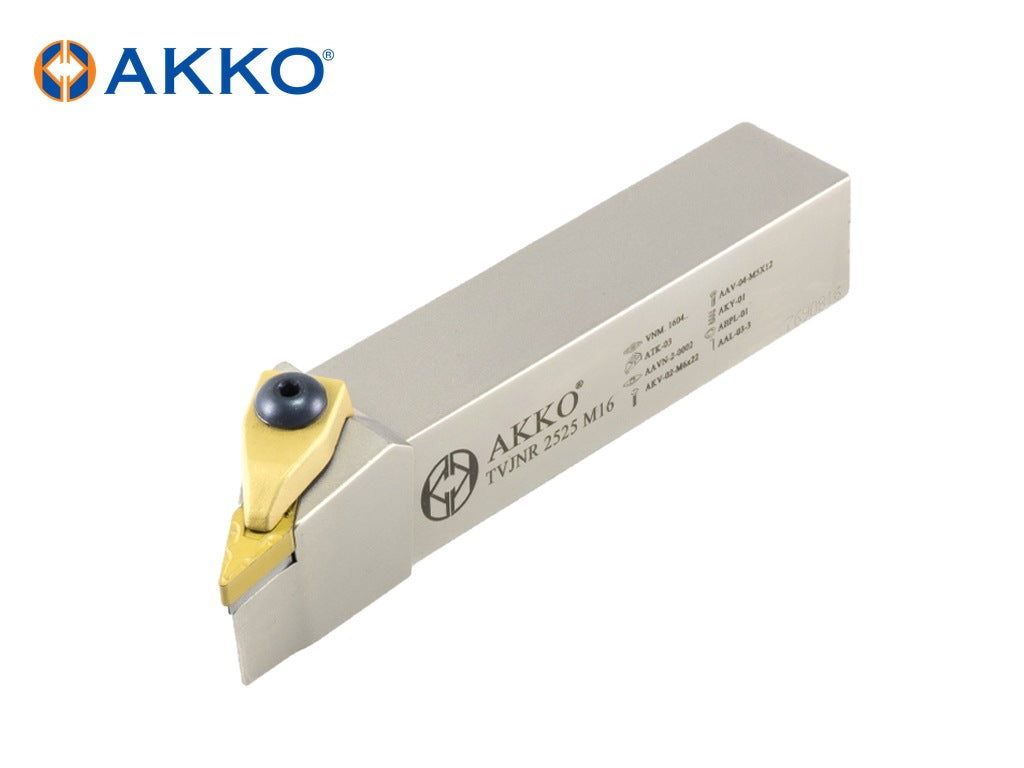

AKKO TVJNR/L – T-System External Turning Toolholder from the AKKO T-System External Turning Toolholders range. Available in right-hand and left-hand versions. For inserts: VN.. 16.. 6 sizes listed below.

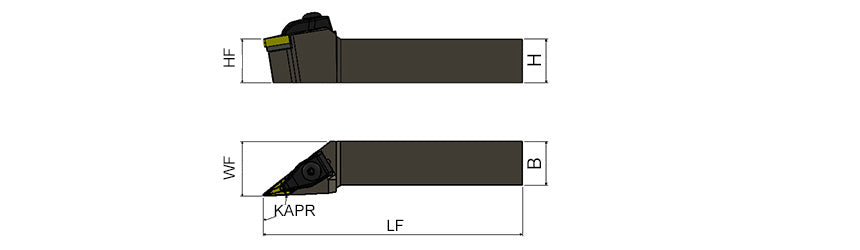

| AKKO code | Hand (R/L) | Shank Height (H, mm) | Shank Width (B, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) |
|---|---|---|---|---|---|
| TVJNL 2020 K16 | L | 20 | 20 | 125 | 25 |
| TVJNL 2525 M16 | L | 25 | 25 | 150 | 32 |
| TVJNL 3232 P16 | L | 32 | 32 | 170 | 40 |
| TVJNR 2020 K16 | R | 20 | 20 | 125 | 25 |
| TVJNR 2525 M16 | R | 25 | 25 | 150 | 32 |
| TVJNR 3232 P16 | R | 32 | 32 | 170 | 40 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
