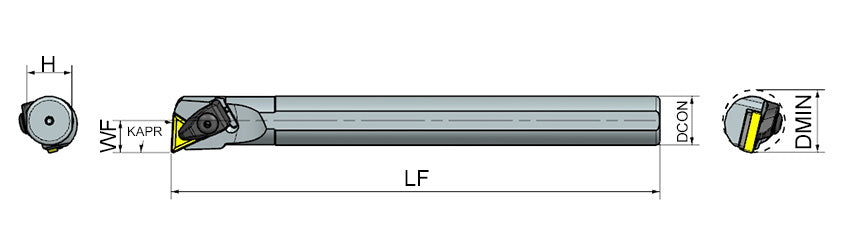

AKKO TTUNR/L T-System Boring Bar - dimension drawing
AKKO

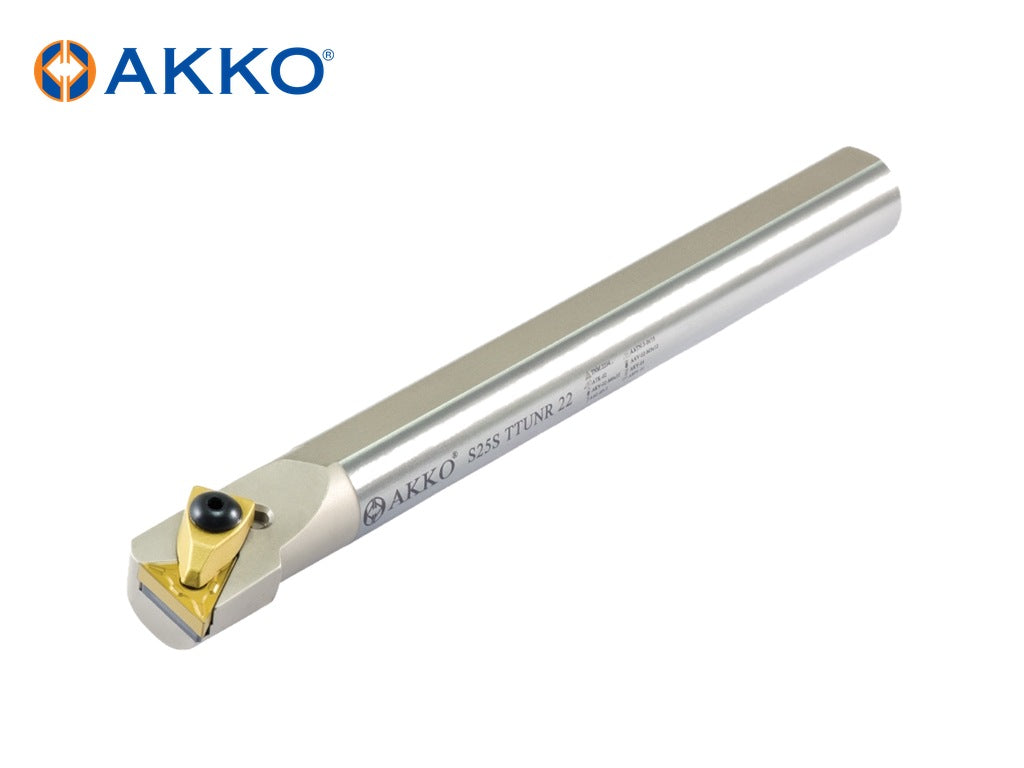

AKKO TTUNR/L T-System Boring Bar

Out of stock
SKU: S25S TTUNL 16
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedS25S TTUNL 16 SKUS25S TTUNL 16

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO TTUNR/L – T-System Boring Bar from the AKKO T-System Boring Bars range. Available in right-hand and left-hand versions. For inserts: TN.. 1604.., TN.. 2204.. 12 sizes listed below.

Specifications

  • Clamping Type: D-System
  • Coolant Through: No
  • Type Of Bar: Steel Body
  • Insert Style: TN..
  • Side Cutting Angle (KAPR): 93°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin) Insert Size
S25S TTUNL 16 L 25 250 17 ≥32 mm 1604..
S25S TTUNL 22 L 25 250 17 ≥32 mm 2204..
S25S TTUNR 16 R 25 250 17 ≥32 mm 1604..
S25S TTUNR 22 R 25 250 17 ≥32 mm 2204..
S32T TTUNL 16 L 32 300 22 ≥40 mm 1604..
S32T TTUNL 22 L 32 300 22 ≥40 mm 2204..
S32T TTUNR 16 R 32 300 22 ≥40 mm 1604..
S32T TTUNR 22 R 32 300 22 ≥40 mm 2204..
S40U TTUNL 22 L 40 350 27 ≥50 mm 2204..
S40U TTUNR 22 R 40 350 27 ≥50 mm 2204..
S50V TTUNL 22 L 50 400 35 ≥63 mm 2204..
S50V TTUNR 22 R 50 400 35 ≥63 mm 2204..

Spare parts (AKKO codes)

  • Allen Key: AAL-03-3
  • Stamp: ABPL-01
AKKO code Shim Shim Screw Clamp Clamp Screw Ring
S25S TTUNL 16 AATN-2-0002 AAV-03-M5X12 ATK-01 AKV-01-M5X22 –
S25S TTUNL 22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S25S TTUNR 16 AATN-2-0002 AAV-03-M5X12 ATK-01 AKV-01-M5X22 –
S25S TTUNR 22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S32T TTUNL 16 AATN-2-0002 AAV-03-M5X12 ATK-01 AKV-01-M5X22 –
S32T TTUNL 22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S32T TTUNR 16 AATN-2-0002 AAV-03-M5X12 ATK-01 AKV-01-M5X22 –
S32T TTUNR 22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S40U TTUNL 22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S40U TTUNR 22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S50V TTUNL 22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S50V TTUNR 22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
