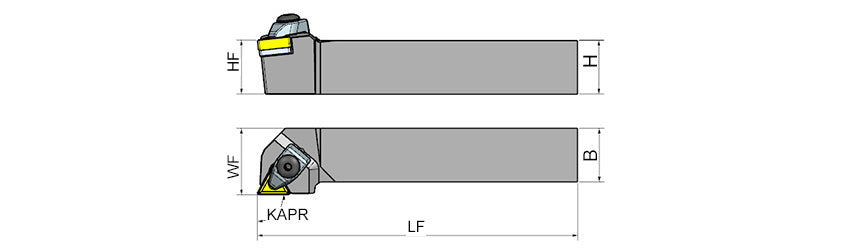

AKKO TTGNR/L T-System External Turning Toolholder - dimension drawing

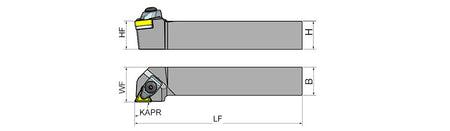

AKKO TTGNR/L T-System External Turning Toolholder - dimension drawing
AKKO

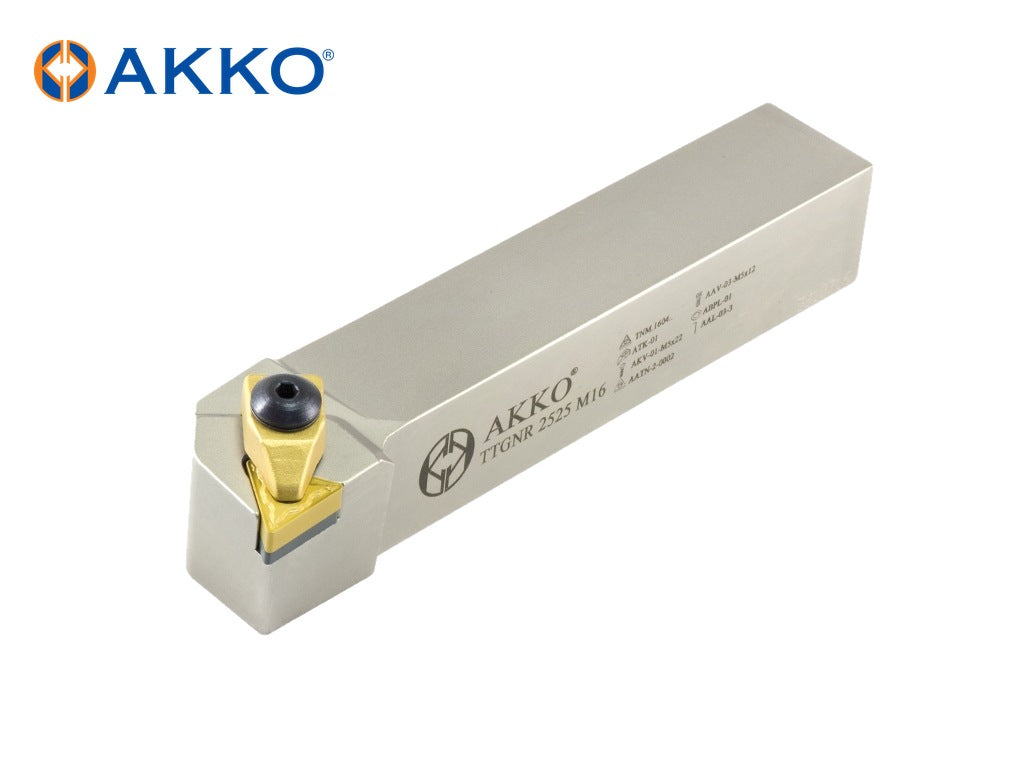

AKKO TTGNR/L T-System External Turning Toolholder

Out of stock
SKU: TTGNL 2020 K16
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTTGNL 2020 K16 SKUTTGNL 2020 K16

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO TTGNR/L – T-System External Turning Toolholder from the AKKO T-System External Turning Toolholders range. Available in right-hand and left-hand versions. For inserts: TN.. 16.., TN.. 22.. 12 sizes listed below.

Specifications

  • Clamping Type: T-System
  • Coolant Through: No
  • Side Cutting Angle (KAPR): 90°

Sizes and dimensions

AKKO code Hand (R/L) Shank Height (H, mm) Shank Width (B, mm) Functional Length (LF, mm) Functional Width (WF, mm) Insert (ISO)
TTGNL 2020 K16 L 20 20 125 25 TN.. 16..
TTGNL 2525 M16 L 25 25 150 32 TN.. 16..
TTGNL 2525 M22 L 25 25 150 32 TN.. 22..
TTGNL 3232 P16 L 32 32 170 40 TN.. 16..
TTGNL 3232 P22 L 32 32 170 40 TN.. 22..
TTGNL 4040 S22 L 40 40 250 50 TN.. 22..
TTGNR 2020 K16 R 20 20 125 25 TN.. 16..
TTGNR 2525 M16 R 25 25 150 32 TN.. 16..
TTGNR 2525 M22 R 25 25 150 32 TN.. 22..
TTGNR 3232 P16 R 32 32 170 40 TN.. 16..
TTGNR 3232 P22 R 32 32 170 40 TN.. 22..
TTGNR 4040 S22 R 40 40 250 50 TN.. 22..

Spare parts (AKKO codes)

  • Allen Key: AAL-03-3
  • Stamp: ABPL-01
AKKO code Shim Shim Screw Clamp Clamp Screw Ring
TTGNL 2020 K16 AATN-2-0002 AAV-03-M5X12 ATK-01 AKV-01-M5X22 –
TTGNL 2525 M16 AATN-2-0002 AAV-03-M5X12 ATK-01 AKV-01-M5X22 –
TTGNL 2525 M22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
TTGNL 3232 P16 AATN-2-0002 AAV-03-M5X12 ATK-01 AKV-01-M5X22 –
TTGNL 3232 P22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
TTGNL 4040 S22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
TTGNR 2020 K16 AATN-2-0002 AAV-03-M5X12 ATK-01 AKV-01-M5X22 –
TTGNR 2525 M16 AATN-2-0002 AAV-03-M5X12 ATK-01 AKV-01-M5X22 –
TTGNR 2525 M22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
TTGNR 3232 P16 AATN-2-0002 AAV-03-M5X12 ATK-01 AKV-01-M5X22 –
TTGNR 3232 P22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
TTGNR 4040 S22 AATN-3-0015 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
