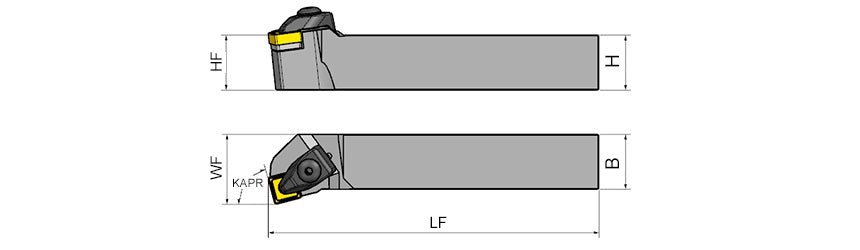

AKKO TSKNR/L T-System External Turning Toolholder - dimension drawing
AKKO TSKNR/L T-System External Turning Toolholder - dimension drawing
AKKO

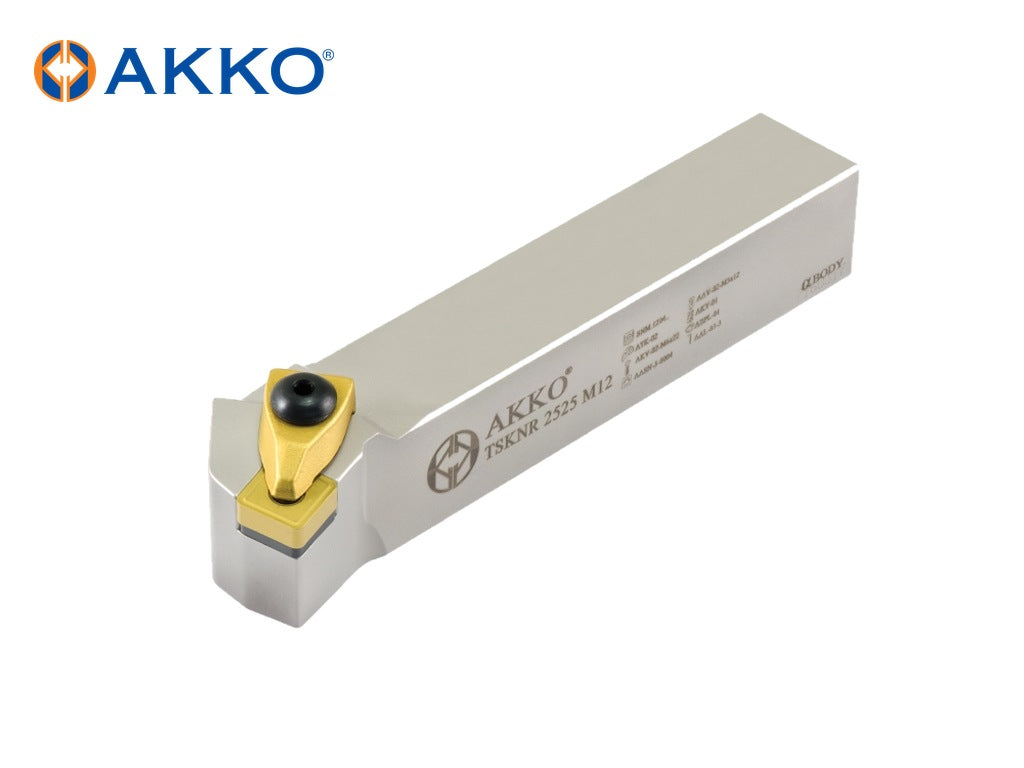

AKKO TSKNR/L T-System External Turning Toolholder

Out of stock
SKU: TSKNL 2020 K12
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTSKNL 2020 K12 SKUTSKNL 2020 K12

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO TSKNR/L – T-System External Turning Toolholder from the AKKO T-System External Turning Toolholders range. Available in right-hand and left-hand versions. For inserts: SN.. 12.., SN.. 15.. 8 sizes listed below.

Specifications

  • Clamping Type: T-System
  • Coolant Through: No
  • Side Cutting Angle (KAPR): 75°

Sizes and dimensions

AKKO code Hand (R/L) Shank Height (H, mm) Shank Width (B, mm) Functional Length (LF, mm) Functional Width (WF, mm) Insert (ISO)
TSKNL 2020 K12 L 20 20 125 25 SN.. 12..
TSKNL 2525 M12 L 25 25 150 32 SN.. 12..
TSKNL 3232 P12 L 32 32 170 40 SN.. 12..
TSKNL 3232 P15 L 32 32 170 40 SN.. 15..
TSKNR 2020 K12 R 20 20 125 25 SN.. 12..
TSKNR 2525 M12 R 25 25 150 32 SN.. 12..
TSKNR 3232 P12 R 32 32 170 40 SN.. 12..
TSKNR 3232 P15 R 32 32 170 40 SN.. 15..

Spare parts (AKKO codes)

AKKO code Shim Shim Screw Allen Key Clamp Clamp Screw Stamp Ring
TSKNL 2020 K12 AASN-3-0004 AAV-02-M5X12 AAL-03-3 ATK-02 AKV-30-M6X22 ABPL-01 AS-01
TSKNL 2525 M12 AASN-3-0004 AAV-02-M5X12 AAL-03-3 ATK-02 AKV-30-M6X22 ABPL-01 AS-01
TSKNL 3232 P12 AASN-3-0004 AAV-02-M5X12 AAL-03-3 ATK-02 AKV-30-M6X22 ABPL-01 AS-01
TSKNL 3232 P15 AASN-3-0023 AAV-05-M6X15 AAL-05-4 ATK-04 AKV-19-M7X25 ABPL-02 AS-02
TSKNR 2020 K12 AASN-3-0004 AAV-02-M5X12 AAL-03-3 ATK-02 AKV-30-M6X22 ABPL-01 AS-01
TSKNR 2525 M12 AASN-3-0004 AAV-02-M5X12 AAL-03-3 ATK-02 AKV-30-M6X22 ABPL-01 AS-01
TSKNR 3232 P12 AASN-3-0004 AAV-02-M5X12 AAL-03-3 ATK-02 AKV-30-M6X22 ABPL-01 AS-01
TSKNR 3232 P15 AASN-3-0023 AAV-05-M6X15 AAL-05-4 ATK-04 AKV-19-M7X25 ABPL-02 AS-02

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
