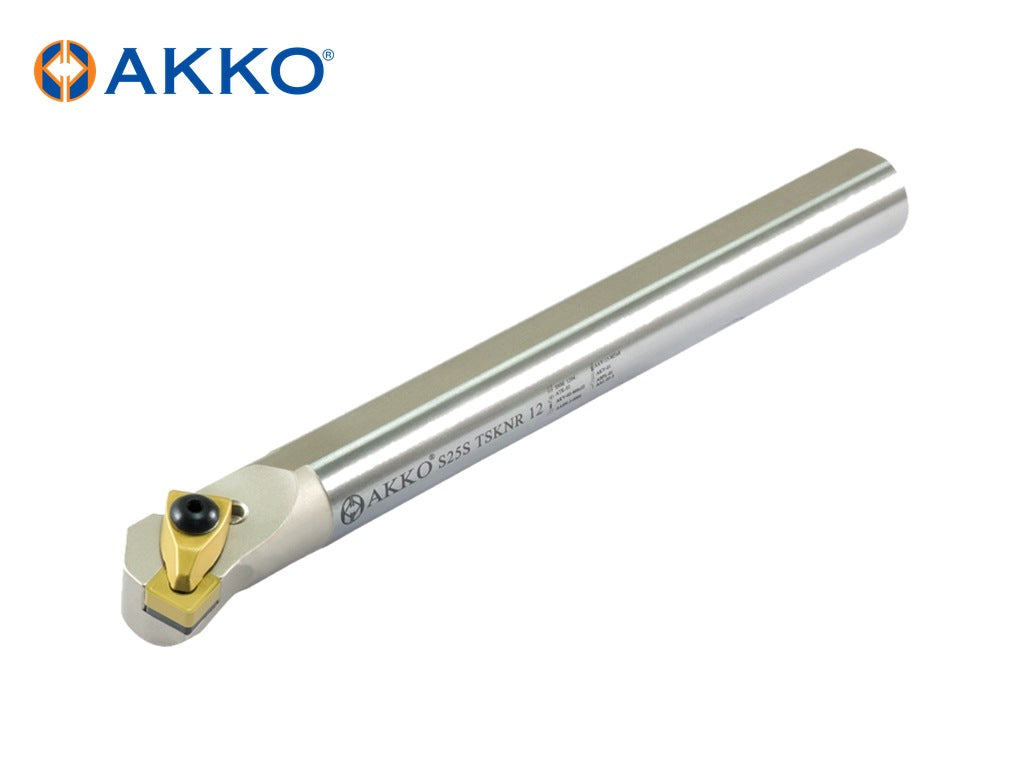

AKKO TSKNR/L – T-System Boring Bar from the AKKO T-System Boring Bars range. Available in right-hand and left-hand versions. For inserts: SN.. 1204.. 8 sizes listed below.

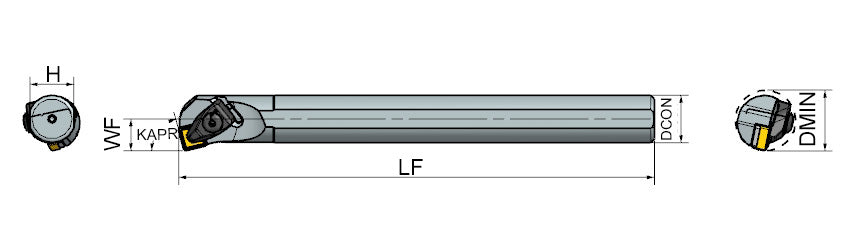

| AKKO code | Hand (R/L) | Connection Diameter (DCON, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Minimum Bore Diameter (Dmin) |
|---|---|---|---|---|---|
| S25S TSKNL 12 | L | 25 | 250 | 17 | ≥32 mm |
| S25S TSKNL 12-Z | L | 25 | 250 | 17 | ≥32 mm |
| S25S TSKNR 12 | R | 25 | 250 | 17 | ≥32 mm |
| S25S TSKNR 12-Z | R | 25 | 250 | 17 | ≥32 mm |
| S32T TSKNL 12 | L | 32 | 300 | 22 | ≥40 mm |
| S32T TSKNR 12 | R | 32 | 300 | 22 | ≥40 mm |
| S40U TSKNL 12 | L | 40 | 350 | 27 | ≥50 mm |
| S40U TSKNR 12 | R | 40 | 350 | 27 | ≥50 mm |
| AKKO code | Shim | Shim Screw | Ring | Clamp Spring |
|---|---|---|---|---|
| S25S TSKNL 12 | AASN-3-0004 | AAV-13-M5X8 | AS-01 | – |
| S25S TSKNL 12-Z | – | – | – | AKY-01 |
| S25S TSKNR 12 | AASN-3-0004 | AAV-13-M5X8 | AS-01 | – |
| S25S TSKNR 12-Z | – | – | – | AKY-01 |
| S32T TSKNL 12 | AASN-3-0004 | AAV-02-M5X12 | AS-01 | – |
| S32T TSKNR 12 | AASN-3-0004 | AAV-02-M5X12 | AS-01 | – |
| S40U TSKNL 12 | AASN-3-0004 | AAV-02-M5X12 | AS-01 | – |
| S40U TSKNR 12 | AASN-3-0004 | AAV-02-M5X12 | AS-01 | – |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
