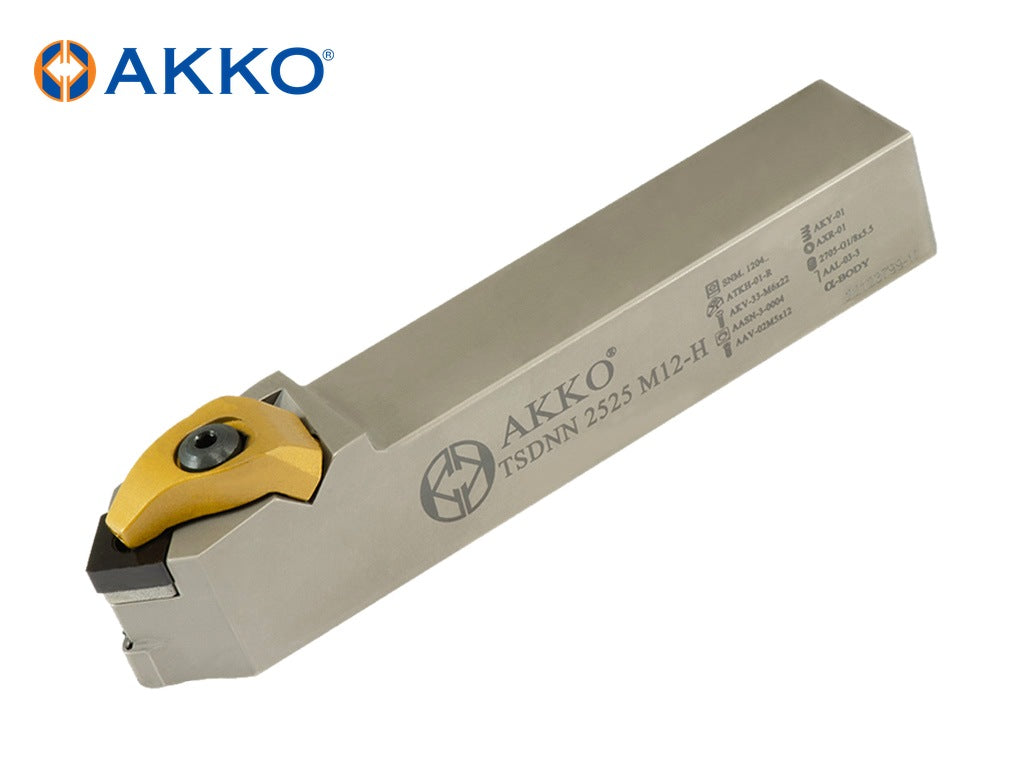

AKKO TSDNN-H – T-System External Turning Toolholder from the AKKO T-System External Turning Toolholders range. For inserts: SN.. 12.., SN.. 15.. 5 sizes listed below.

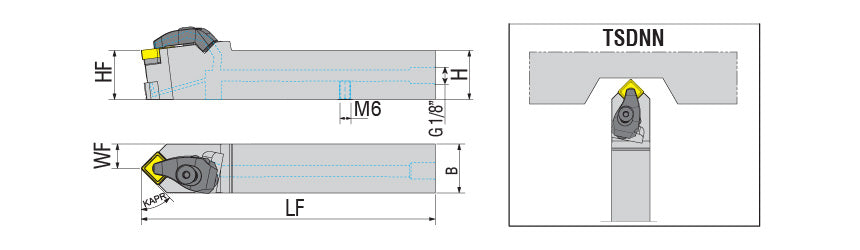

| AKKO code | Shank Height (H, mm) | Shank Width (B, mm) | Functional Length (LF, mm) | Functional Width (WF, mm) | Insert (ISO) |
|---|---|---|---|---|---|
| TSDNN 2525 M12-H | 25 | 25 | 150 | 25 | SN.. 12.. |
| TSDNN 2525 M15-H | 25 | 25 | 150 | 12.7 | SN.. 15.. |
| TSDNN 3232 P12-H | 32 | 32 | 170 | 16 | SN.. 12.. |
| TSDNN 3232 P15-H | 32 | 32 | 170 | 16 | SN.. 15.. |
| TSDNN 4040 S15-H | 40 | 40 | 250 | 20 | SN.. 15.. |
| AKKO code | Shim | Shim Screw | Allen Key | Clamp | Clamp Screw | Clamp Spring |
|---|---|---|---|---|---|---|
| TSDNN 2525 M12-H | AASN-3-0004 | AAV-02-M5X12 | AAL-03-3 | ATKH-01 | AKV-33-M6X22 | AKY-01 |
| TSDNN 2525 M15-H | AASN-3-0023 | AAV-05-M6X10 | AAL-05-4 | ATKH-07 | AKV-39-M7x21 | AKY-02 |
| TSDNN 3232 P12-H | AASN-3-0004 | AAV-02-M5X12 | AAL-03-3 | ATKH-01 | AKV-33-M6X22 | AKY-01 |
| TSDNN 3232 P15-H | AASN-3-0023 | AAV-05-M6X10 | AAL-05-4 | ATKH-07 | AKV-39-M7x21 | AKY-02 |
| TSDNN 4040 S15-H | AASN-3-0023 | AAV-05-M6X10 | AAL-05-4 | ATKH-07 | AKV-39-M7x21 | AKY-02 |
Spare parts and keys can be ordered separately: ask us with the AKKO code.
