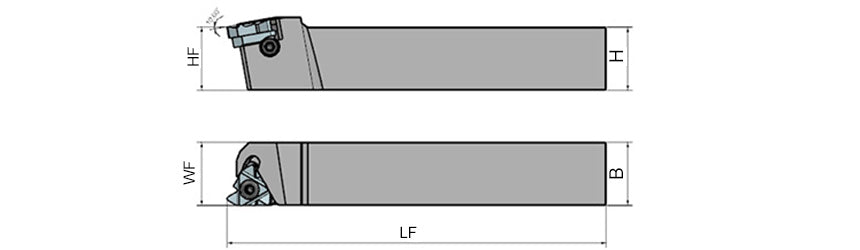

AKKO TER/L External Threading Toolholder - dimension drawing
AKKO TER/L External Threading Toolholder - dimension drawing
AKKO

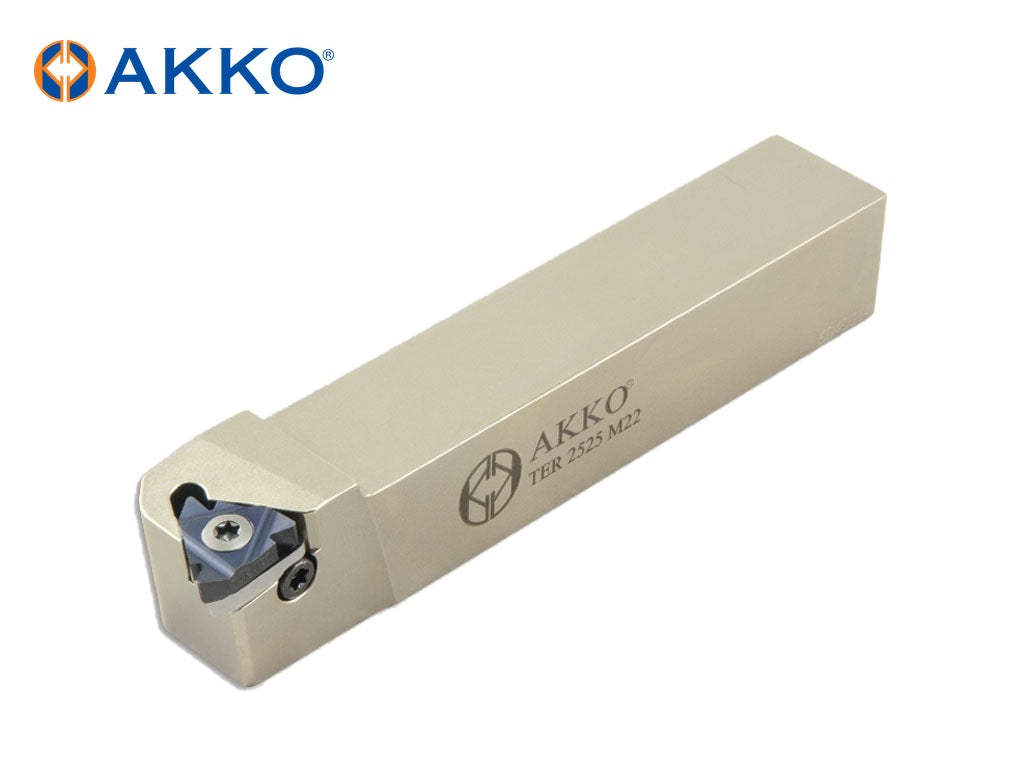

AKKO TER/L External Threading Toolholder

Out of stock
SKU: TEL 1616 H16
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedTEL 1616 H16 SKUTEL 1616 H16

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO TER/L – External Threading Toolholder from the AKKO External Threading Toolholders range. Available in right-hand and left-hand versions. 20 sizes listed below.

Specifications

  • Tool Type: External

Sizes and dimensions

AKKO code Hand (R/L) Shank Height (H, mm) Shank Width (B, mm) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Insert Inscribed Circle IC (mm)
TEL 1616 H16 L 16 16 20 100 16 9.525
TEL 2020 K16 L 20 20 25 125 20 9.525
TEL 2525 M16 L 25 25 32 150 25 9.525
TEL 2525 M22 L 25 25 40 150 25 12.7
TEL 2525 M27 L 25 25 25 150 25 15.875
TEL 3232 P16 L 32 32 25 170 32 9.525
TEL 3232 P22 L 32 32 32 170 32 12.7
TEL 3232 P27 L 32 32 32 170 32 15.875
TEL 4040 S22 L 40 40 32 250 40 12.7
TEL 4040 S27 L 40 40 40 250 40 15.875
TER 1616 H16 R 16 16 40 100 16 9.525
TER 2020 K16 R 20 20 40 125 20 9.525
TER 2525 M16 R 25 25 50 150 25 9.525
TER 2525 M22 R 25 25 50 150 25 12.7
TER 2525 M27 R 25 25 50 150 25 15.875
TER 3232 P16 R 32 32 20 170 32 9.525
TER 3232 P22 R 32 32 25 170 32 12.7
TER 3232 P27 R 32 32 32 170 32 15.875
TER 4040 S22 R 40 40 40 250 40 12.7
TER 4040 S27 R 40 40 25 250 40 15.875

Spare parts (AKKO codes)

AKKO code Shim Shim Screw Stamp Torx Key Torx Screw
TEL 1616 H16 ATS-16I AAV-11-U5-40X4.5 ABPL-03 82-T10 1710-U5-40X12.2
TEL 2020 K16 ATS-16I AAV-11-U5-40X4.5 ABPL-03 82-T10 1710-U5-40X12.2
TEL 2525 M16 ATS-16I AAV-11-U5-40X4.5 ABPL-03 82-T10 1710-U5-40X12.2
TEL 2525 M22 ATS-22I AAV-12-U8-32x5.5 ABPL-04 80-T20 1720-U8-32x15
TEL 2525 M27 ATS-27I AAV-15-M5x5.7 ABPL-05 80-T20 1620-M5X22
TEL 3232 P16 ATS-16I AAV-11-U5-40X4.5 ABPL-03 82-T10 1710-U5-40X12.2
TEL 3232 P22 ATS-22I AAV-12-U8-32x5.5 ABPL-04 80-T20 1720-U8-32x15
TEL 3232 P27 ATS-27E AAV-15-M5x5.7 ABPL-05 80-T20 1620-M5X22
TEL 4040 S22 ATS-22I AAV-12-U8-32x5.5 ABPL-04 80-T20 1720-U8-32x15
TEL 4040 S27 ATS-27I AAV-15-M5x5.7 ABPL-05 80-T20 1620-M5X22
TER 1616 H16 ATS-16E AAV-11-U5-40X4.5 ABPL-03 82-T10 1710-U5-40X12.2
TER 2020 K16 ATS-16E AAV-11-U5-40X4.5 ABPL-03 82-T10 1710-U5-40X12.2
TER 2525 M16 ATS-16E AAV-11-U5-40X4.5 ABPL-03 82-T10 1710-U5-40X12.2
TER 2525 M22 ATS-22E AAV-12-U8-32x5.5 ABPL-04 80-T20 1720-U8-32x15
TER 2525 M27 ATS-27E AAV-15-M5x5.7 ABPL-05 80-T20 1620-M5X22
TER 3232 P16 ATS-16E AAV-11-U5-40X4.5 ABPL-03 82-T10 1710-U5-40X12.2
TER 3232 P22 ATS-22E AAV-12-U8-32x5.5 ABPL-04 80-T20 1720-U8-32x15
TER 3232 P27 ATS-27E AAV-15-M5x5.7 ABPL-05 80-T20 1620-M5X22
TER 4040 S22 ATS-22E AAV-12-U8-32x5.5 ABPL-04 80-T20 1720-U8-32x15
TER 4040 S27 ATS-27E AAV-15-M5x5.7 ABPL-05 80-T20 1620-M5X22

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
