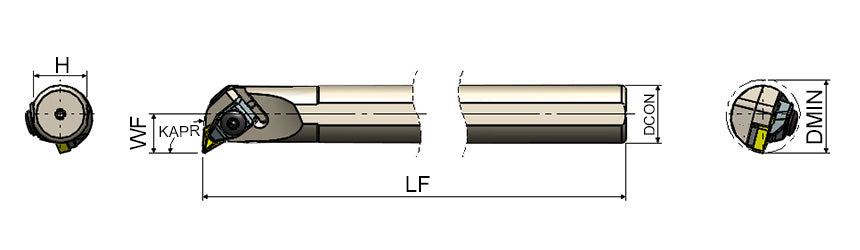

AKKO TDUNR/L T-System Boring Bar - dimension drawing
AKKO TDUNR/L T-System Boring Bar - dimension drawing
AKKO

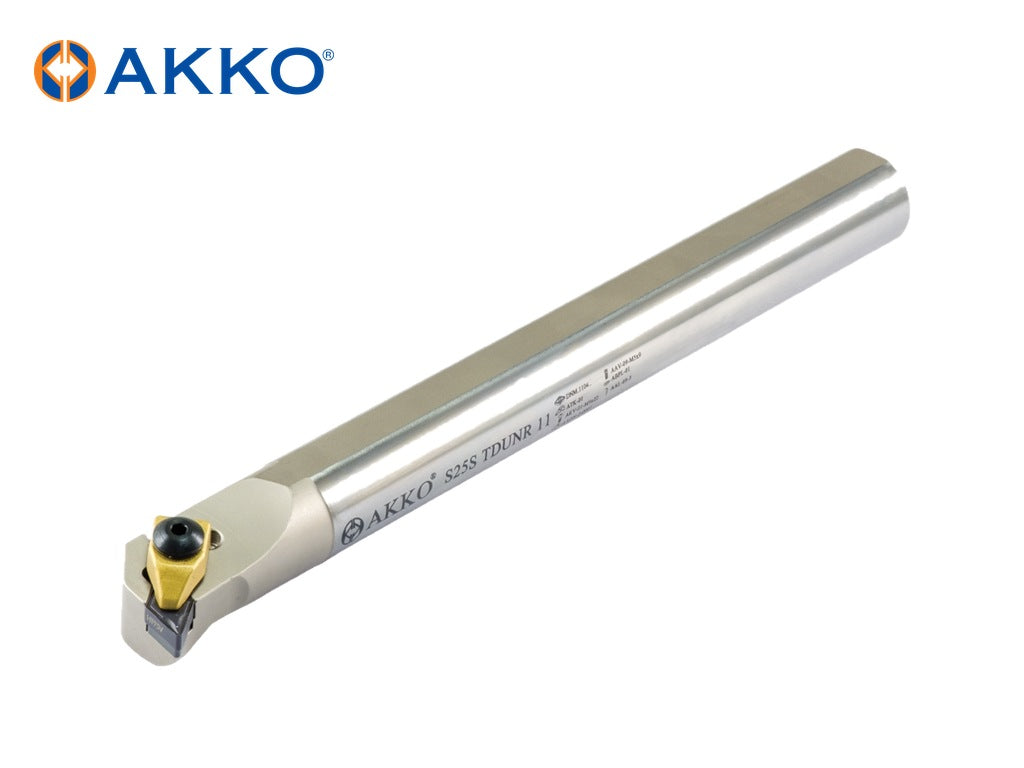

AKKO TDUNR/L T-System Boring Bar

Out of stock
SKU: A40T TDUNL 15
Price on request
Price on request

This tool is part of the LATHELAND full range and is supplied on quotation. Choose the size above, enter the quantity and send the form. We reply with price and delivery time, usually within one working day.

SelectedA40T TDUNL 15 SKUA40T TDUNL 15

Prefer email? info@latheland.com · Contact us

Need a special tool design? Speak to us. Special diameters, lengths, corner radii, profiles or step tools – send a drawing or a sketch and we will design and quote it.

Questions about this product, a larger quantity or a shipping quote? Contact us.

AKKO TDUNR/L – T-System Boring Bar from the AKKO T-System Boring Bars range. Available in right-hand and left-hand versions. For inserts: DN.. 1104.., DN.. 1506.. 16 sizes listed below.

Specifications

  • Clamping Type: D-System
  • Type Of Bar: Steel Body
  • Insert Style: DN..
  • Side Cutting Angle (KAPR): 93°

Sizes and dimensions

AKKO code Hand (R/L) Connection Diameter (DCON, mm) Functional Length (LF, mm) Functional Width (WF, mm) Minimum Bore Diameter (Dmin) Coolant Through Insert Size
A40T TDUNL 15 L 40 300 27 ≥50 mm Yes 1506..
A40T TDUNR 15 R 40 300 27 ≥50 mm Yes 1506..
S25S TDUNL 11 L 25 250 17 ≥32 mm No 1104..
S25S TDUNL 11-Z L 25 250 17 ≥32 mm No 1104..
S25S TDUNL 15 L 25 250 17 ≥34 mm No 1506..
S25S TDUNR 11 R 25 250 17 ≥32 mm No 1104..
S25S TDUNR 11-Z R 25 250 17 ≥32 mm No 1104..
S25S TDUNR 15 R 25 250 17 ≥34 mm No 1506..
S32T TDUNL 11 L 32 300 22 ≥40 mm No 1104..
S32T TDUNL 15 L 32 300 22 ≥40 mm No 1506..
S32T TDUNR 11 R 32 300 22 ≥40 mm No 1104..
S32T TDUNR 15 R 32 300 22 ≥40 mm No 1506..
S40U TDUNL 15 L 40 350 27 ≥50 mm No 1506..
S40U TDUNR 15 R 40 350 27 ≥50 mm No 1506..
S50V TDUNL 15 L 50 400 35 ≥63 mm No 1506..
S50V TDUNR 15 R 50 400 35 ≥63 mm No 1506..

Spare parts (AKKO codes)

  • Allen Key: AAL-03-3
  • Stamp: ABPL-01
AKKO code Shim Shim Screw Clamp Clamp Screw Ring
A40T TDUNL 15 AADN-3-0001 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
A40T TDUNR 15 AADN-3-0001 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S25S TDUNL 11 AADN-2-0001 AAV-09-M5X9 ATK-01 AKV-01-M5X22 –
S25S TDUNL 11-Z – – ATK-01 AKV-01-M5X22 –
S25S TDUNL 15 AADN-3-0001 AAV-13-M5X8 ATK-02 AKV-30-M6X22 AS-01
S25S TDUNR 11 AADN-2-0001 AAV-09-M5X9 ATK-01 AKV-01-M5X22 –
S25S TDUNR 11-Z – – ATK-01 AKV-01-M5X22 –
S25S TDUNR 15 AADN-3-0001 AAV-13-M5X8 ATK-02 AKV-30-M6X22 AS-01
S32T TDUNL 11 AADN-2-0001 AAV-04-M5x12 ATK-01 AKV-01-M5X22 –
S32T TDUNL 15 AADN-3-0001 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S32T TDUNR 11 AADN-2-0001 AAV-04-M5x12 ATK-01 AKV-01-M5X22 –
S32T TDUNR 15 AADN-3-0001 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S40U TDUNL 15 AADN-3-0001 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S40U TDUNR 15 AADN-3-0001 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S50V TDUNL 15 AADN-3-0001 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01
S50V TDUNR 15 AADN-3-0001 AAV-02-M5X12 ATK-02 AKV-30-M6X22 AS-01

Spare parts and keys can be ordered separately: ask us with the AKKO code.

Ordering and delivery

  • Genuine AKKO tooling, made by AKKO in Konya, Türkiye.
  • Inserts are sold separately unless stated.
  • Supplied on quotation: choose the AKKO code and request a quote; we confirm price and lead time.
  • Worldwide delivery by DHL or UPS.
